The California Air Tools EZ-1 Automatic Drain Valve (220v 60hz 1-phase) has been designed to eliminate manually draining air compressor air tanks.
The manually set timer allows you to set the time for both the frequency and duration of the draining process.
The easily installed and removed this forge brass drain valve is durable and built for industrial use.
- Timer Manual TEST switch
- Valve Body- Forged brass
- Bright lights for clearer indication of operating status.
- In/Out Ports – 1/4″ NPT Female
- For use with 220 volt electrical outlets
- Product: 3.5″ (D) x 4.5″ (H) x 1.5″ (W) – 1.5 lbs
- Max. Working Pressure – 230 PSI

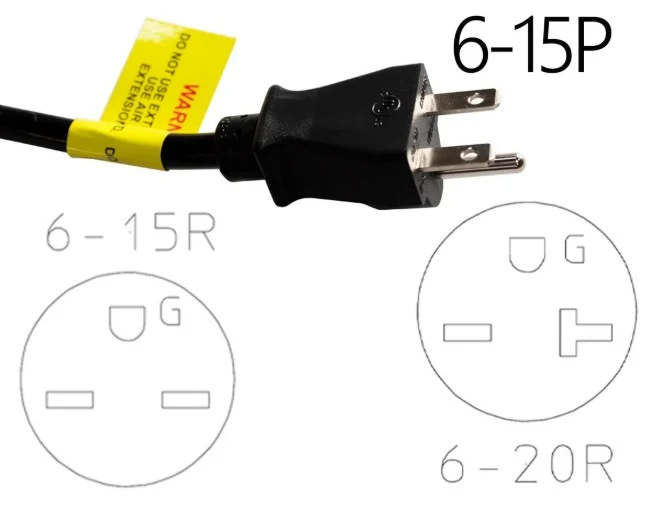

- POWER CORD with NEMA 6-15P PLUG
California Air Tools Automatic Drain Valves are designed to eliminate the manually draining of an air compressor air tank daily.
These Automatic Drain Valves are manually programmed to automatically drain the air compressor air tank to the set time and interval desired.
Automatically draining the air compressor air tank offers many benefits.
1. No time required to drain the air tank.
2. Automatically removes the water from the air tank when desired.
3. Removes water from the tank for better air compression in the air tank
4. Helps prevent the air tank from rusting.
5. Prolongs the life of the air tank.
6. Prevents water from traveling to the air compressor pump/motor.
7. Helps remove moisture from entering the air line.
8. Prevents water damage and wear of air tool
*THIS IS A REPLACEMENT PART FOR A 220 VOLT AUTOMATIC DRAIN VALVE*

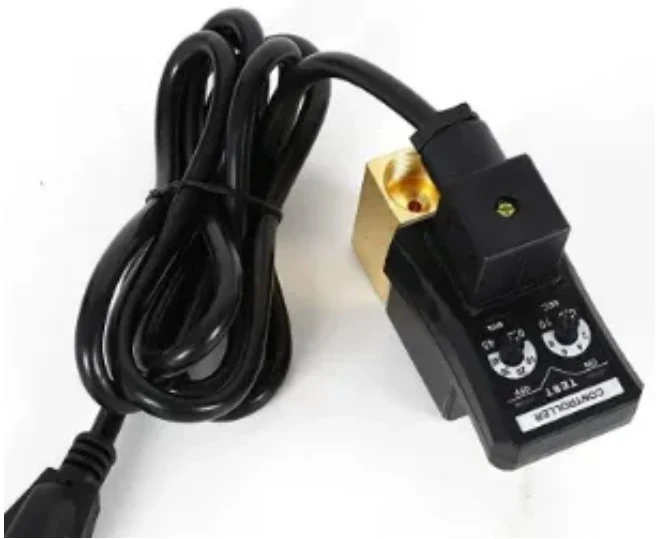

220V AUTO DRAIN VALVE WITH POWER CORD and NEMA 6-15P PLUG
Part Number: EZ-2301-PC
