70 dB Noise Level
220v 60hz 1-phase
2.0 HP (Rated/Running)
10 Gallon Steel Horizontal Air Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI

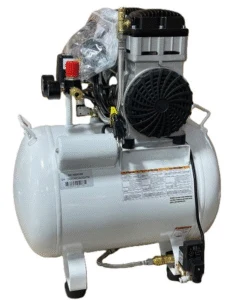

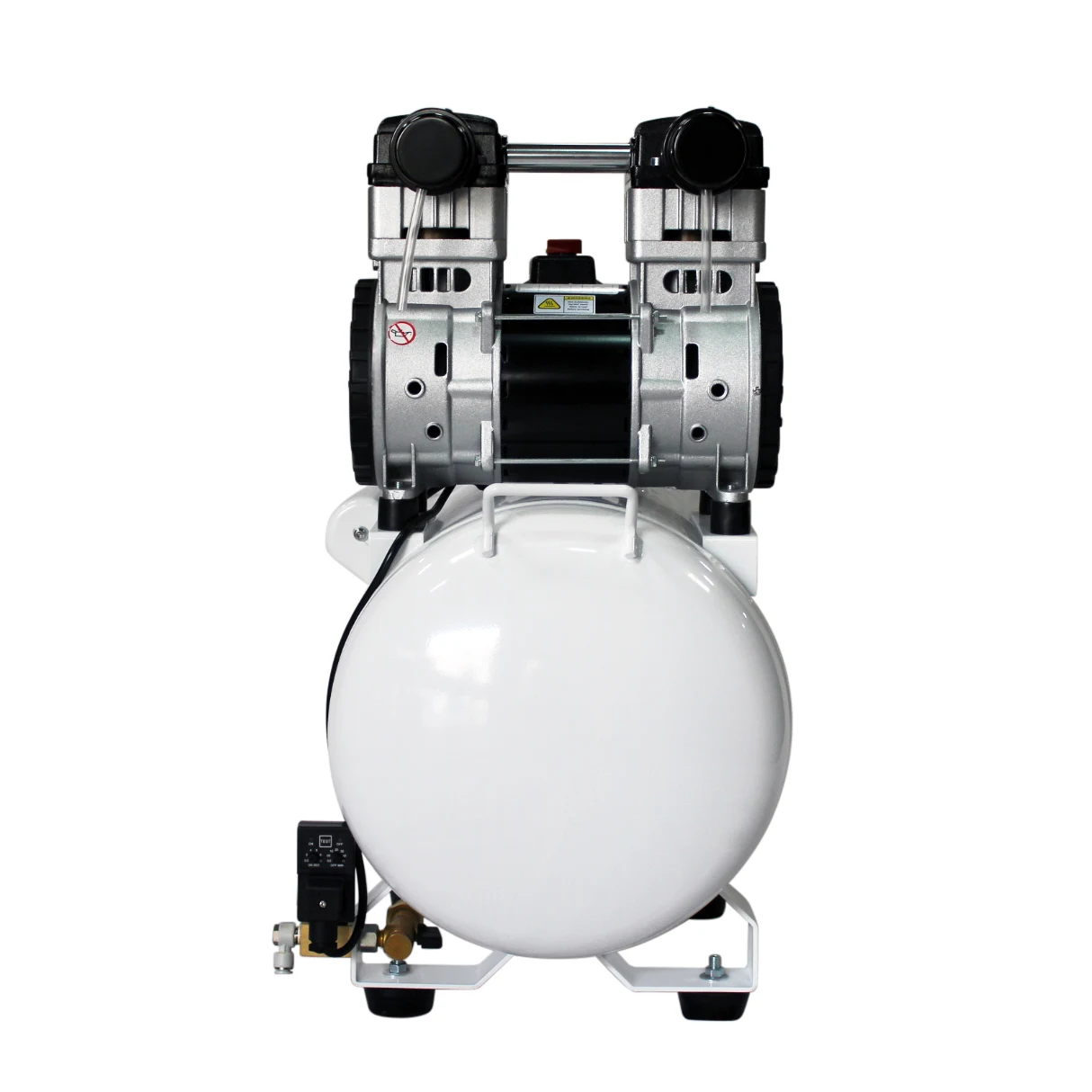

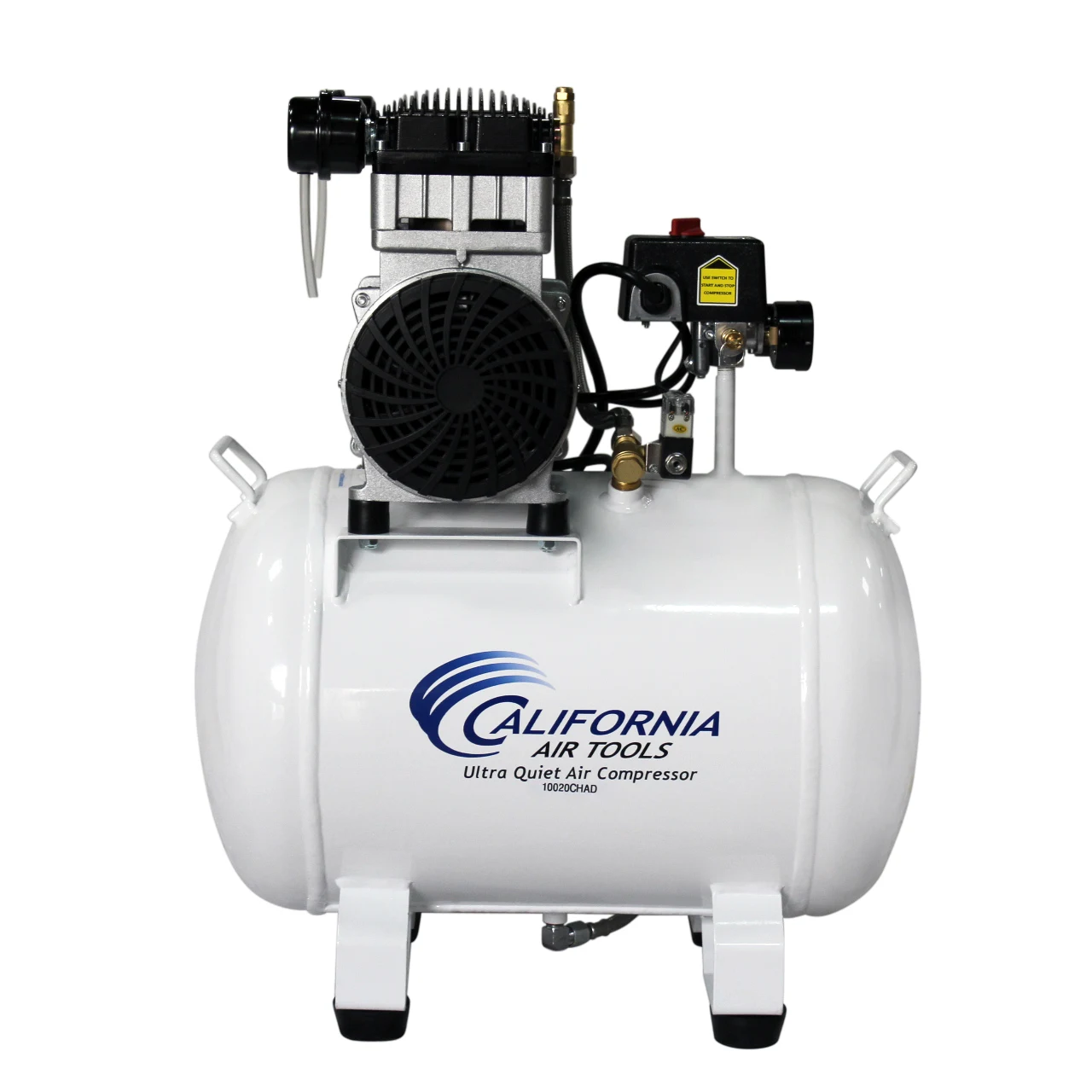

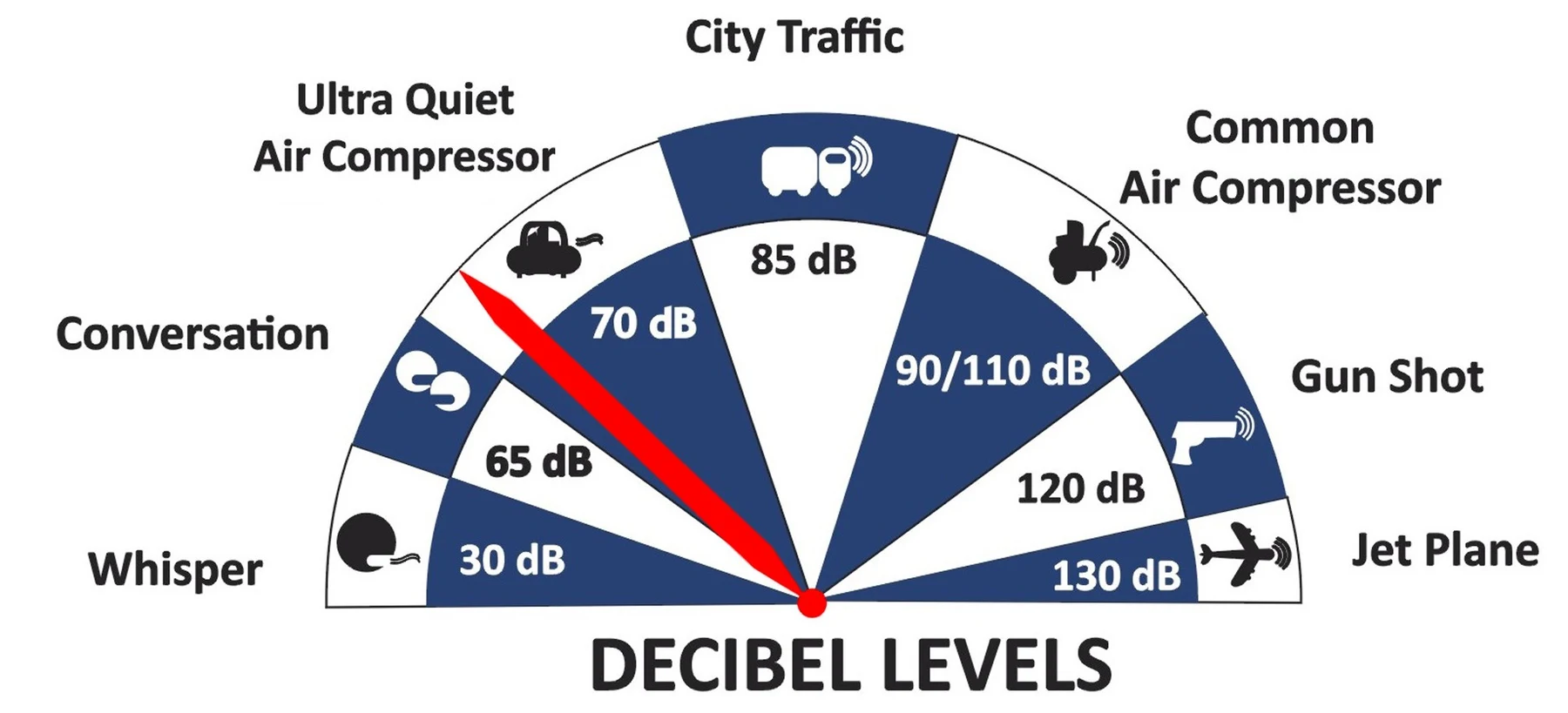

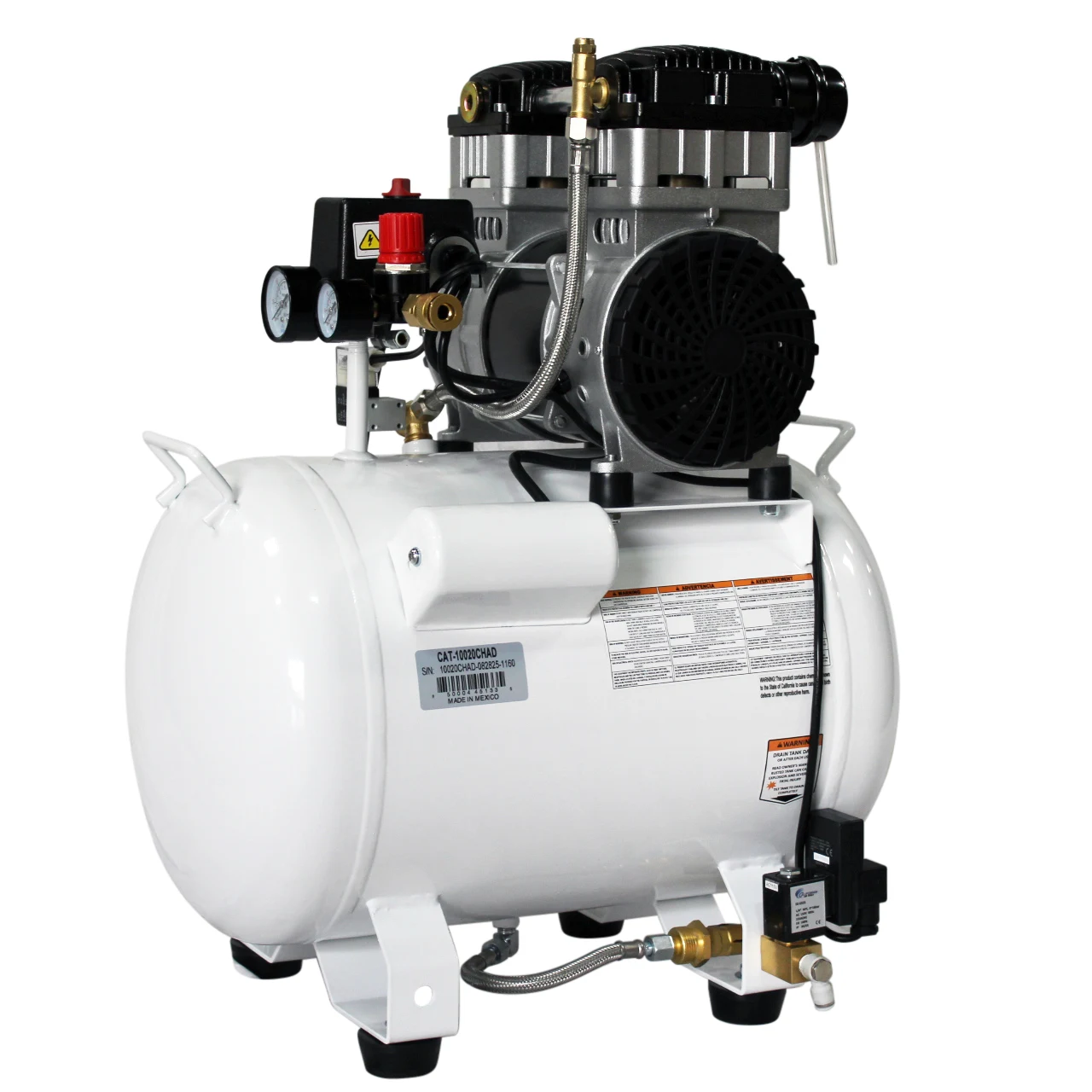

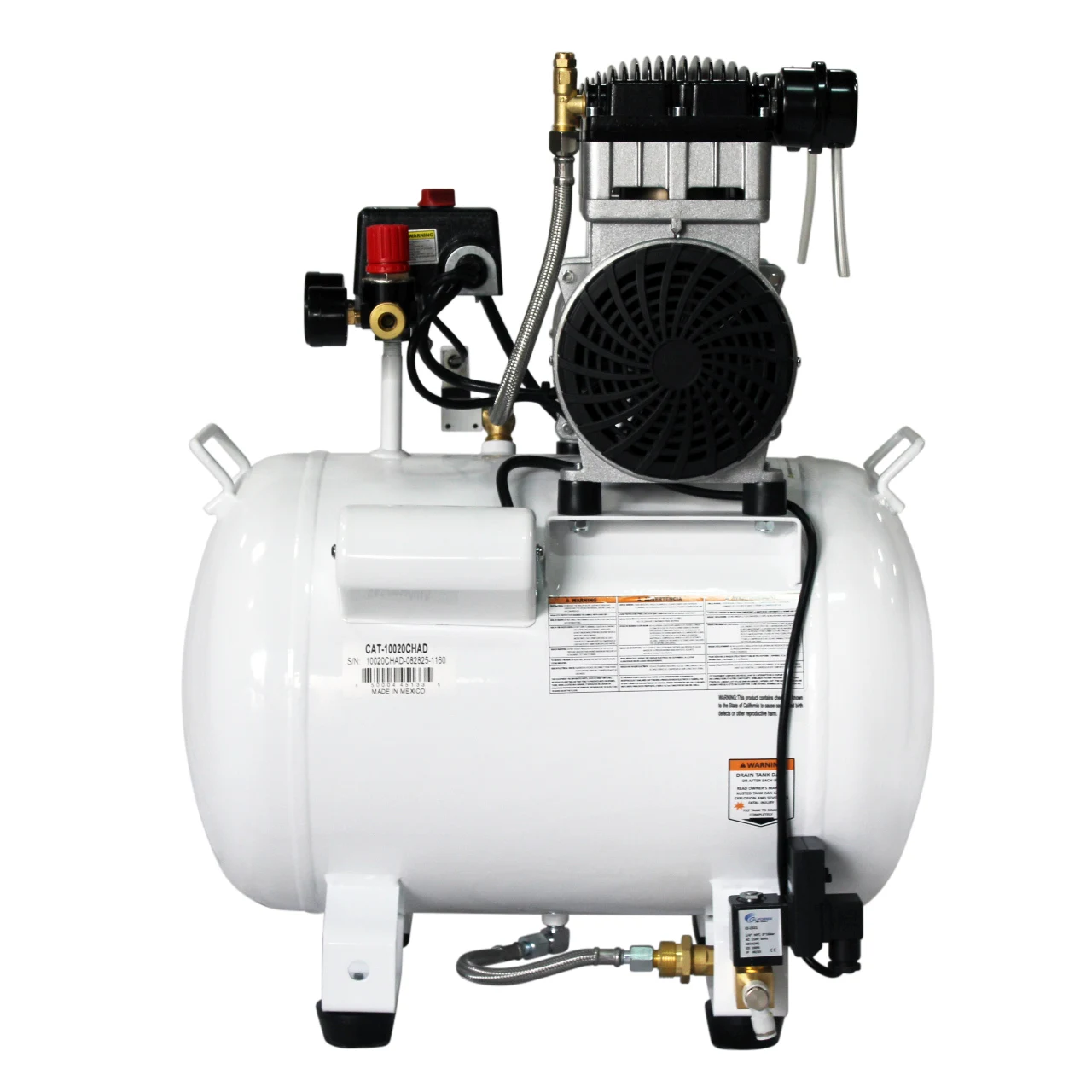

The CALIFORNIA AIR TOOLS 10020CHAD-22060 Ultra Quiet & Oil-Free 10-Gallon Air Compressor (220 volts, 60hz, 1-phase) is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
The Powerful 2.0 Hp 220 volt motor operates at only 1680 RPM creating less noise and less wear.

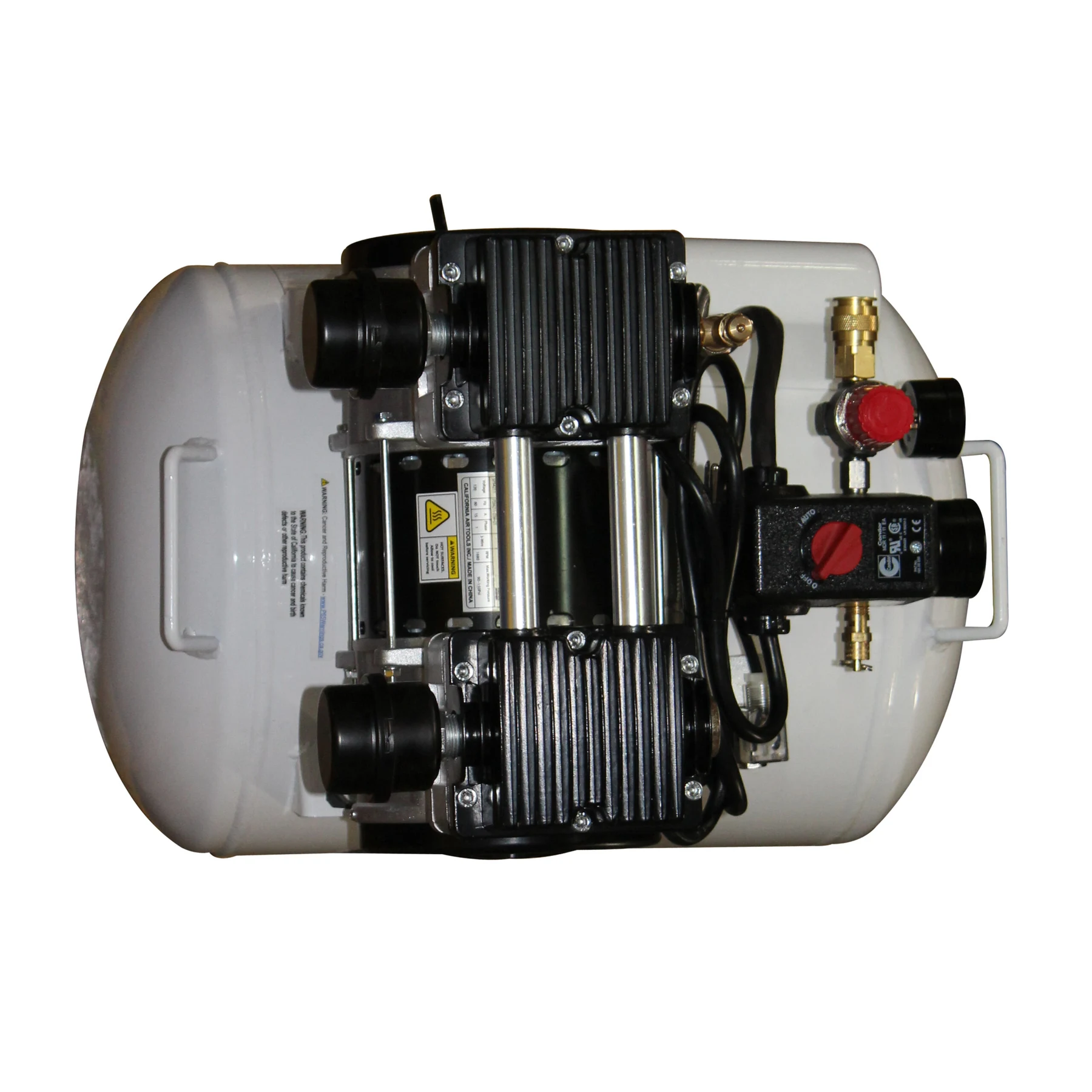

The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-10020CHAD-22060 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

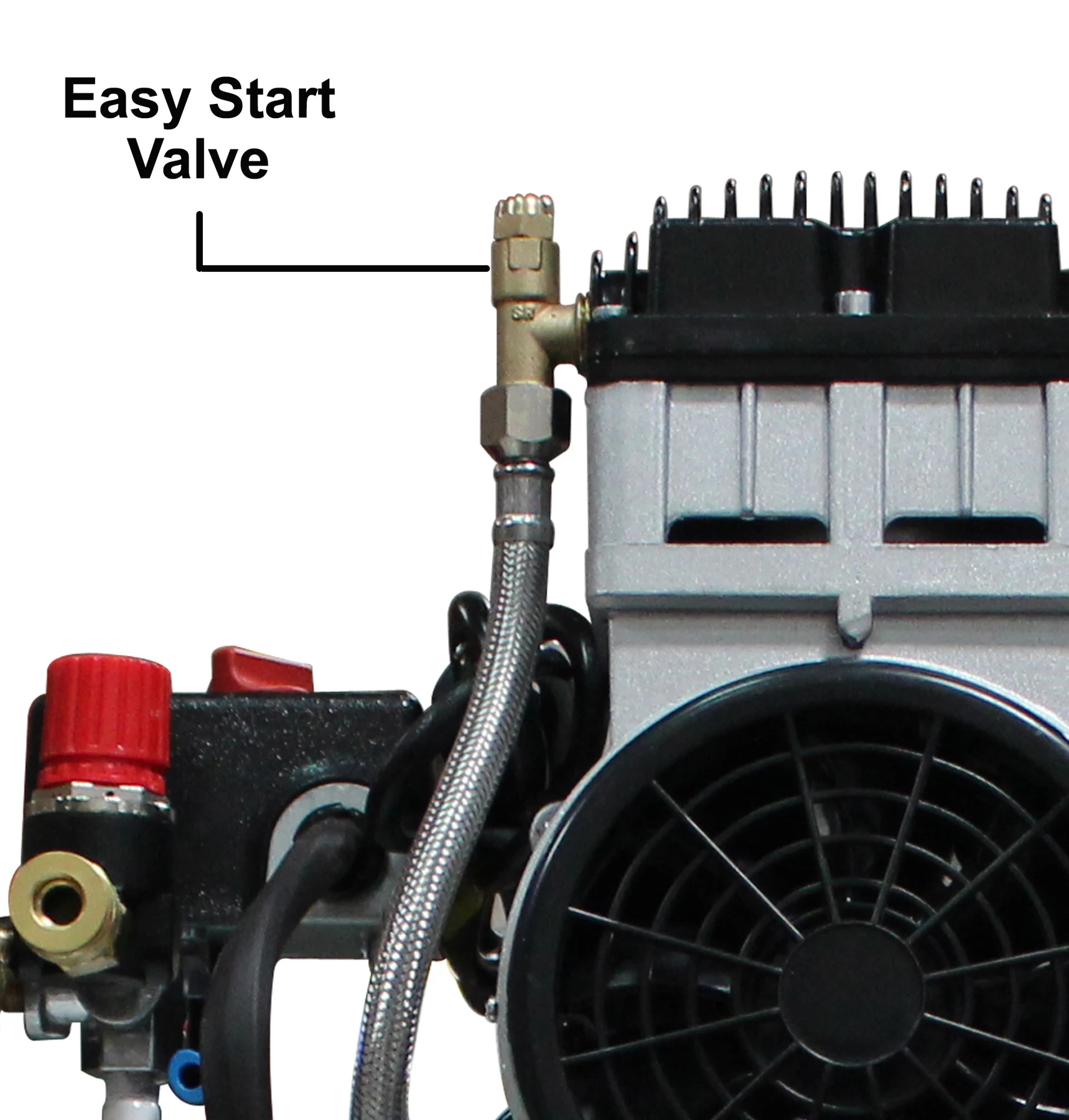

The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
The large low profile 10 Gallon Steel Horizontal Air Tank makes storing under a bench, desk or shelf very easy.

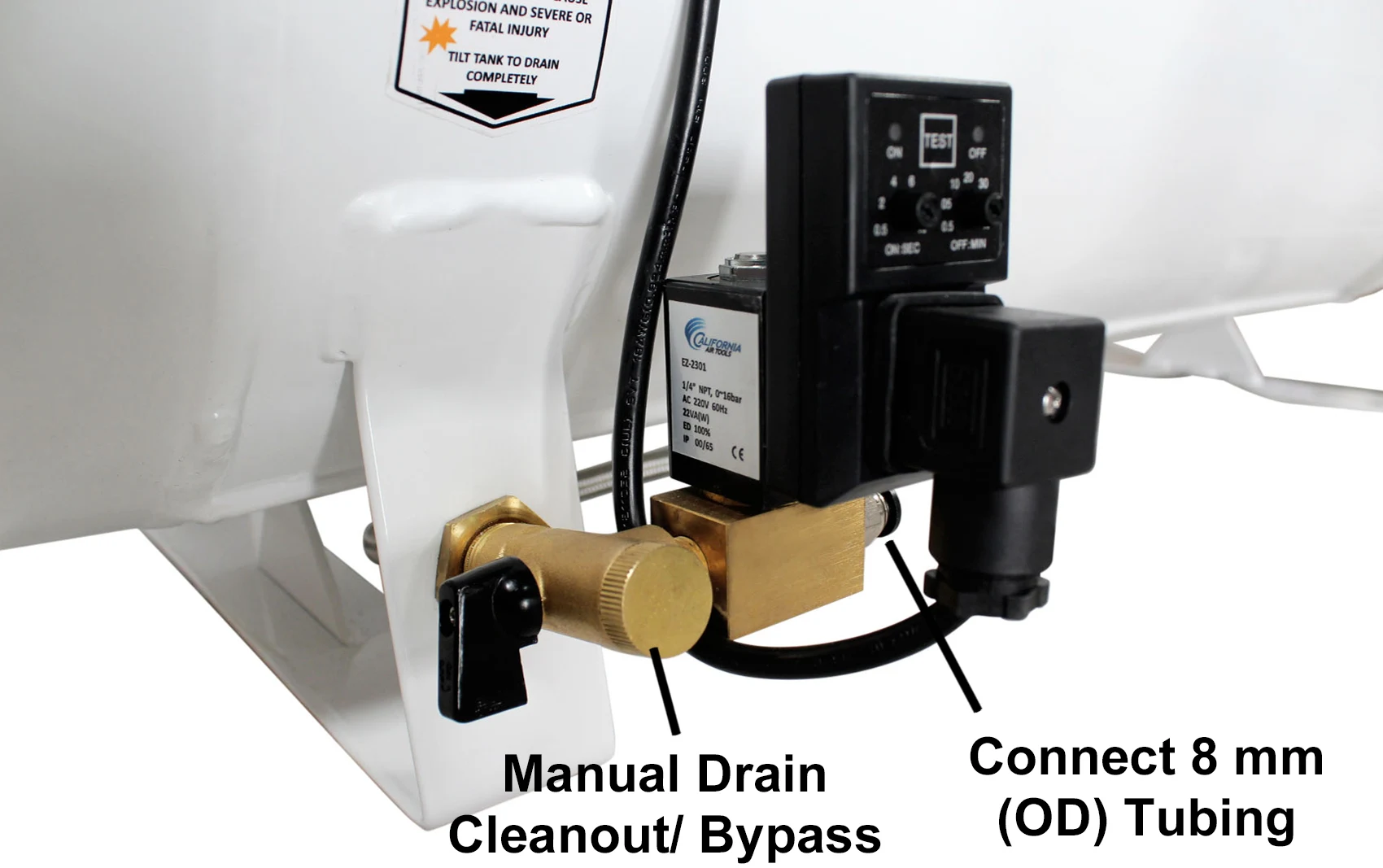

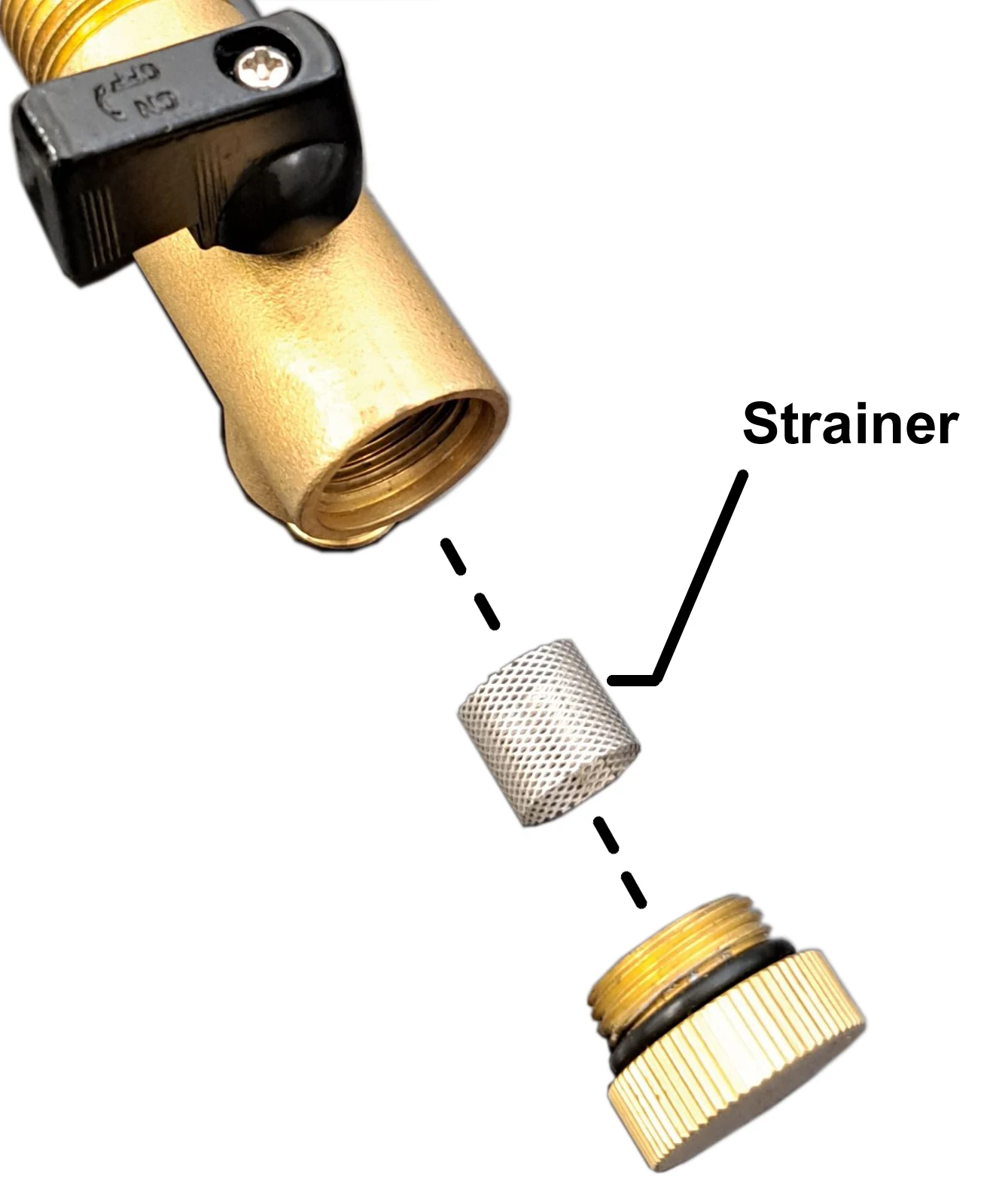

The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. The Auto Drain Assembly includes a Manual Drain with Strainer (which allows for easy maintenance/cleaning vs. standard Auto Drain models). This model is ideal for placement into locations where weekly/monthly maintenance is infrequent or difficult to perform.

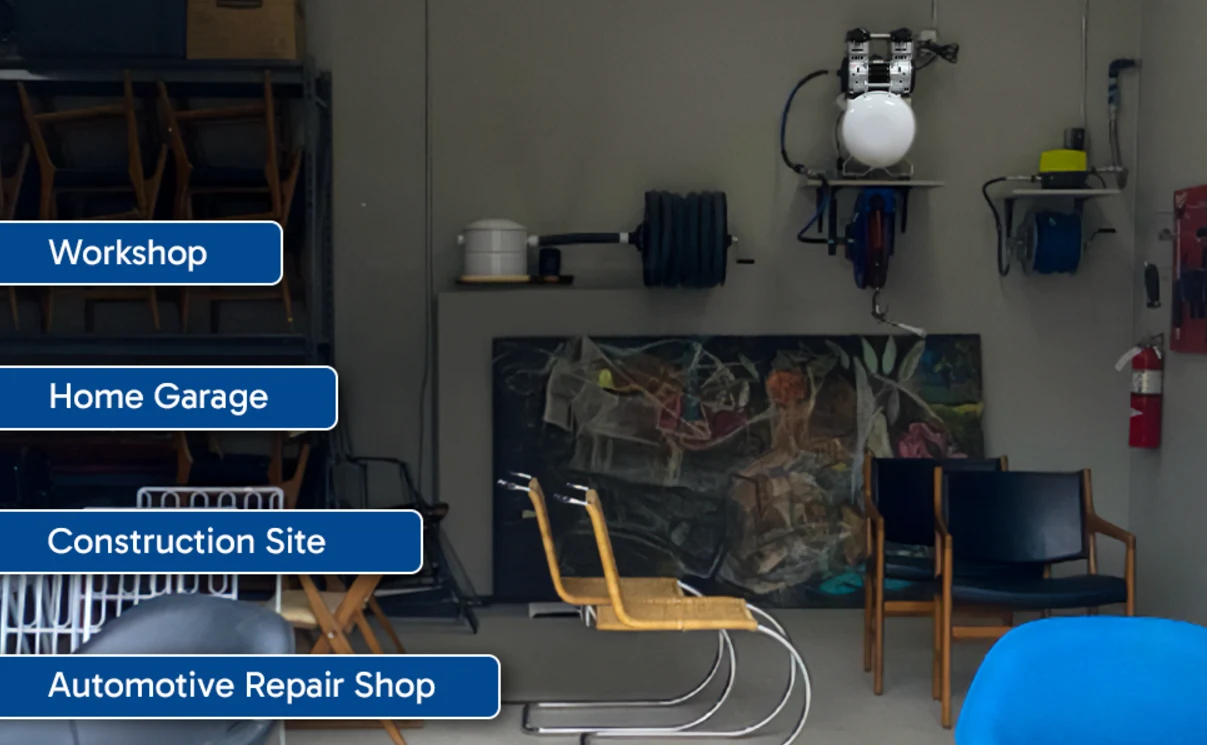

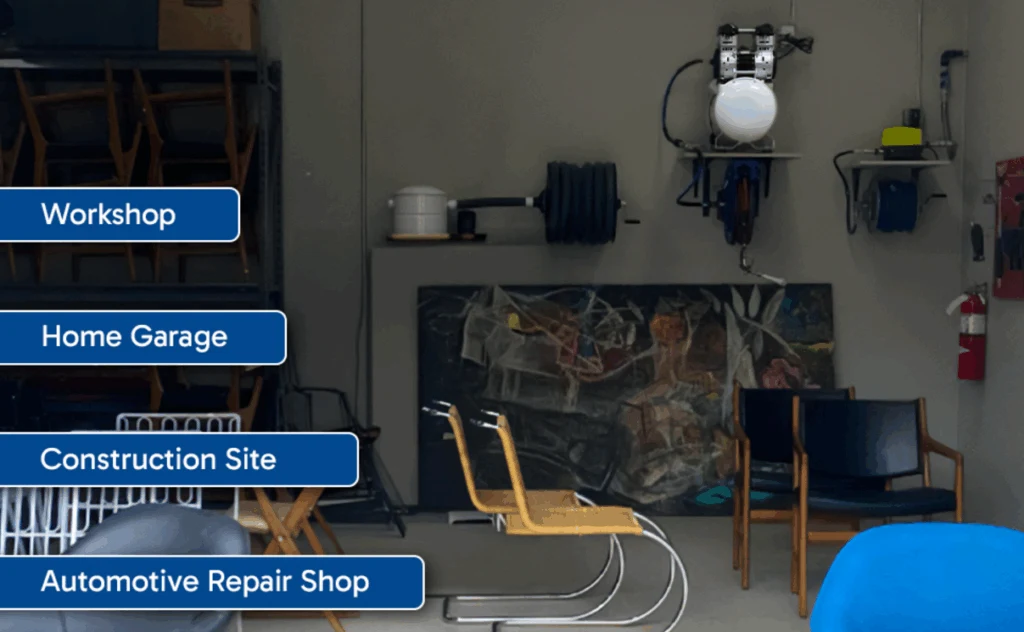

The 10020CHAD-22060 model is ideal for placement on or under a shelf. The automatic drain valve supports required maintenance by
removing water from the air tank on a regular basis.
The 10020CHAD-22060 is designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
SUPPORT VIDEO – Auto Drain Feature and Function.

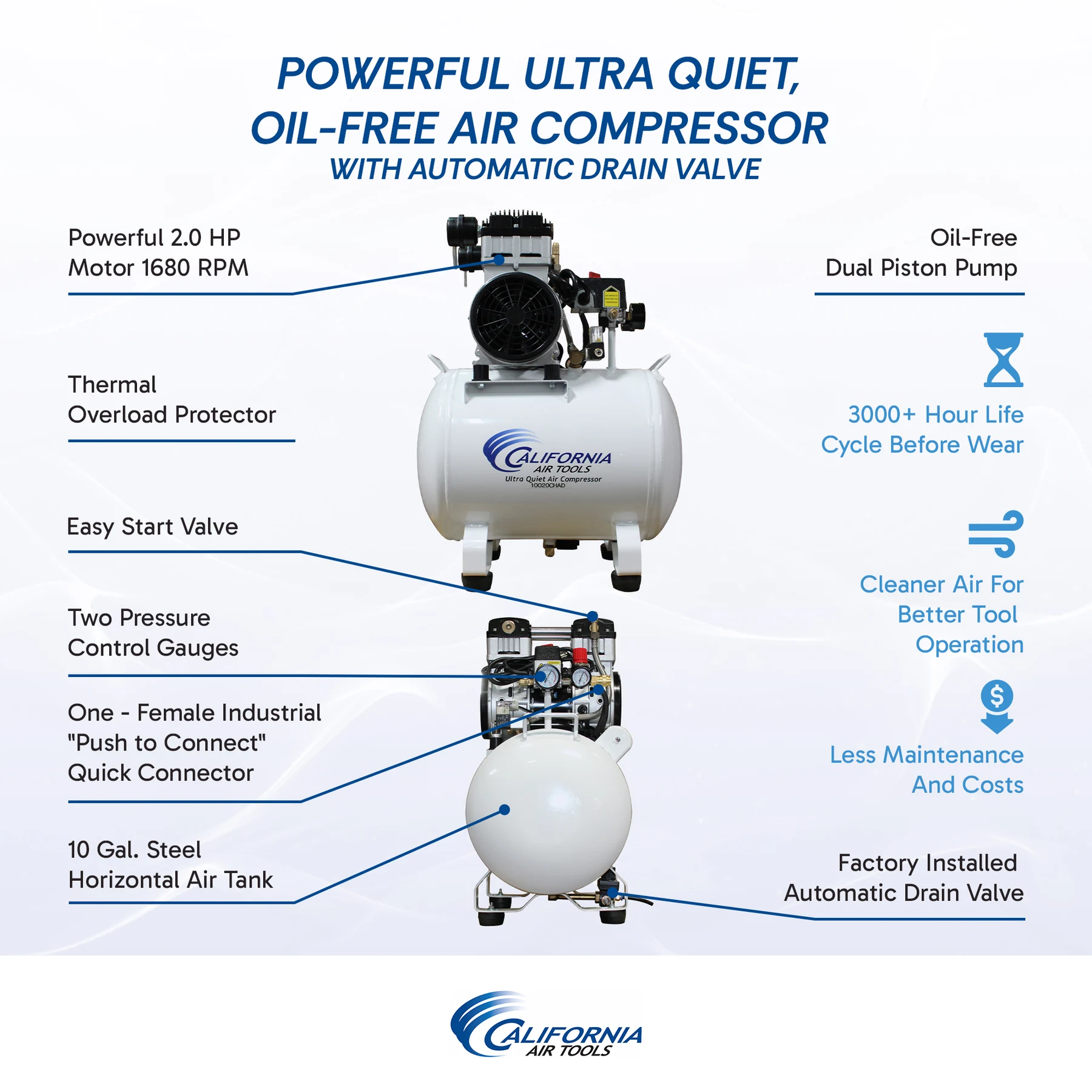

Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* One – Female industrial “Push to Connect” quick connector
* Easy Start Valve – For Less Starting Amperage
* Working Pressure 100 PSI to 130 PSI
* Thermal Overload Protector
* 130 PSI Maximum Pressure
* 220v / 60 hz / Single Phase (No 208 Volts – if necessary, obtain 208 to 220 voltage booster)
Operating Voltage Range: 215vac to 250vac
* Low Amp Draw – 7.0 Amps
* Generator with 3000 Running Watts

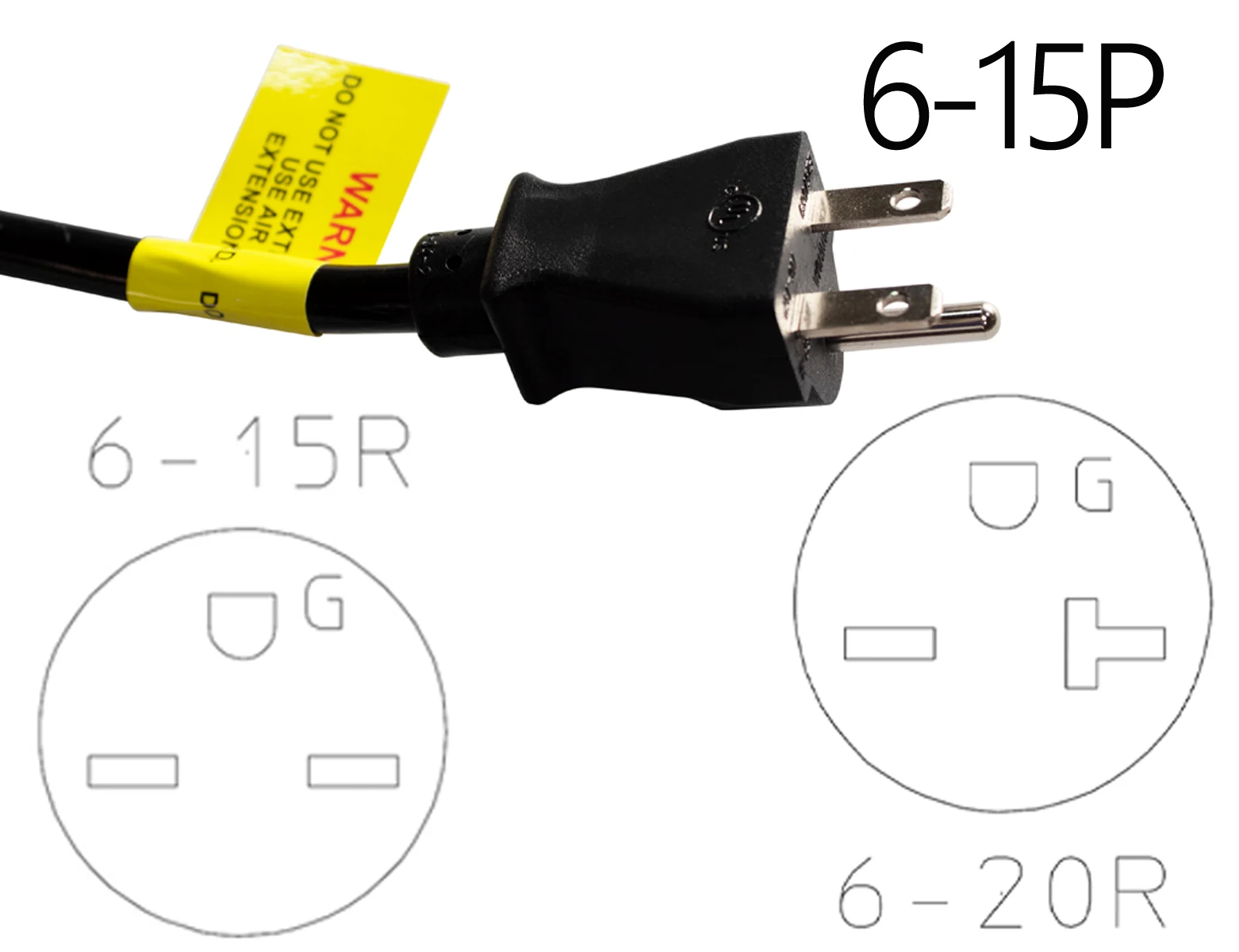

* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
* Time to fill tank from empty to full – 120 Seconds
* Recovery time from 95 PSI to 125 PSI – 25 Seconds
* Duty Cycle – 70/30*
* Maximum continuous running 45-60 min. (Depending PSI & CFM)
* Less heat which dissipates more efficiently
* 10 Gal. Steel (Low Profile) Horizontal Air Tank
* EZ-1-2321 Auto Drain Valve Factory Installed

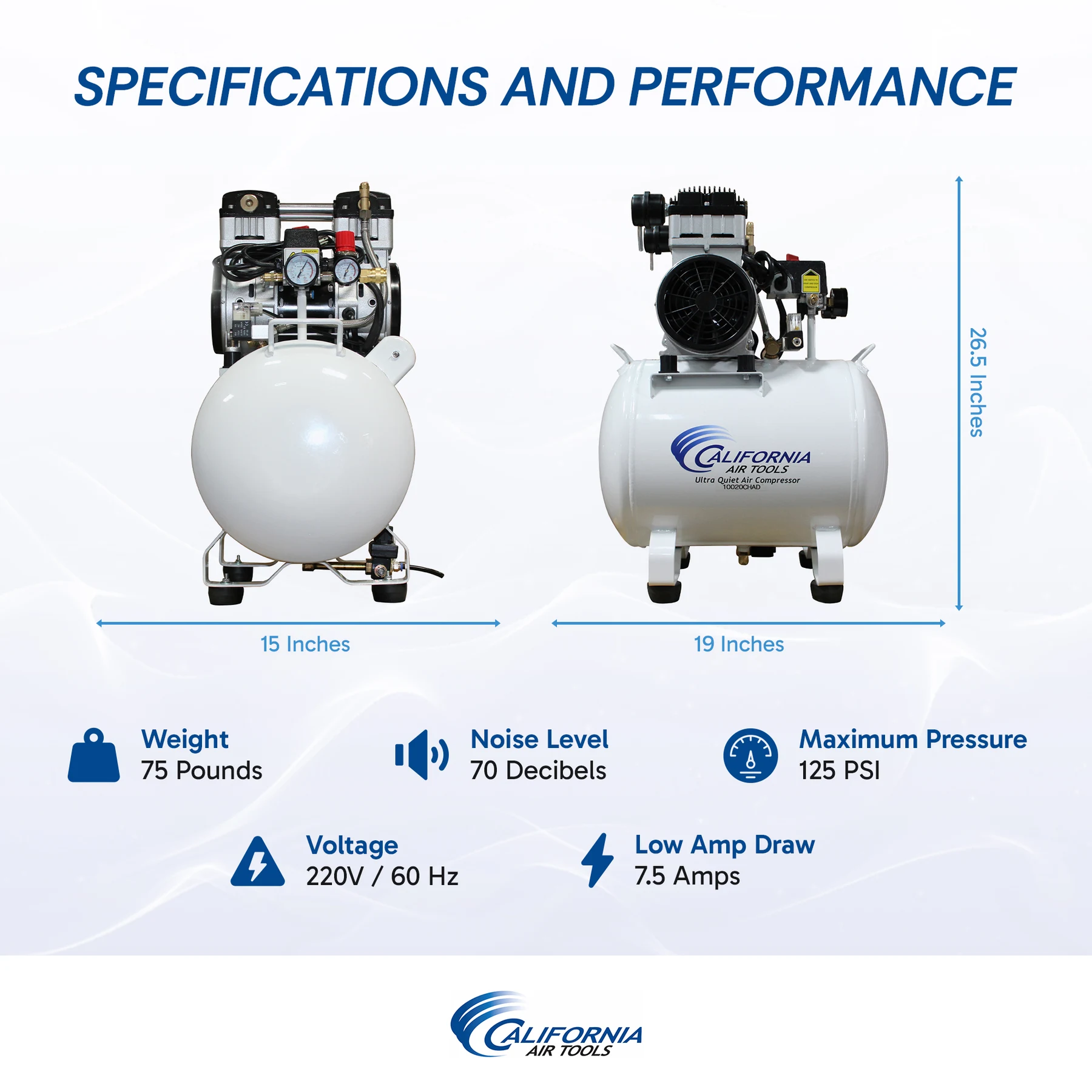

* L (19″) x W/D (15″) x H (26.5″)
* 75 lbs
* Non-ASME Air Tank
* 1 Year Limited Warranty
* Comes complete Two Air Filters
* Made in Mexico with global components
* Commercial Use: Refer to State & City Codes
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
California Air Tools 10020CHAD-22060 Owners Manual_03202026
EZ-1 Automatic Drain Valve Owner’s Manual 12-20
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
