10 Gallon Steel Tank
80% Air Dryer
220 Volts 60 Hertz
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PS
70 Decibel Noise Level
Automatic Drain Valve

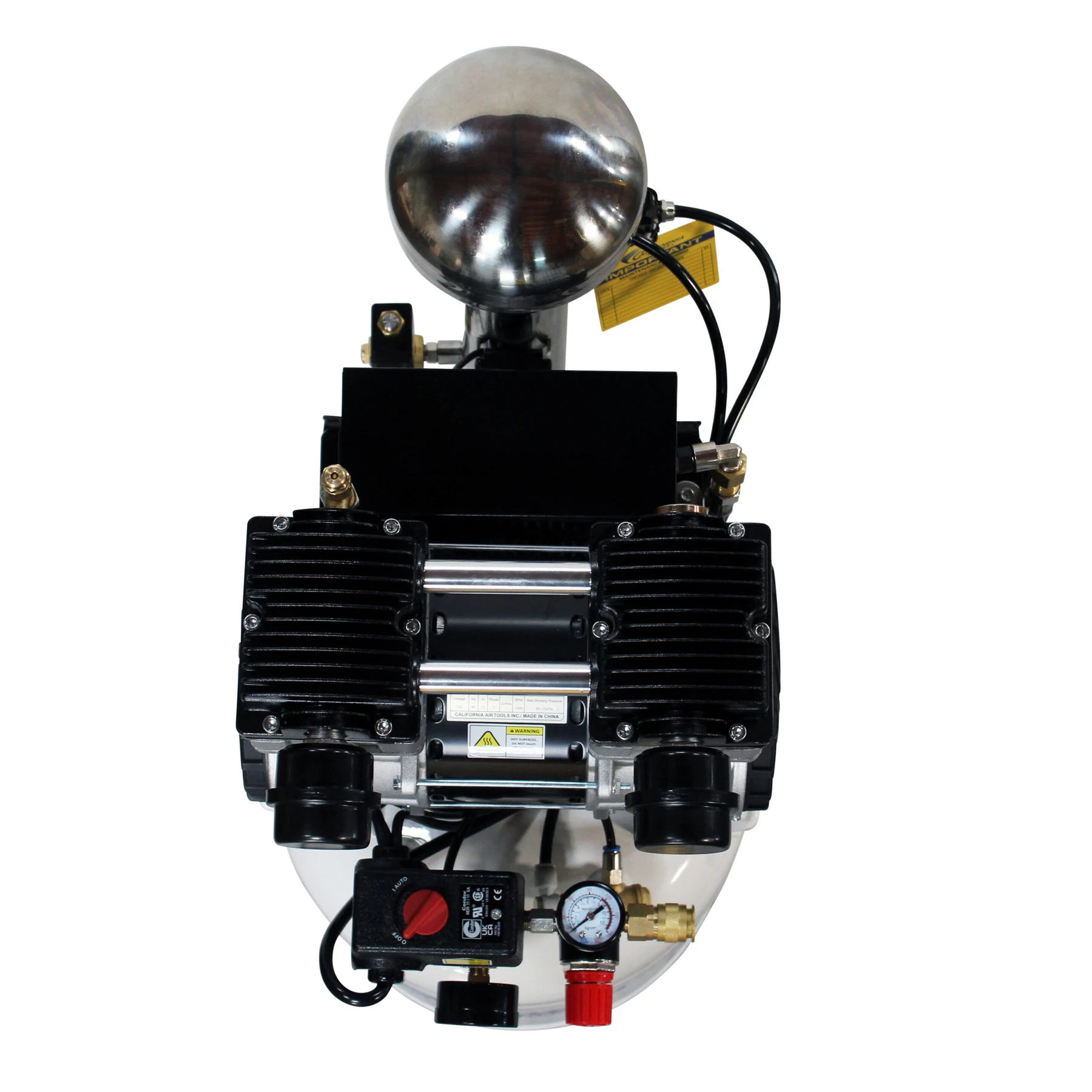

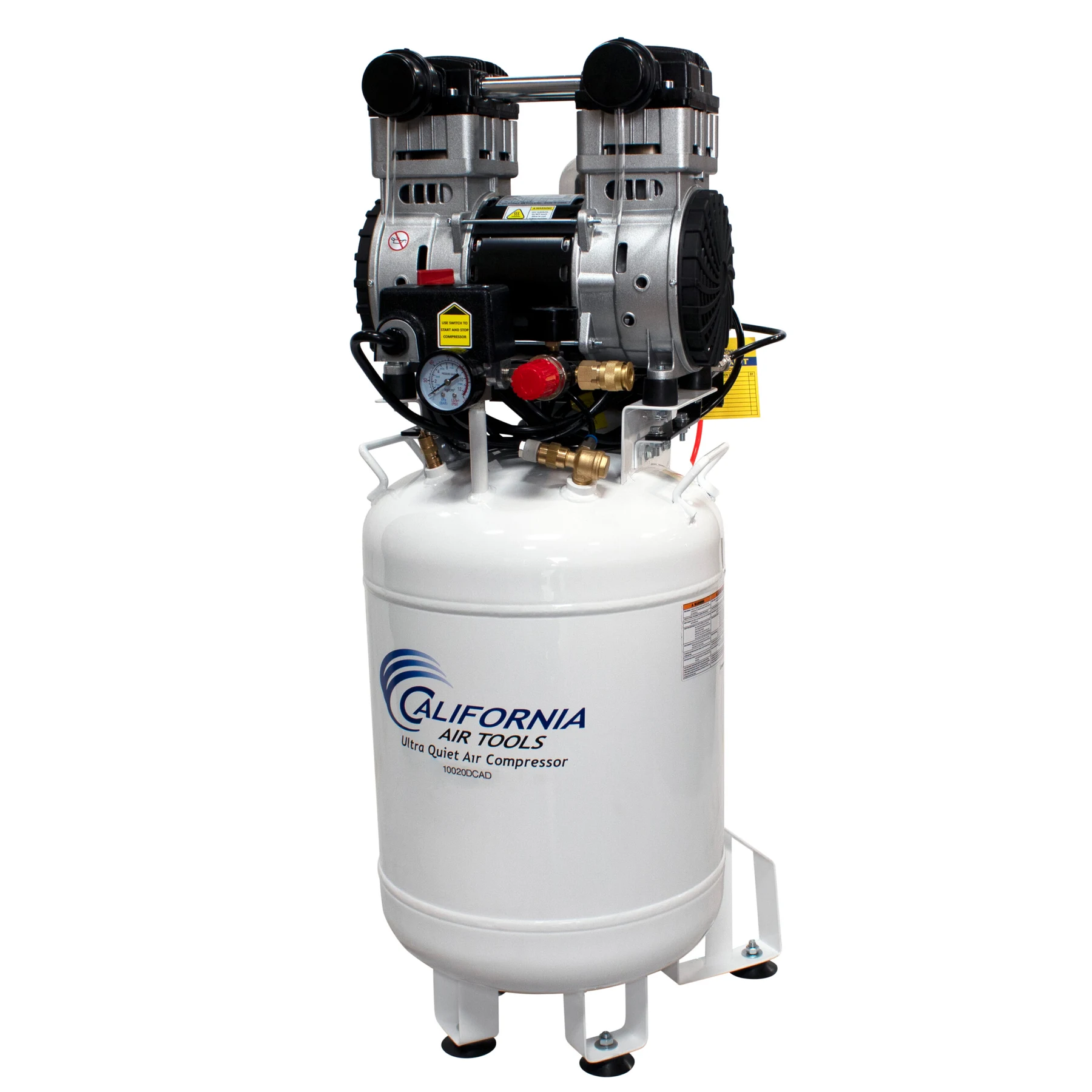

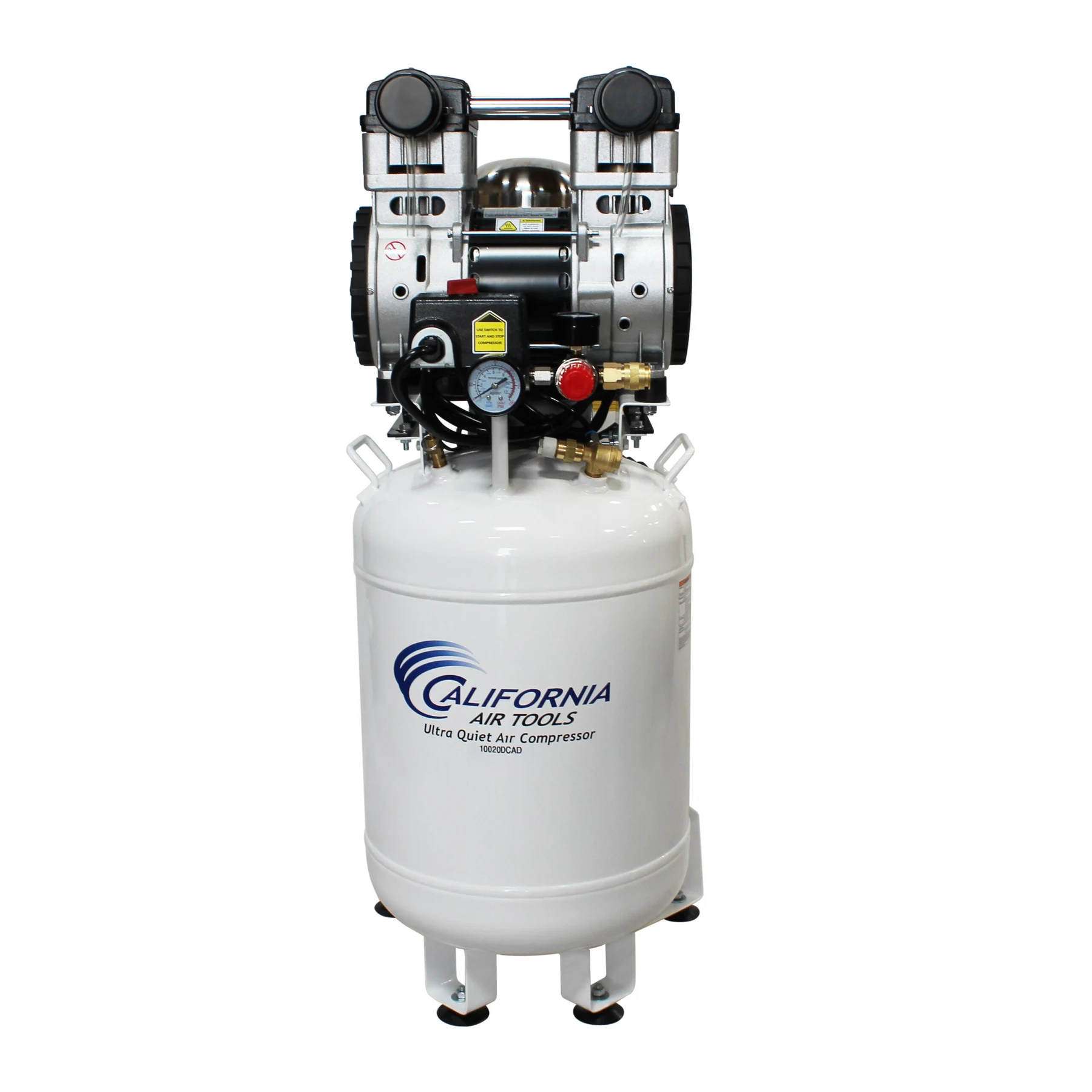

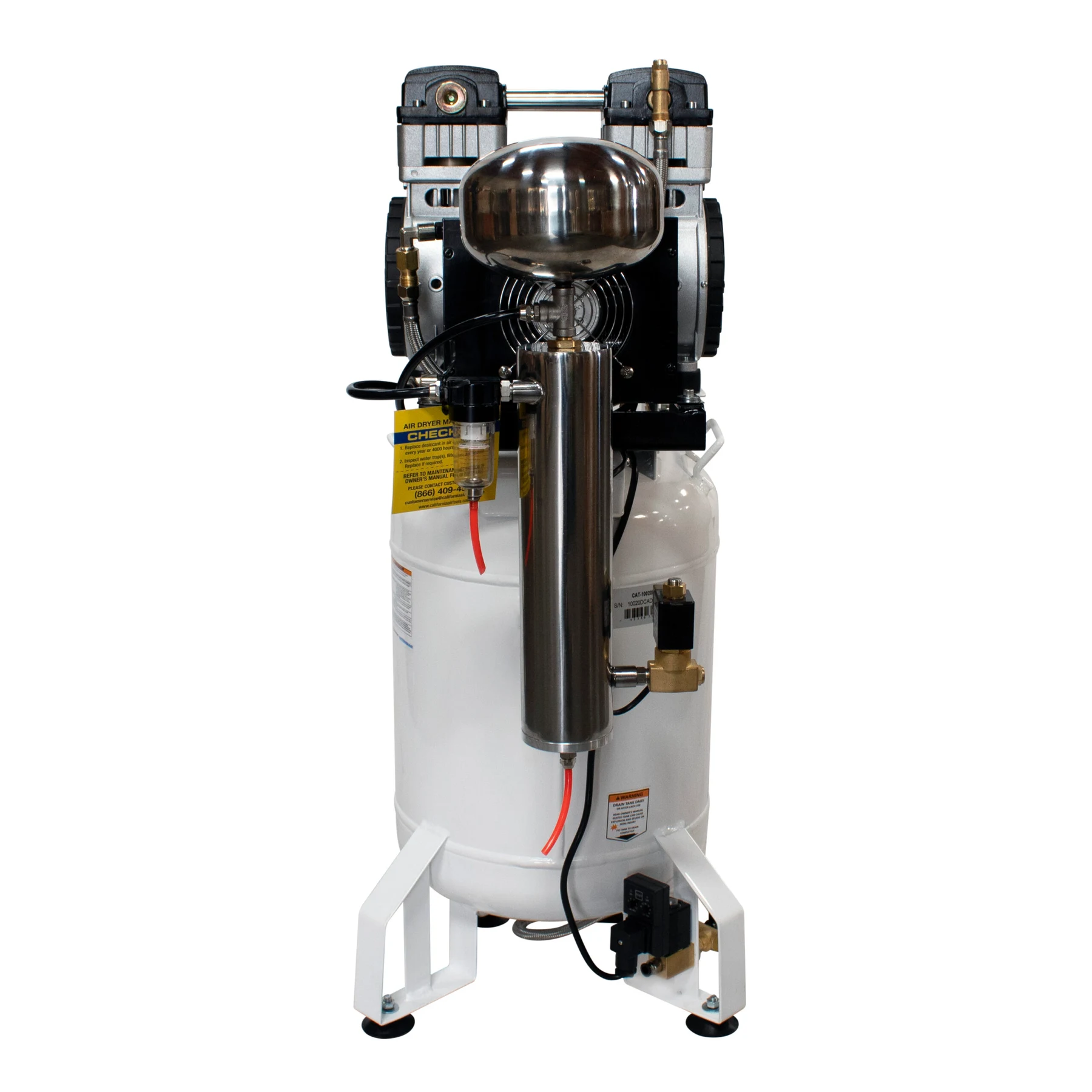

The CALIFORNIA AIR TOOLS 10020DCAD-22060 Ultra Quiet 2.0 Hp & Oil-Free 10-Gallon Air Compressor is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 70 decibels of sound.
The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear.
The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability.
The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair
The large 10.0 gallon steel air tank is only 91 lbs.

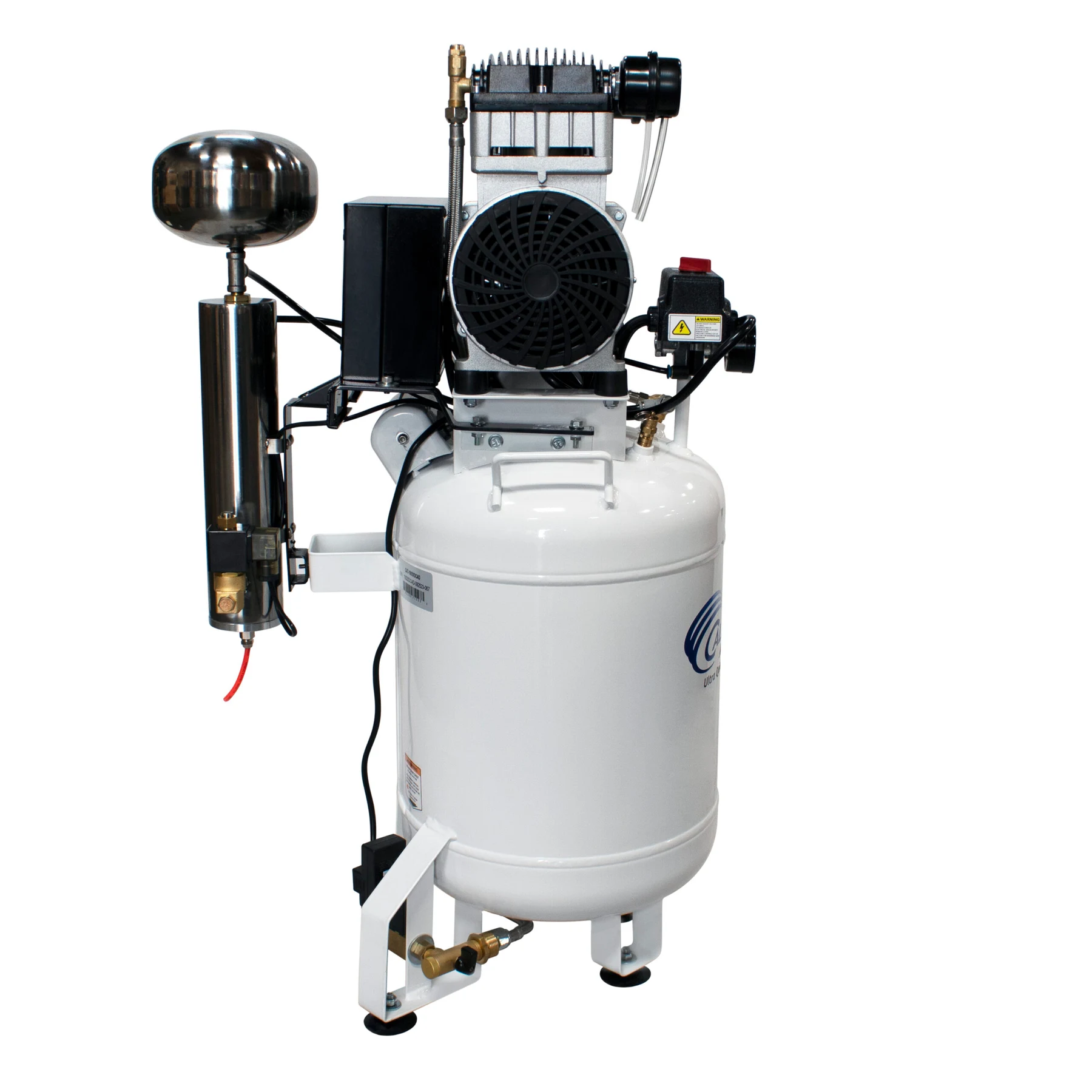

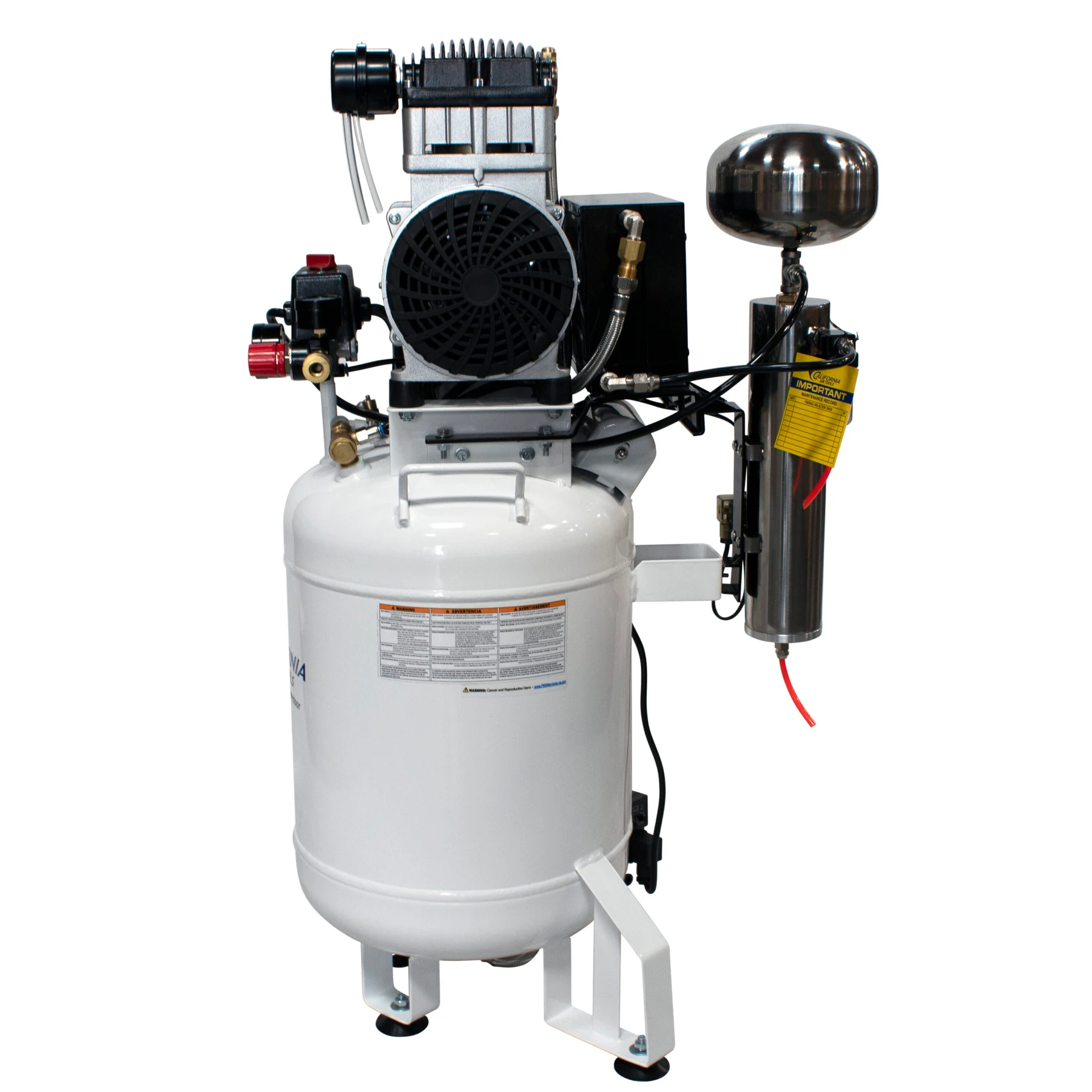

The 80% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.
To dry the air from the air compressor an Aftercooler and Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the 80% Air Dryer.
EZ-1-2321 Auto Drain Valve Factory Installed
The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
The manually set timer allows you to set the time for both the frequency and duration of the draining process.
The Easy Start Valvefeature allows for a easier start up using less starting amps.The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.
SUPPORT VIDEO – Auto Drain Feature and Function.

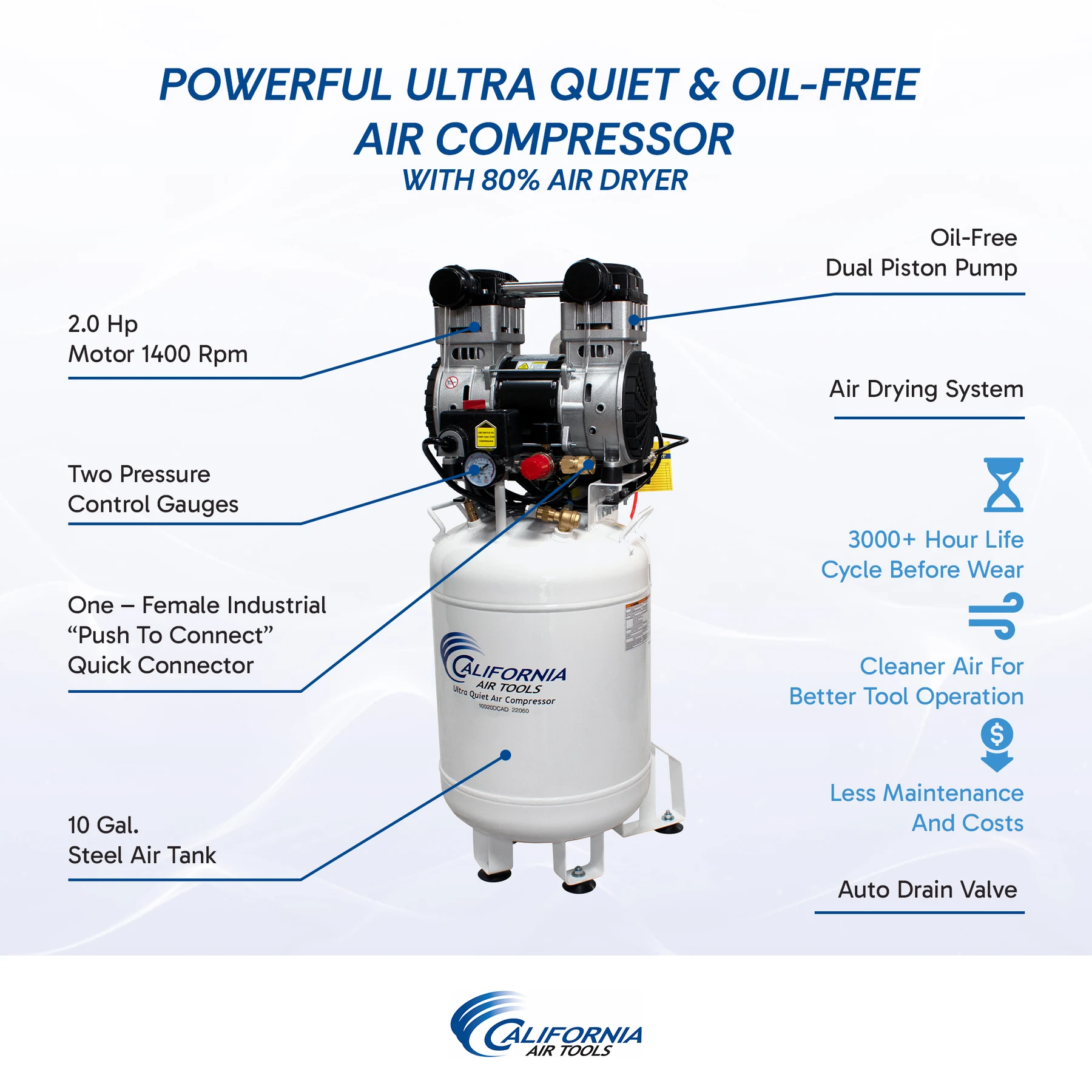

Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* One – Female industrial “Push to Connect” quick connector (1/4″ NPT)
* Easy Start Valve – For Less Starting Amperage
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* Kick On Pressure 95 PSI – Kick Off Pressure 125 PSI

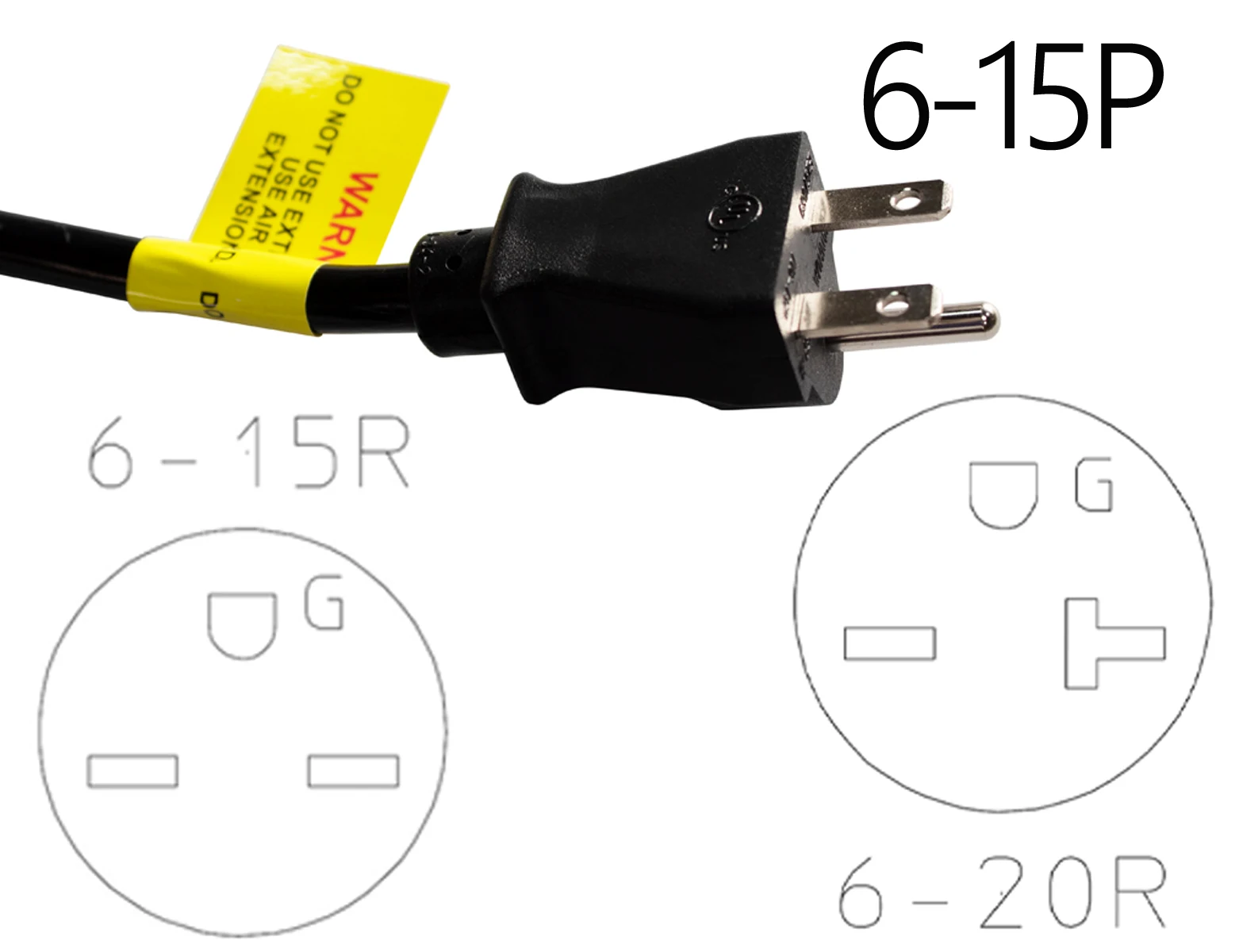

* 220v / 60 Hz (no 208 volts)
* Low Amp Draw – Only 7.0 Amps
* Tank fill rate from empty to full – 130 Seconds
* Recovery time from 95 PSI to 125 PSI – 40 Seconds
* Duty Cycle – 70/30
* Maximum continuous running 30-60 min. (Depending PSI & CFM)

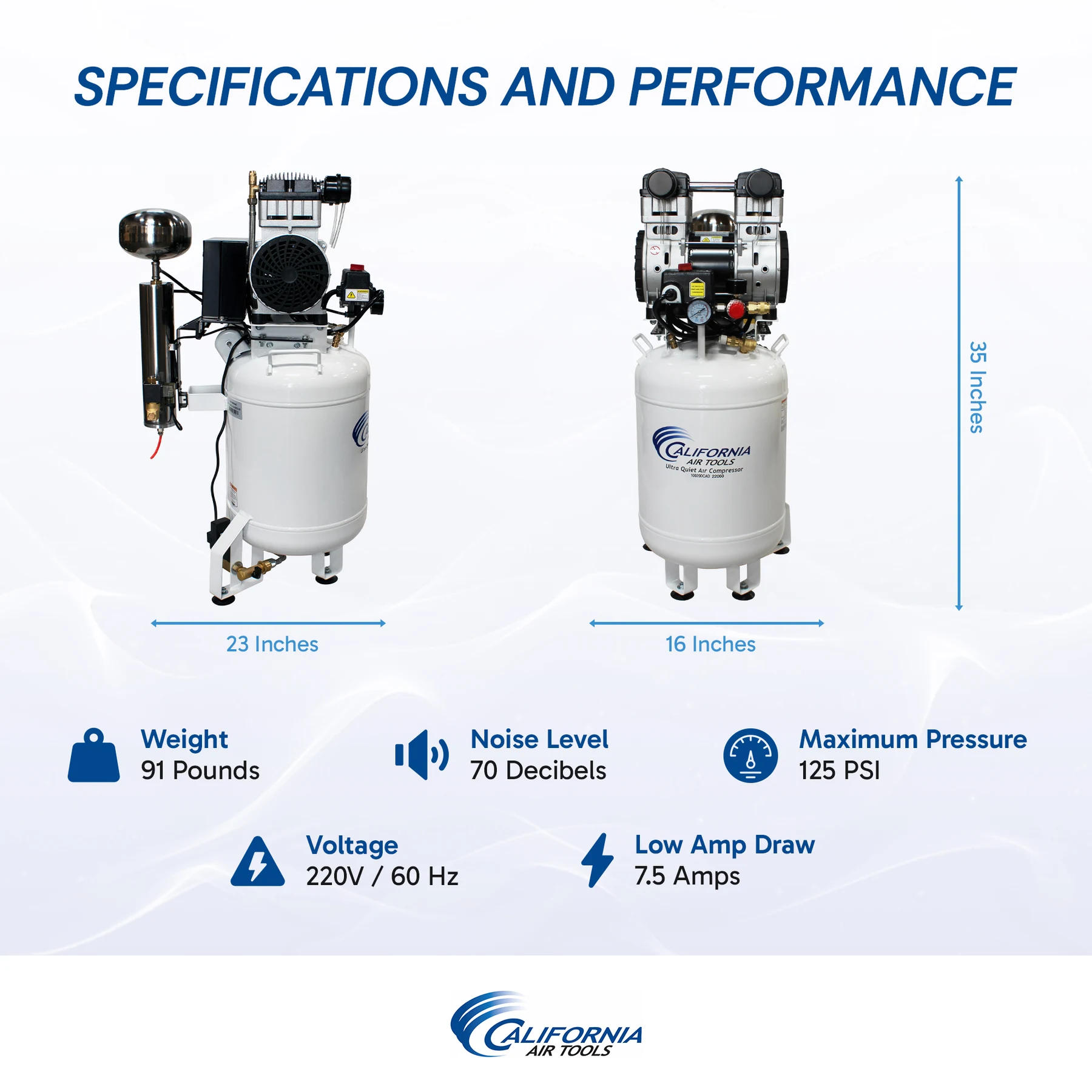

* L (16″) x W (23″) x H (35″)
* 92 pounds
* Non-ASME Air Tank
* 80% Air Dryer – Includes Activated Alumina desiccant with a 4000 hour life.
Activated Alumina is used in air prepurification (due to it’s high water
and carbon dioxide adsorption capacity) and adsorption of sulphur
compounds.
* Aftercooler (condenser)
* EZ-1-2321 Auto Drain Valve Factory Installed
* Commercial Use: Refer to State & City Codes
* 1 Year Limited Warranty
* Assembled in USA with global components
DRY AIR SYSTEM MAINTENANCE:
Recommended replacement of 1lb bag of desiccant, located within vertical dry air tower, every 3000-4000 motor/pump running hours (1-2 years/average).
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
NOTE: To efficiently operate (1) each Dental Milling Machine continuously a 2.0 or 4.0 HP model is typically required, depending on operating CFM (L/MIN) and average run time.
NOTE 2: May not be suitable for applications requiring extremely low pressure dew points (PDP) below 2C or 36F. If ISO compliance is required (i. e. ISO 8573 2.3.1 with PDP performance of -29F to -50F) then a desiccant-based air dryer system will be required. California Air Tools offers 6 Ultra-Dry air compressor models which achieve a PDP average of -40F (-40℃) and outputs 98% ultra dry/clean air with 0.01 um particulate filtering — CLICK HERE
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)
California Air Tools 10020DCAD-22060 Air Compressor Manual 8-15_Layout 1
EZ-1 Automatic Drain Valve Owner’s Manual 12-20
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
