70 dB Noise Level
110v 60hz
2.0 HP (Rated/Running)
10 Gallon Steel Horizontal Air Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
98% Air Drying System
ISO 8573 2.3.1 Compliant

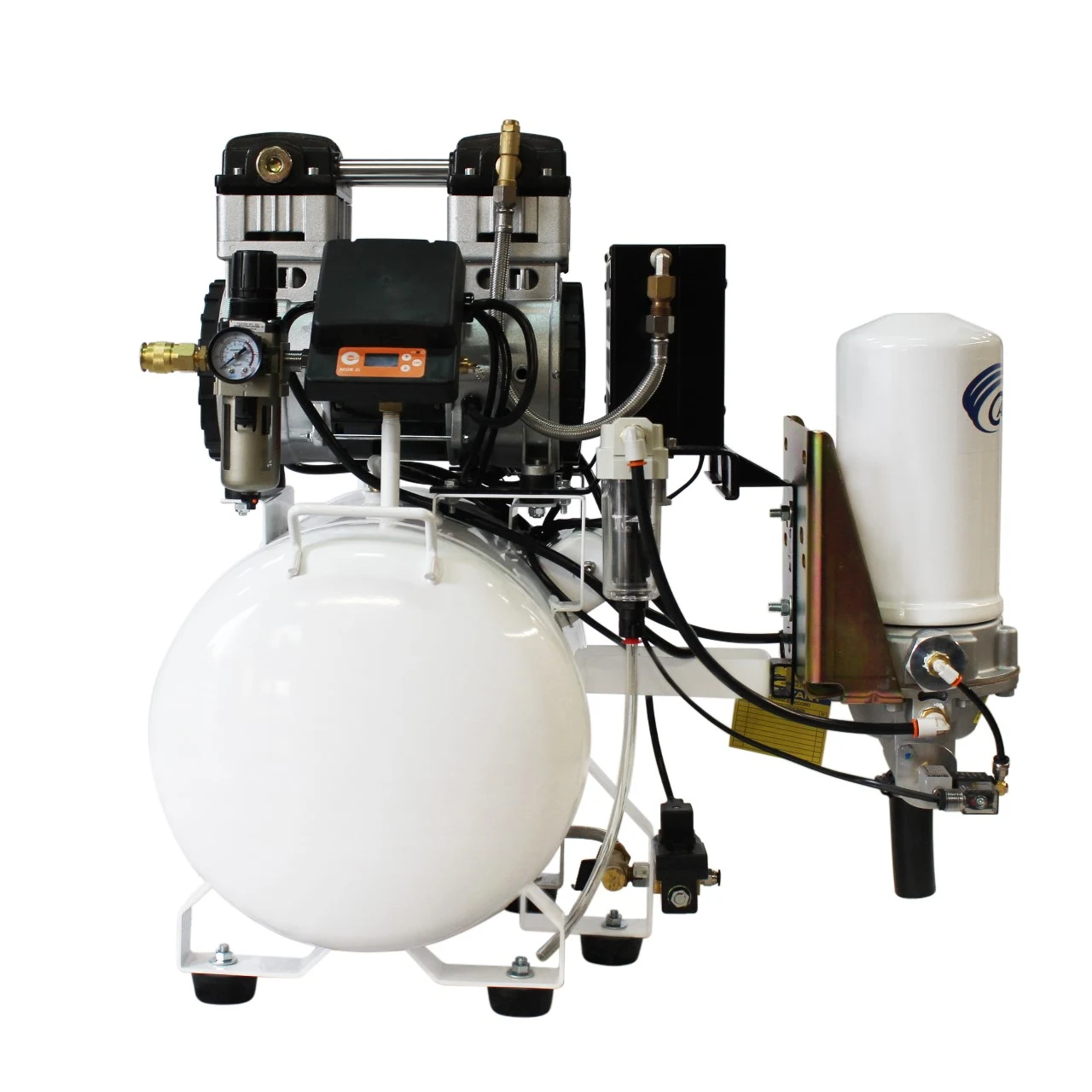

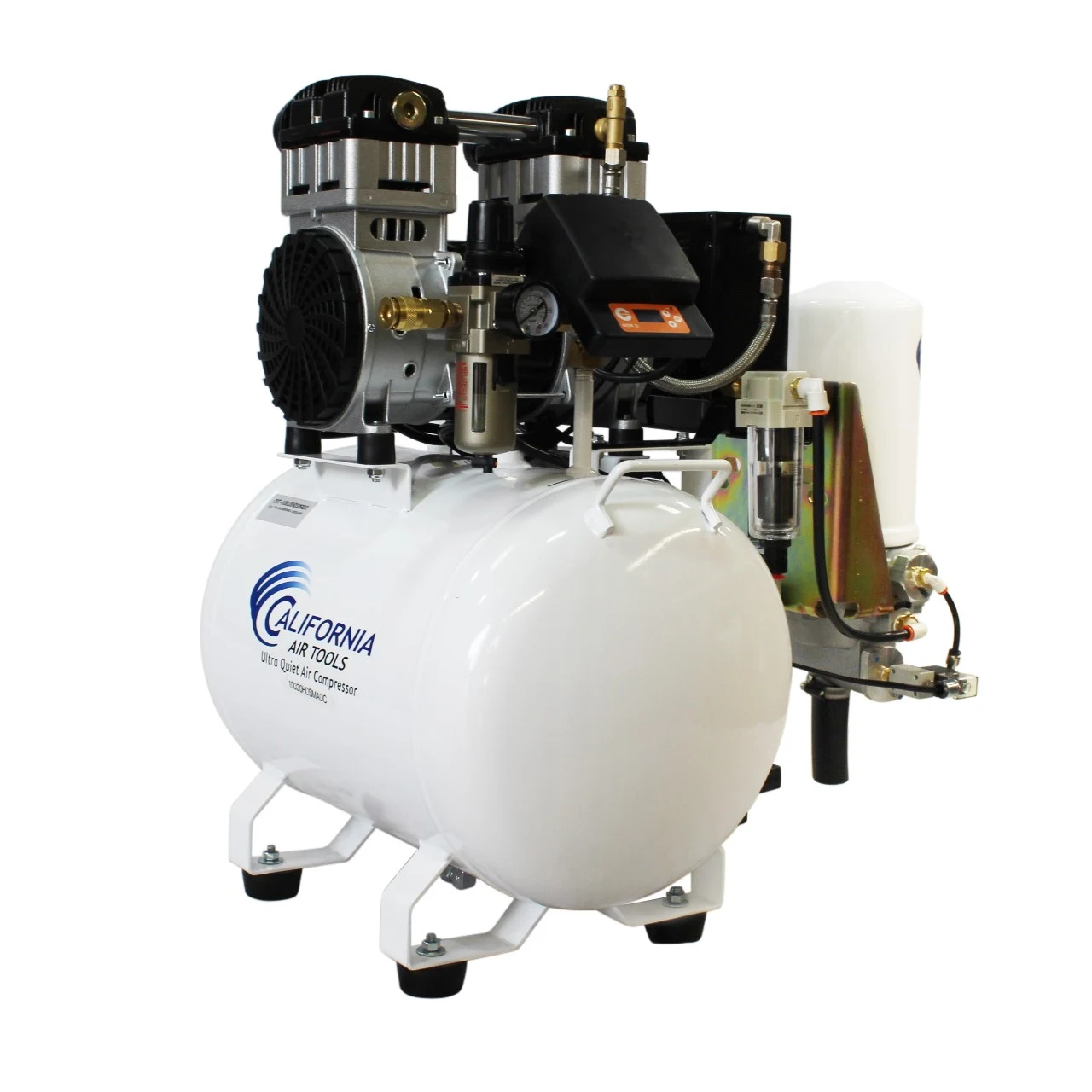

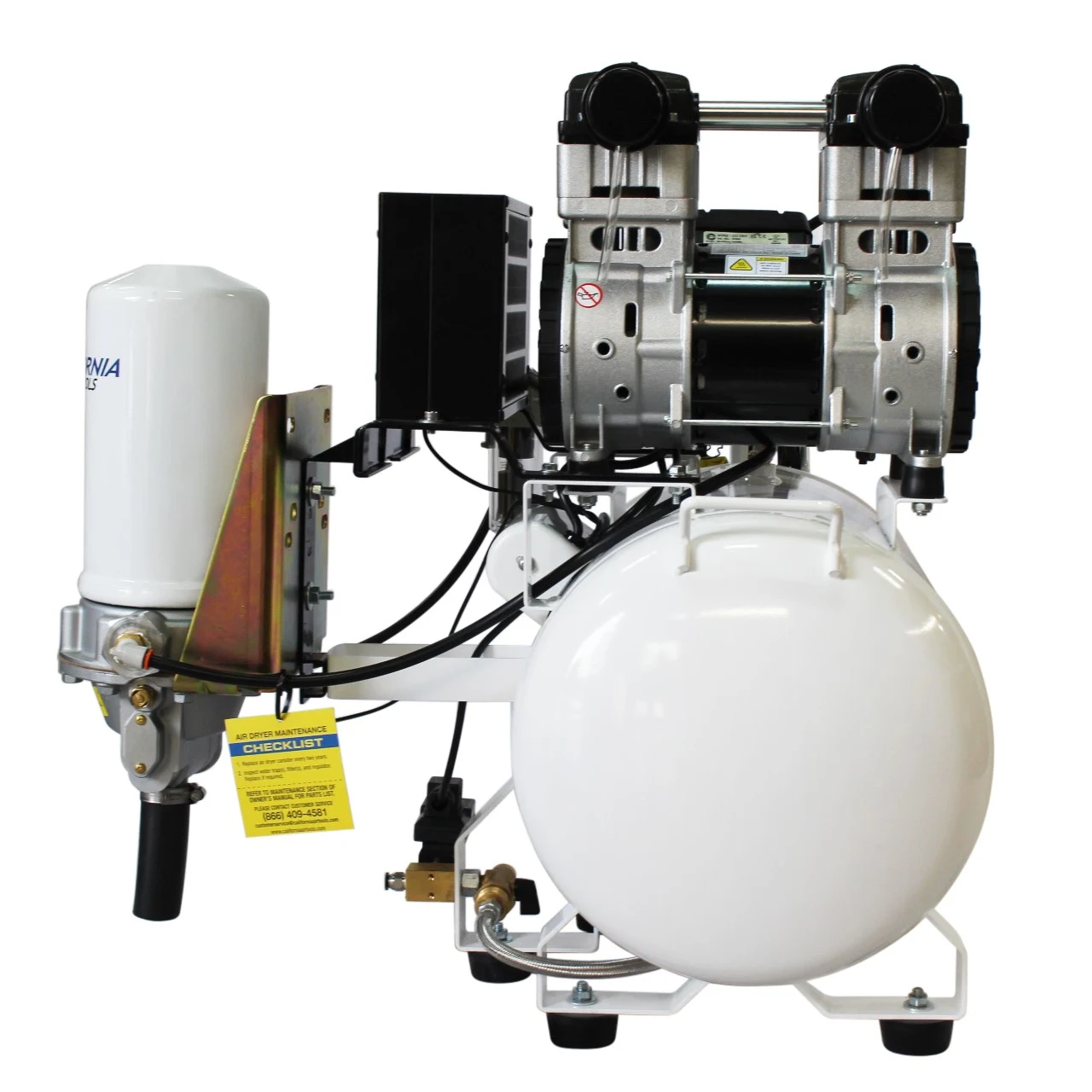

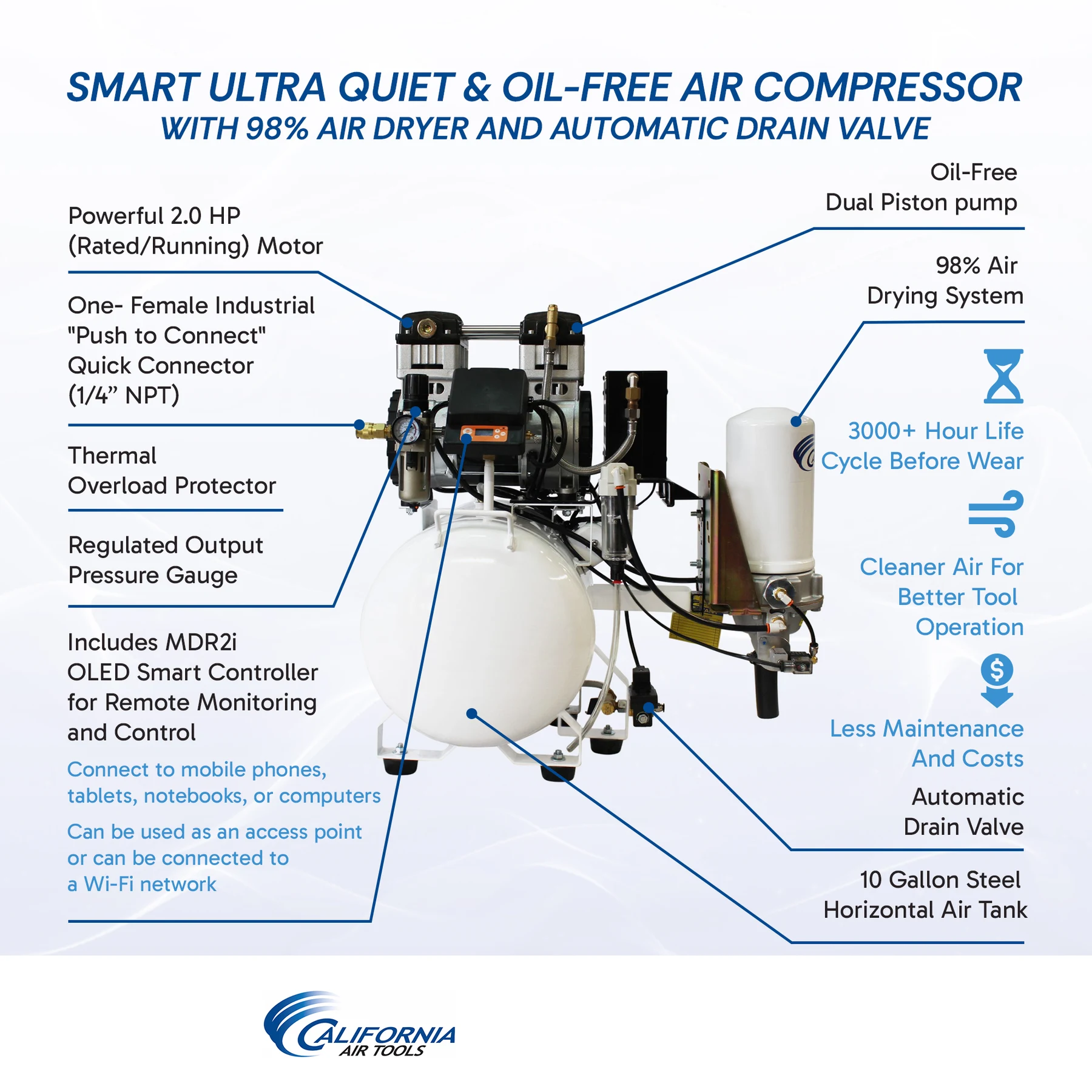

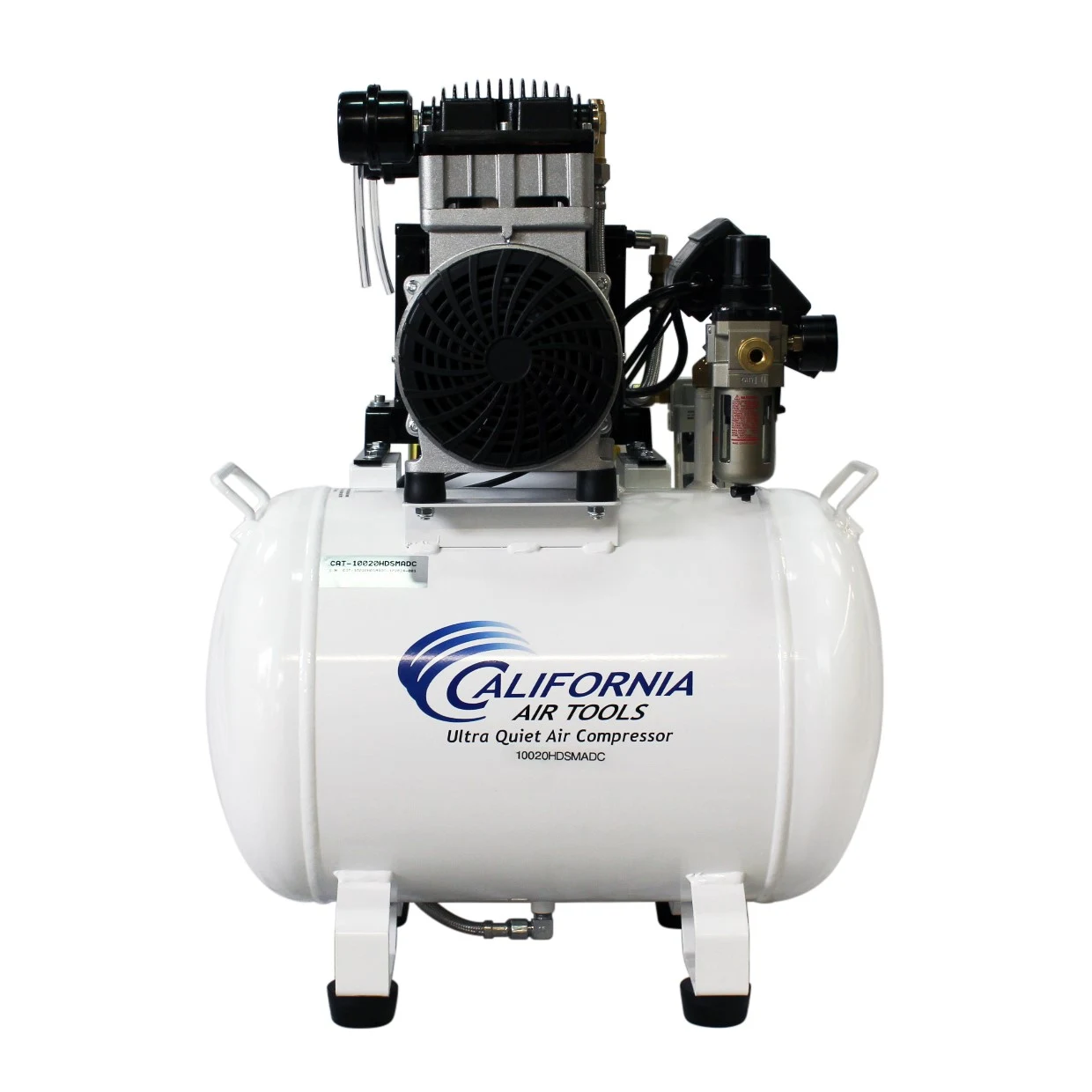

The CALIFORNIA AIR TOOLS 10020HDSMADC Ultra Quiet 2 Hp Oil-Free 10-Gallon Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 2.0 horse power air compressors in the industry having only 70 decibels of sound.

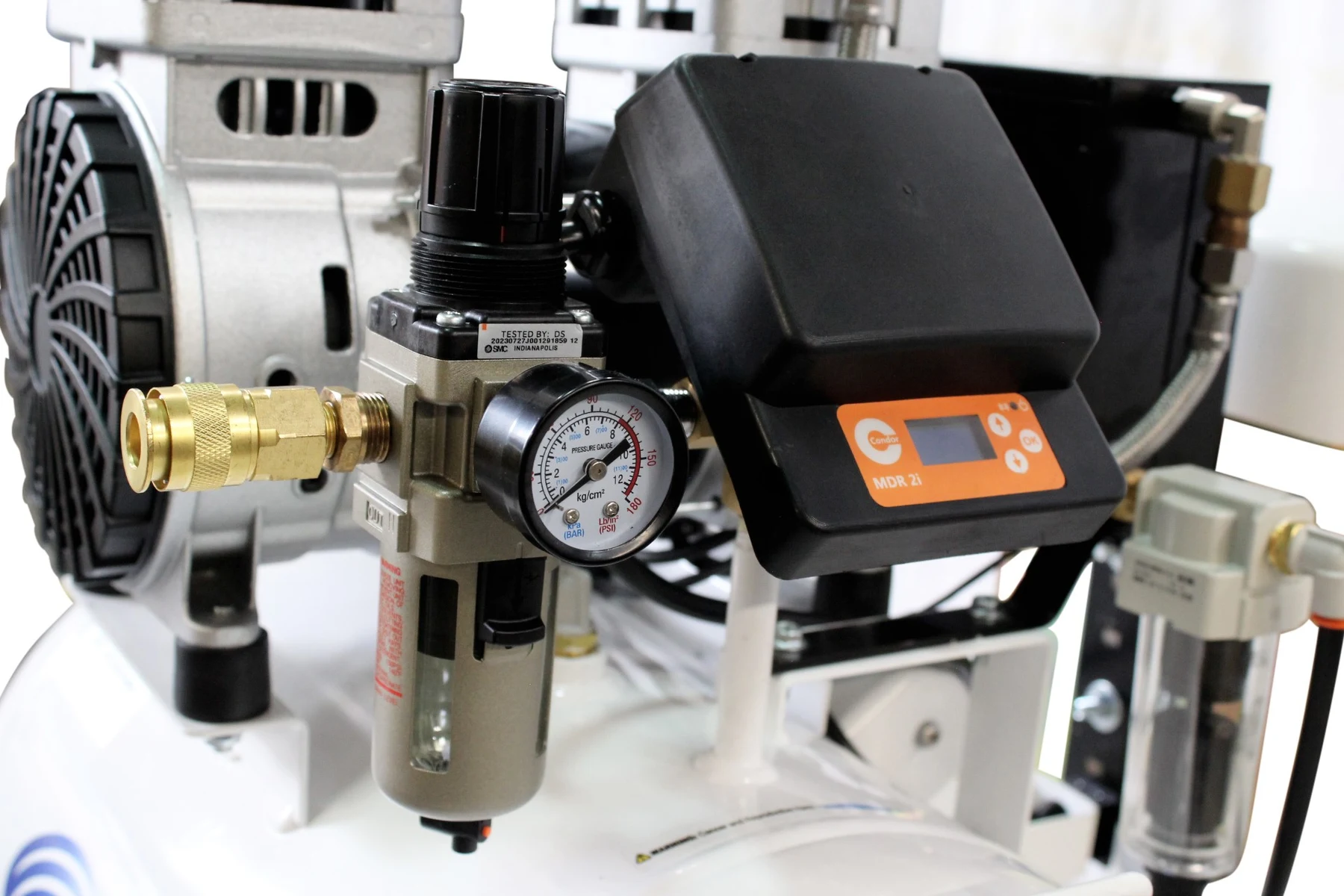

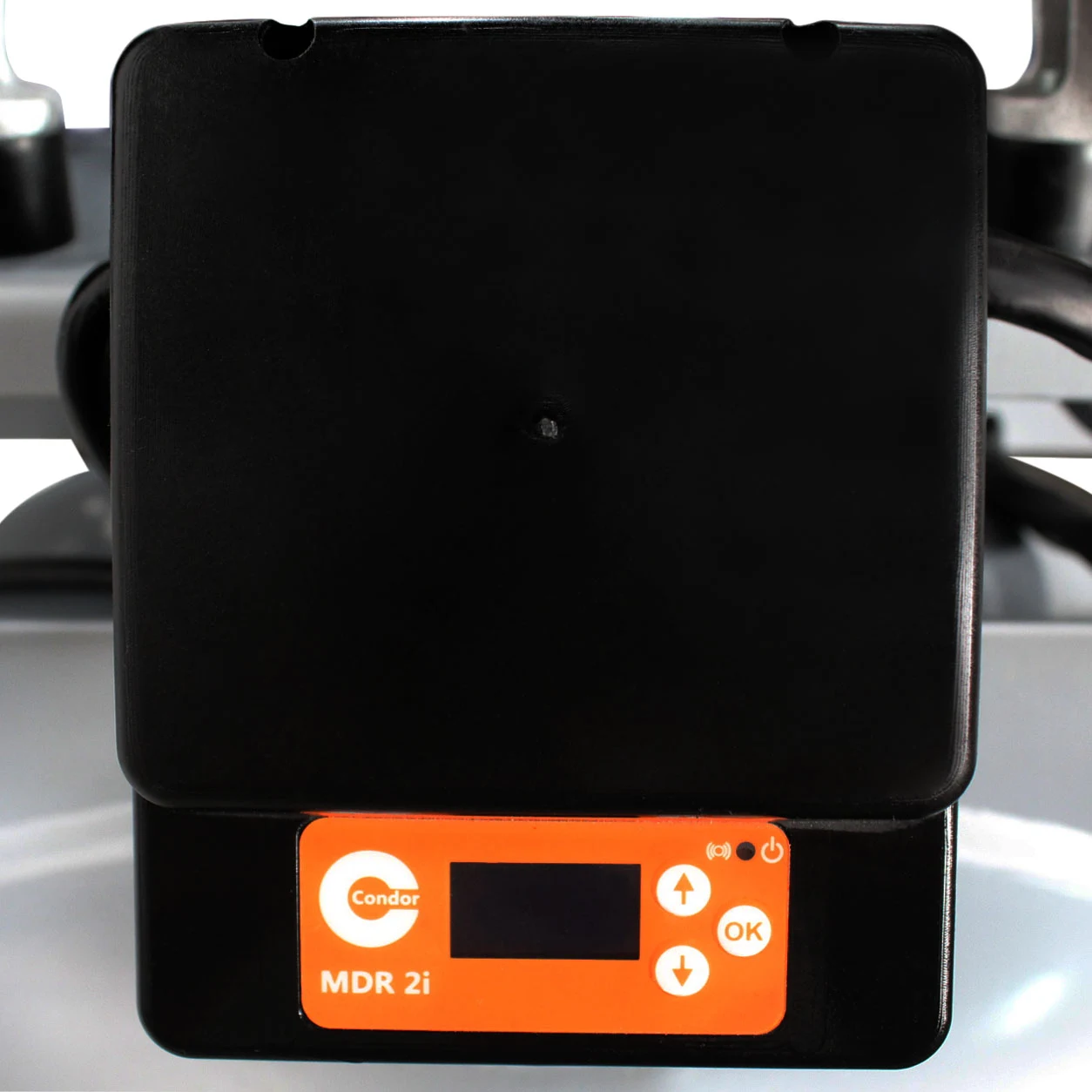

Includes MDR2i OLED Smart Controller for remote monitoring and control
- Programmable ON/OFF Times
- Pressure ON Level
- Pressure OFF Level
- Unloader Relay Delay
- AutoDrain Time
- Drain Valve Time
- Overcurrent Limit
- Pressure Units
- Total Active (Motor-Pump) Running Hours
The MDR2i OLED Smart Controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring.
The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability.
The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The 98% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.
PDP performance range (-20′ F. to -51′ F.)
Air Quality: ISO 8573 – Class 2.3.1
To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized. The
aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.

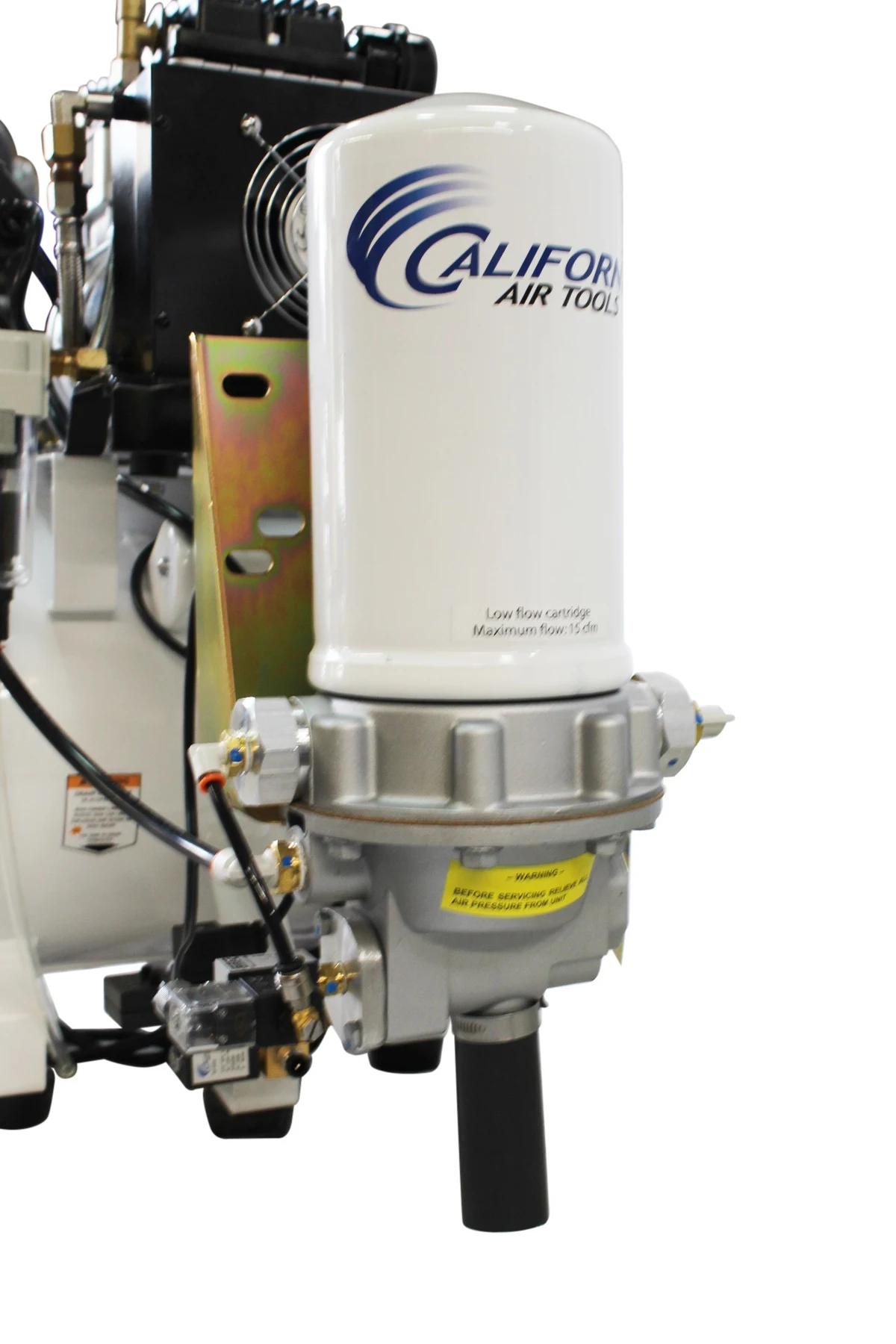

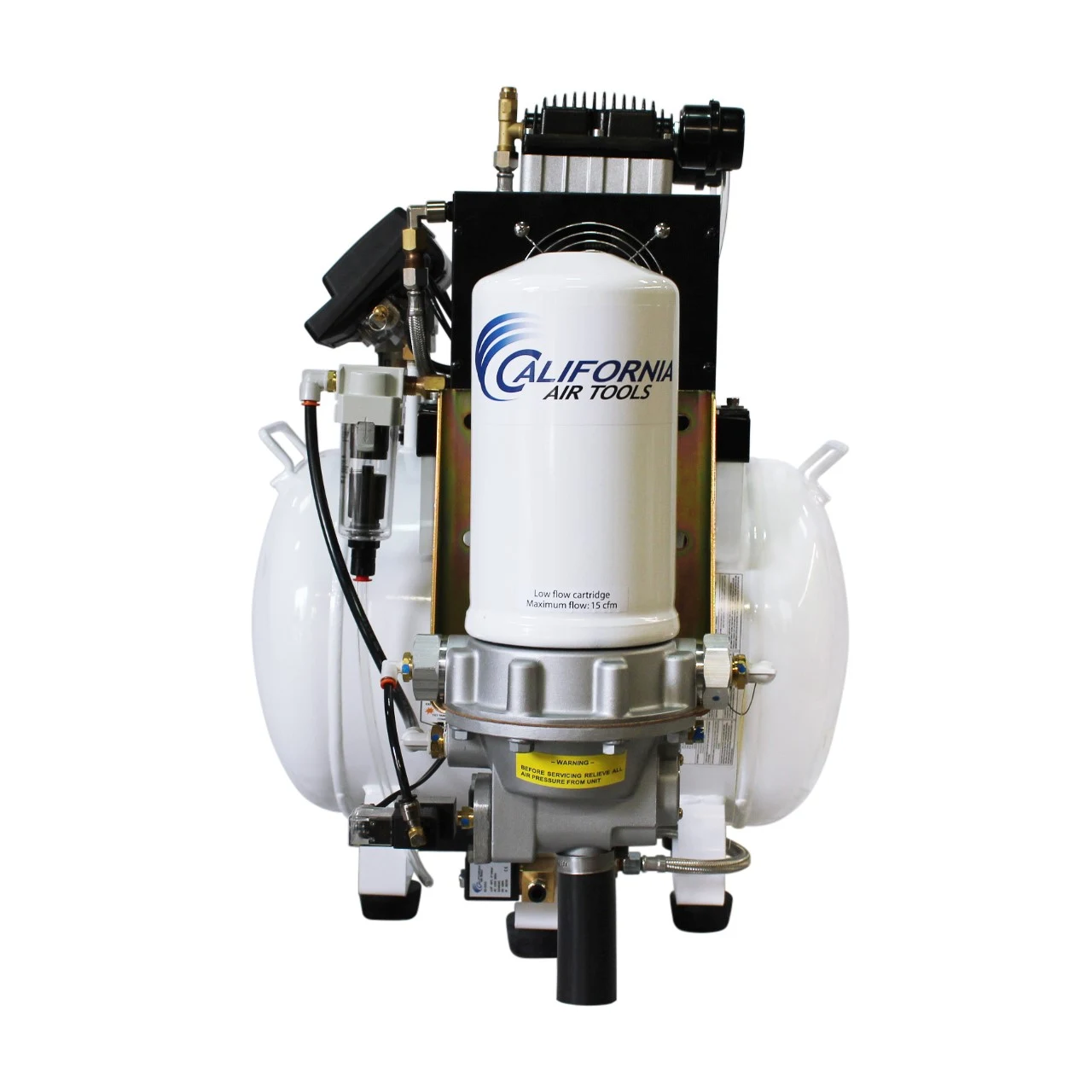

The easy to replace “Spin-On” Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air.
This cartridge dryer has a life of 2-years before replacement.
The large 10 Gallon Horizontal Steel Air Tank is just the right size to fit under a bench, desk or cabinet.

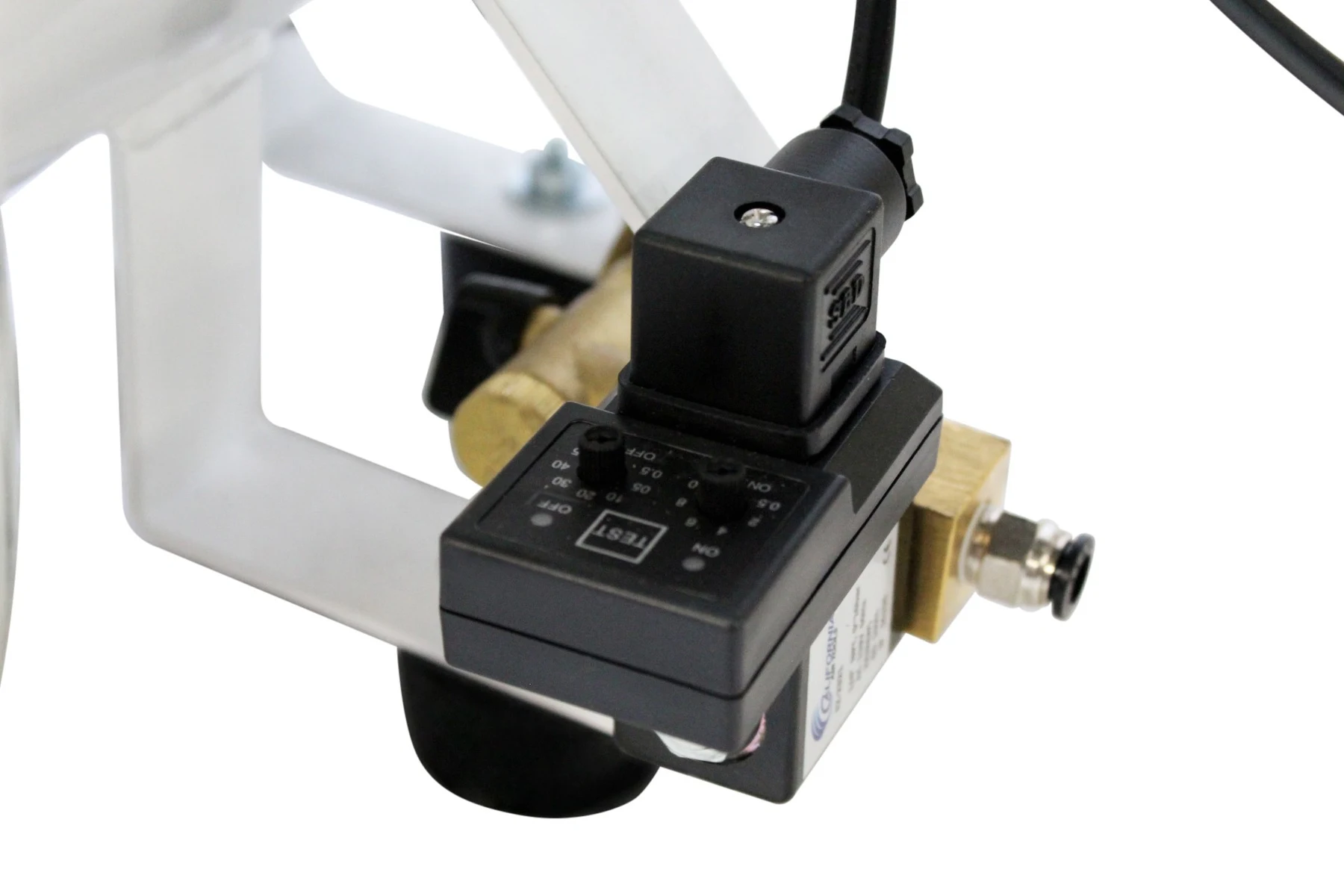

The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
The manually set timer allows you to set the time for both the frequency and duration of the draining process.

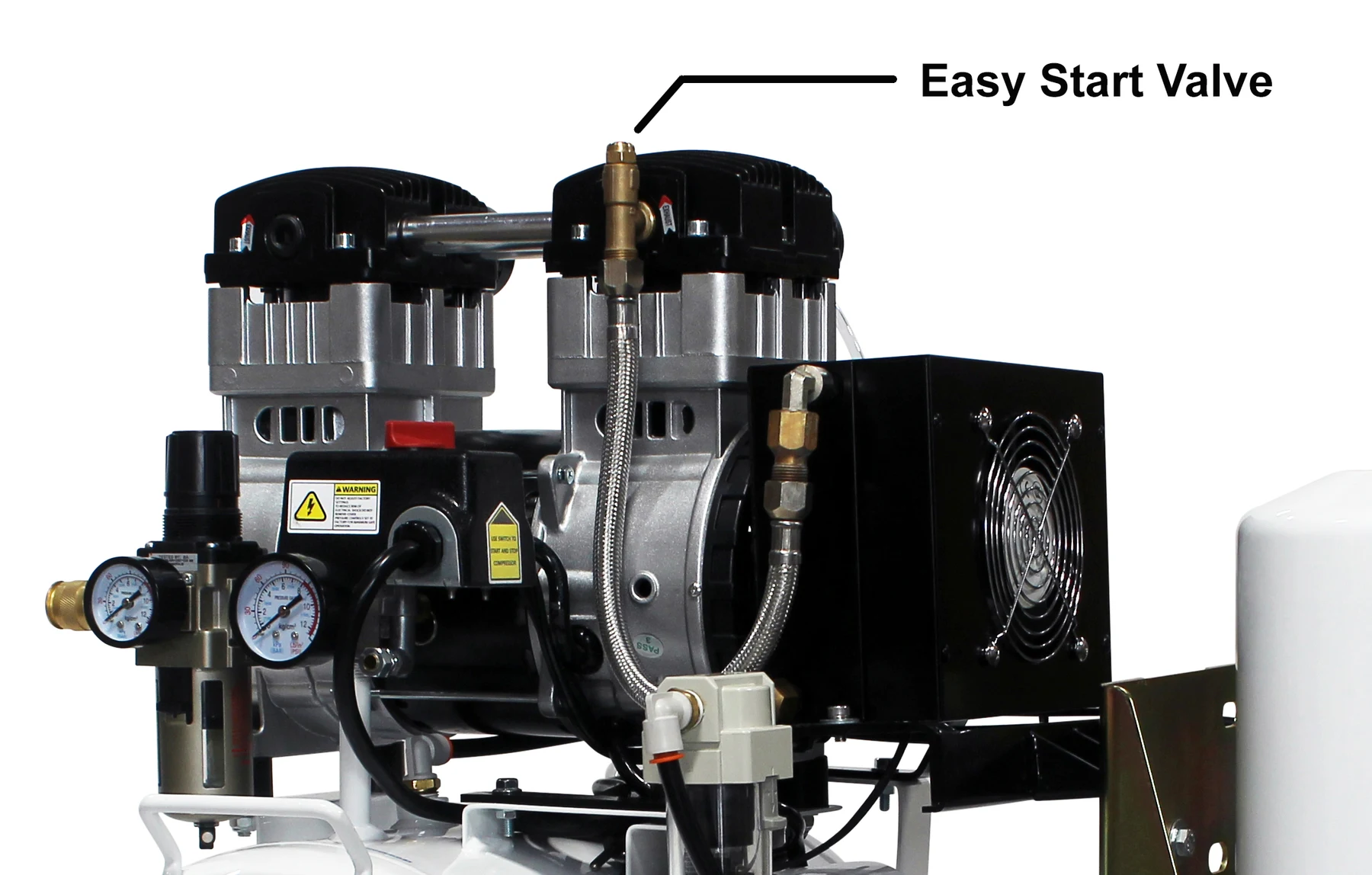

The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
Designed for the person looking for Power, 98% Dry Air and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Bio-Tech, Manufacturing, Packaging, Restaurant and General Engineering Applications.
Base Model 10020HDCADC Product Overview (without Smart Controller)
SUPPORT VIDEO – Auto Drain Feature and Function.
Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump (Class 1) – Cleaner air for better tool operation.
– Less maintenance and Costs.
* Regulated Output Air Pressure gauge (1-120 PSI) with 5um (micron) filtration
* One – Female Industrial Female “Push to Connect” quick connector (1/4″ NPT)
* 0.01 Micron Dry Air Prefilter
* Easy Start Valve – For Less Starting Amperage
* MDR2i OLED Smart Controller for remote monitoring and output pressure control
* Thermal Overload Protector

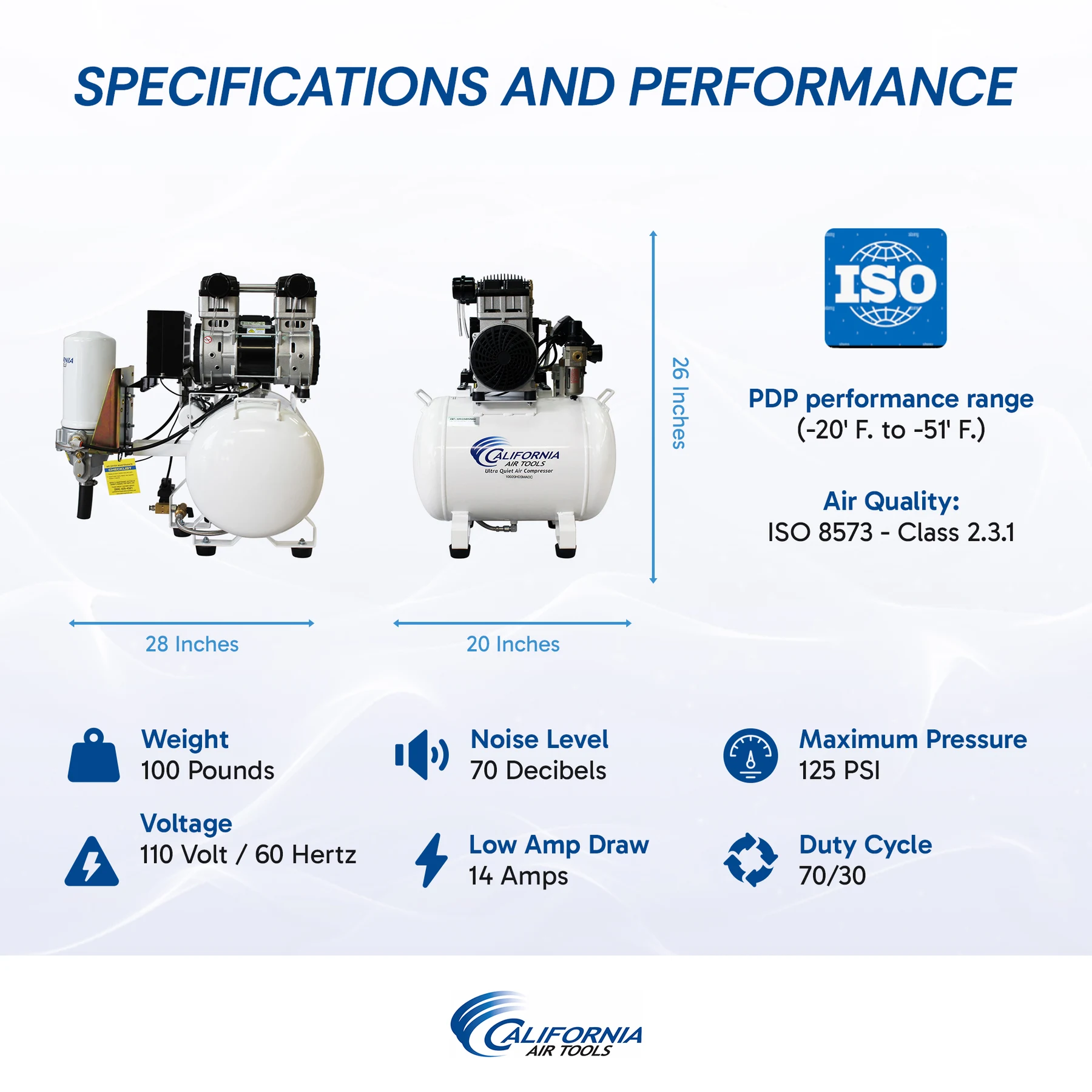

* Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
* 110v / 60 Hz
* Low Amp Draw – Only 14.0 Amps
* Time to fill tank from empty to full – 120 Seconds
* Recovery time from 95 PSI to 125 PSI – 25 Seconds
* Duty Cycle – 70/30*
* L (20″) x W (28″) x H (26″)
* 100 lbs.
* Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
Easy to remove (spin off) and replace every 2 years
* Aftercooler (condenser)
* PDP performance range (-20′ F. to -51′ F.)
* Air Quality: ISO 8573 – Class 2.3.1
* EZ-1-2321 Auto Drain Valve Factory Installed
* Comes complete (2) Air Filters
* 1 Year Limited Warranty
* Manufactured in Mexico-USA. Assembled in USA using global components
* Non-ASME Air Tank
* Commercial Use: Refer to State & City Codes
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 98% Air Dryer Cannister/Cartridge every 4000 operating hours (~1-2 years on average).
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
California Air Tools 10020HDSMADC Owners Manual
Smart Controller MDR2i Owners Manual_02172026
EZ-1 Automatic Drain Valve Owner’s Manual 12-20
Air Quality classes defined in ISO 8573
Ultra Dry Service Kit Spin – On Filter Installation Instructions
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
