1.5 HP (Rated/Running)
20 Gallon Steel Air Tank
4.20 CFM @ 40 PSI
2.90 CFM @ 90 PSI
Working Pressure 105-135 PSI

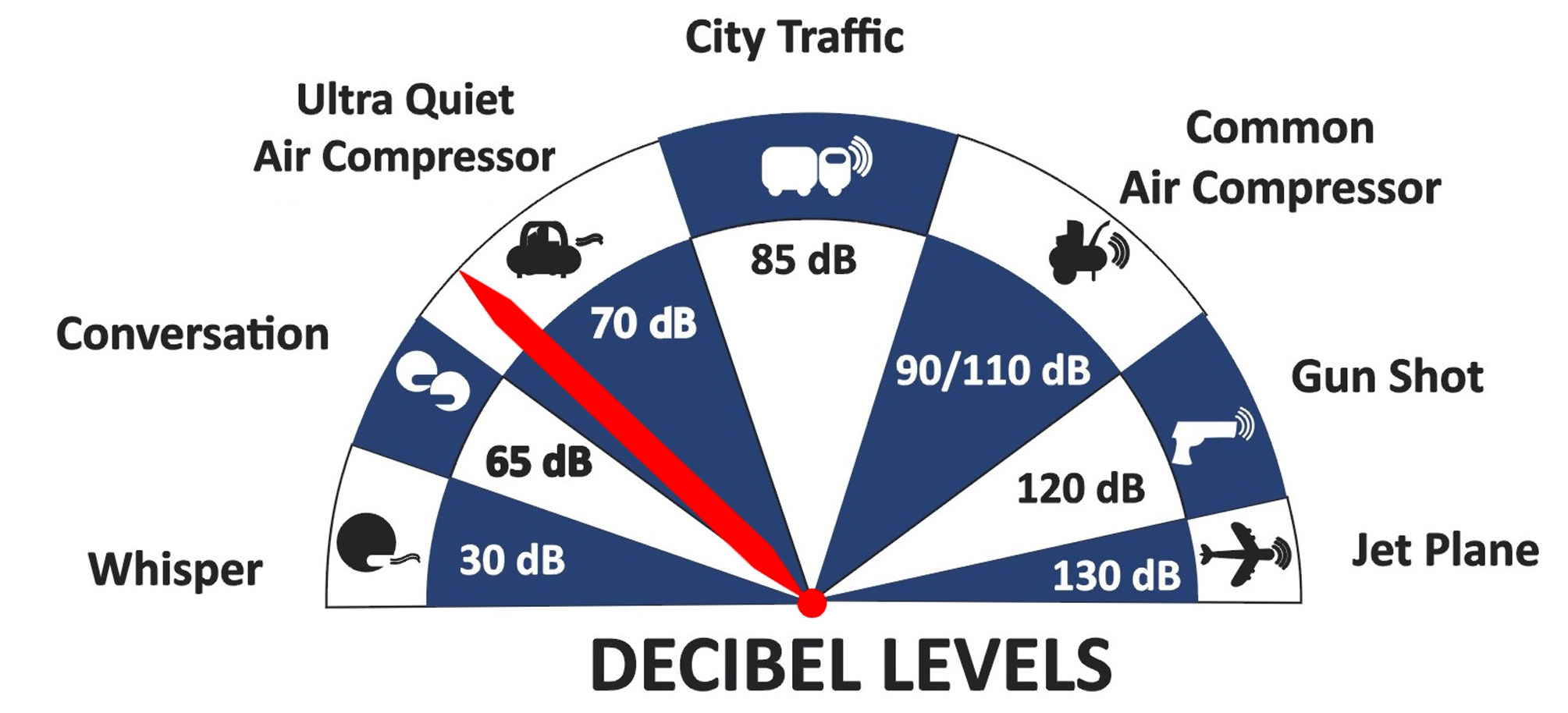

70 Decibel Noise Level

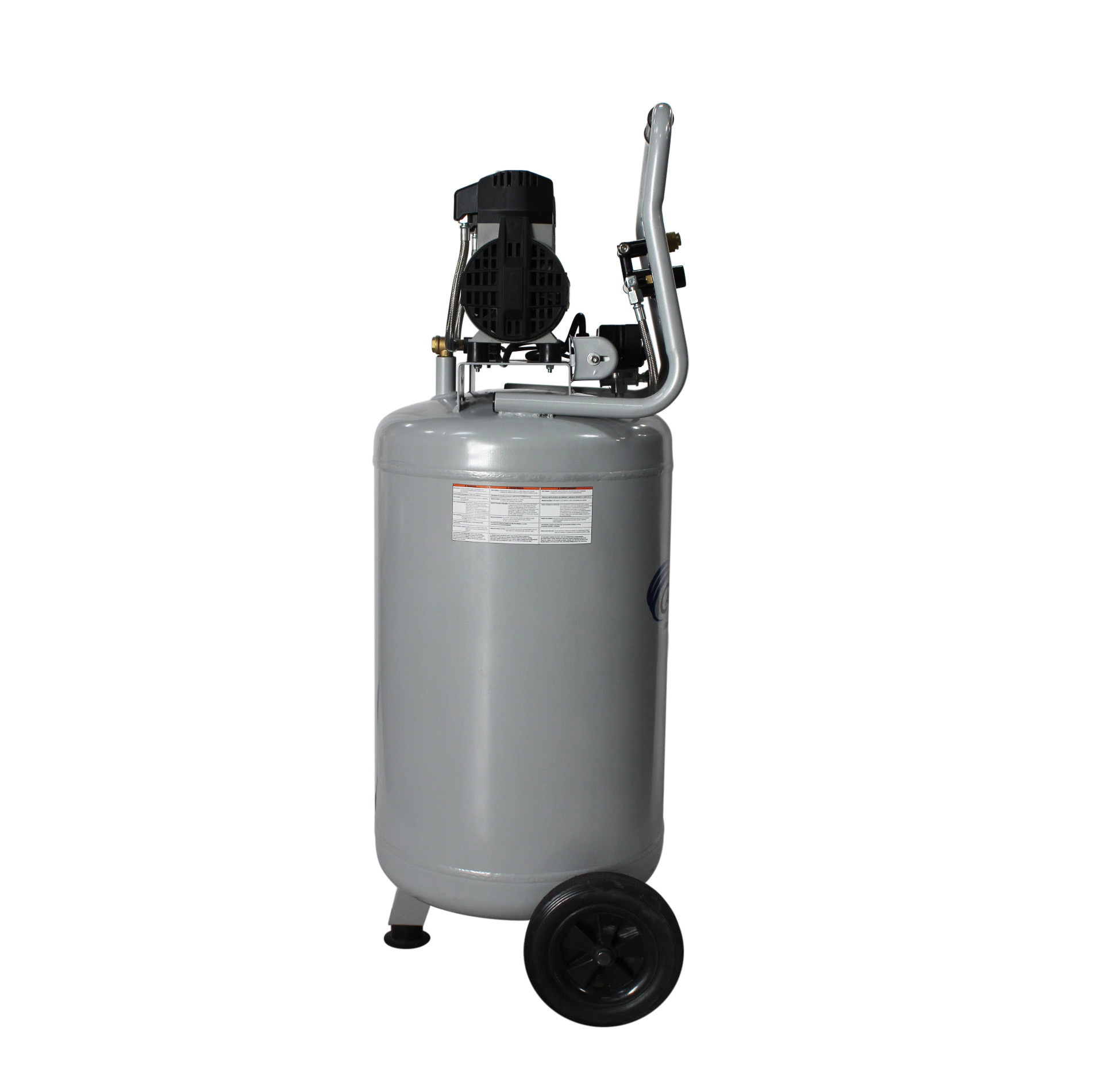

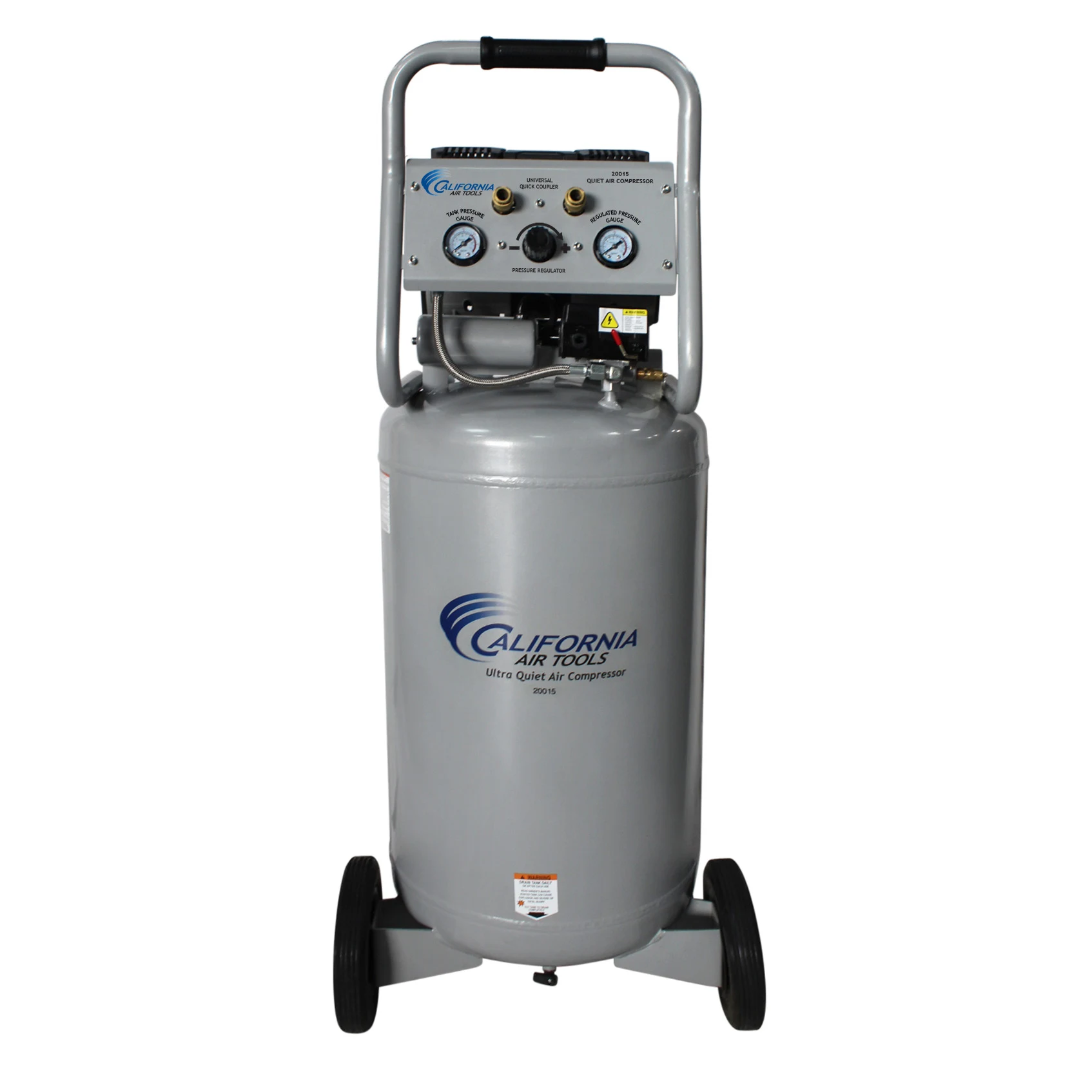

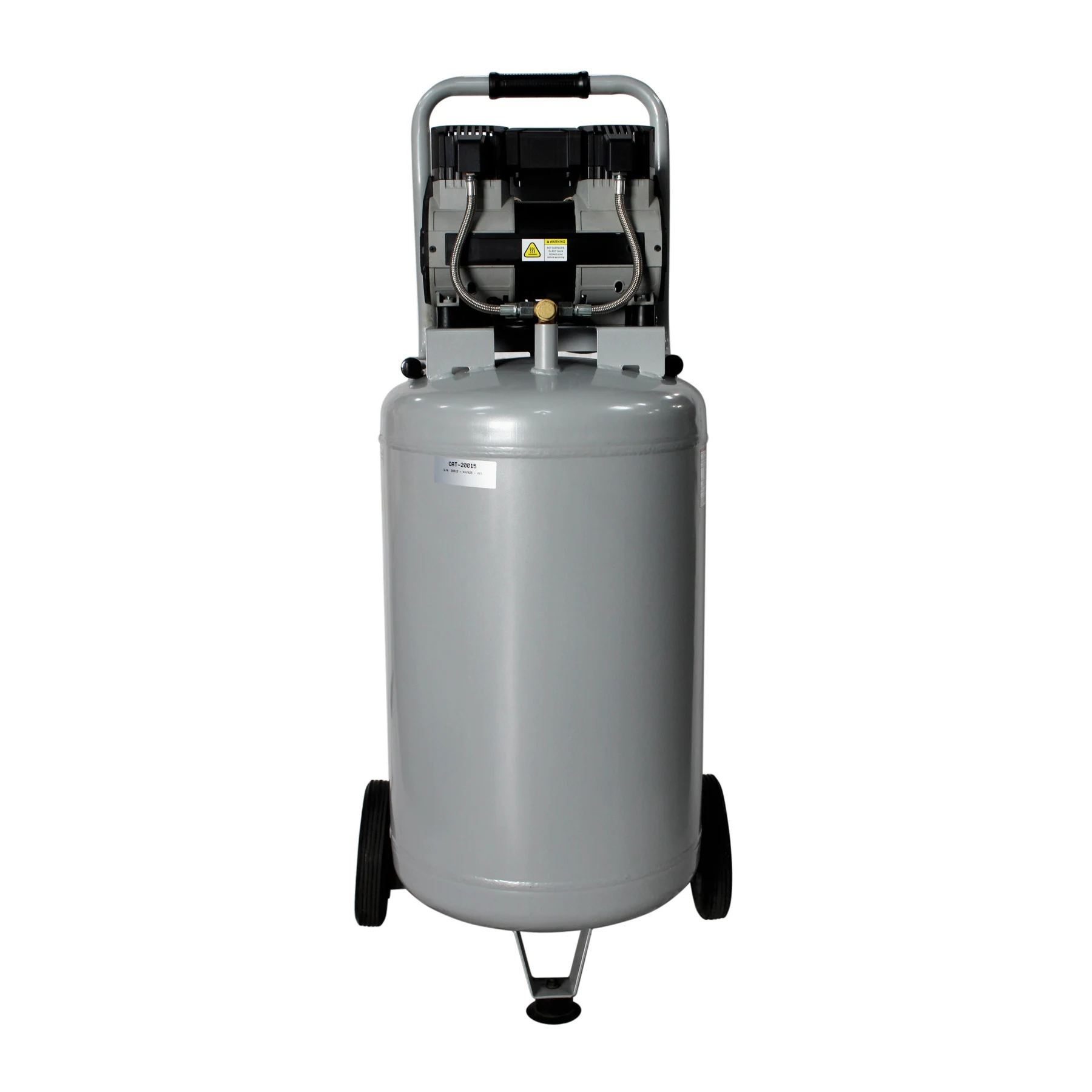

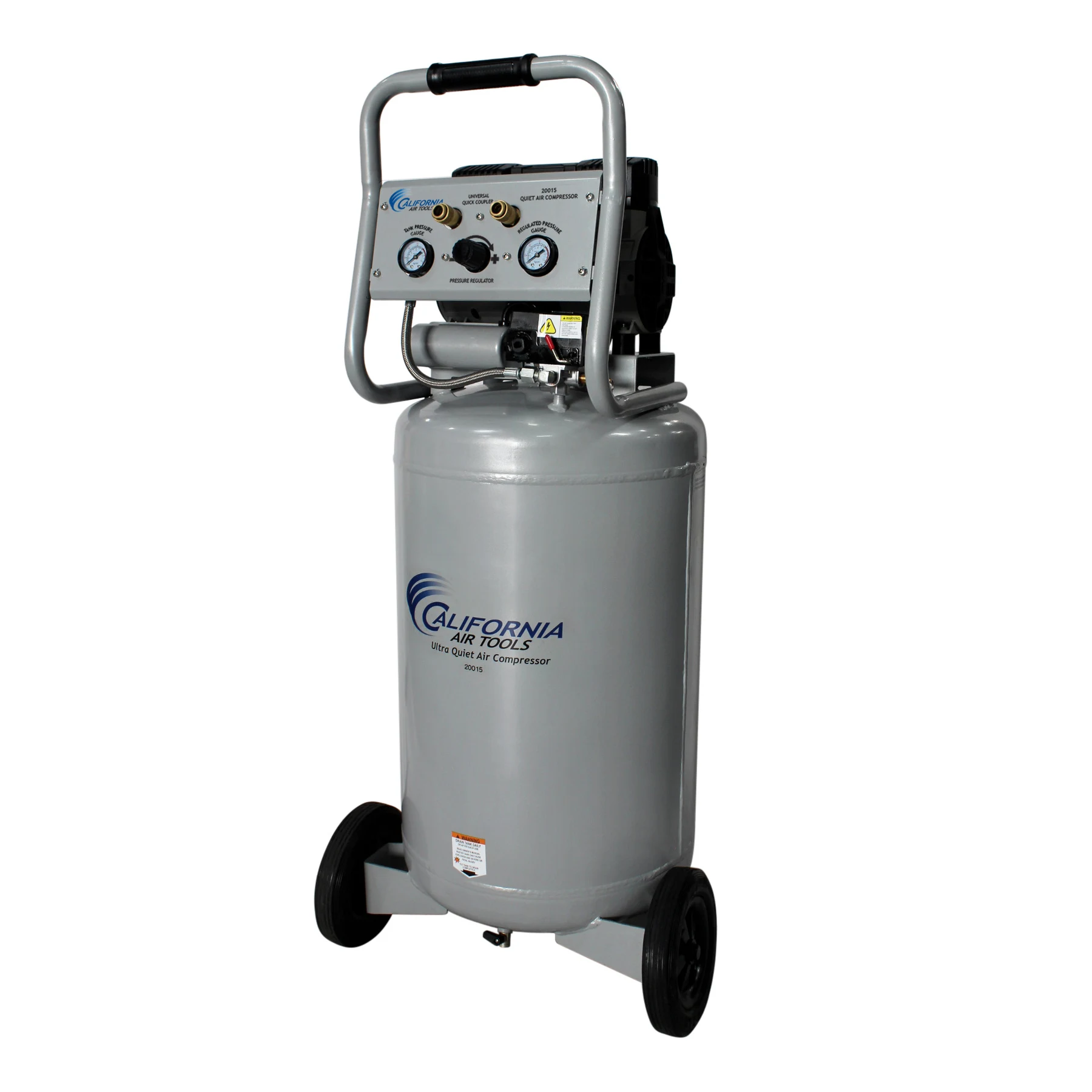

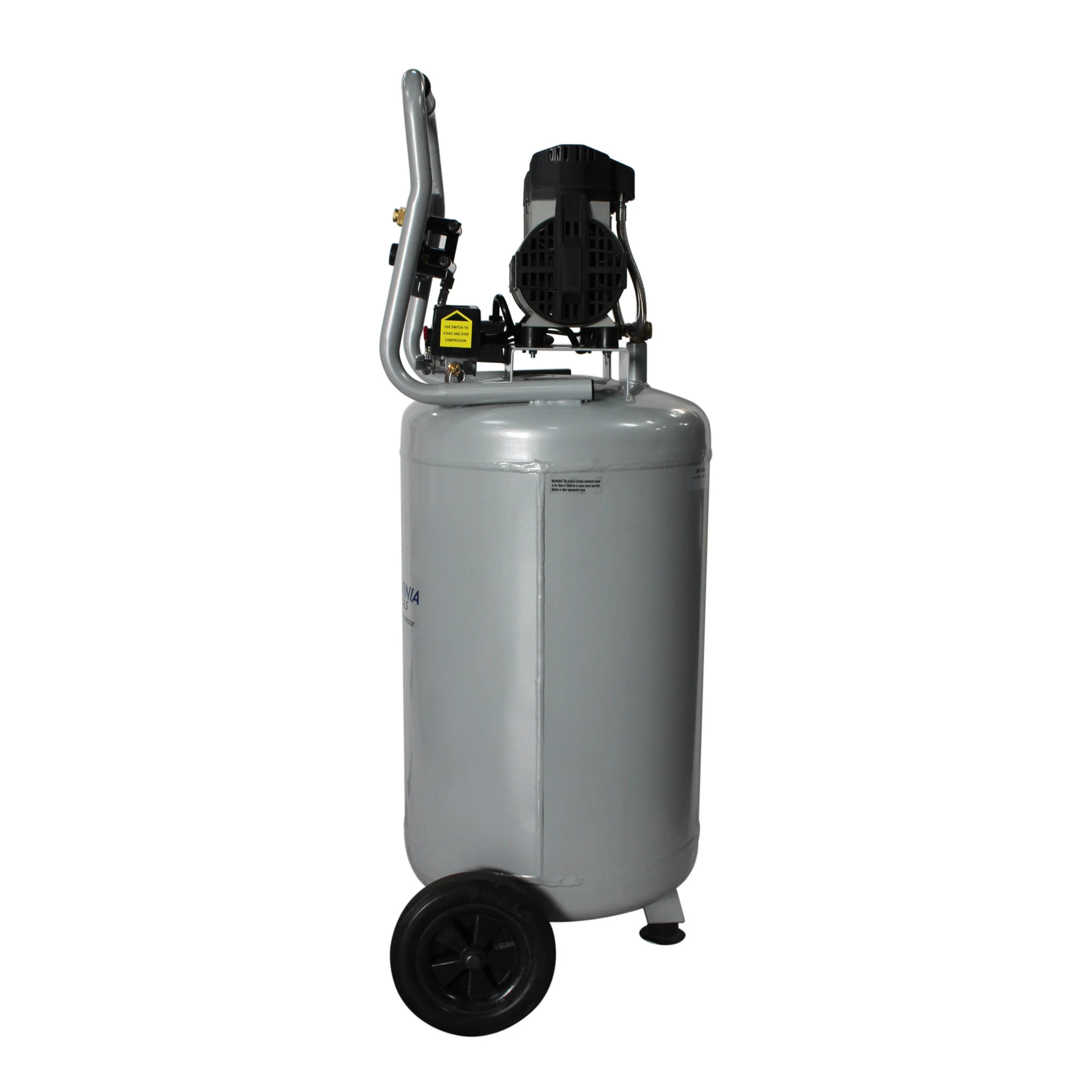

The CALIFORNIA AIR TOOLS 20015 Ultra Quiet & Oil-Free 20-Gallon Air Compressor is designed to be one of the quietest 1.5 Hp air compressors in the industry having only 70 decibels of sound.

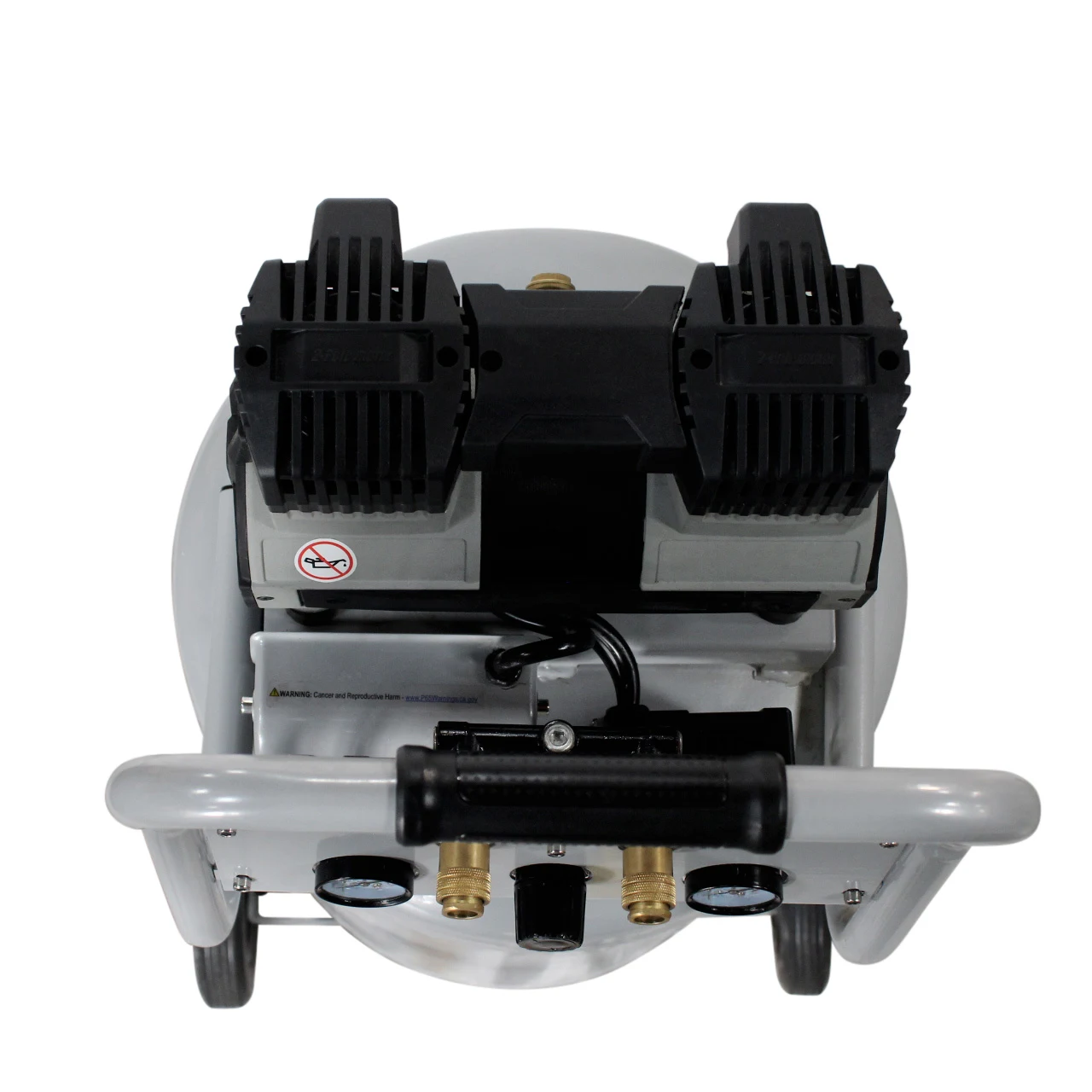

The Oil-Free Dual Piston Pump System is engineered for high performance and durability.*
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The large 20 Gallon Steel Air Tank is designed to store more air for higher demand air tools such as spray guns and sanders.
Prefect for the shop or garage.
The 2 (no flat) wheels and handle makes moving this air compressor very easy.
Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 25% Less Noise!

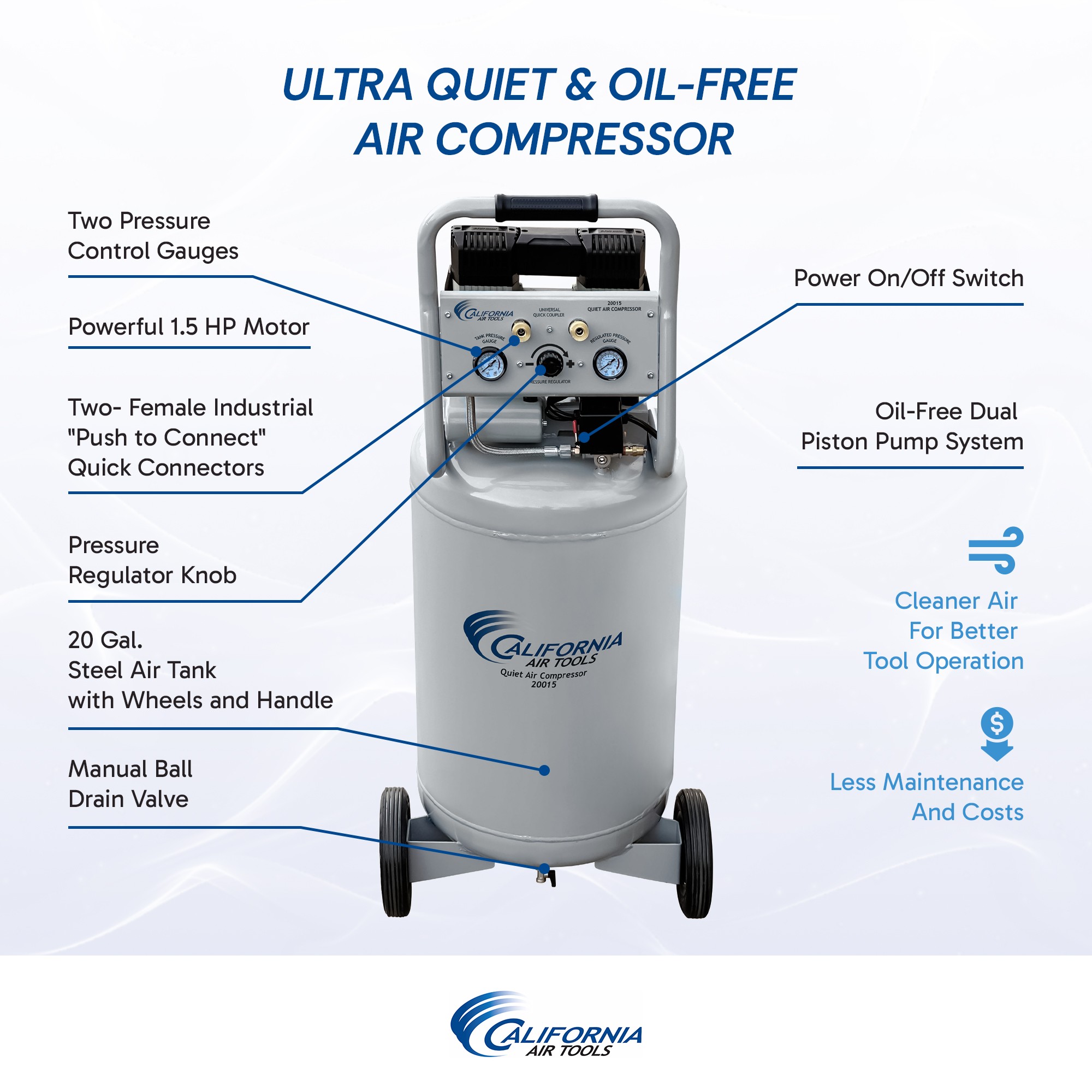

Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges

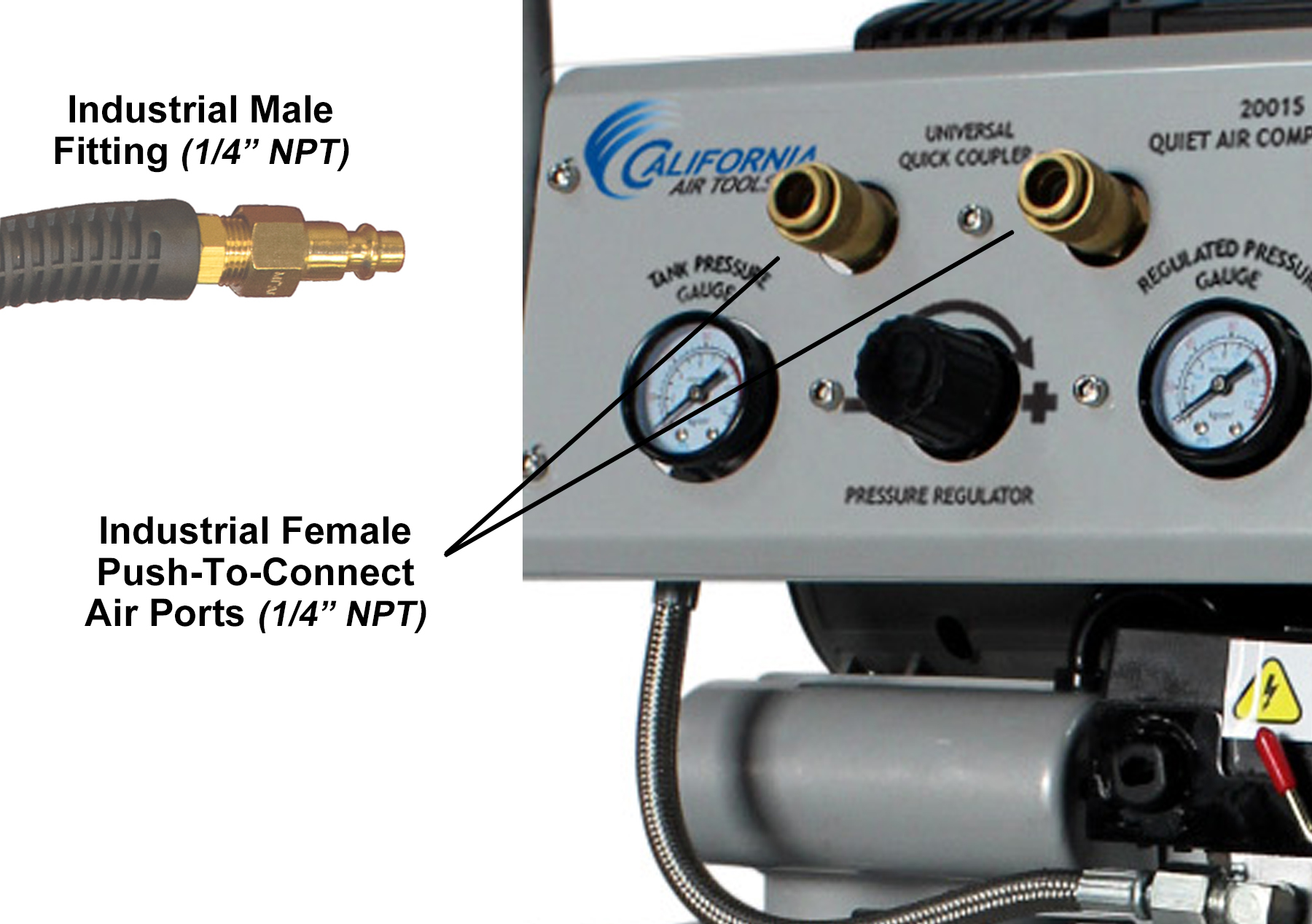

* Two – Female industrial “Push to Connect” quick connectors

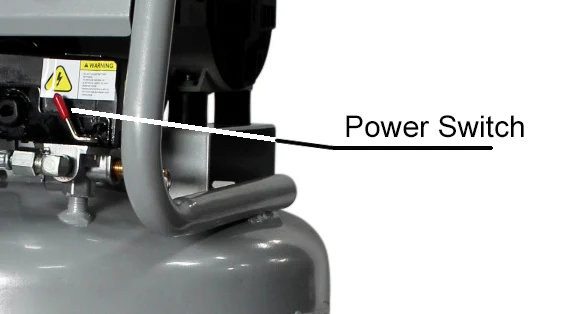

* Easy-to-Use Start/Stop Switch
* Auto Pressure Switch
* Working Pressure 105-135 PSI (+/-5 PSI)
* 135 PSI Maximum Pressure
* Output Air Pressure Regulator (adjustable from 0-105 PSI)
* Thermal Overload Protector

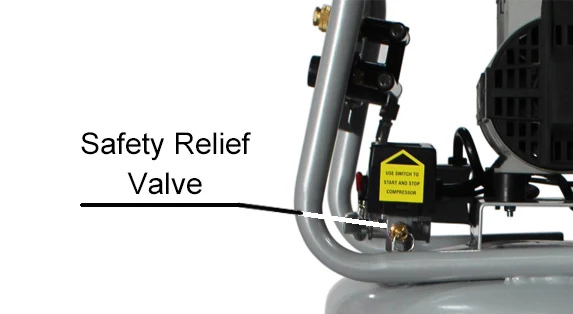

* Safety Relief Valve opens at 150 PSI
* 110v / 60 hz
* Low Amp Draw – 13 Amps
* Dedicated 15 amp outlet -14 gauge 25ft cord – Min. 5000 Watt Generator
* Time to fill tank from empty to full – 6.50 Minutes
* Recovery time from 95 PSI to 125 PSI -1.8 Minutes
* Duty Cycle – 70/30*
* Maximum continuous running 60 min. (Depending PSI & CFM)
* Less heat which dissipates more efficiently
* 20 Gal. Steel Air Tank
* Wheel Kit (no flat) and (2) Air Filters

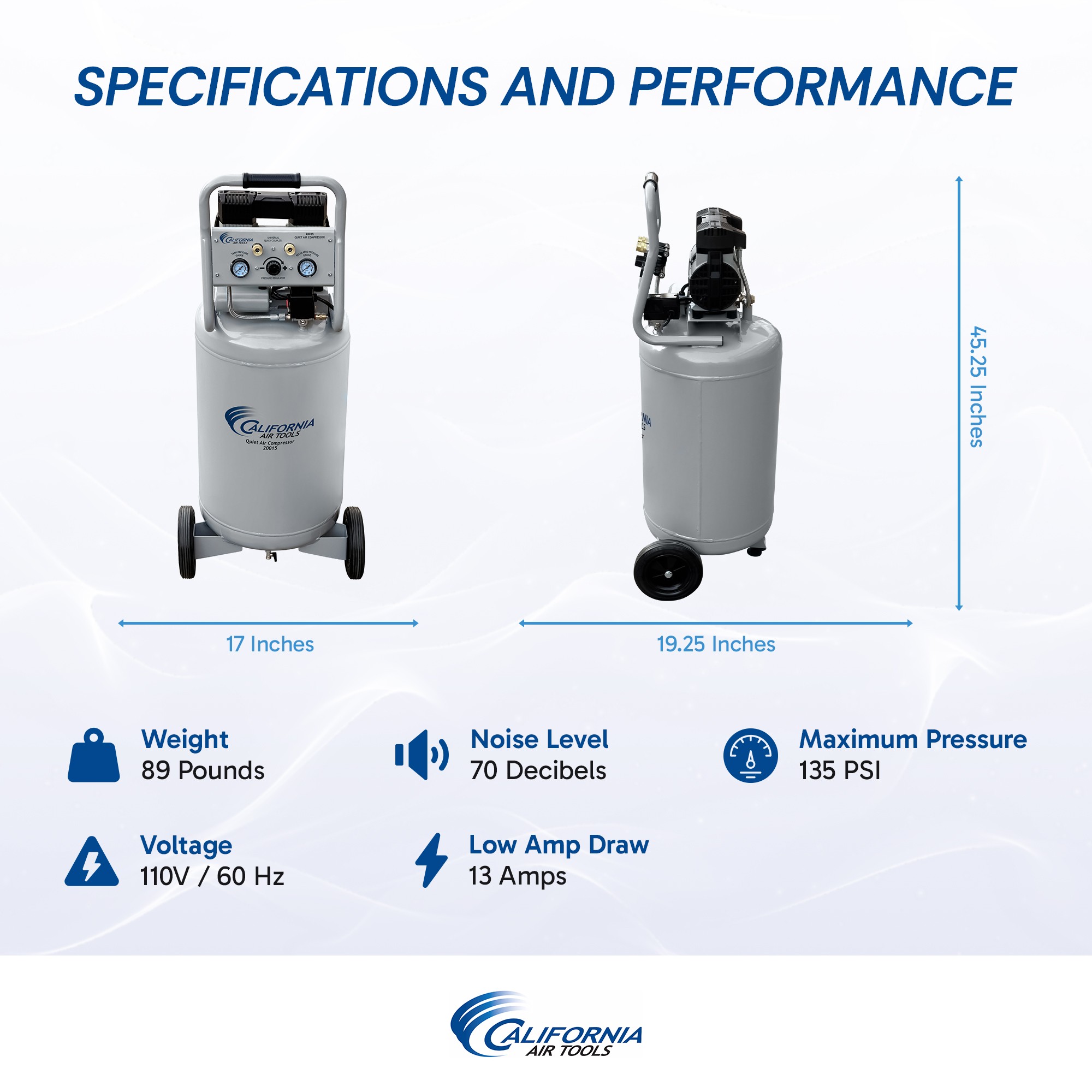

* L (17.0″) x W/D (19.25″) x H (45.25″)
* 89 lbs
* Non-ASME Air Tank
* 1 Year Limited Warranty
* Commercial Use: Refer to State & City Codes
* Manufactured in China
Add-On Options:
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT

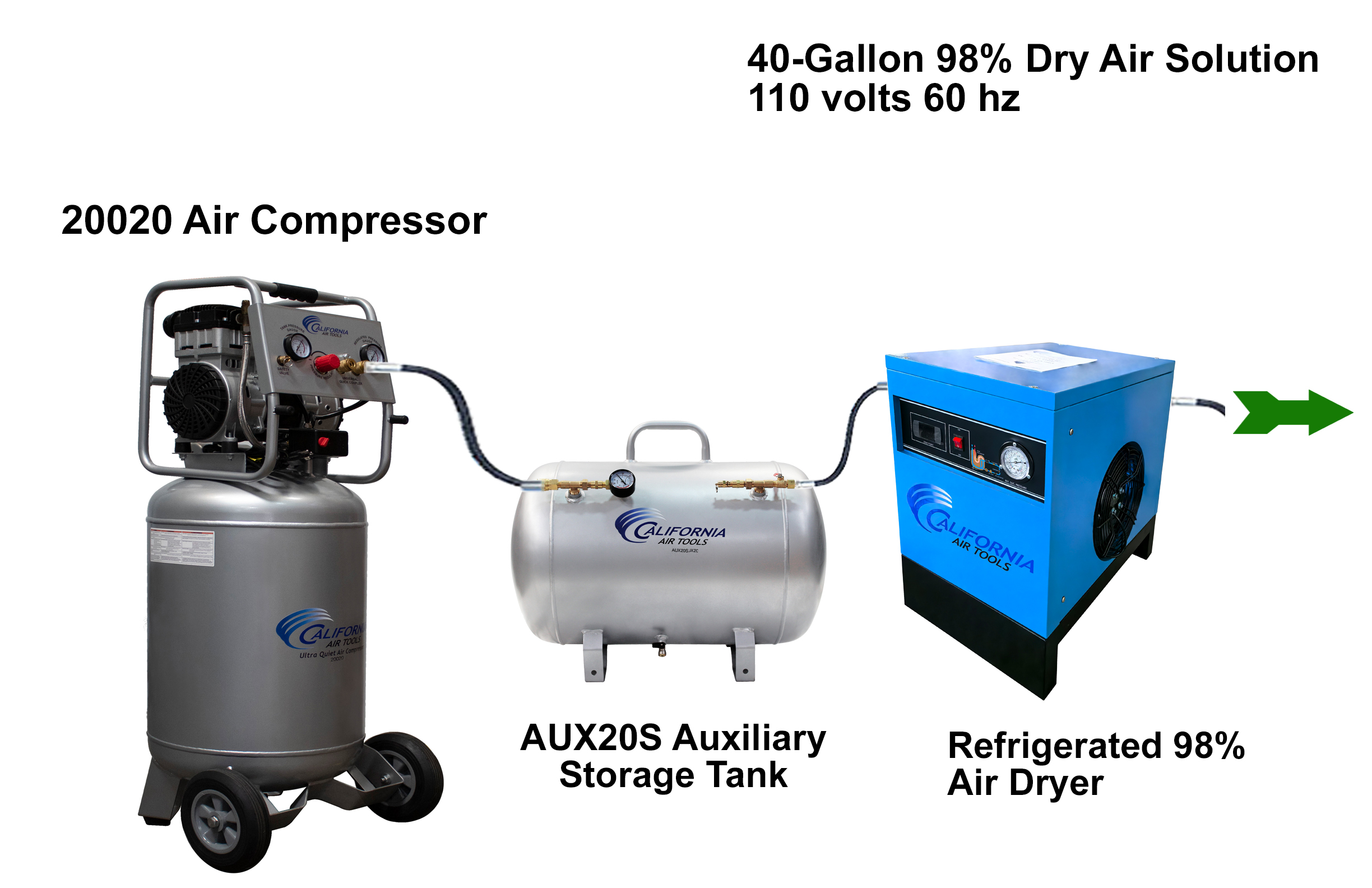

Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)
Auto Drain Connectivity (Instructions)
California Air Tools 20015 Owners Manual_03-25
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
*70/30 Duty Cycle – Click Here For More Information
