75 Decibels Noise Level
4.0 HP (Rated/Running)
20.0 Gallon Steel Tank
12.80 CFM @ 40 PSI
10.60 CFM @ 90 PSI

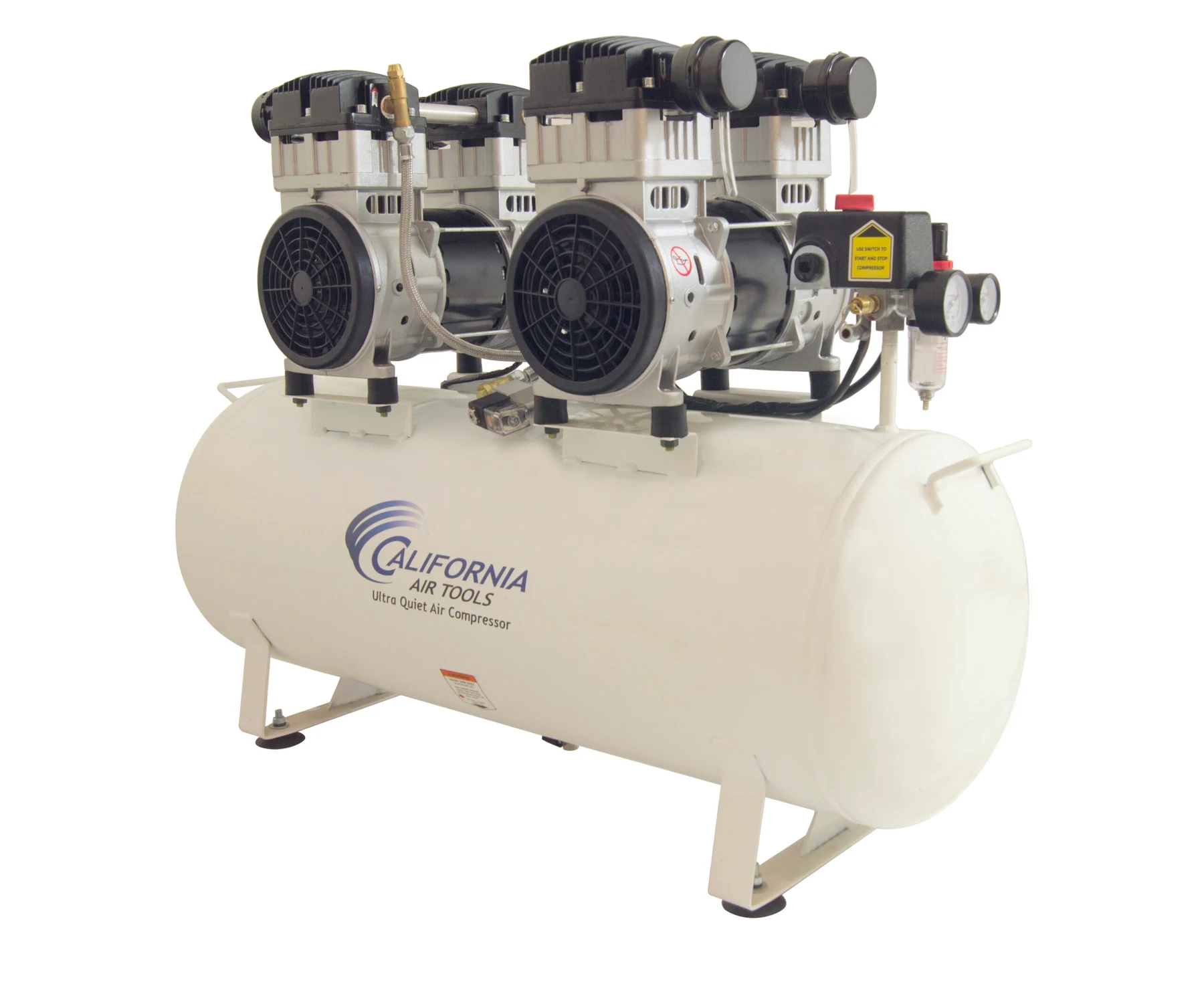

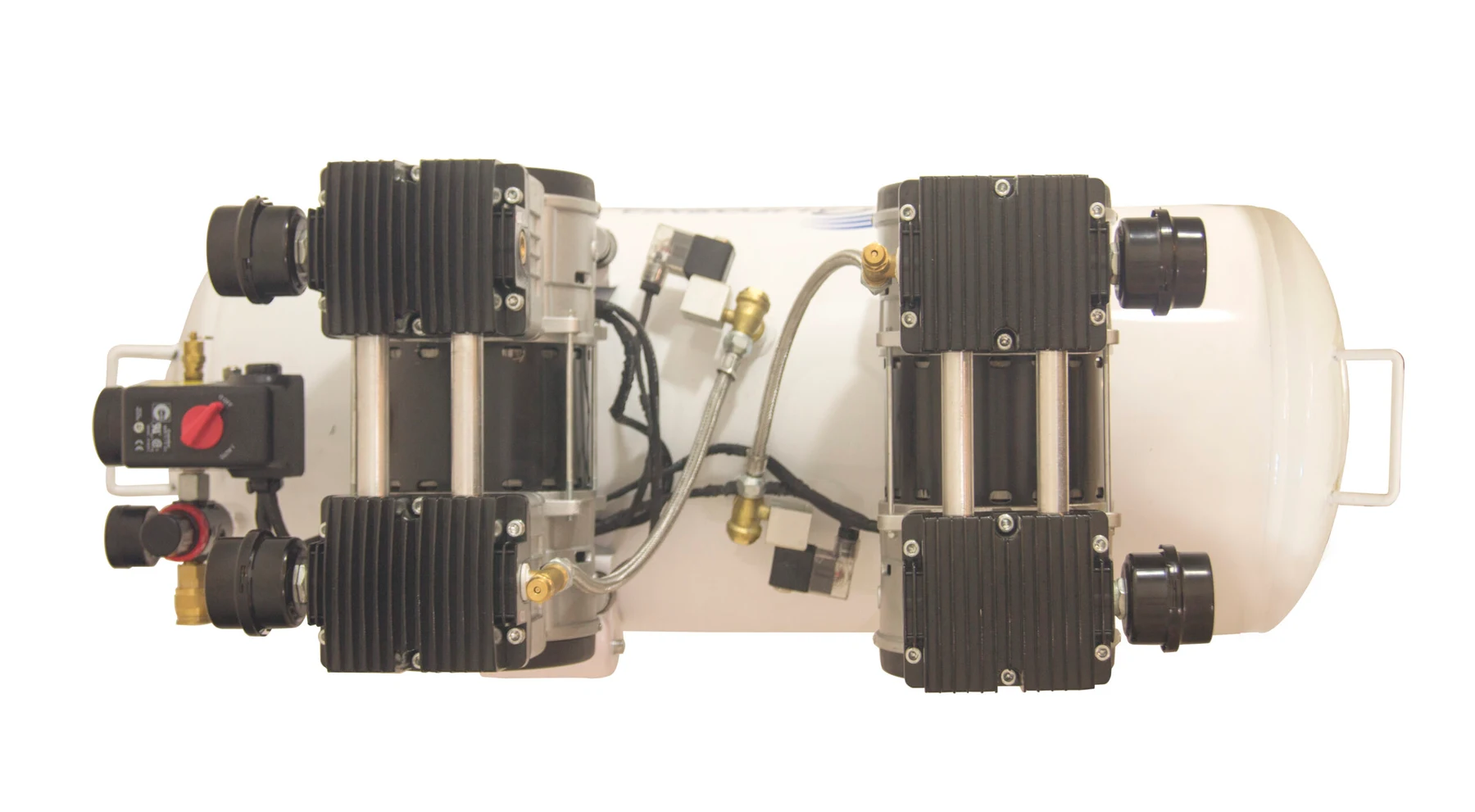

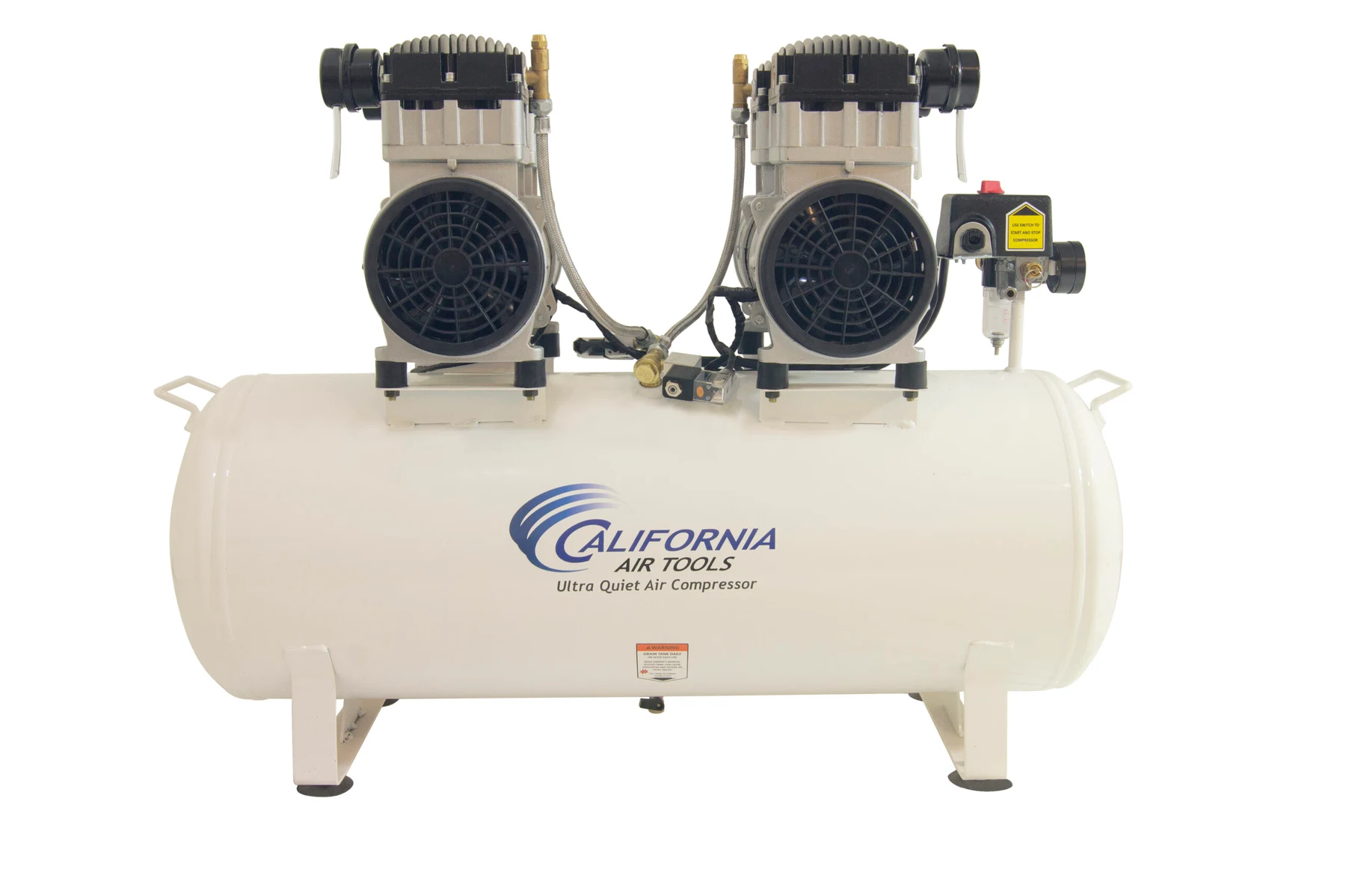

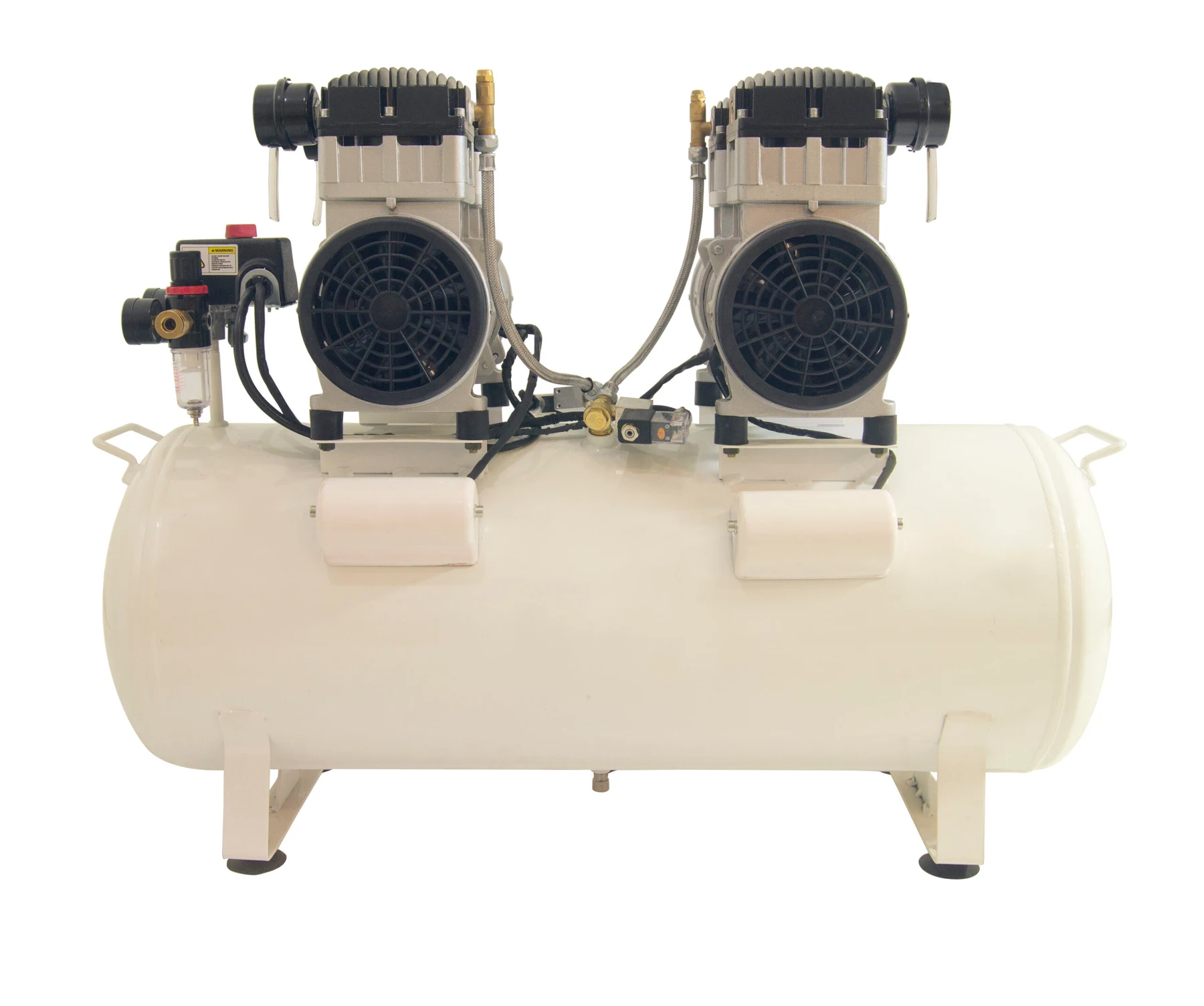

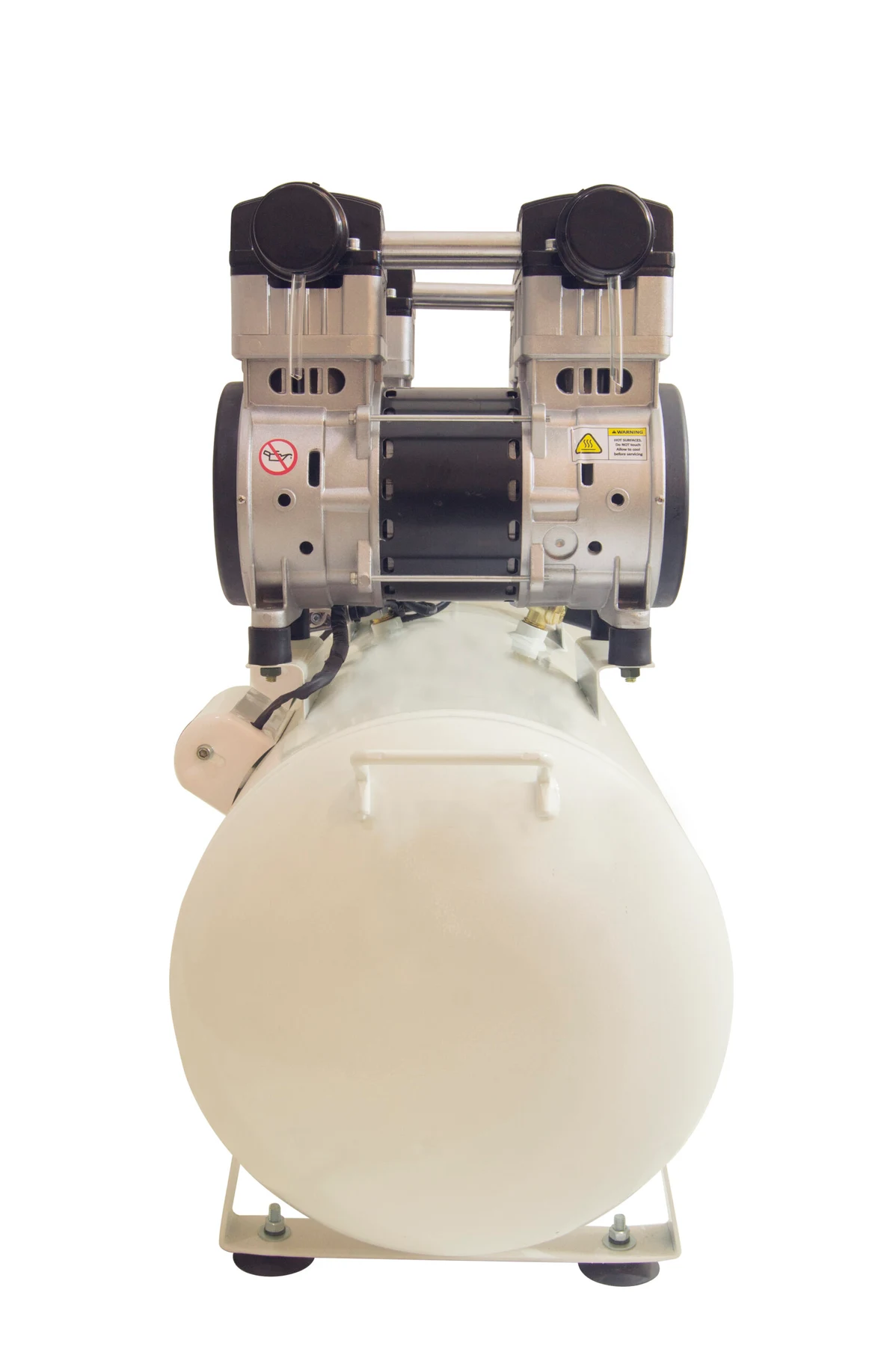

The CALIFORNIA AIR TOOLS 20040C Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound.
The Powerful Twin 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-20040C Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

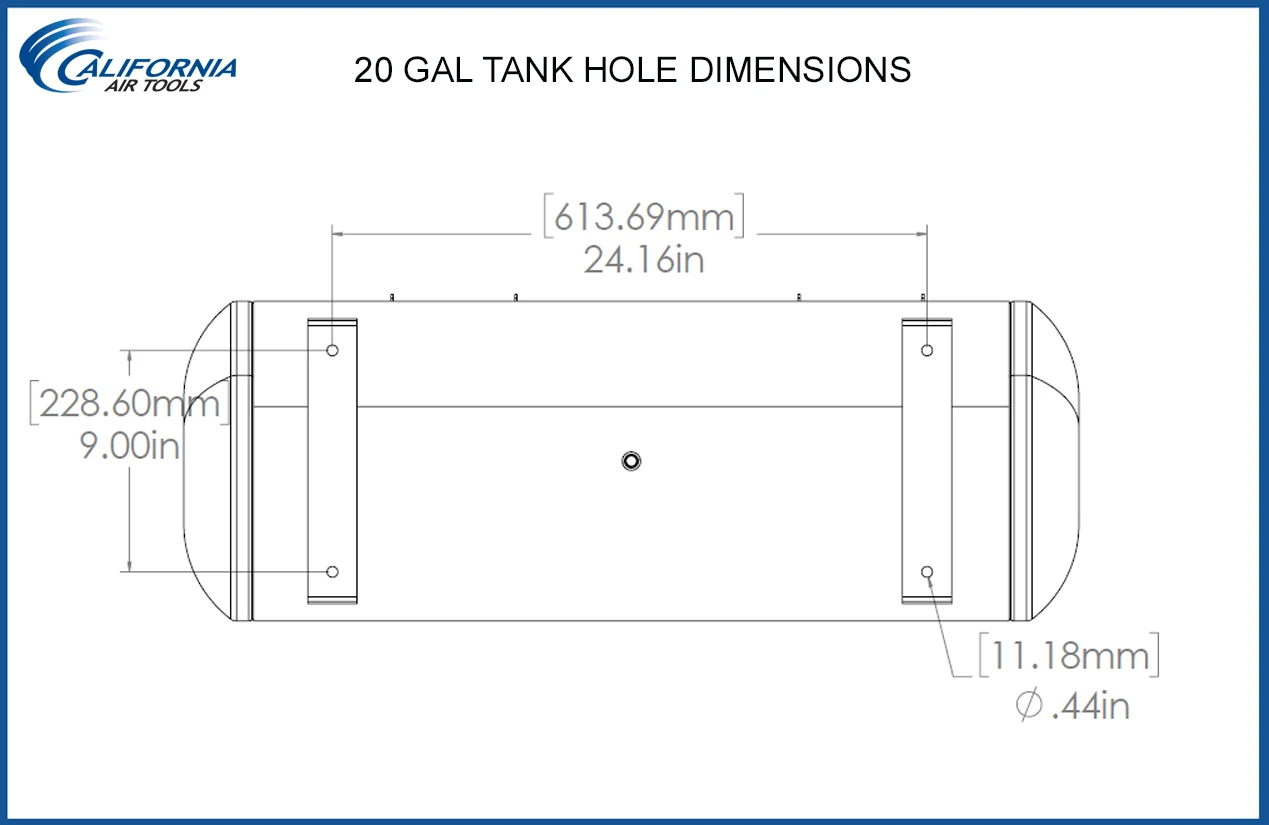

The large 20 Gallon Steel Air Tank is just the right size for shop or garage.
Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!

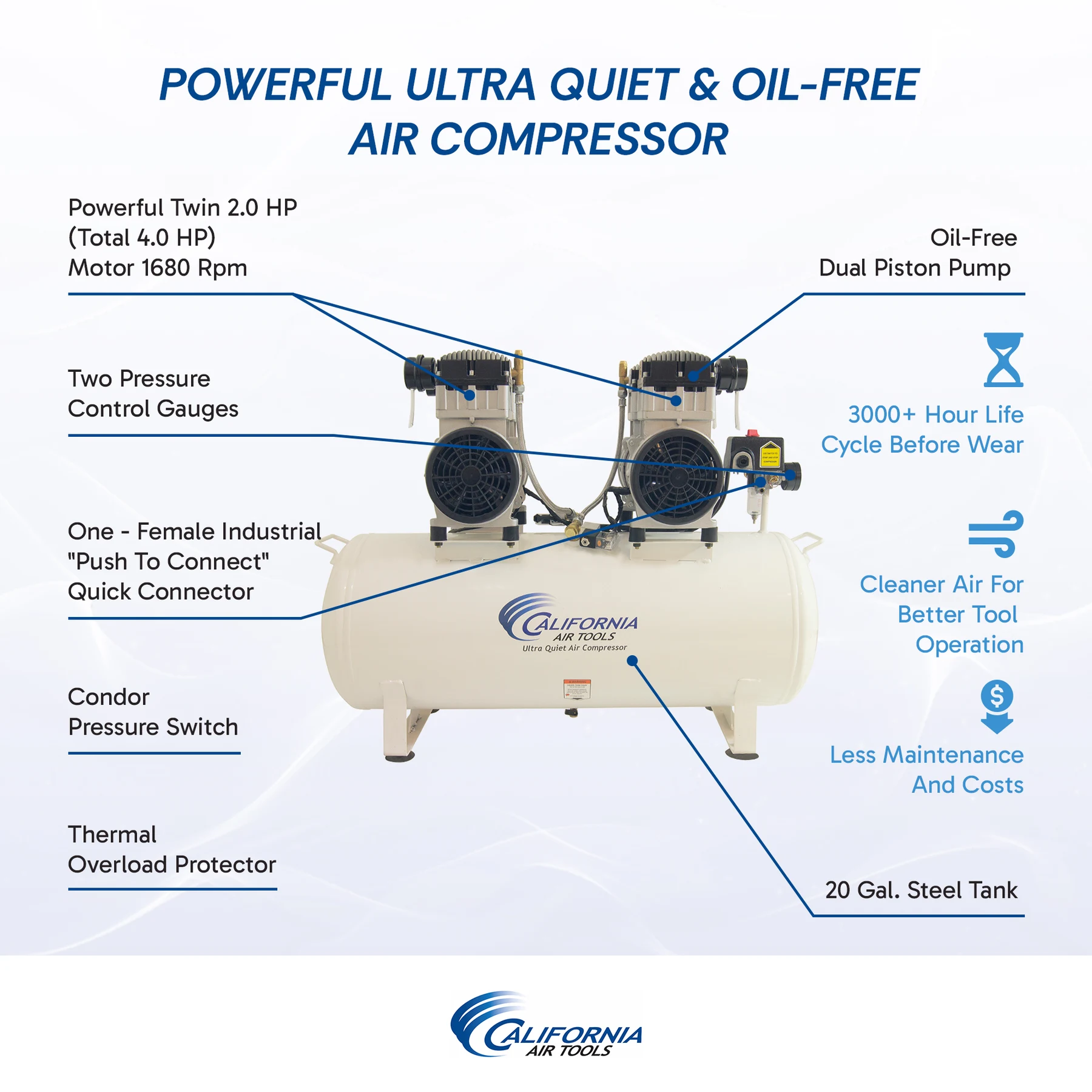

Features:

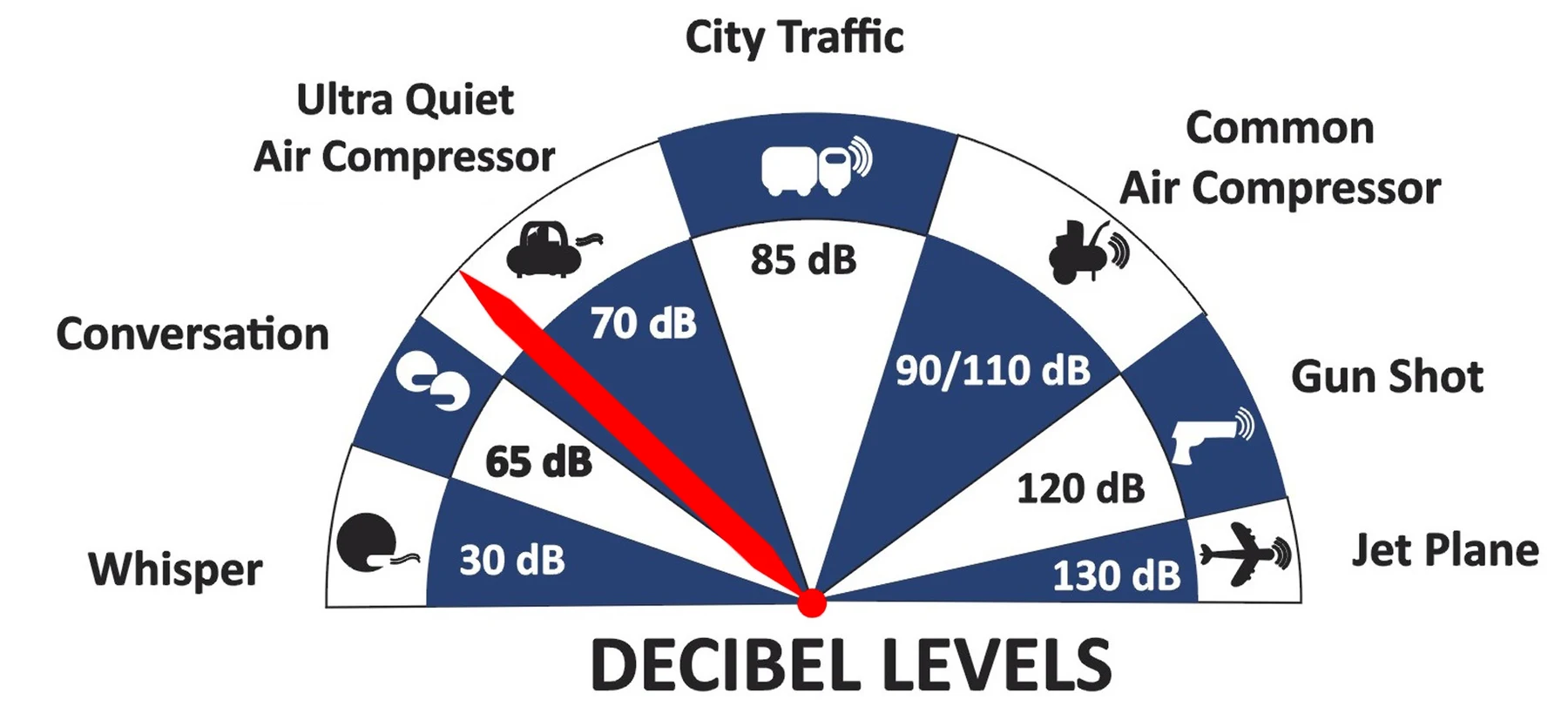

* Ultra Quiet – Only 75 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.

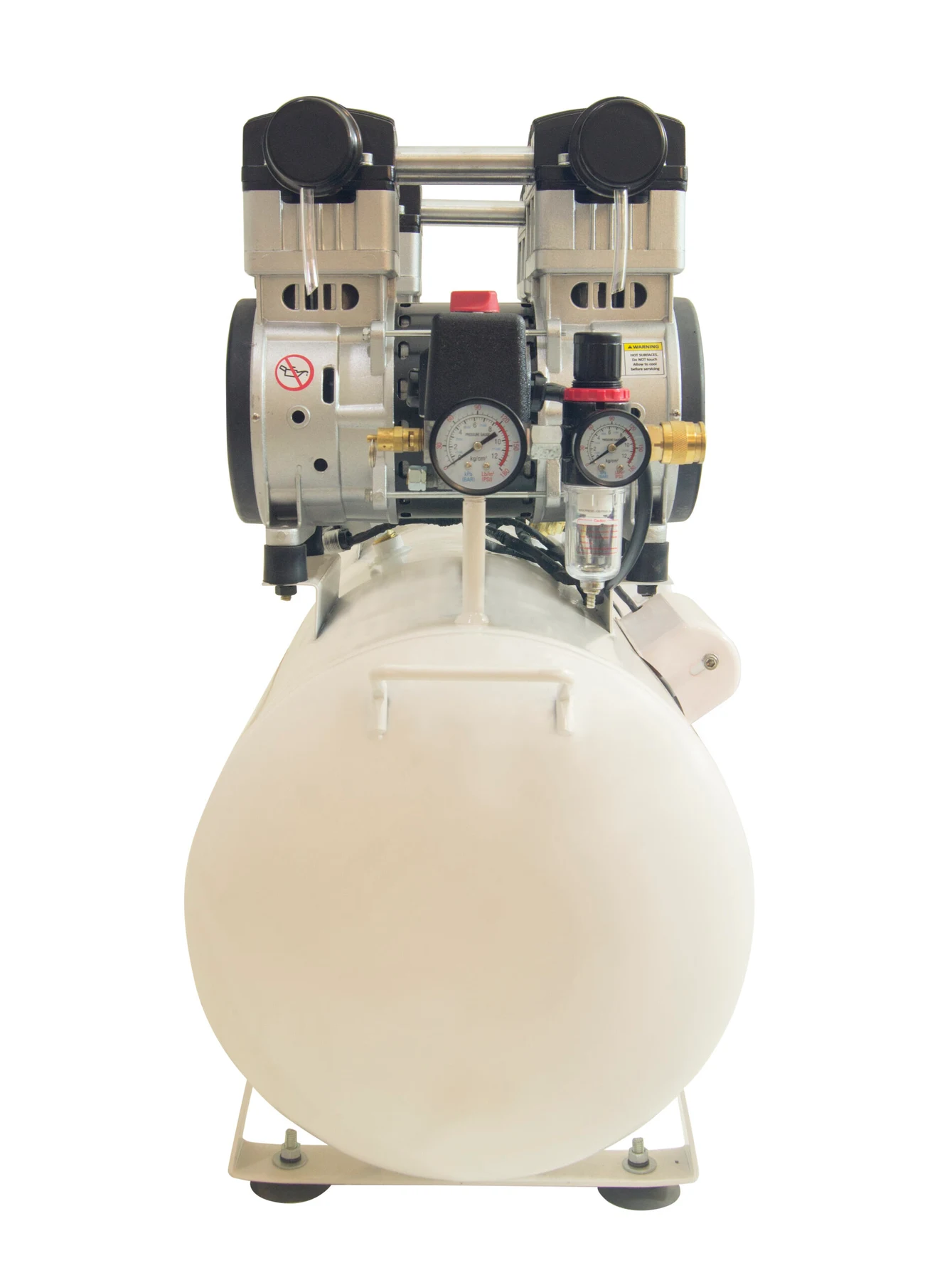

* Two pressure control gauges
* One – Female Industrial “Push to Connect” quick connector
* Condor Pressure Switch
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* 220 Volt / 60 Hertz / Single Phase (No 208 Volts – if necessary, obtain 208 to 220 voltage booster)
* Low Amp Draw – 14 Amps
* Time to fill tank from empty to full – 150 Seconds
* Recovery time from 95 PSI to 125 PSI – 40 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 20 Gal. Steel AirTank – pounds and easy to move around.

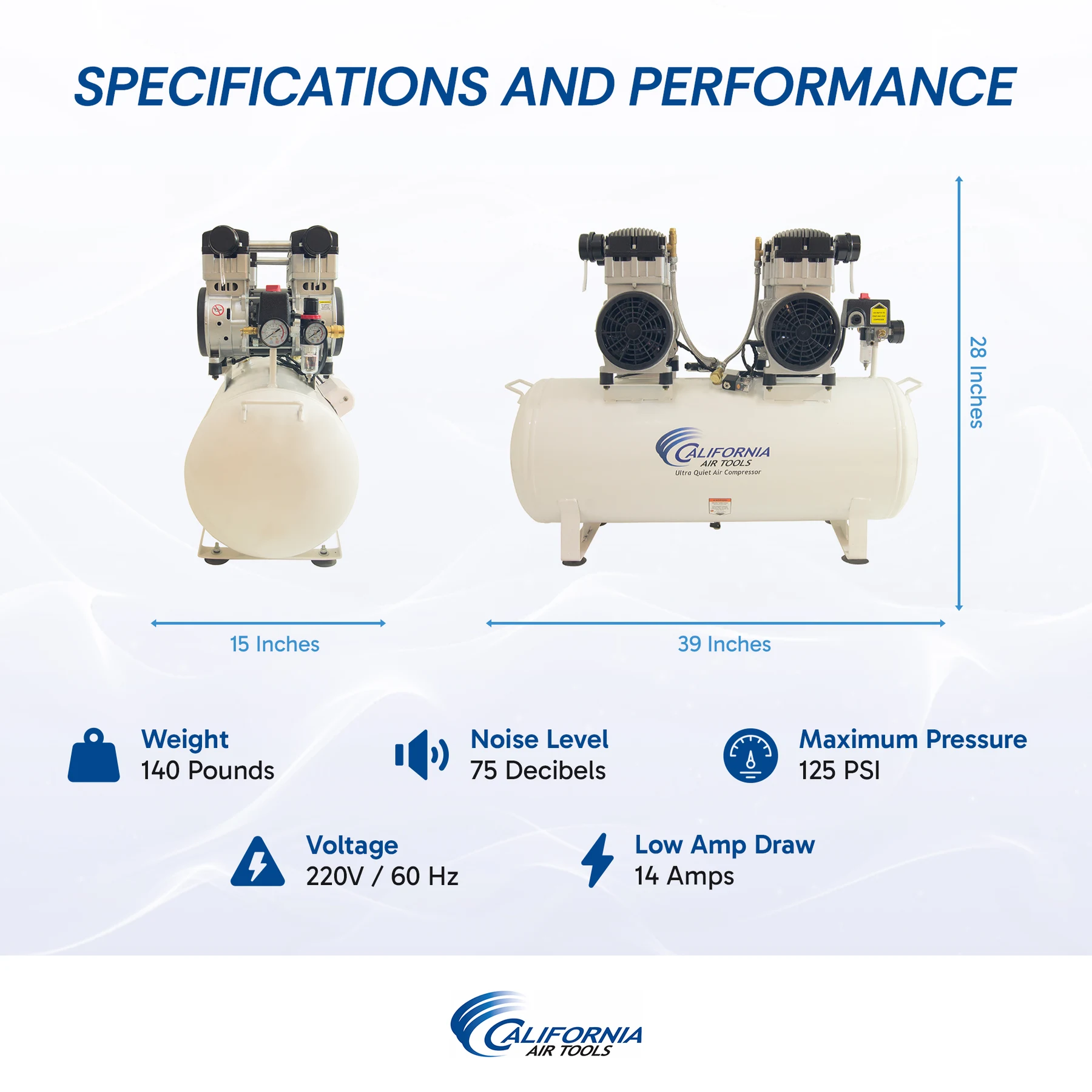

* L (37.5″) x W (15″) x H (28″)
* 148 lbs
* 1 Year Limited Warranty
* Comes complete (4) Air Filters
* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
* Commercial Use: Refer to State & City Codes
* Non-ASME Air Tank
* Assembled in USA with Global Components
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
