4.0 HP (Rated/Running)
20 Gallon Steel Tank
12.80 CFM @ 40 PSI
10.60 CFM @ 90 PSI
75 Decibel Noise Level
220 Volts / 60 Hertz / Single Phase

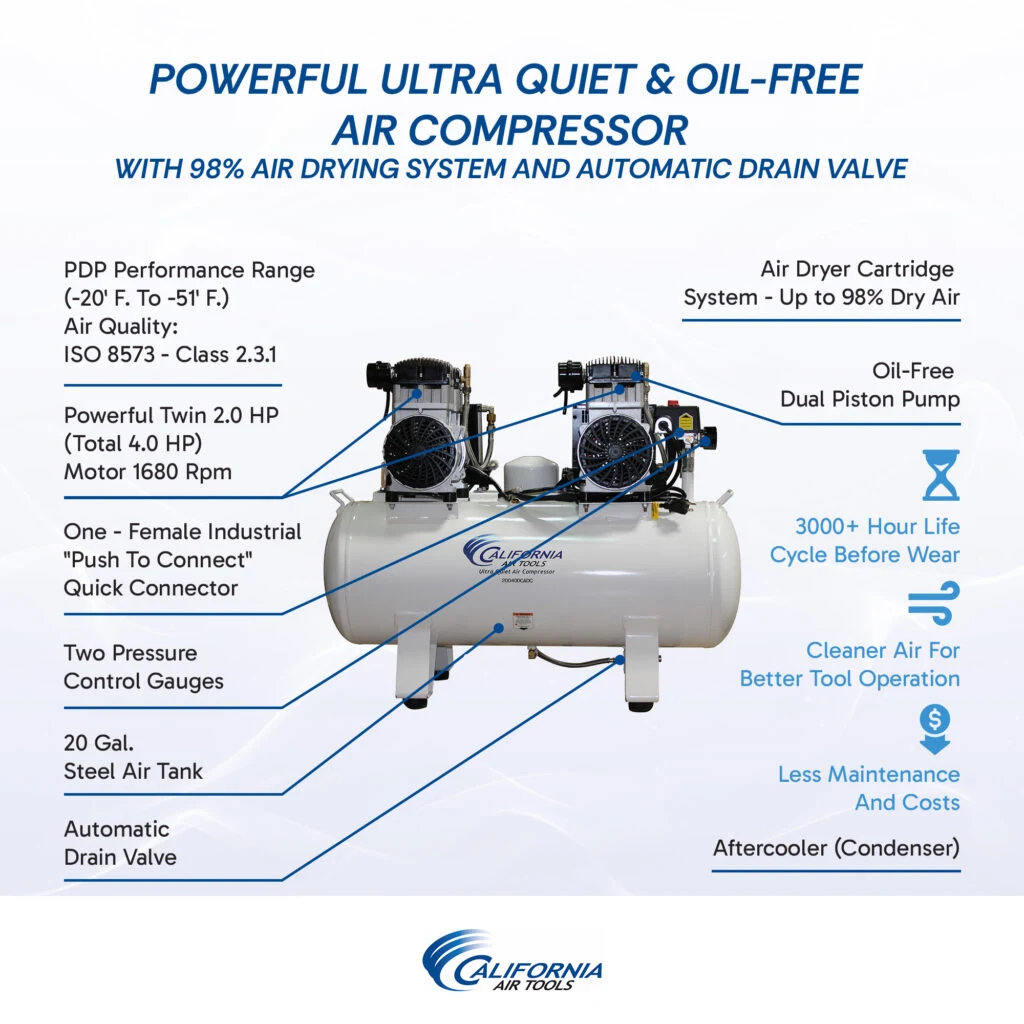

Air Dryer Cartridge System – Up to 98% Dry Air
98% Air Drying System
ISO 8573 2.3.1 Compliant

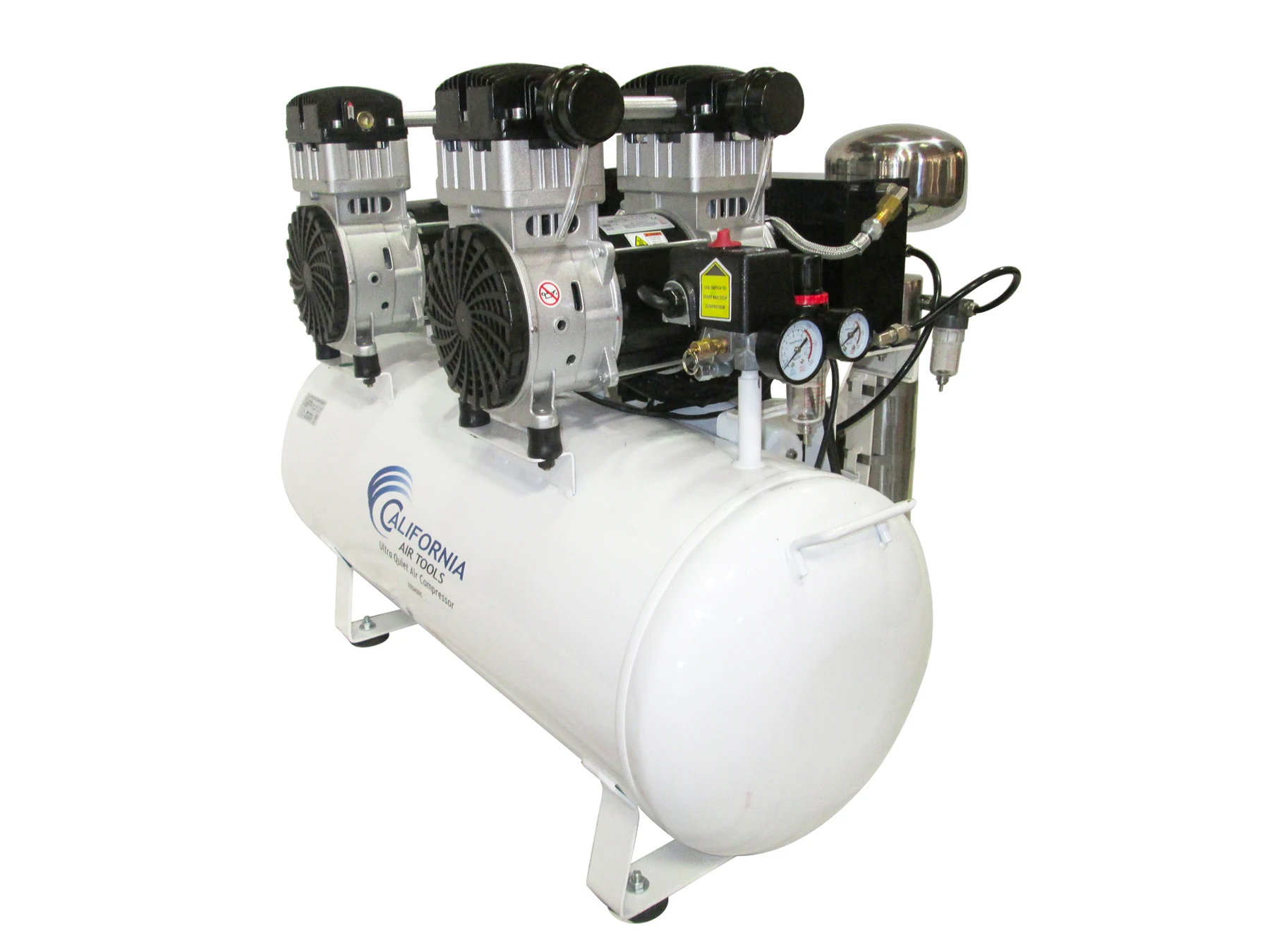

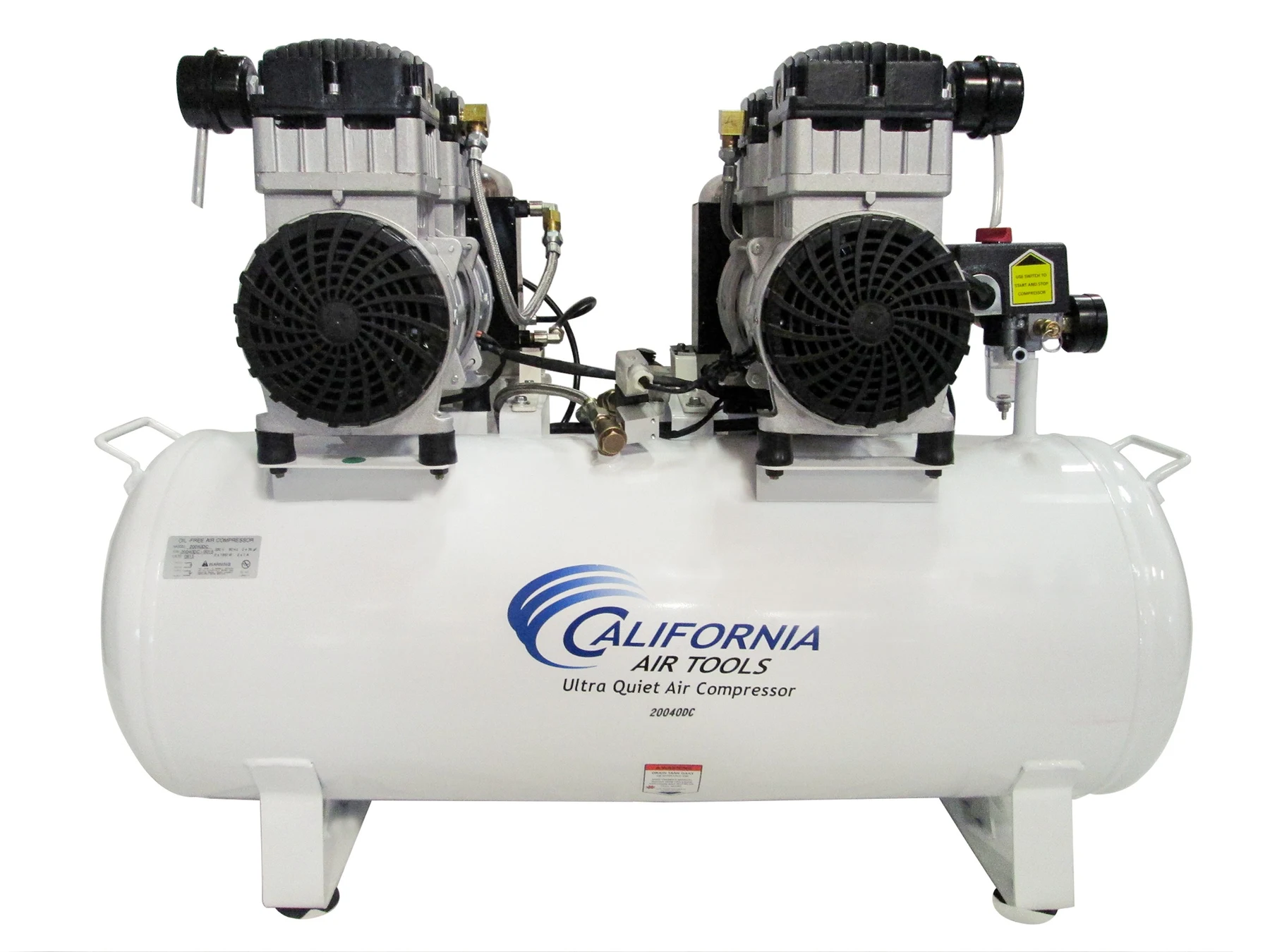

The CALIFORNIA AIR TOOLS 20040DC Ultra Quiet & Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound.
The Powerful Twin 2.0 HP (SP-9421-22060) motors operate at only 1680 RPM creating less noise and less wear.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*

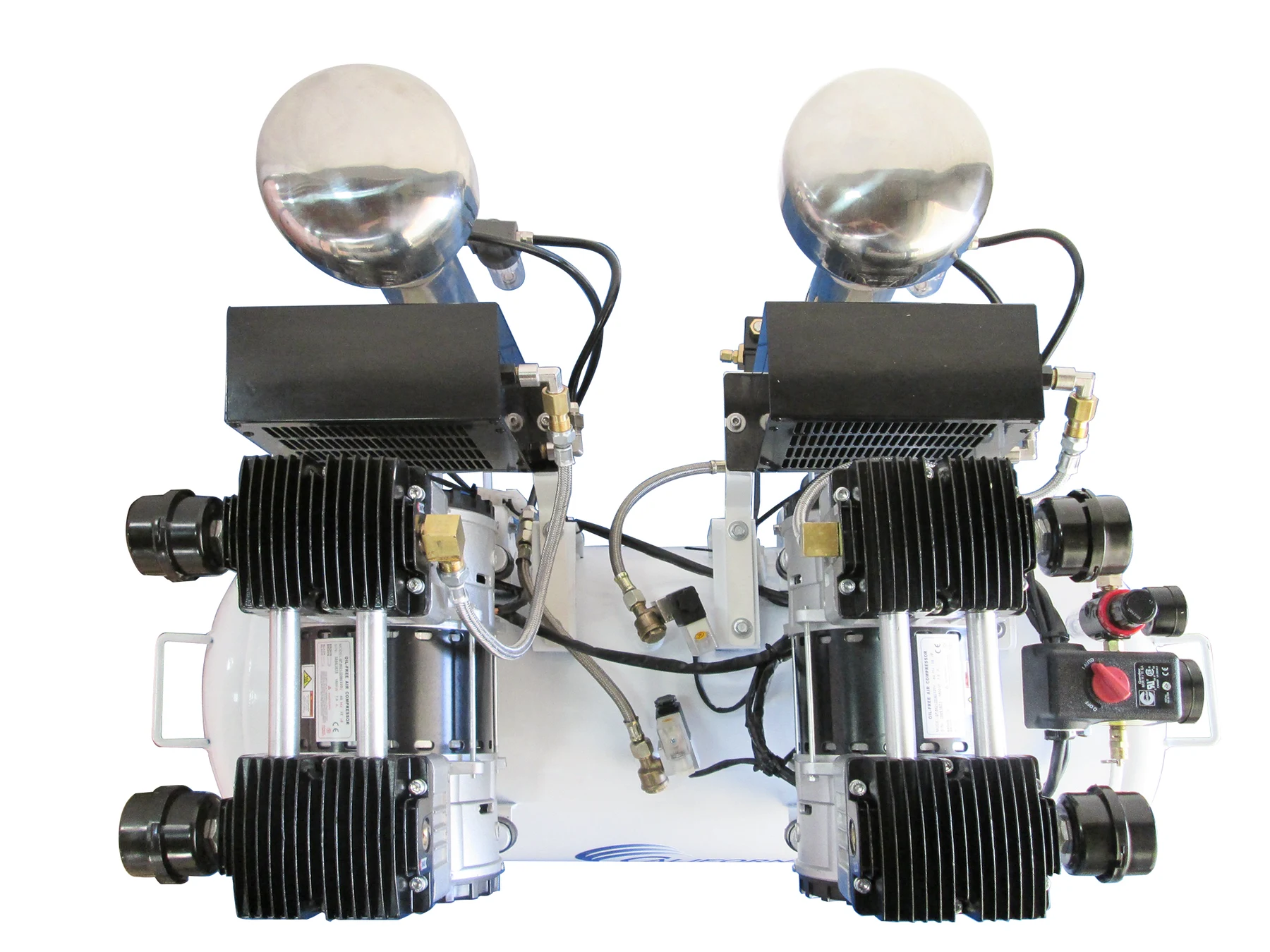

The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-20040DC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The large 20 Gallon Steel Air Tank is just the right size for shop or garage.
The 80% Air Dryer is specially designed to remove the 80% of the water vapor from the air to protect sensitive tools and machinery.

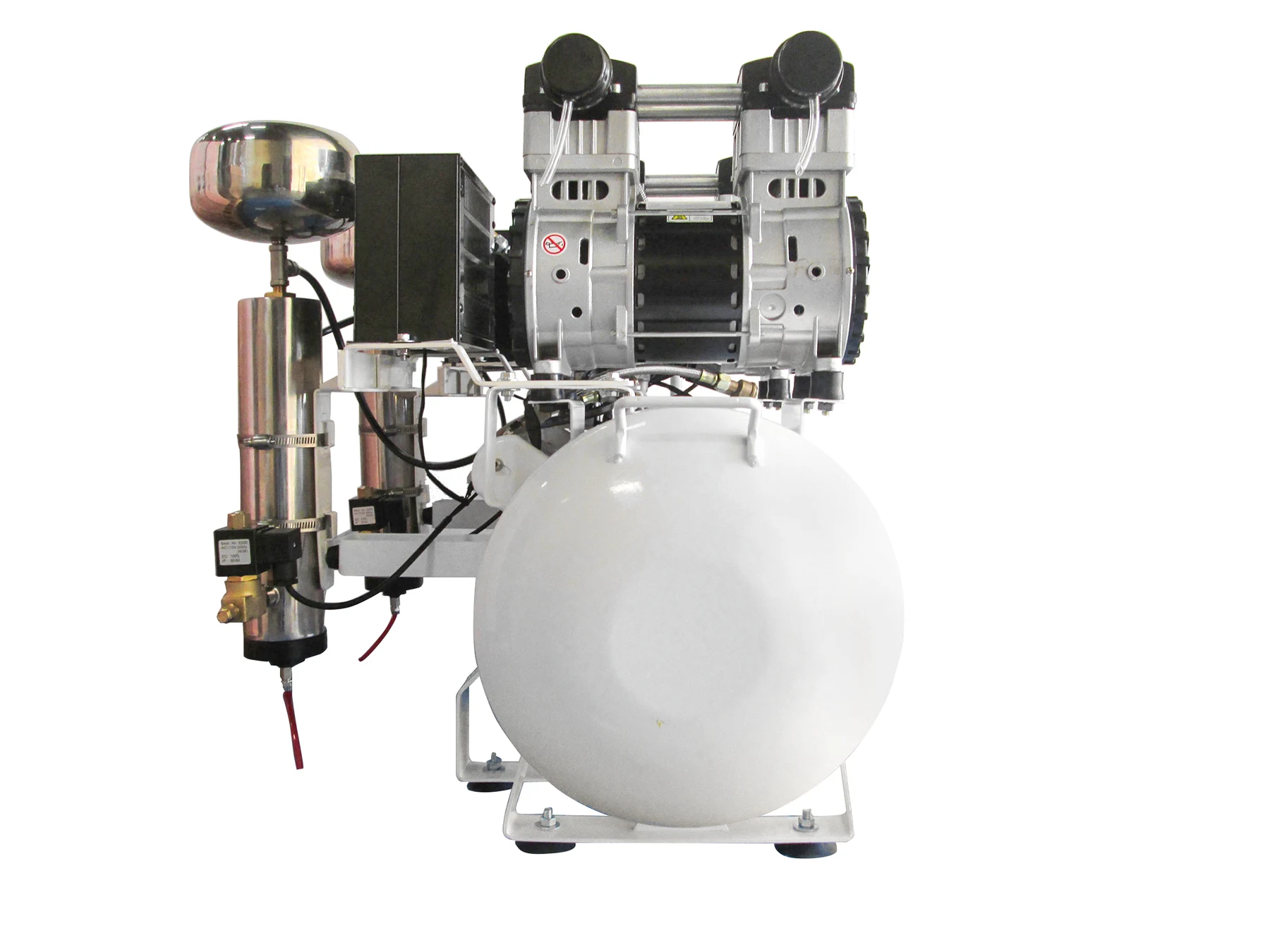

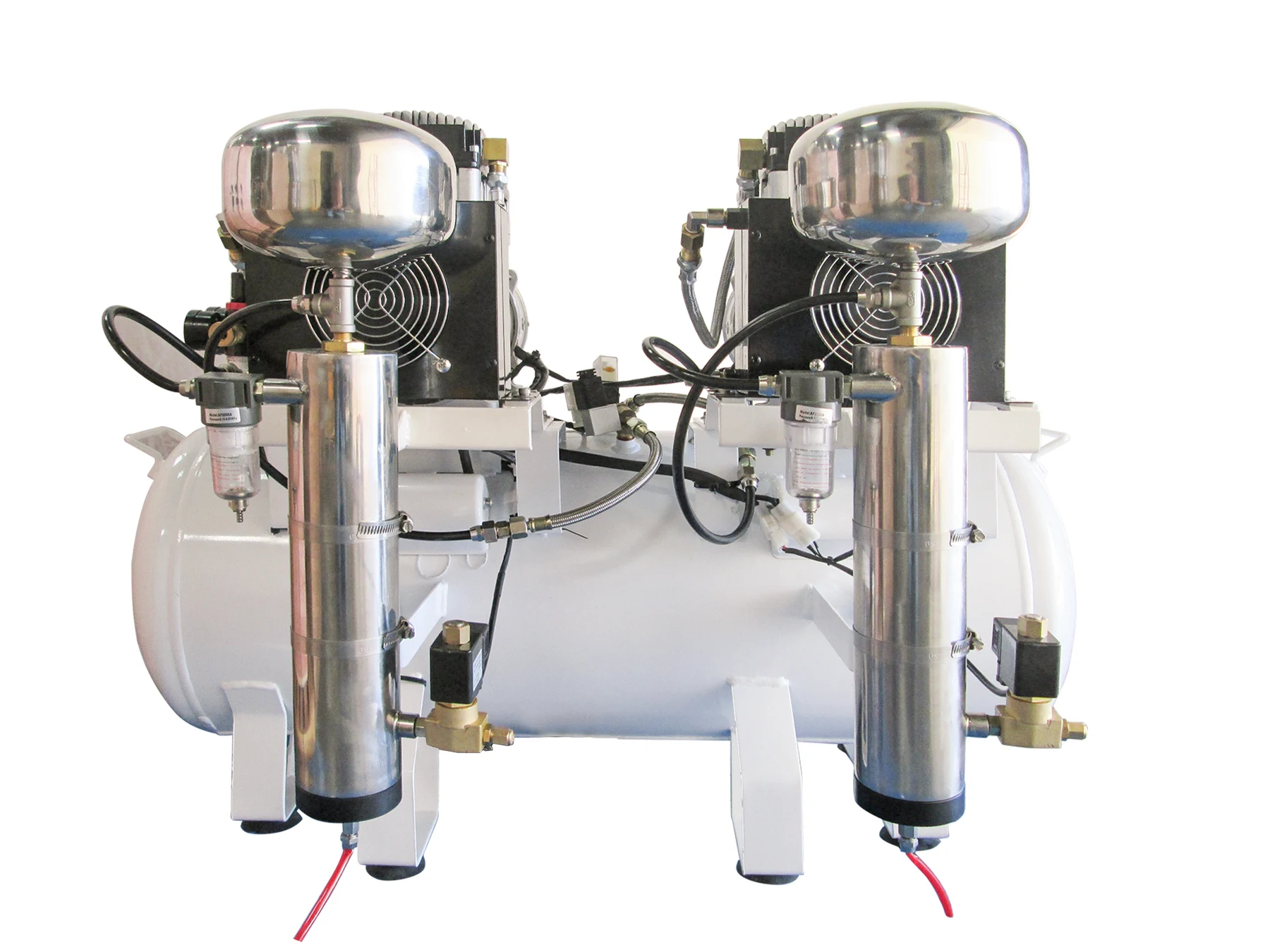

To dry the air from the air compressor an Aftercooler and 80% Air Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.
Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!

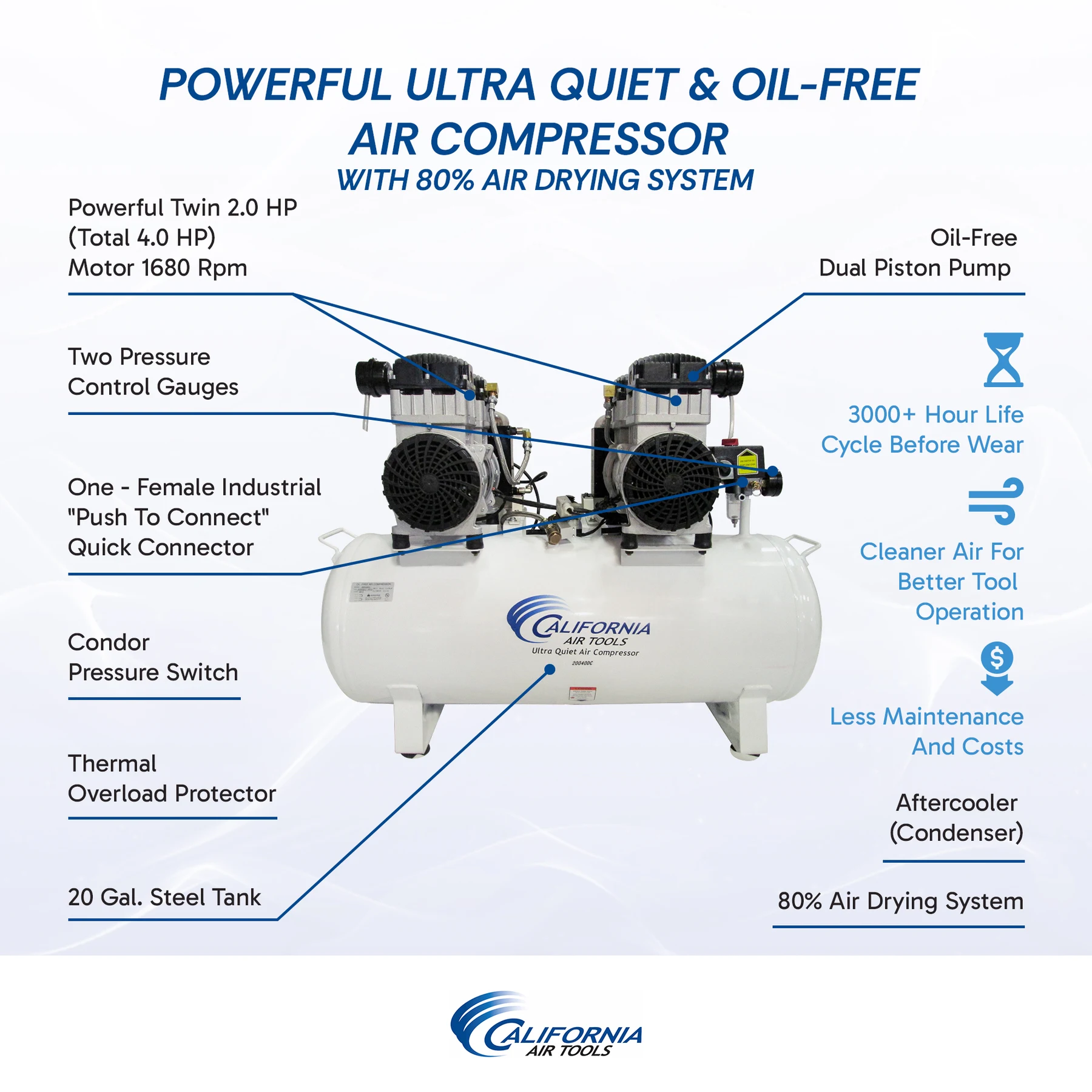

Features:

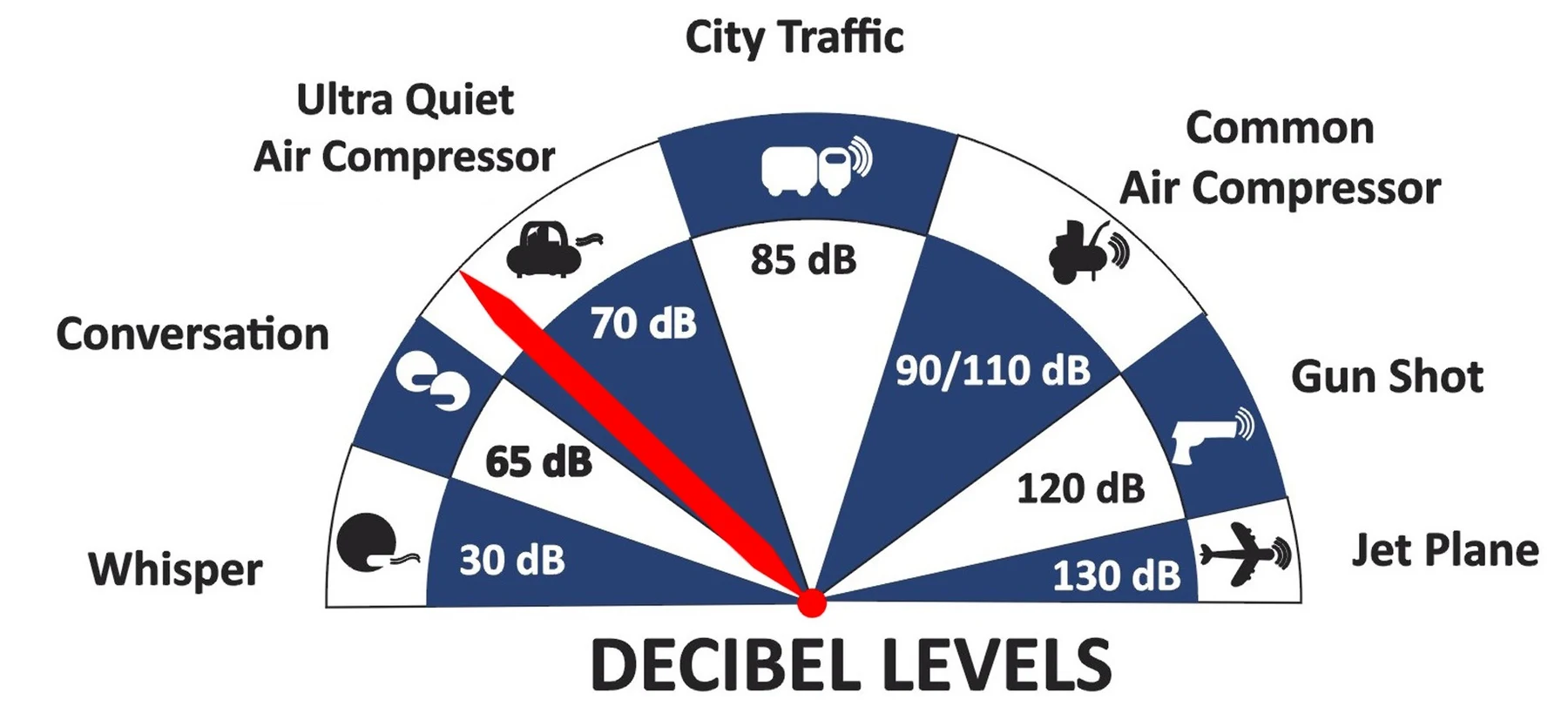

* Ultra Quiet – Only 75 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges

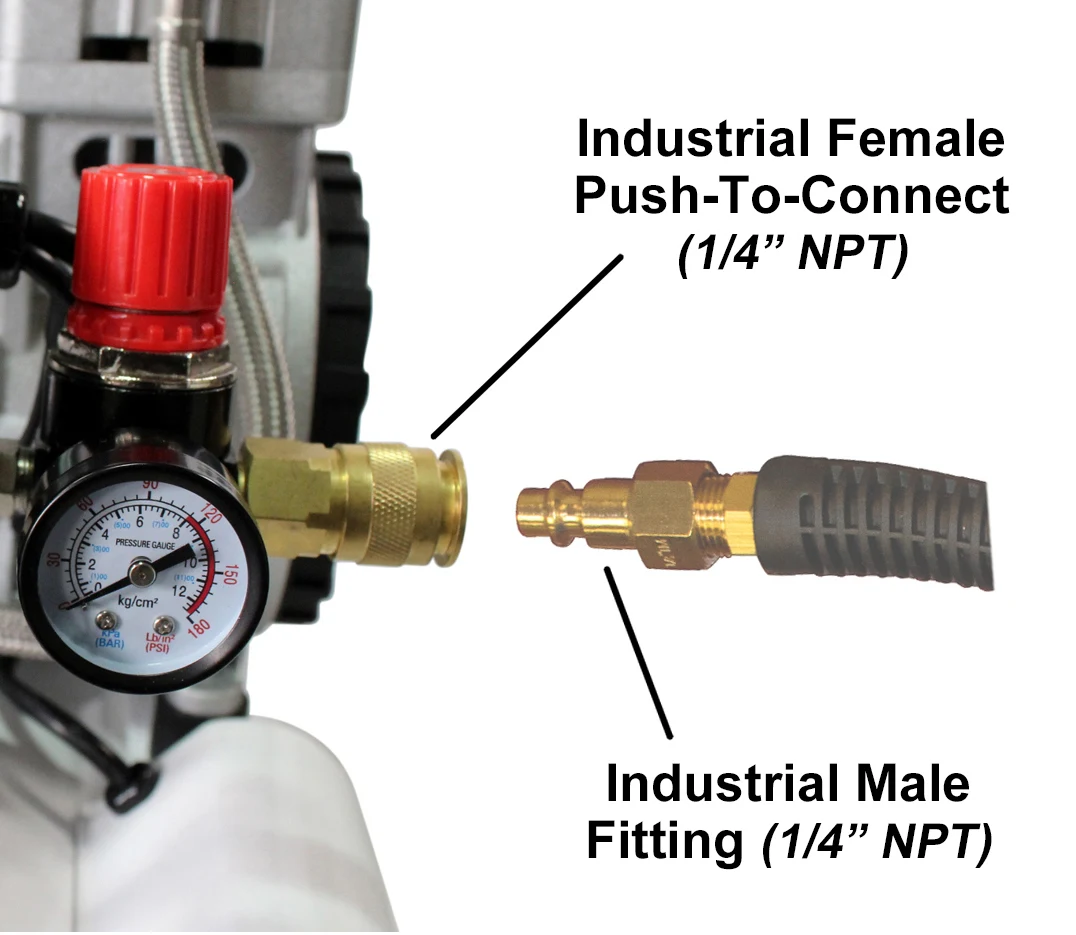

* One – Female industrial “Push to Connect” quick connector
* Condor Pressure Switch
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* 220 Volts / 60 Hertz / Single Phase – (No 208 Volts – if necessary, obtain 208 to 220 voltage booster)
* Low Amp Draw – 14 Amps
* Time to fill tank from empty to full – 150 Seconds
* Recovery time from 95 PSI to 125 PSI – 40 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently

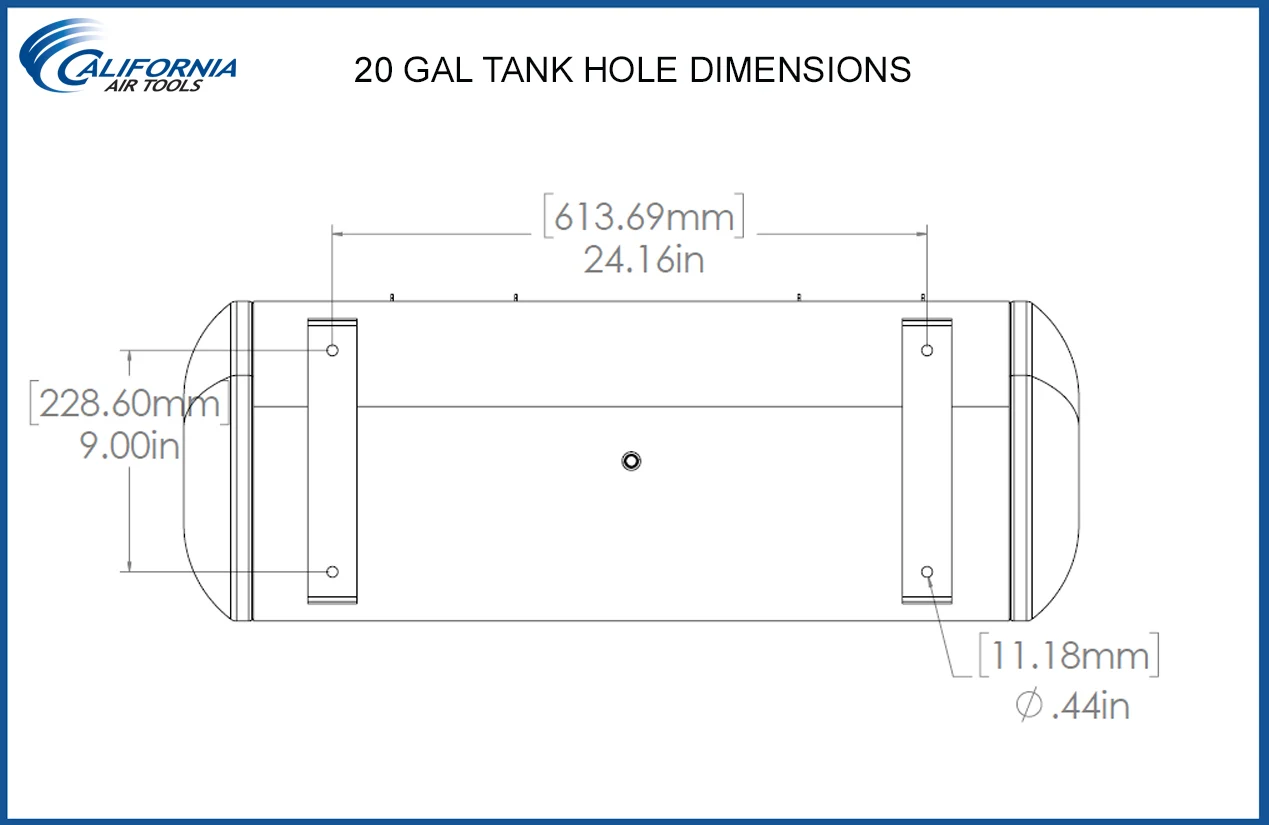

* 20 Gal. Steel AirTank

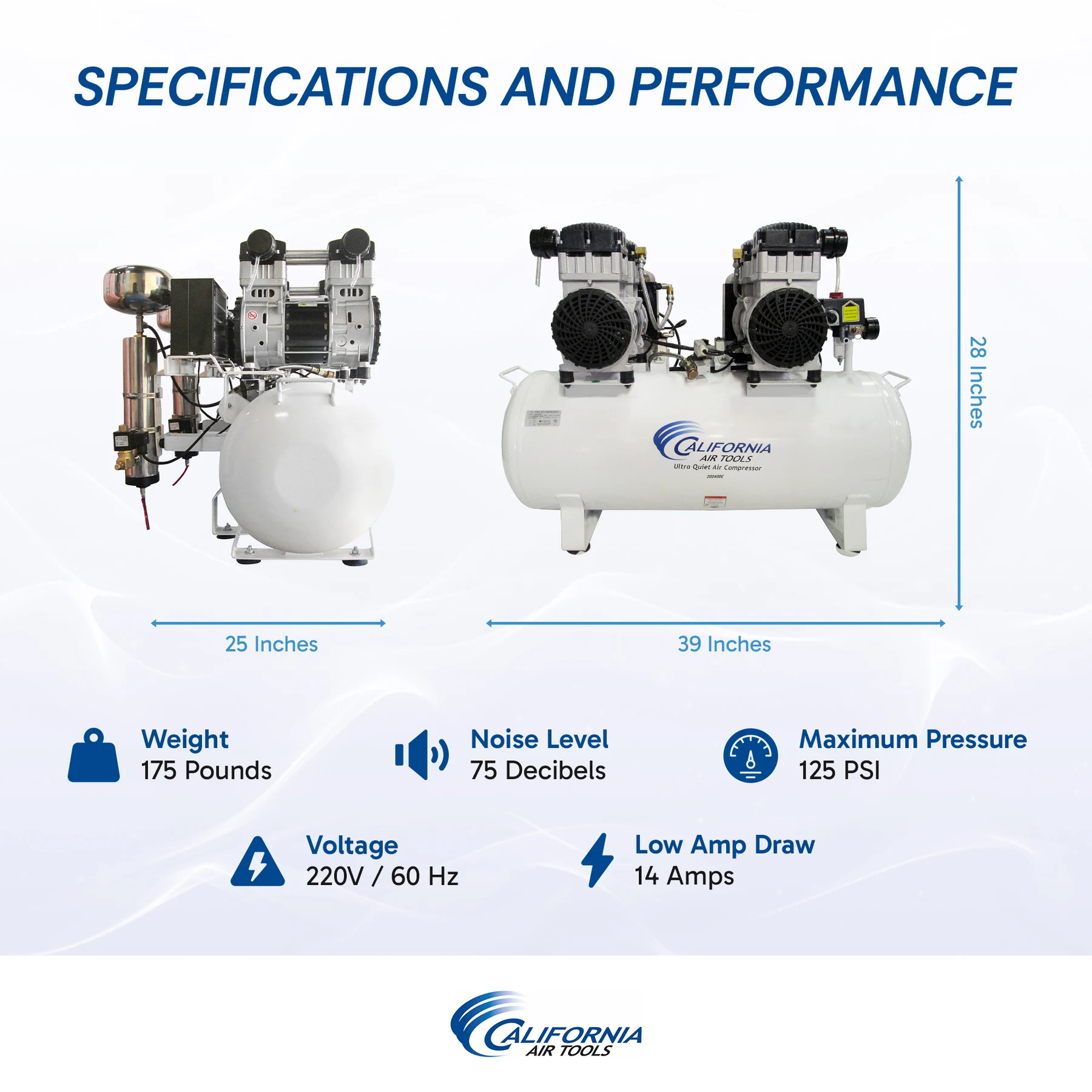

* L (37.5″) x W (25″) x H (28″)
* 191 lbs
* Air Dryer – Includes Activated Alumina desiccant with a 4000 hour life.
Activated Alumina is used in air prepurification (due to it’s high water
and carbon dioxide adsorption capacity) and adsorption of sulphur
compounds.
* Aftercooler (condenser)
* 1 Year Limited Warranty
* Comes complete (4) Air Filters

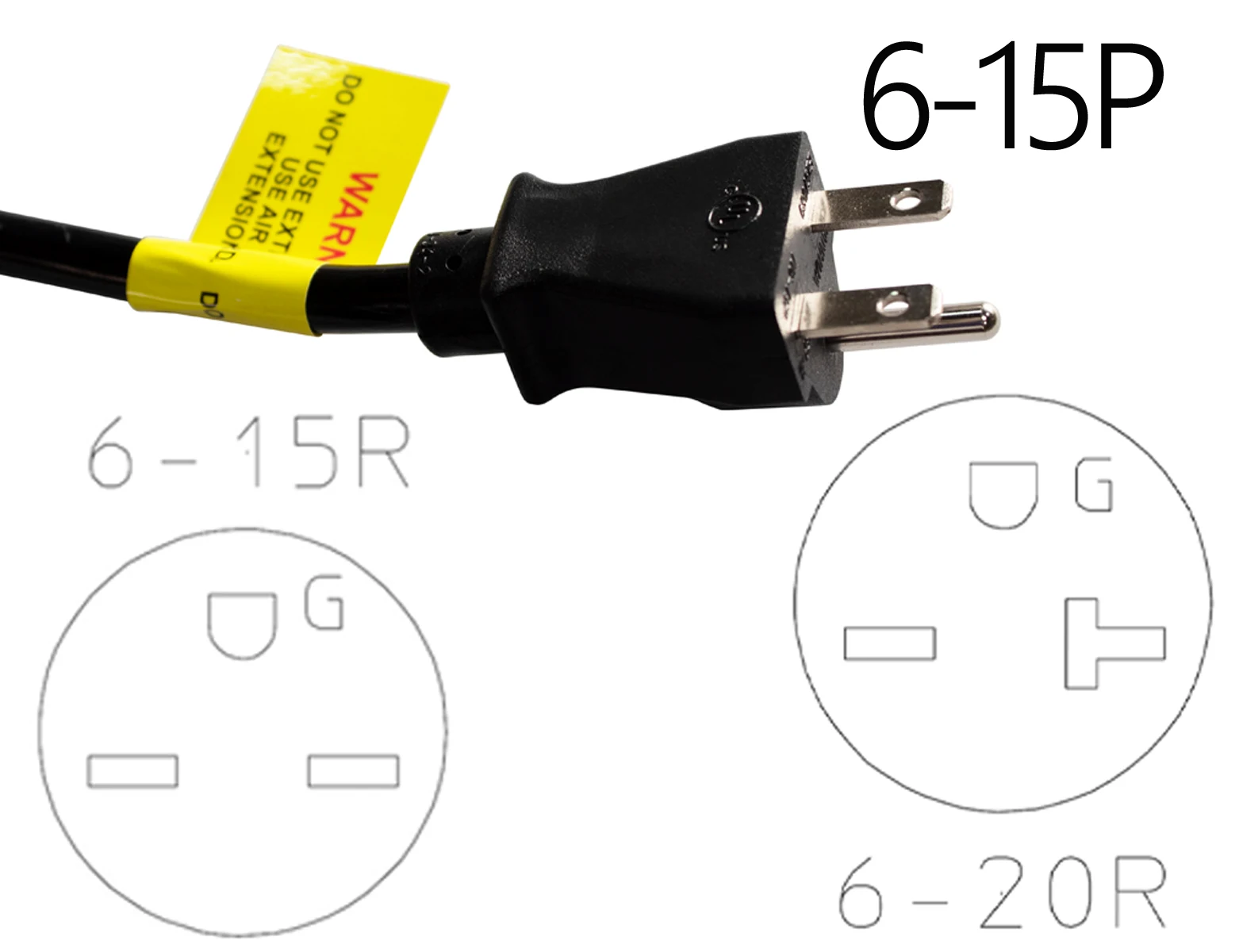

* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
* Commercial Use: Refer to State & City Codes
* Non-ASME Air Tank
* Assembled in USA with global components
DRY AIR SYSTEM MAINTENANCE:

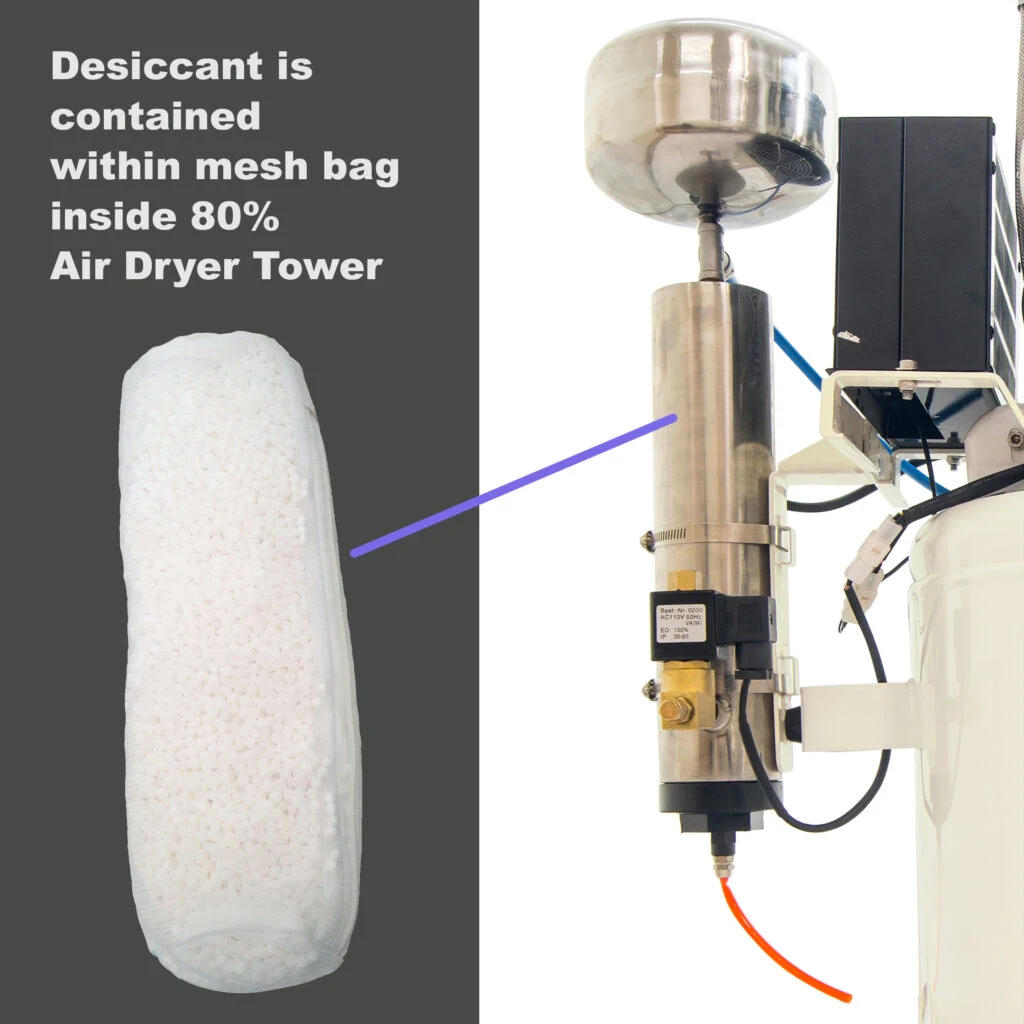

Recommended replacement of 1lb bag of desiccant, located within vertical dry air tower, every 3000-4000 motor/pump running hours (1-2 years/average).
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz
EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)
California Air Tools 20040DC Air Compressor Owner’s Manual 9-16
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
