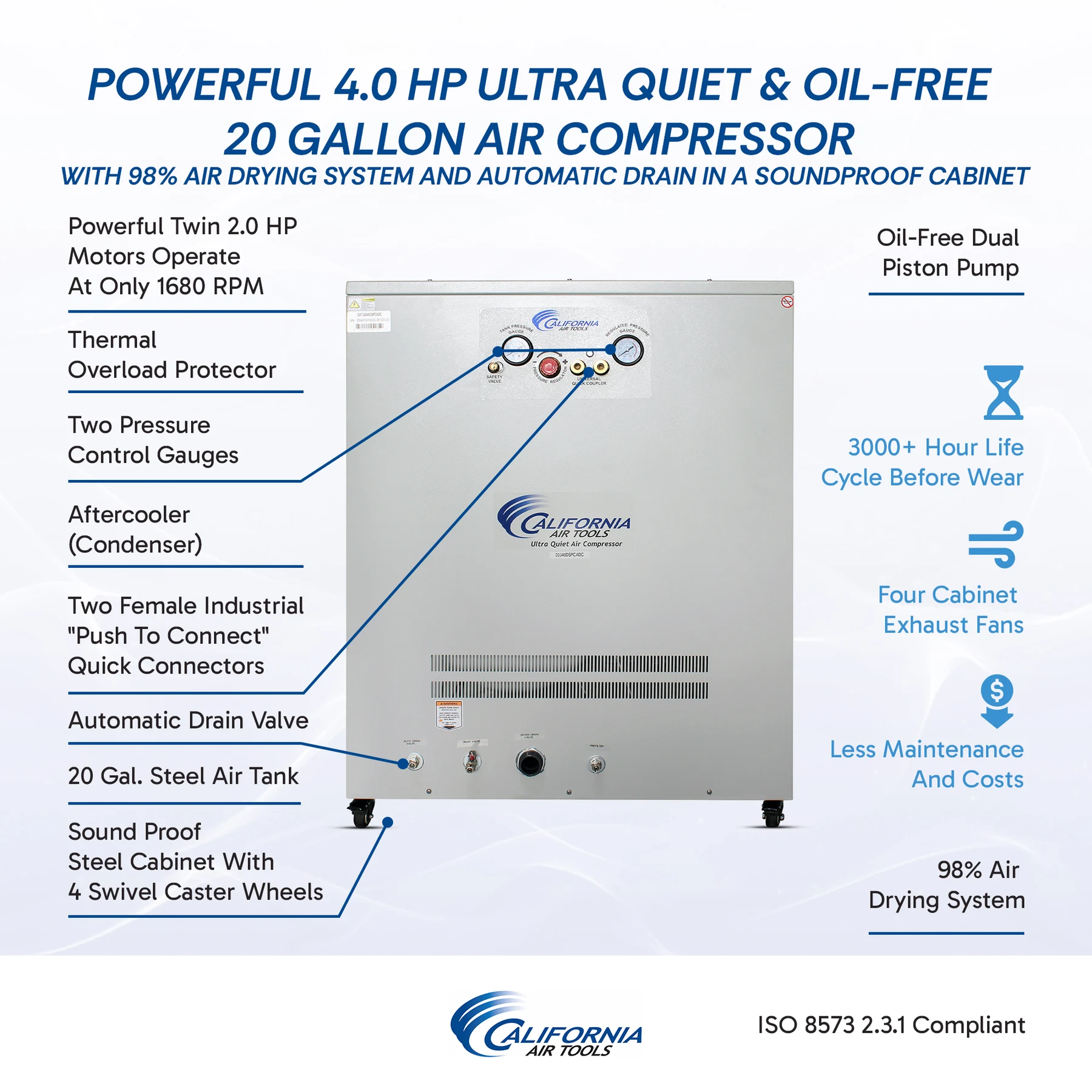

CALIFORNIA AIR TOOLS 20040DSPCADC Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor with 98% Air Drying System and Automatic Drain in a Soundproof Cabinet

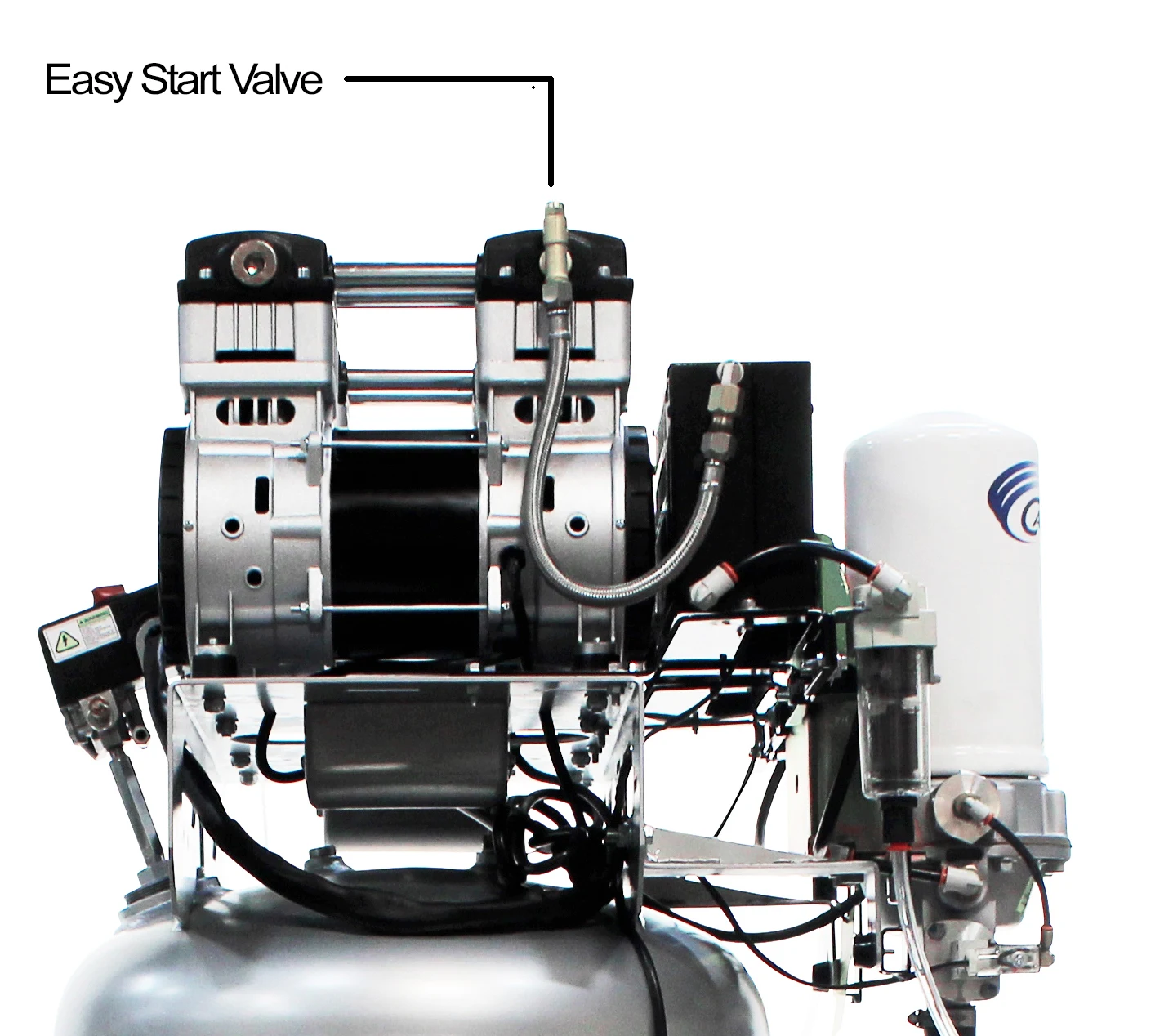

The Powerful Twin 2.0 HP motors operates at only 1680 RPM creating less noise, vibration and wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability.

The CAT-20040DSPCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.

The Oil-Free pump allows for use in a variety of temperatures  (cold starts) and eliminates oil from being in the air.

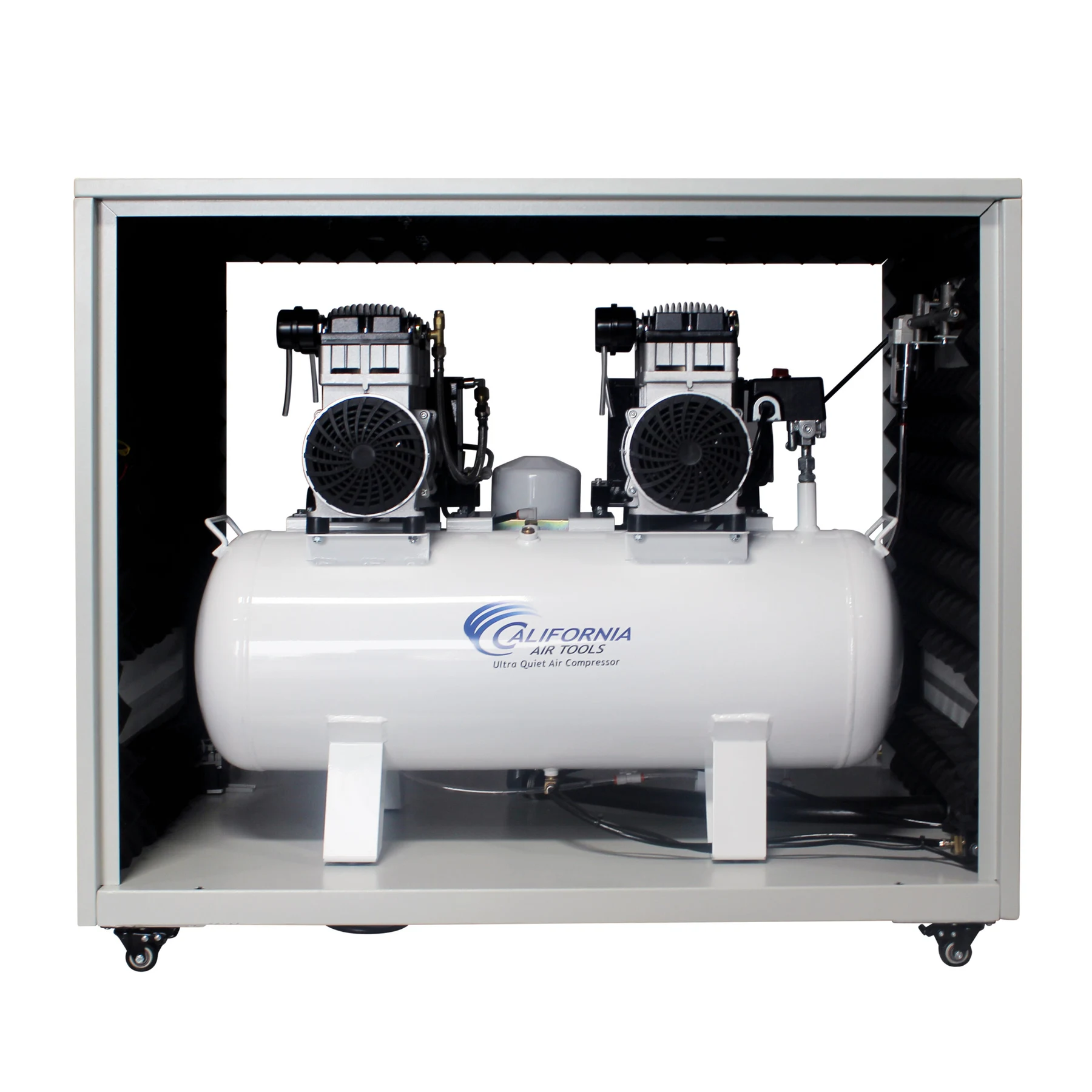

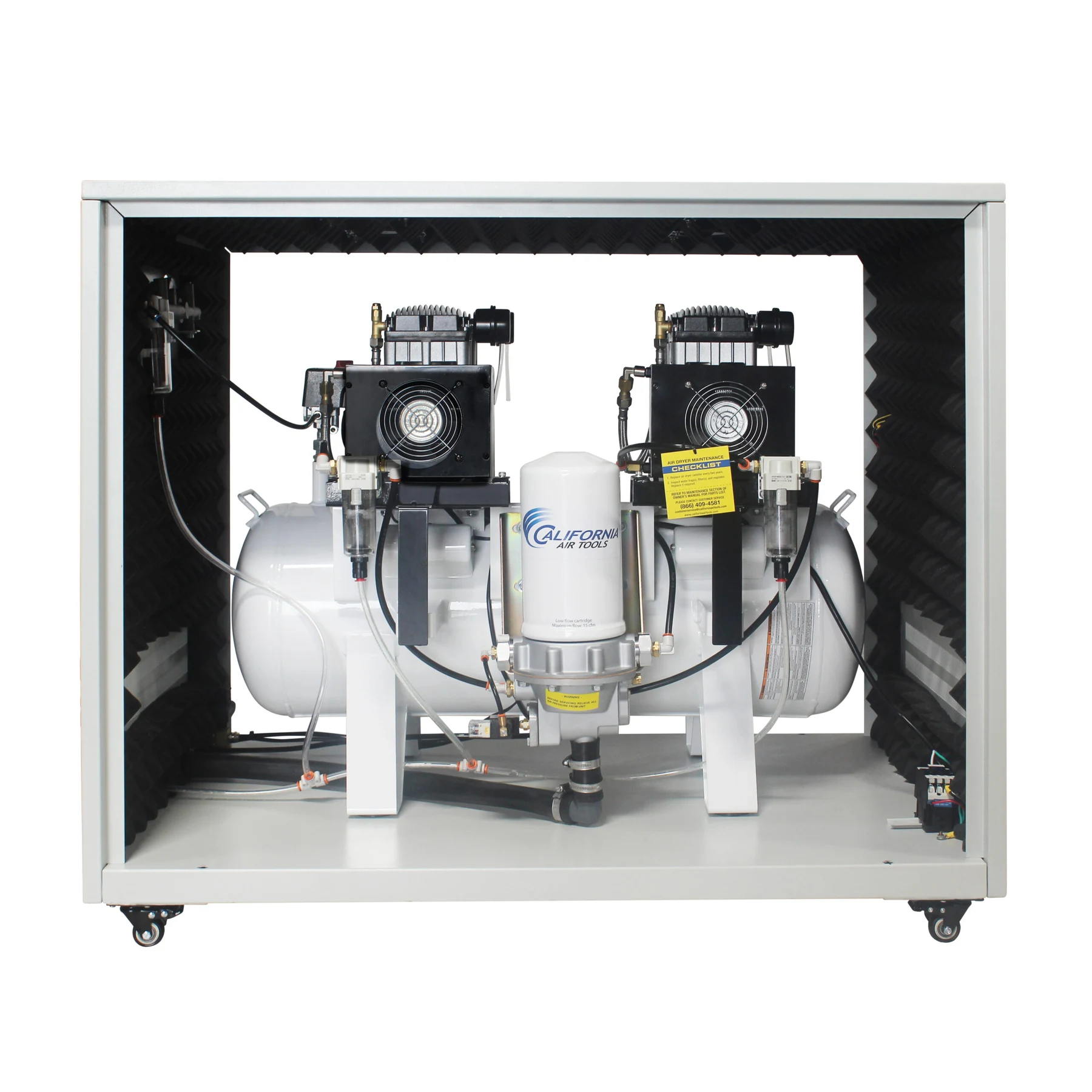

The sturdy steel soundproof cabinet has a large 20 gallon steel air tank and caster wheels that makes it easy to move.

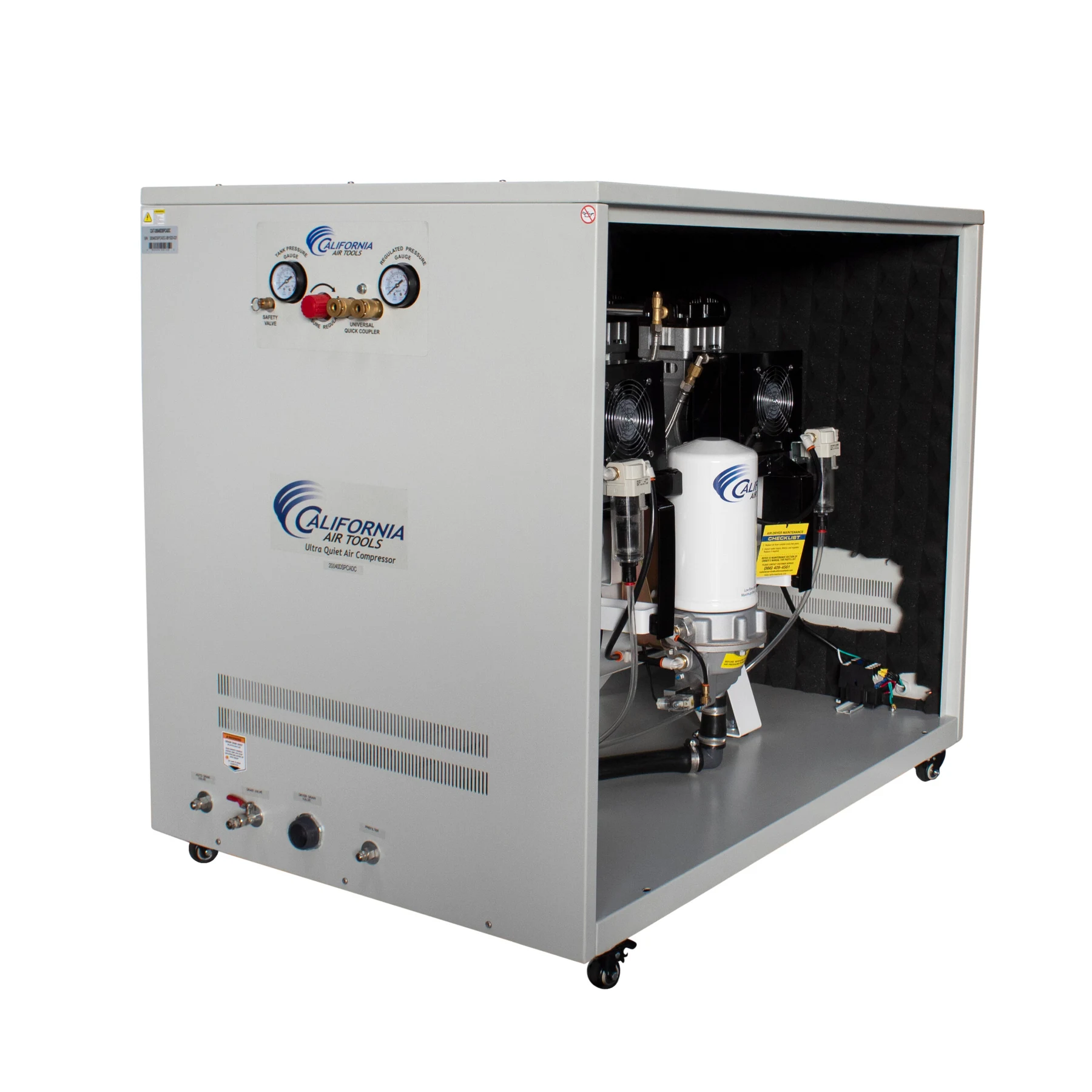

The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the air compressor’s noise and vibration.

The two latching door handles allows for easy access to the air compressor.

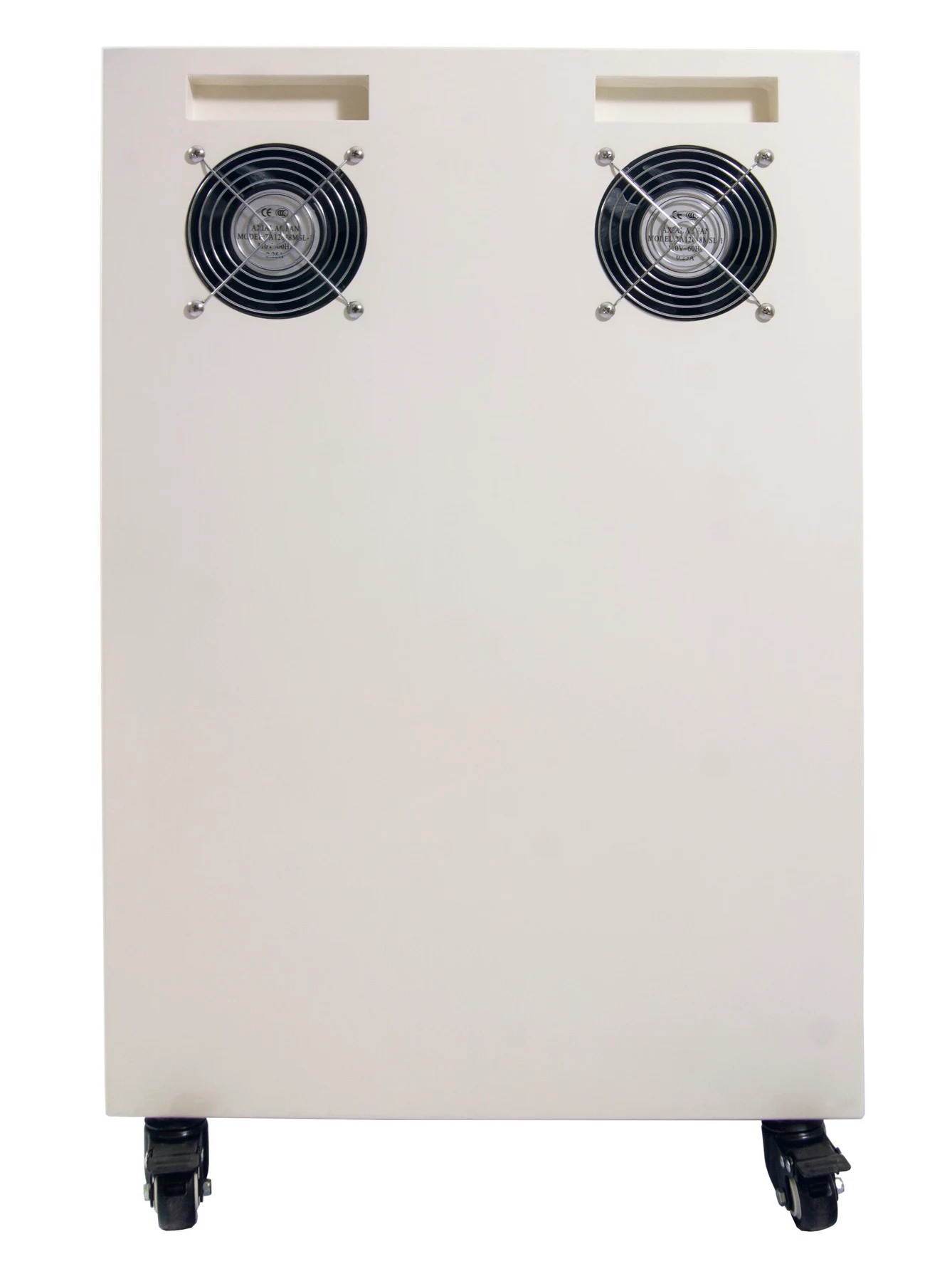

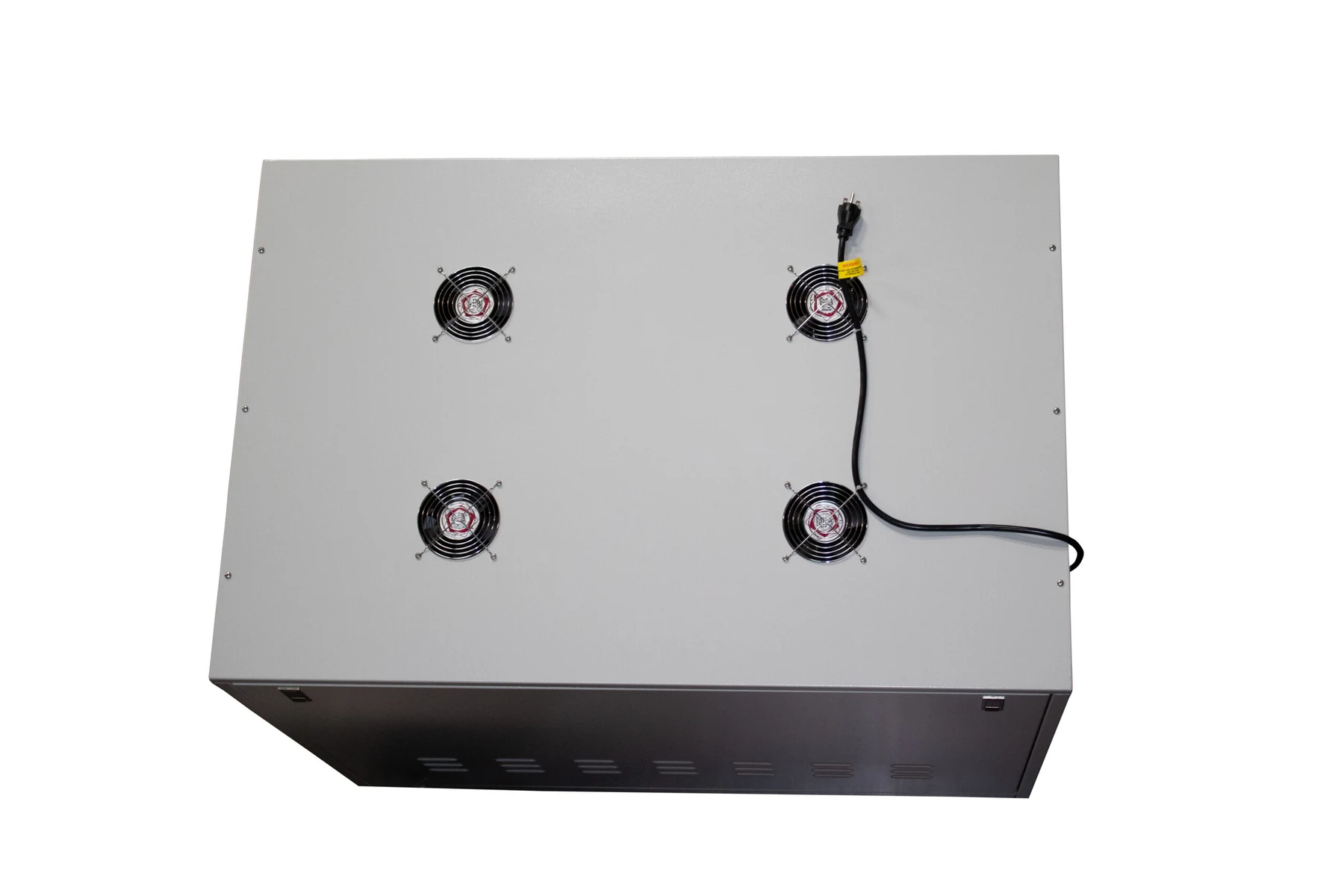

The four exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor.

The 98% Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery.

To dry the air from the air compressor an Aftercooler and 98% Air Dryer are utilized.

The easy to replace “Spin-On” Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air.

This cartridge dryer has a life of 2-years before replacement.

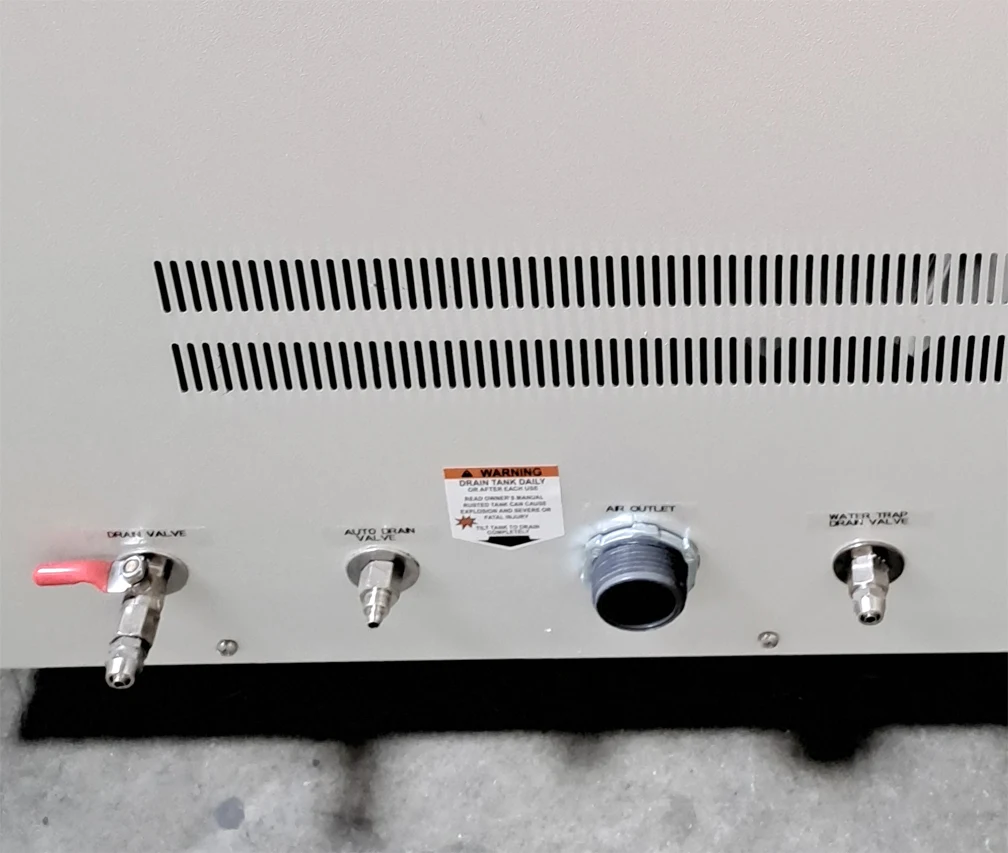

The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.

The manually set timer allows you to set the time for both the frequency and duration of the draining process.

Designed for the person looking for Power, 98% Dry Air with Low Dew Point Air Flow and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Surgical, Manufacturing Clean Rooms, Restaurant and General Engineering Applications.

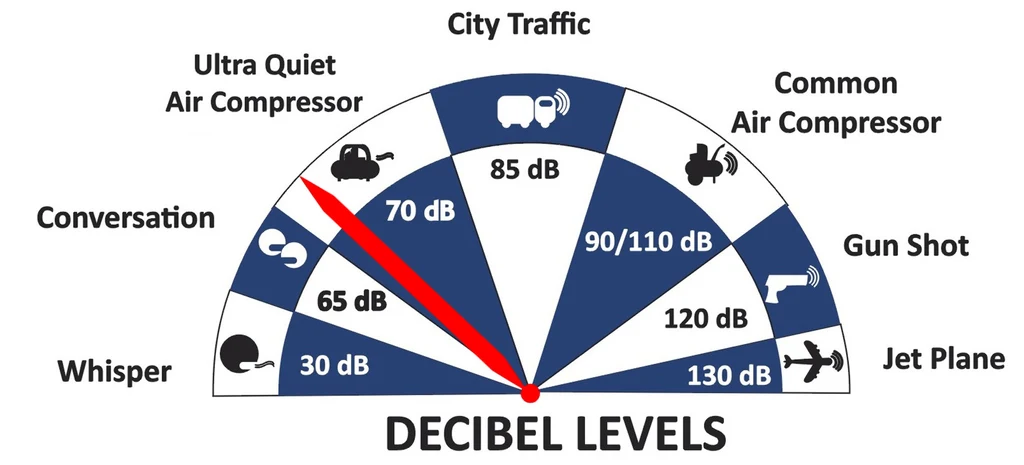

* Ultra Quiet  –  Only 65  decibels

* Oil-Free Pump (Class 1) – Cleaner air for better tool operation.

Less maintenance and Costs.

* 0.01 Micron Prefilters (2)

* 5.0 Micron (Class 2) Air Filter & Output Pressure Regulator

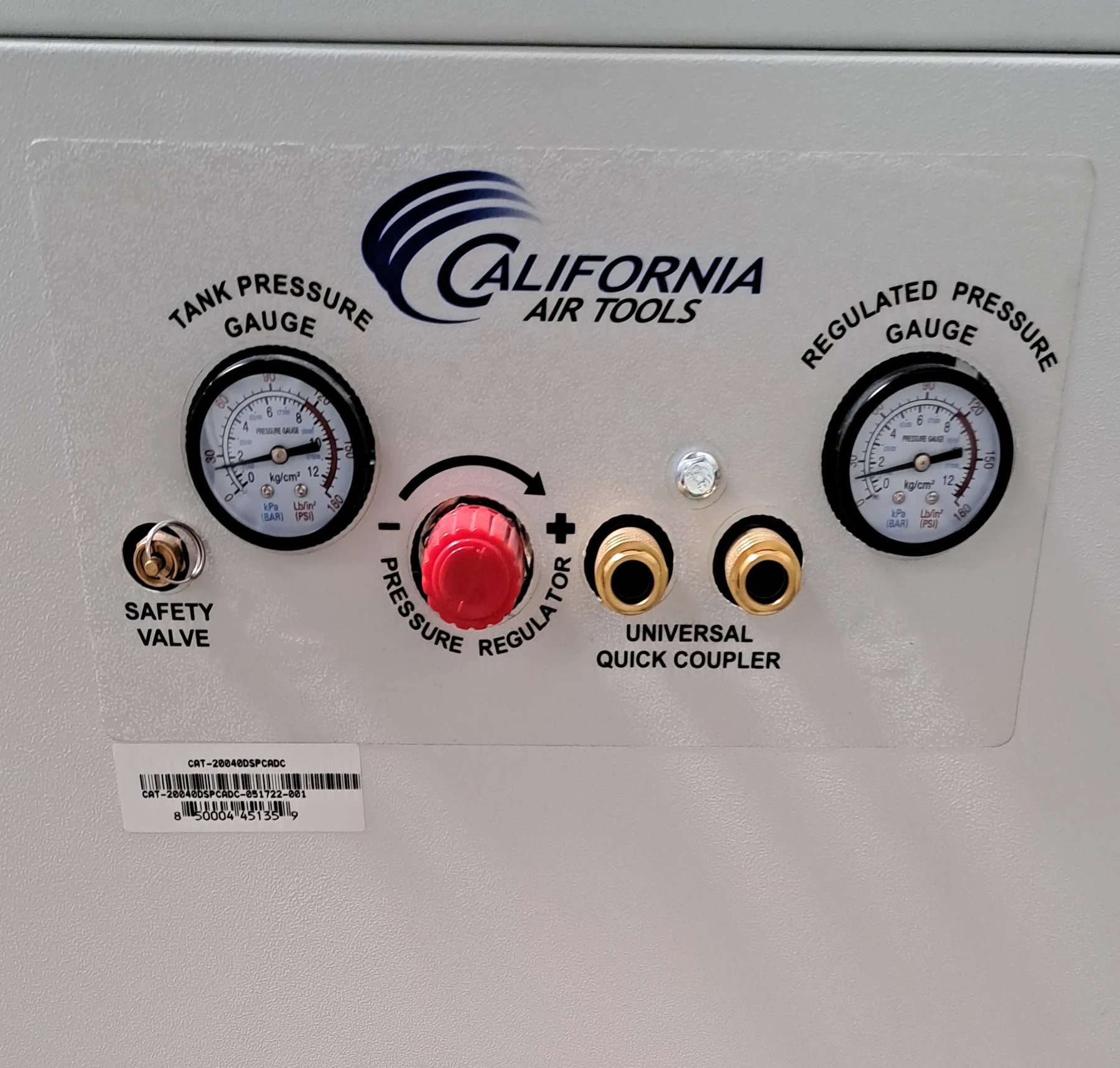

* Two pressure control gauges

* Two – Female industrial “Push to Connect” quick connectors

* Condor Pressure Switch

* Thermal Overload Protector

* 130 PSI  Maximum Pressure

* 220 Volts / 60 Hertz / Single Phase – (No 208 Volts – if necessary, obtain 208 to 220 voltage booster)

* Low Amp Draw – 14 Amps

* Time to fill tank from empty to full – 150 Seconds

* Recovery time from 100 PSI to 130 PSI – 40 Seconds

* Duty Cycle – 70/30*

* 20 Gal. Steel Air Tank

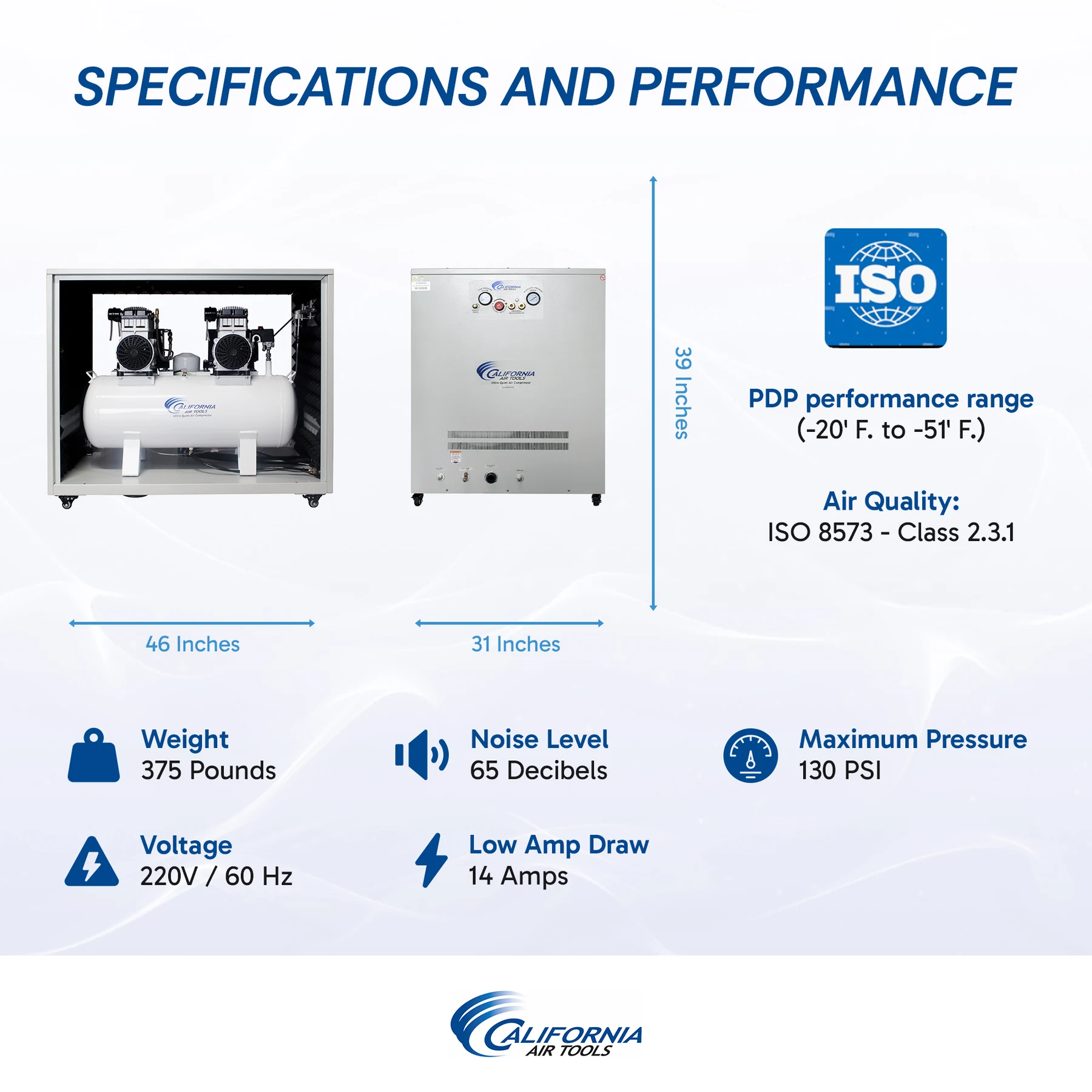

* L (31″) x W/D (46″) x H (39″)

* 375 lbs

* Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant

Easy to remove (spin off) and replace every 2 years

* Aftercooler (condenser)

* PDP performance range (-20′ F. to -51′ F.)

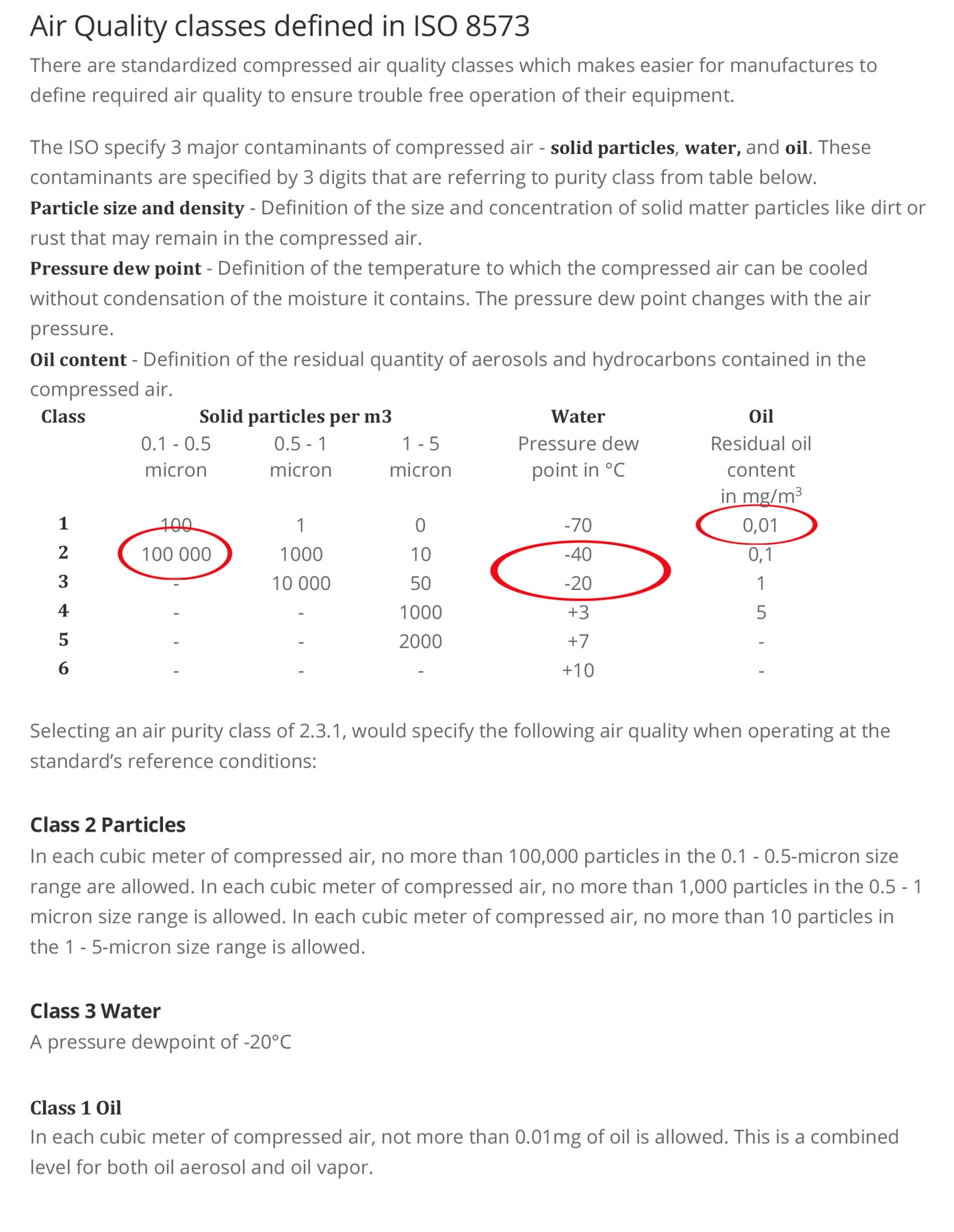

* Air Quality: ISO 8573 – Class 2.3.1

* 1 Year Limited Warranty

* Comes complete (4) Air Filters

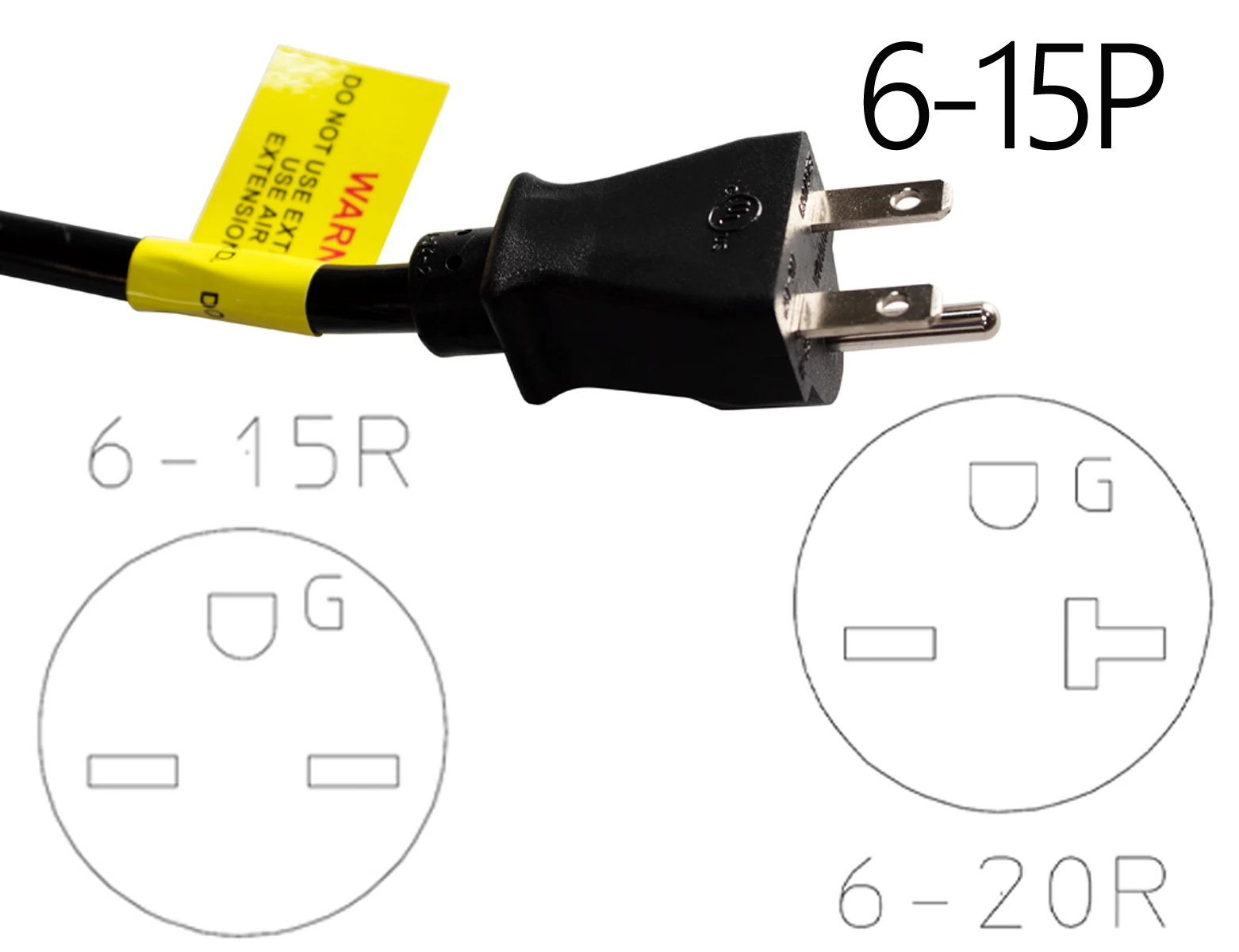

* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)

* EZ-1-2321 Auto Drain Valve Factory Installed

* Commercial Use: Refer to State & City Codes

* Non-ASME Air Tank

* Assembled in USA with global components
