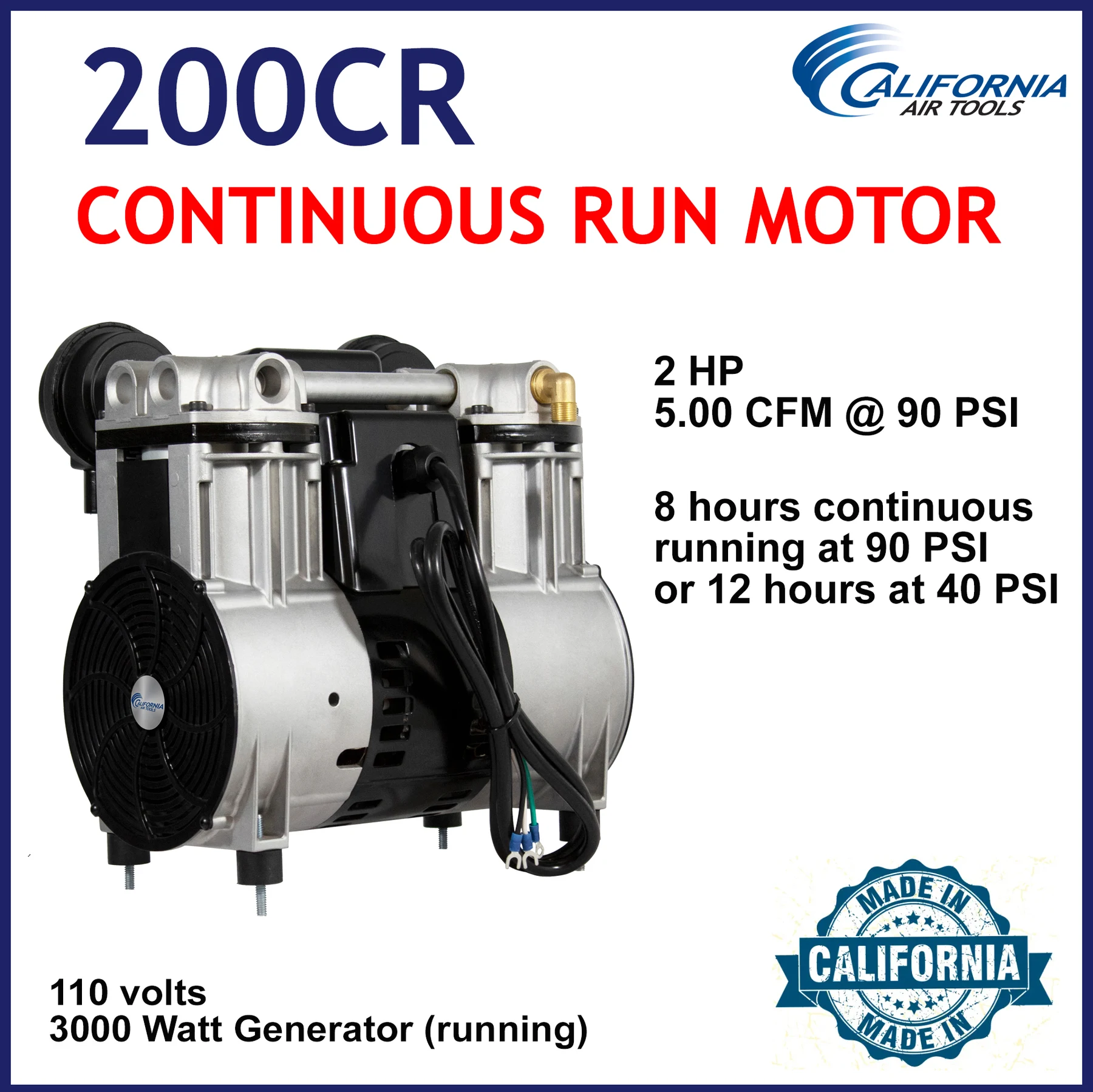

2.0 Hp CONTINUOUS RUN Ultra Quiet & Oil-Free Pump/Motor (100% Duty Cycle)
8 hours of continuous running at 90 PSI or 12 hours continuous running at 40 PSI

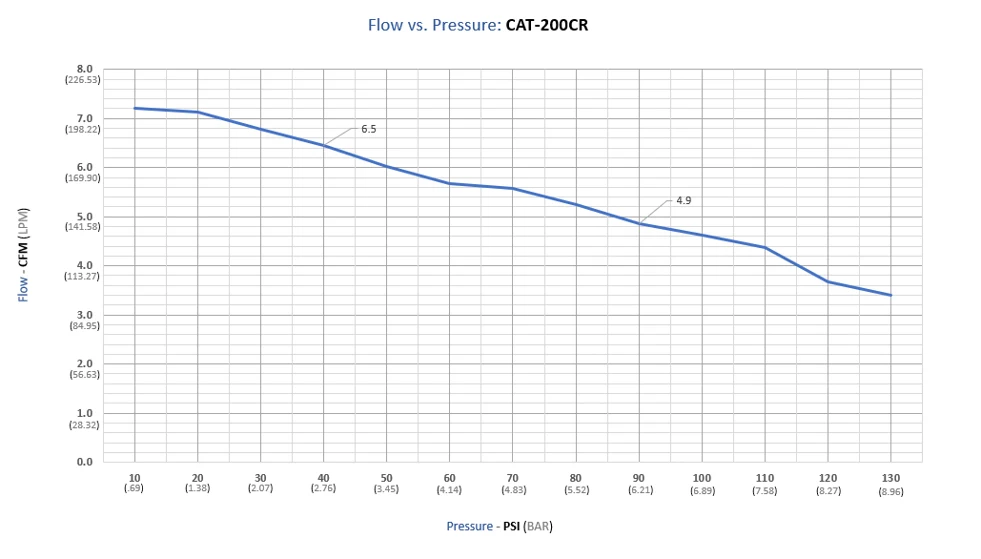

6.50 CFM @ 40 PSI
5.00 CFM @ 90 PSI
125 Max PSI
110 Volts / 60 Hertz / Single Phase
77 Decibels

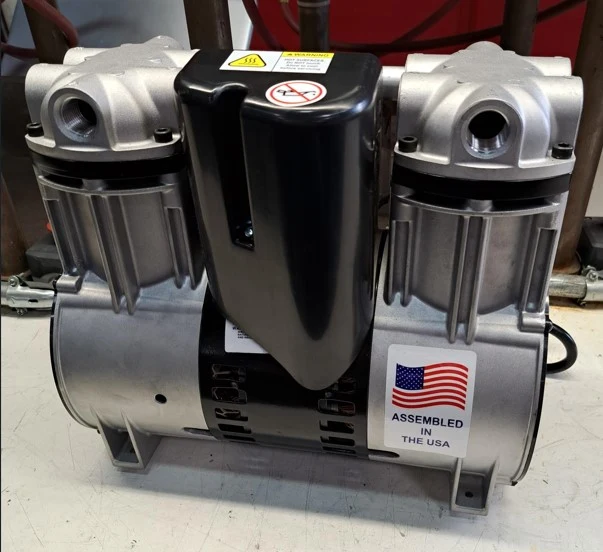

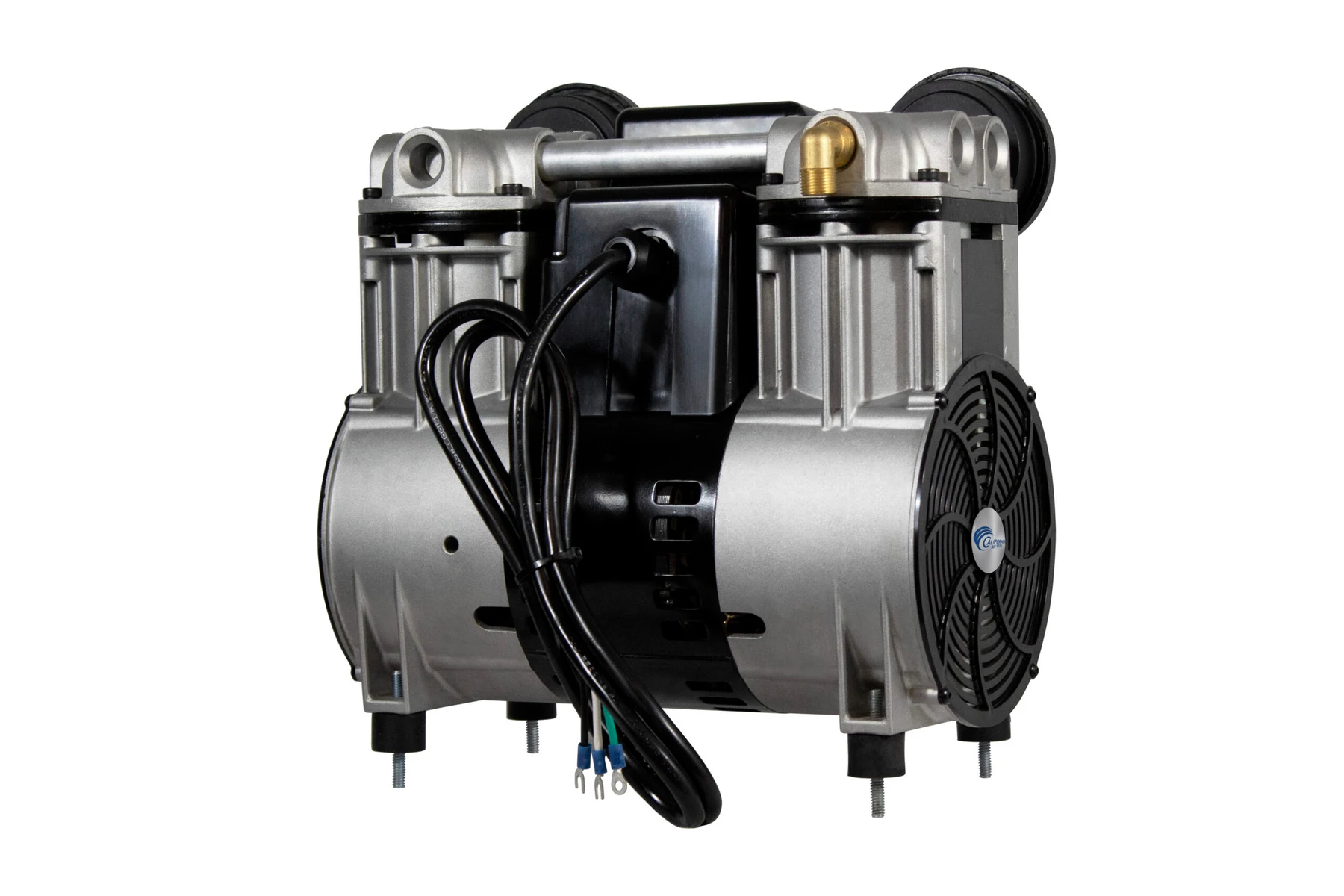

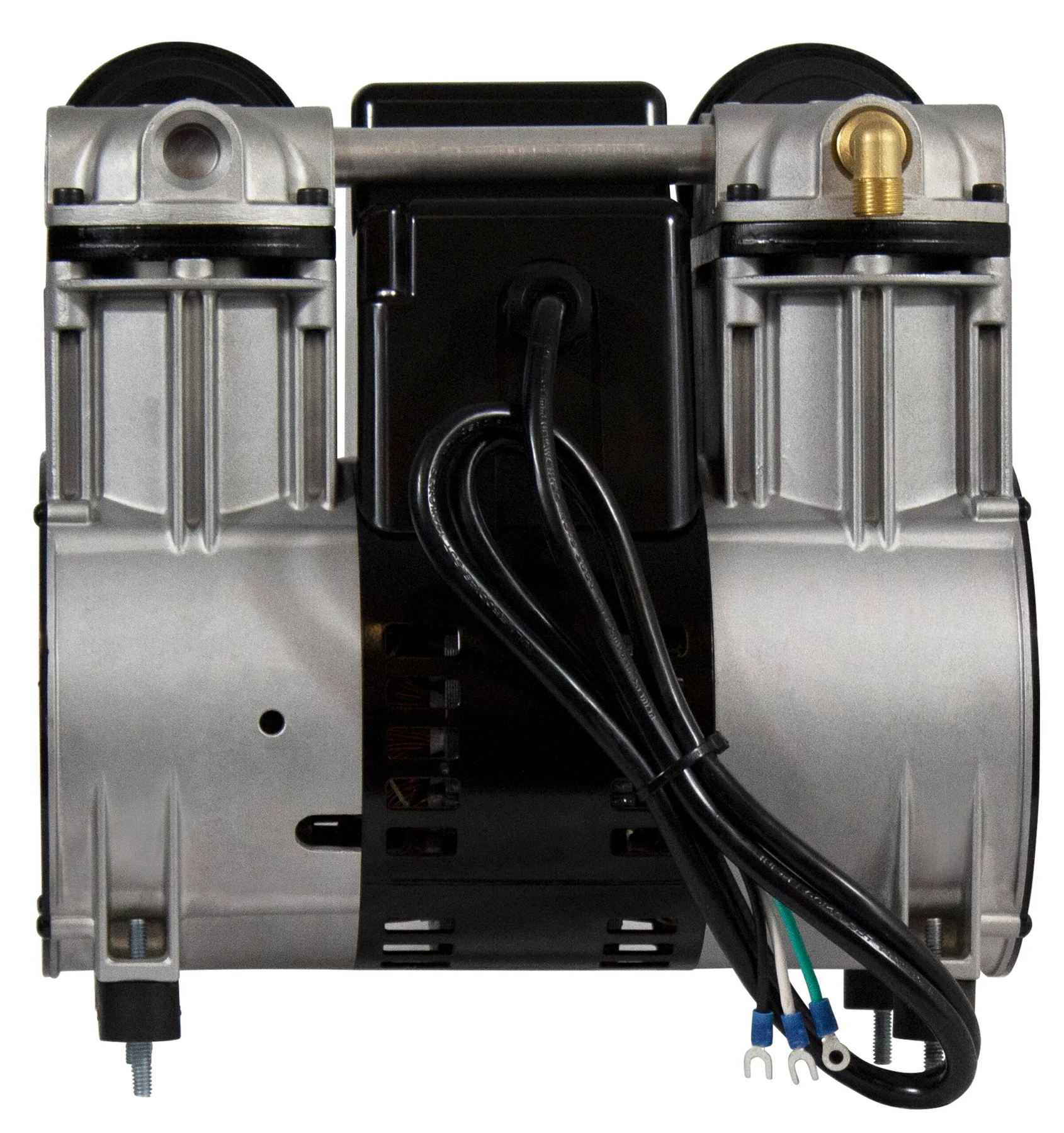

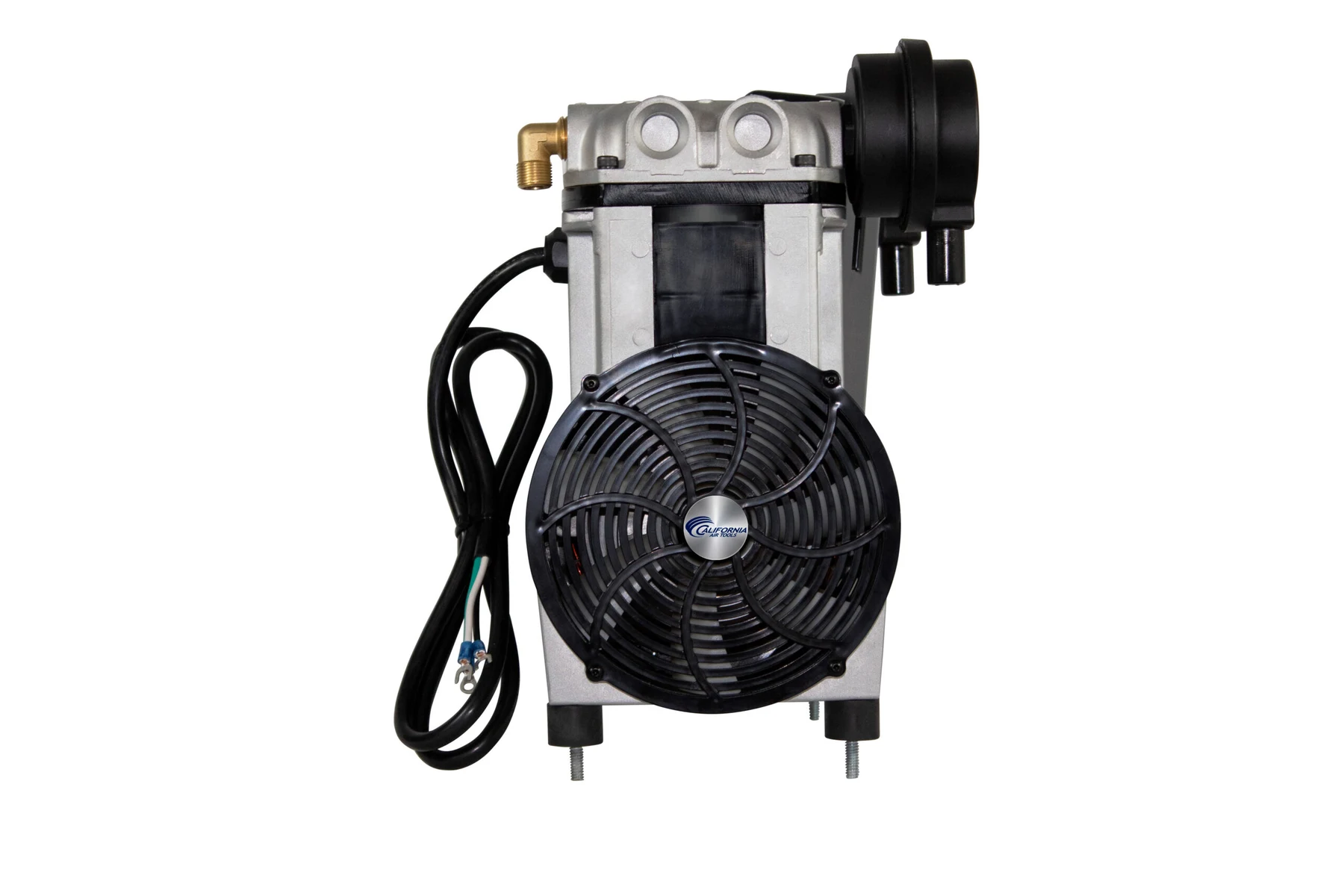

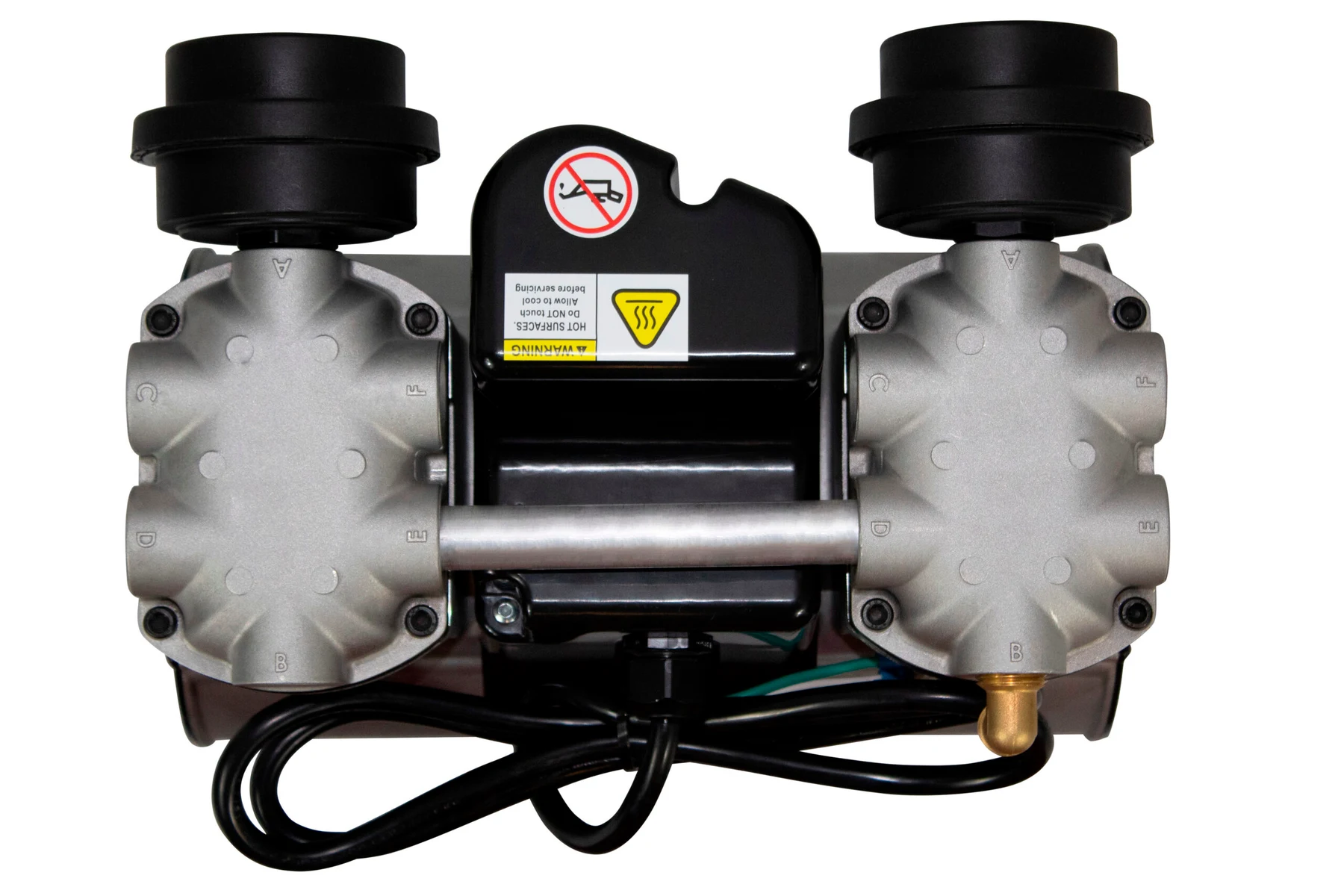

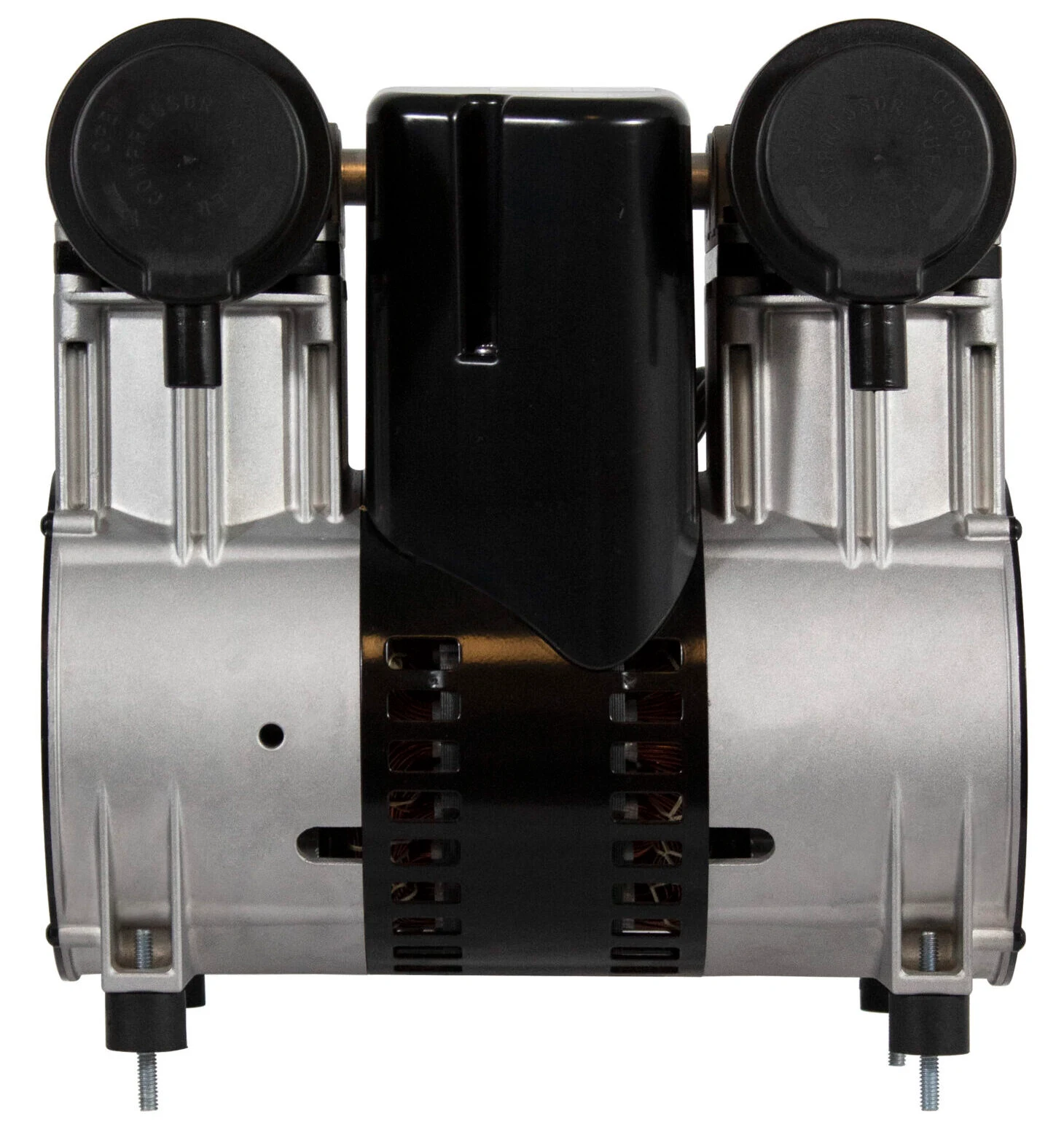

The California Air Tools 200CR Ultra Quiet & Oil-Free Continuous Run 2.0 Hp Motor/Pump is designed to be one of the quietest motors in the industry having only 77 decibels of sound.
The powerful 2.0 HP motor operates at only 1700 RPM creating less noise and less wear.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
Up to 8 hours of continuous running at 90 PSI and 12 hours at 40 PSI
The Dual Piston Pump System produces more air more quickly.
The 200CR motor/pump is tested for a minimum life of 5000 hours before wear. Wear parts can be a piston ring, cylinder ring or reed valve

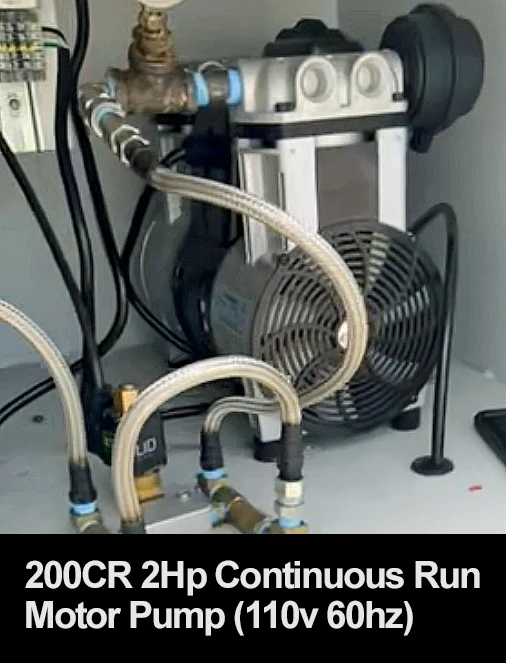

VIDEO – 200CR Continuous Run 2Hp Motor/Pump
Features:
* Ultra Quiet – Only 77 decibels
* Oil-Free 2Hp Motor/Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* Ports – 1/2″ NPT
* Output Elbow – 1/2″ NPT
* 110v / 60 hz / 1-PHASE
* Amp Draw – 14 Amps
* Run Capacitor, 45 uF
* Start Capacitor, 110v, 189-227 uF
* Power Requirements:
Dedicated 15 amp outlet
3000 Watt (running) Generator
Extension Cord: 14 gauge 100ft cord
GFCI – Ok
* Maximum Operating (ambient)
Temperatures: 0 to 50°C (32 to 122°F)
* 37 pounds

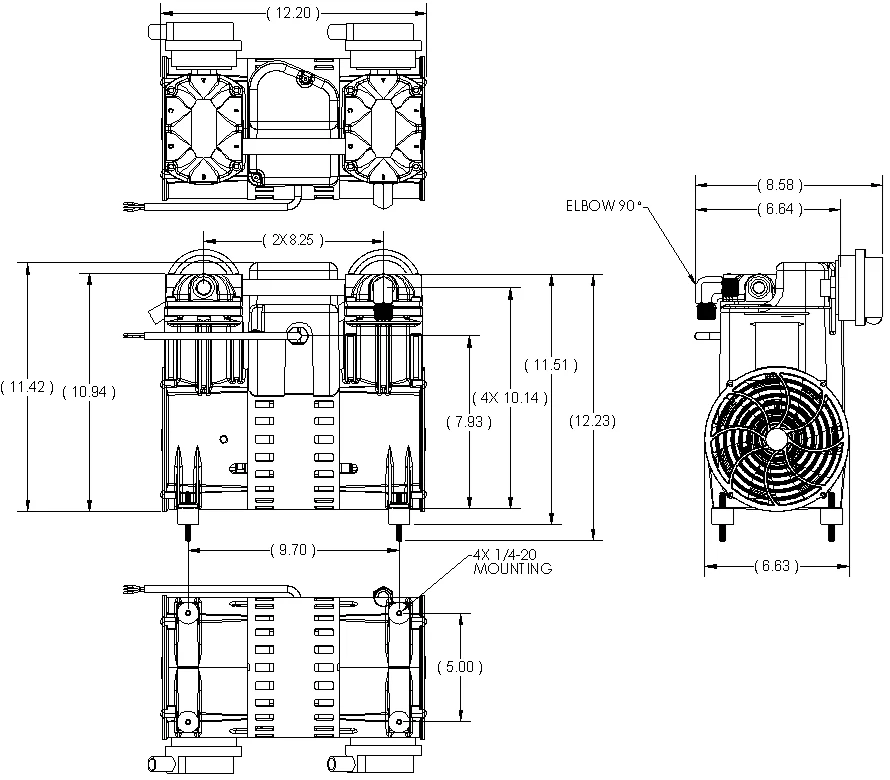

* L (11.75″) x W (6.75″) x H (12.5″)
* Comes complete with 1/2″ Elbow (attached)
(2) Air Filters and (4) Shock Struts
* Installation Requirement: Unloader and/or
Bleeder Valve Required.
* 1 Year Limited Warranty
* Certification: Pending
* Assembled in California USA using Global components
*100% Duty Cycle – Click Here For More Information
Compatible with 2.0 Hp California Air Tools Air Compressor Models (110v 60hz).
NOTE: This is NOT an air compressor. This is a replacement 2Hp motor-pump which can be easily installed into existing California Air Tools equipment.
CAUTION: If installing onto a Non-California Air Tools air compressor or unique application you will need to have the electrical and mechanical knowledge for properly installing this motor-pump. It is important to properly configure an UNLOADER valve and CHECK VALVE with the motor pump (to correctly bleed pressure off of the pistons) otherwise damage to motor may occur.
