Note: the CAT-365 is for Painting purposes and not resin casting*

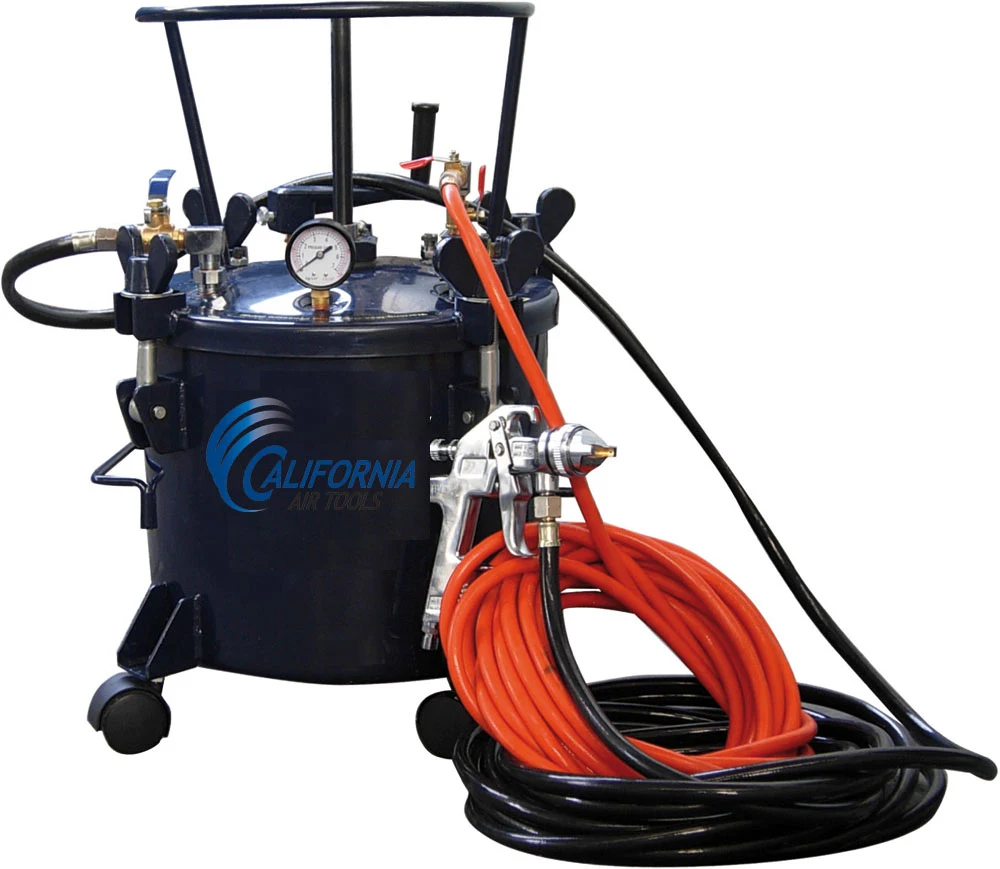

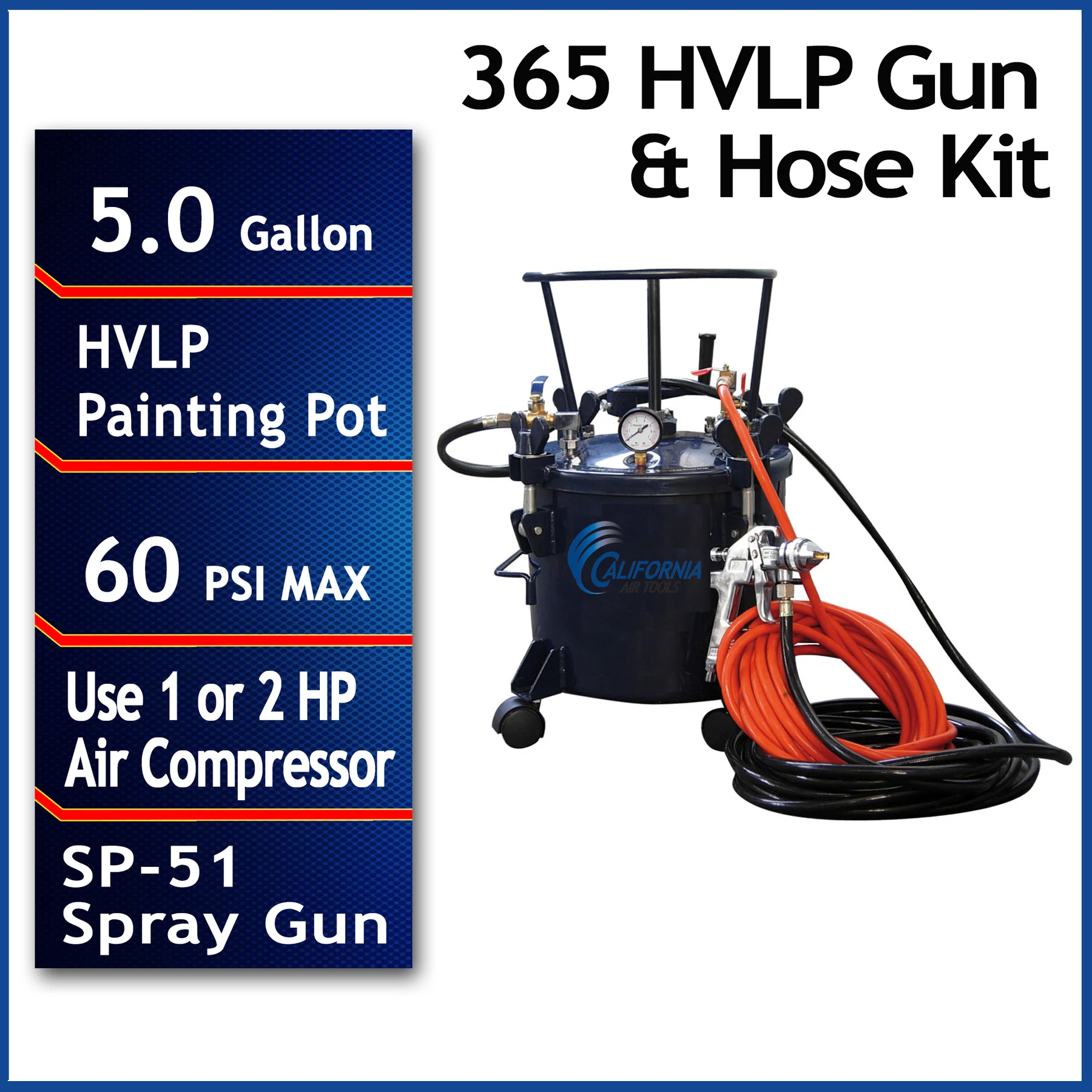

The California Air Tools 365 5 Gallon Pressure Pot Paint Tank with HVLP Spray Gun, Paint Hose and Air Hose.

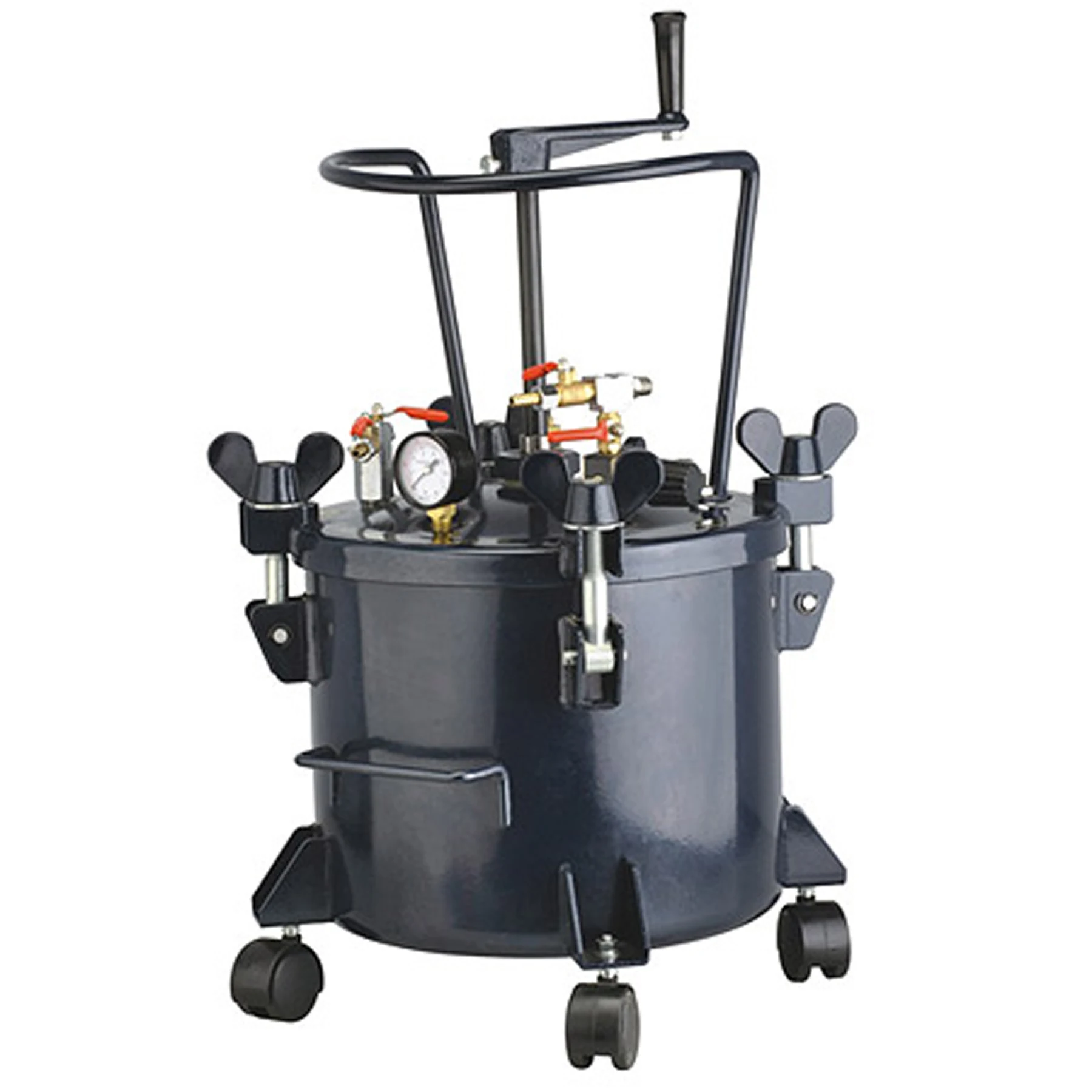

Features a Teflon® coated steel tank for easy clean up, (removable) casters for stability, double output regulator, On/Off ball valve, pressure relief valve and built-in agitator.
Includes SPRAY SP-51-IMP Spray Gun [Air inlet – 1/4″ (Industrial), 1.4mm Dia. Nozzle, Pattern Width – 7.0″ – 10.9″, Working Pressure – 35 to 60 PSI, Air Consumption – 8.5 CFM @ 30 PSI]
Maximum pressure: 60 PSI
Internal dimensions are 12 1/4″ wide x 14 3/4″” deep w/ lid applied.
A standard 5 gallon paint pal/bucket (Dia. 12″ x H 14.5″) can fit inside.
Non-ASME Tank
Commercial Use: Refer to State and City Codes
Exterior dimensions are 16″ wide x 27″ high w/lid and agitator assembled.
INCLUDES:
Air Hose: 33′ PVC 1/4″ Air Fitting
Fluid Hose: 33′ PVC 3/8″ Air Fitting
Spray Gun: SPRAY SP-51-IMP, 1.4mm nozzle
Pressure Pot: 5 Gallon
California Air Tools 5 Gal. Pressure Pot with HVLP Spray Gun Owner’s Manual 365 – Rev. 4-22
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
