2.0 HP (Rated/Running)4.6 Gallon Aluminum Tank6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI

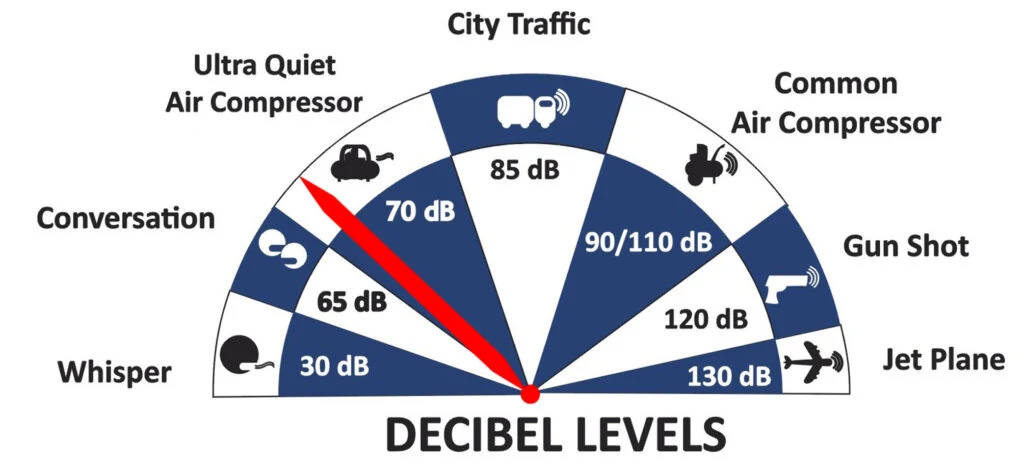

70 dB Noise Level
220v 60hz

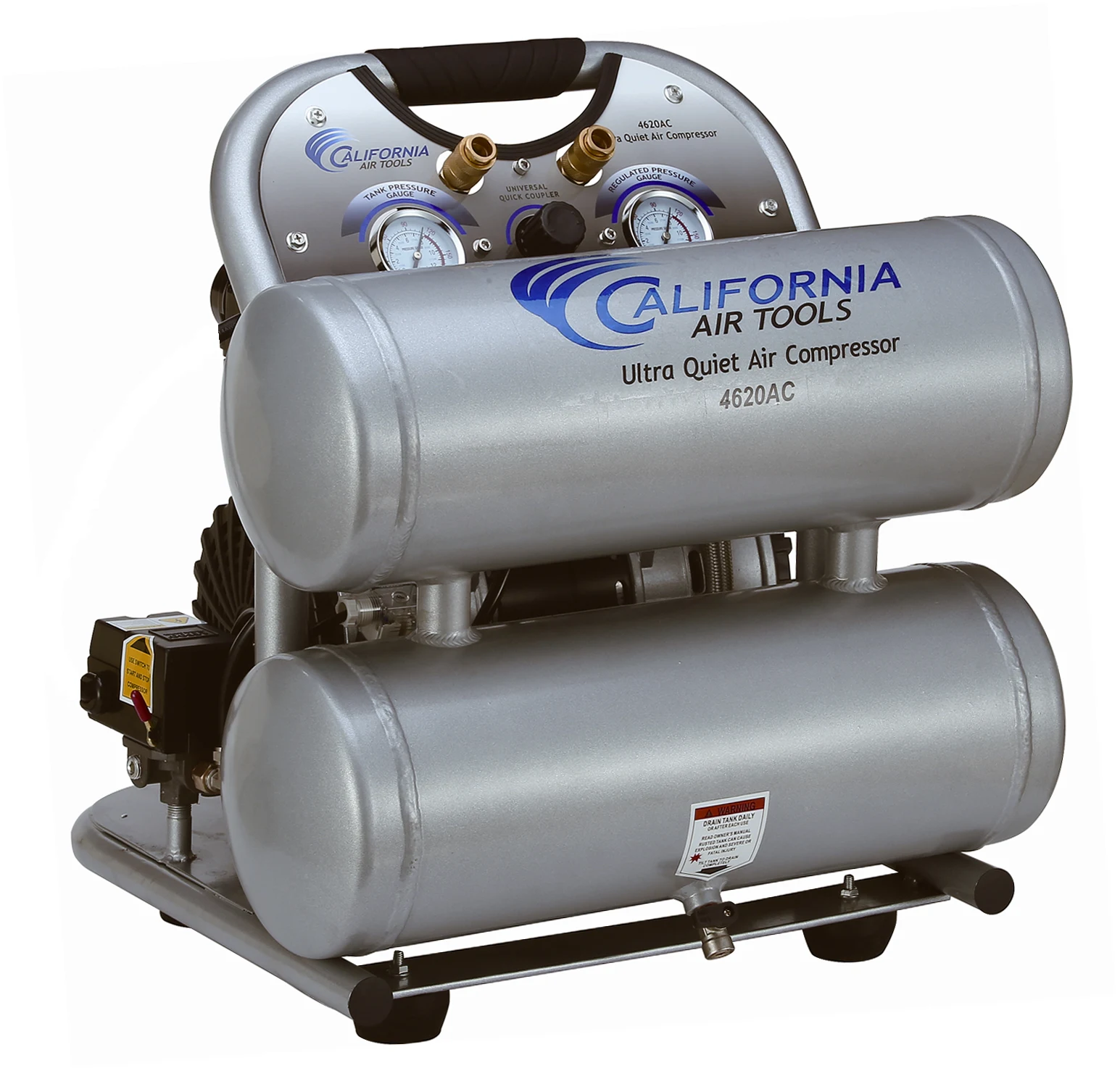

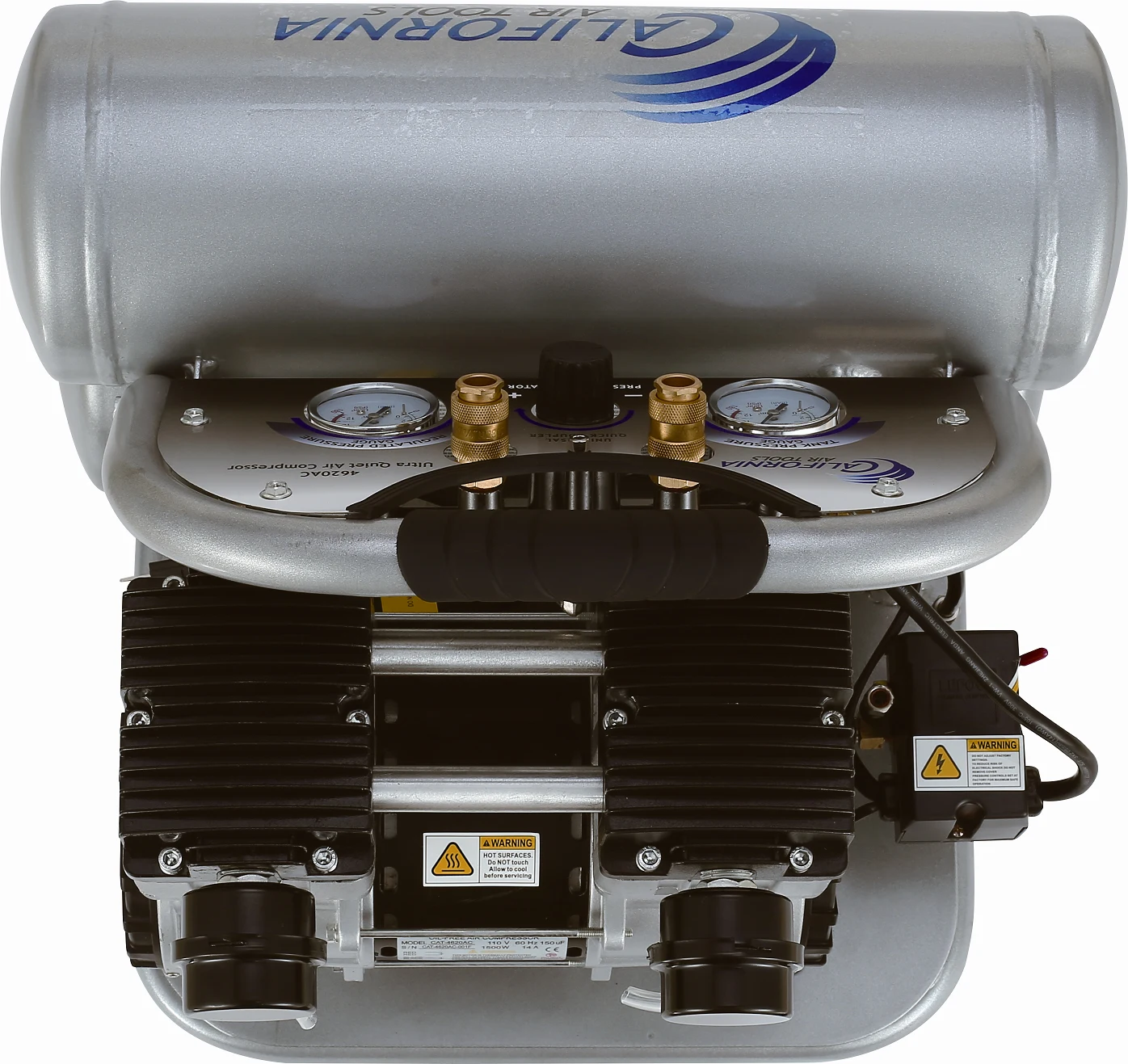

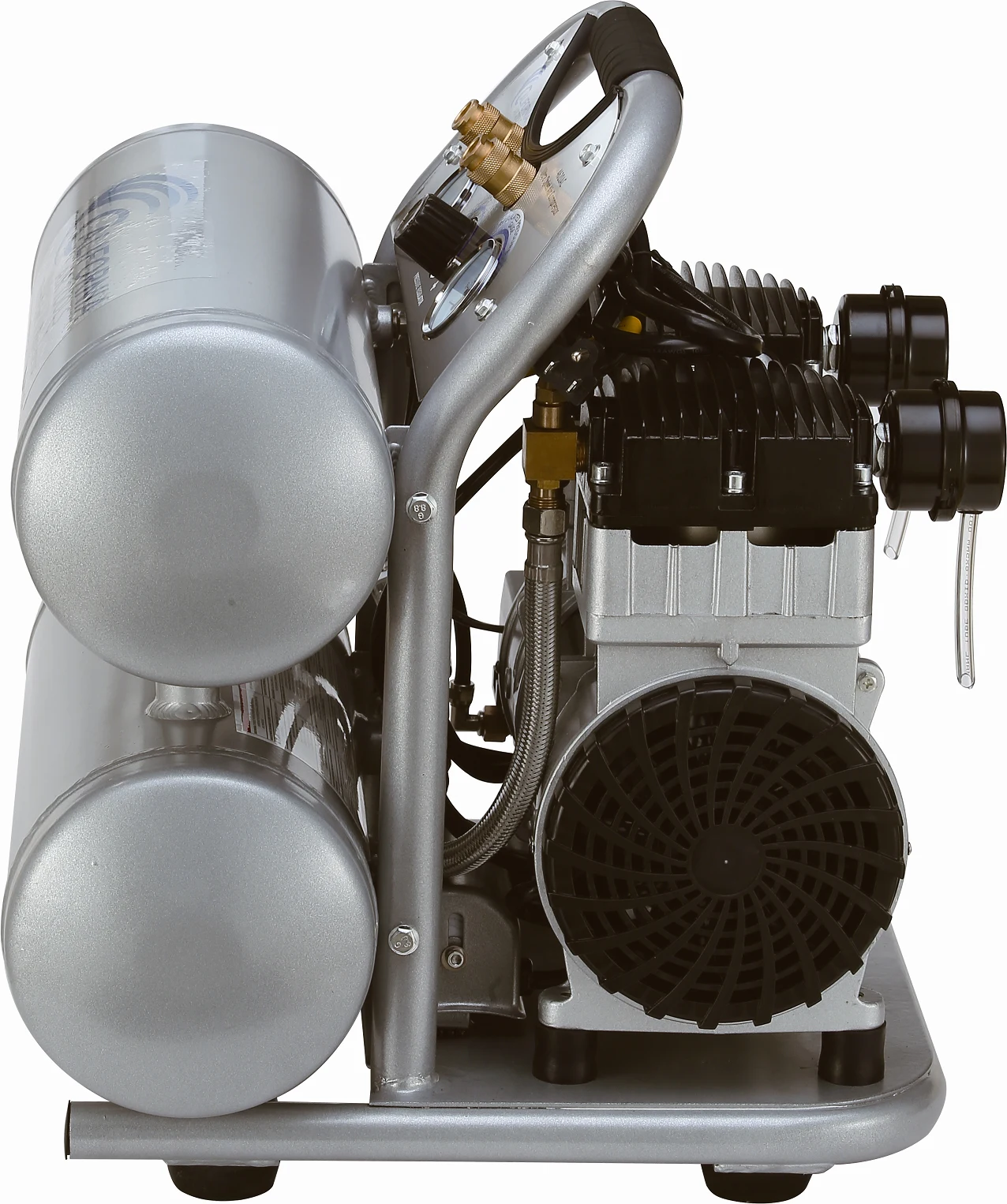

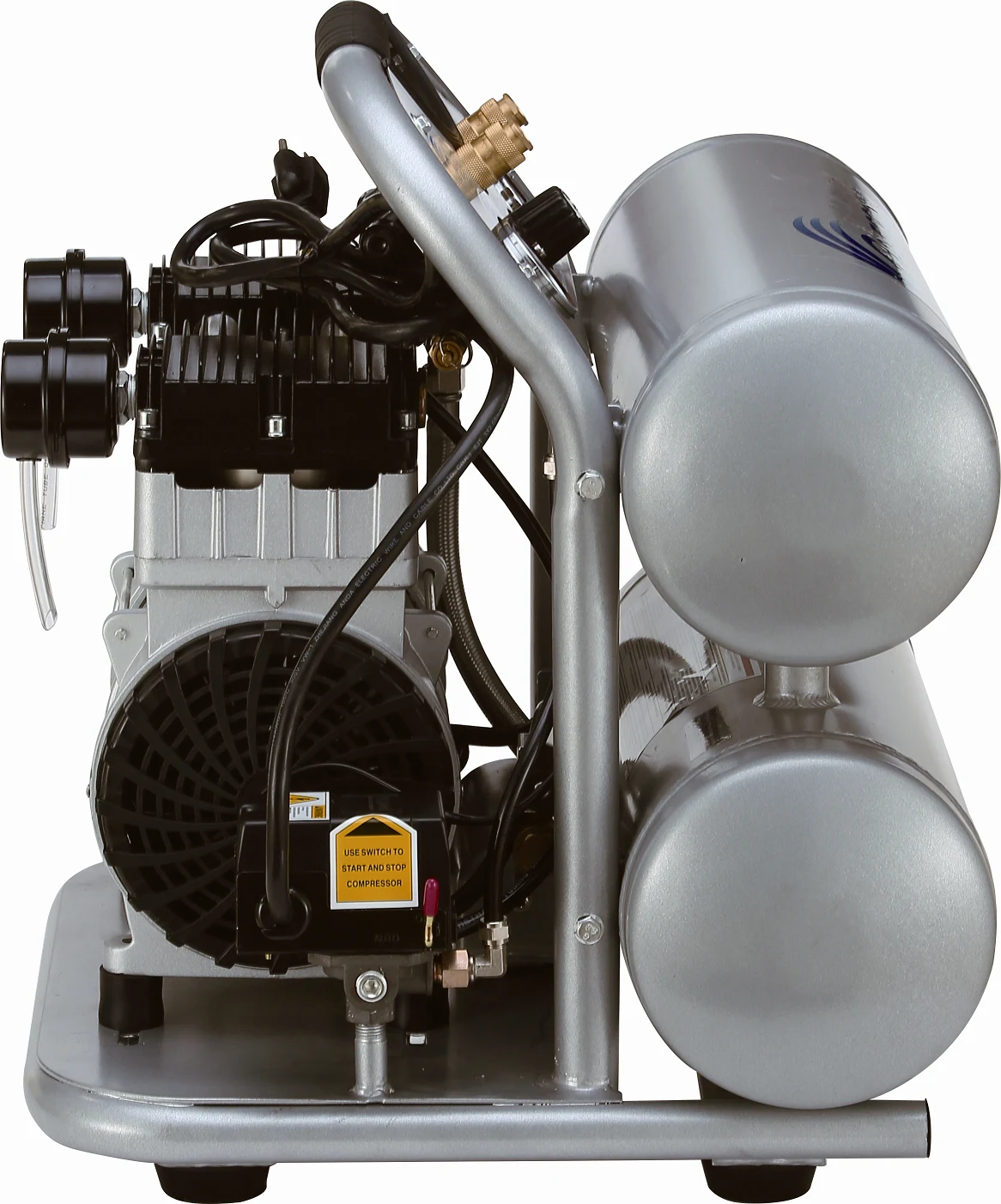

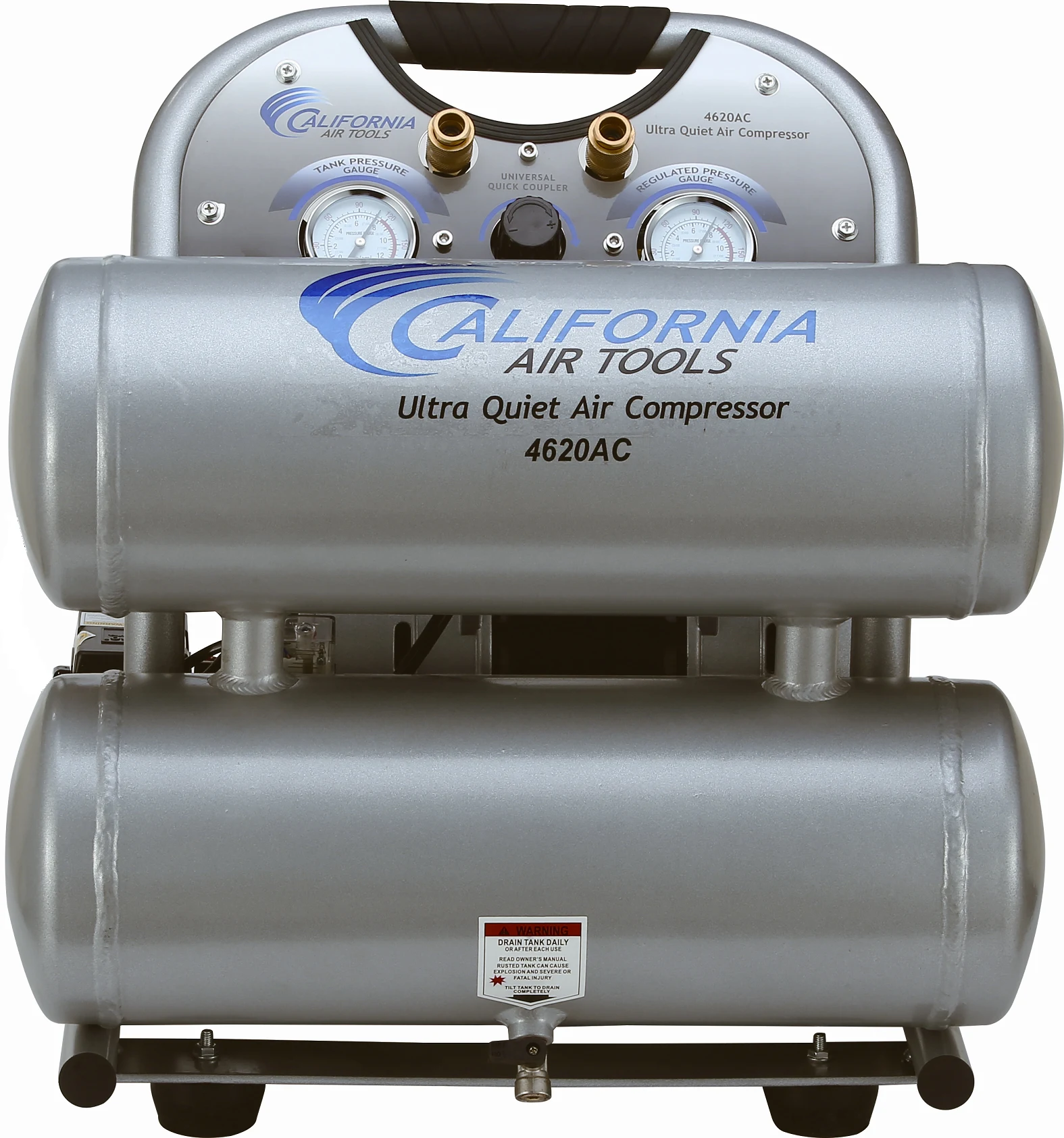

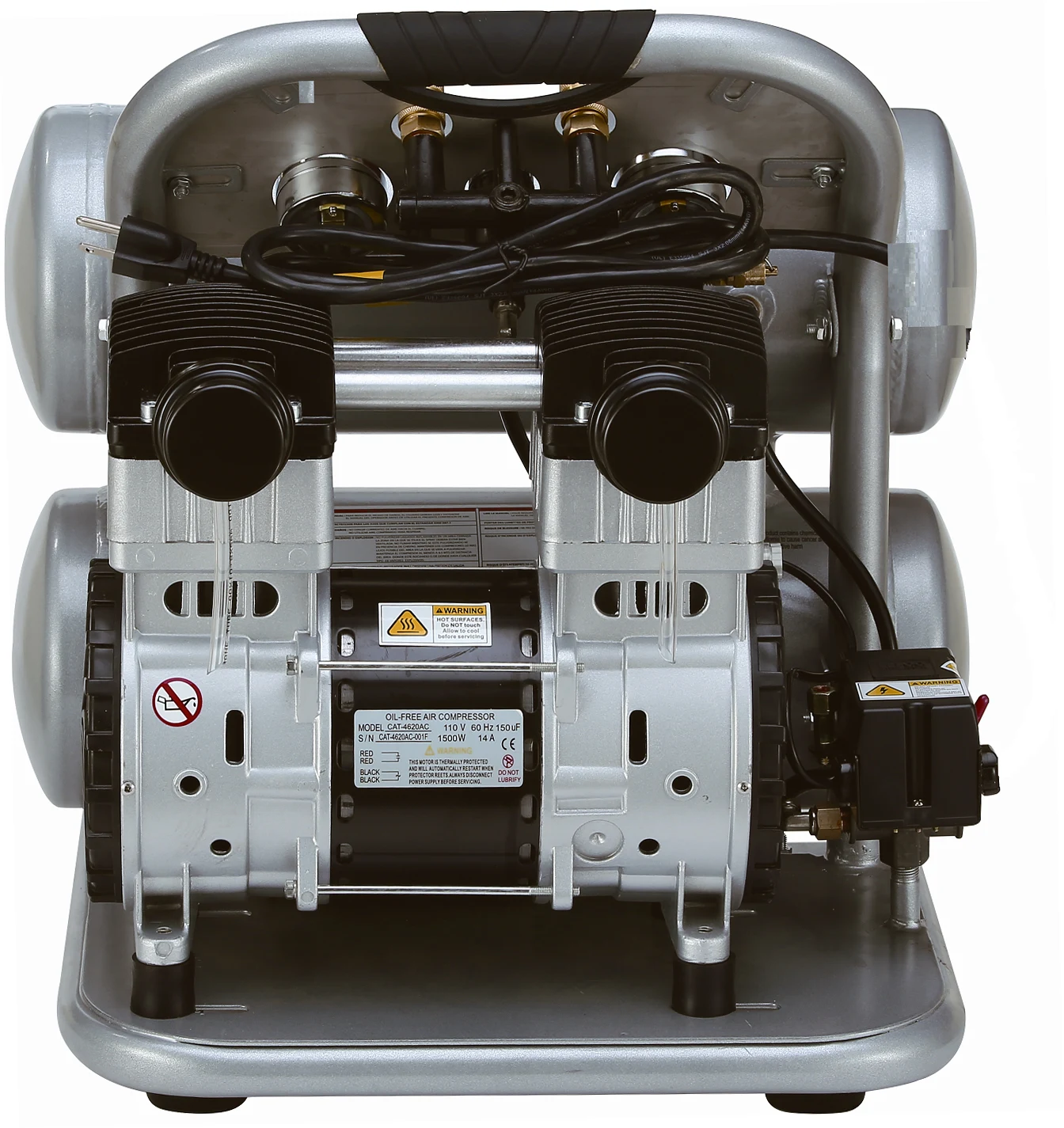

The CAT-4620AC-22060 Air Compressor (220v 60hz) has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

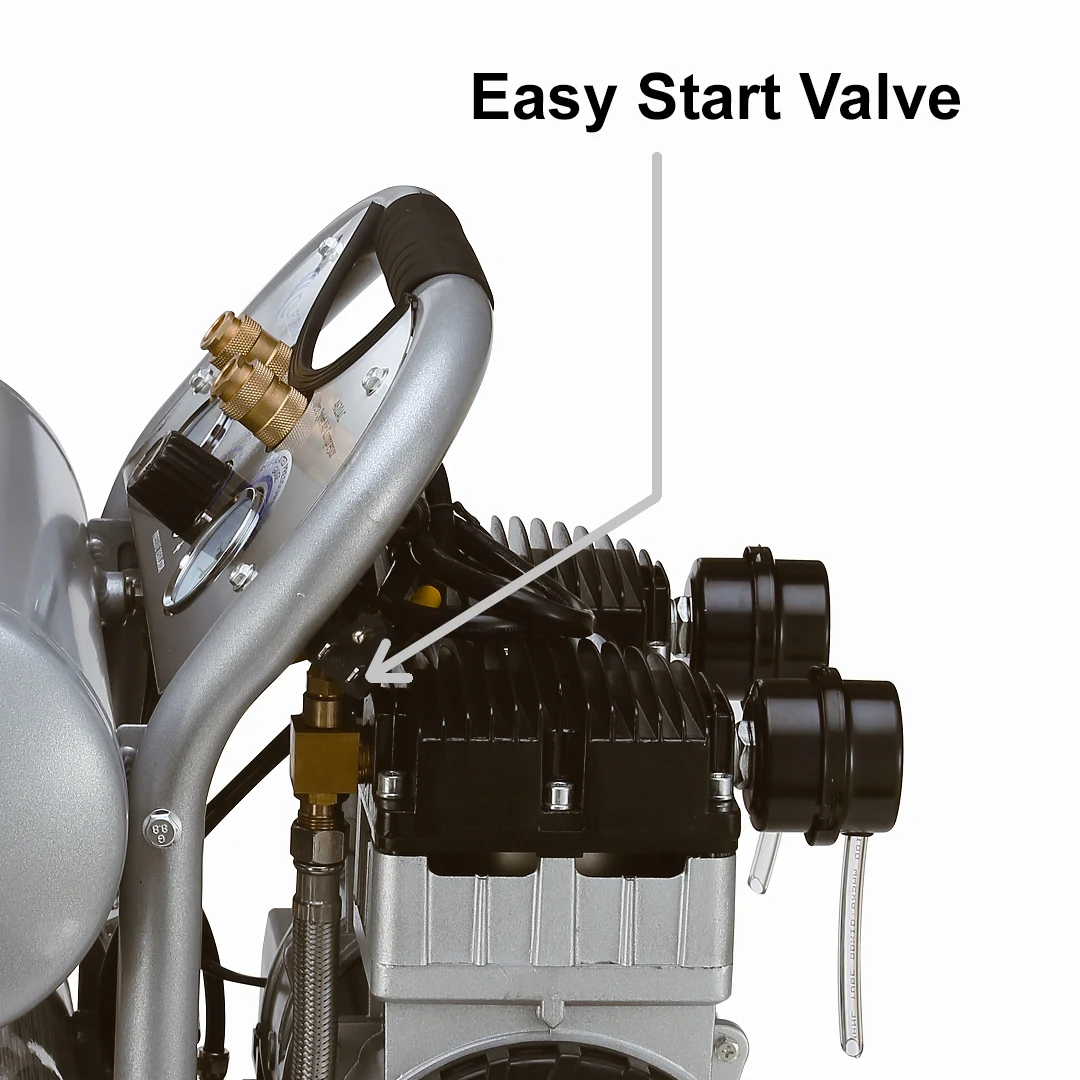

The Easy Start Valvefeature allows for a easier start up using less starting amps.The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
The large 4.6 Gallon Aluminum Air Tank is only 64 pounds making it very easy to move around the jobsite.
Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!

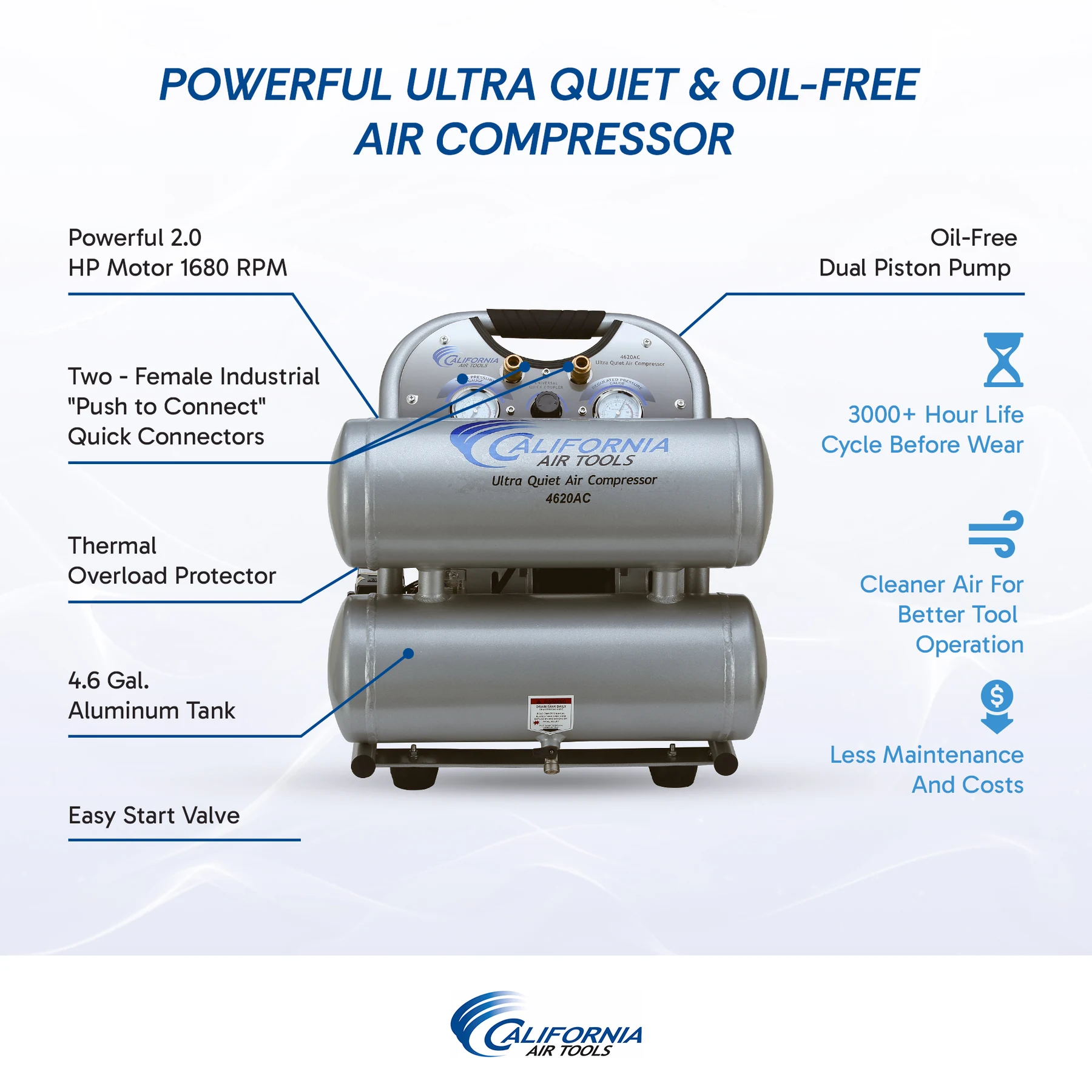

Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges

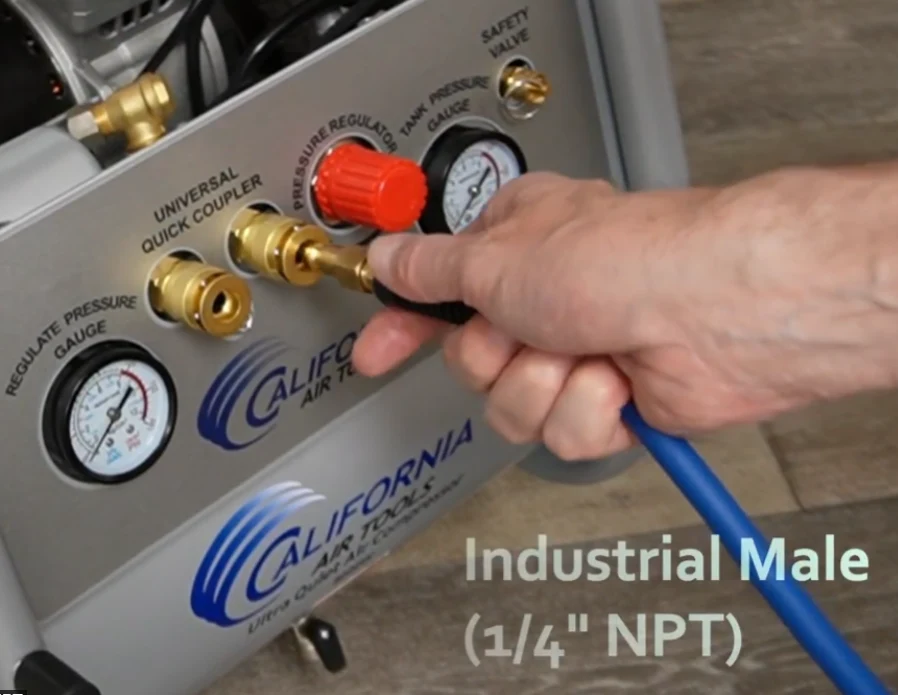

* Two – Female industrial “Push to Connect” quick connectors
* Easy Start Valve – For Less Starting Amperage
* Thermal Overload Protector
* 125 PSI Maximum Pressure
* 220v / 60 hz / Single Phase / (No 208 Volts – if necessary, obtain 208 to 220 voltage booster)
* Low Amp Draw – 7.5 Amps
* Generator with 3000 Running Watts

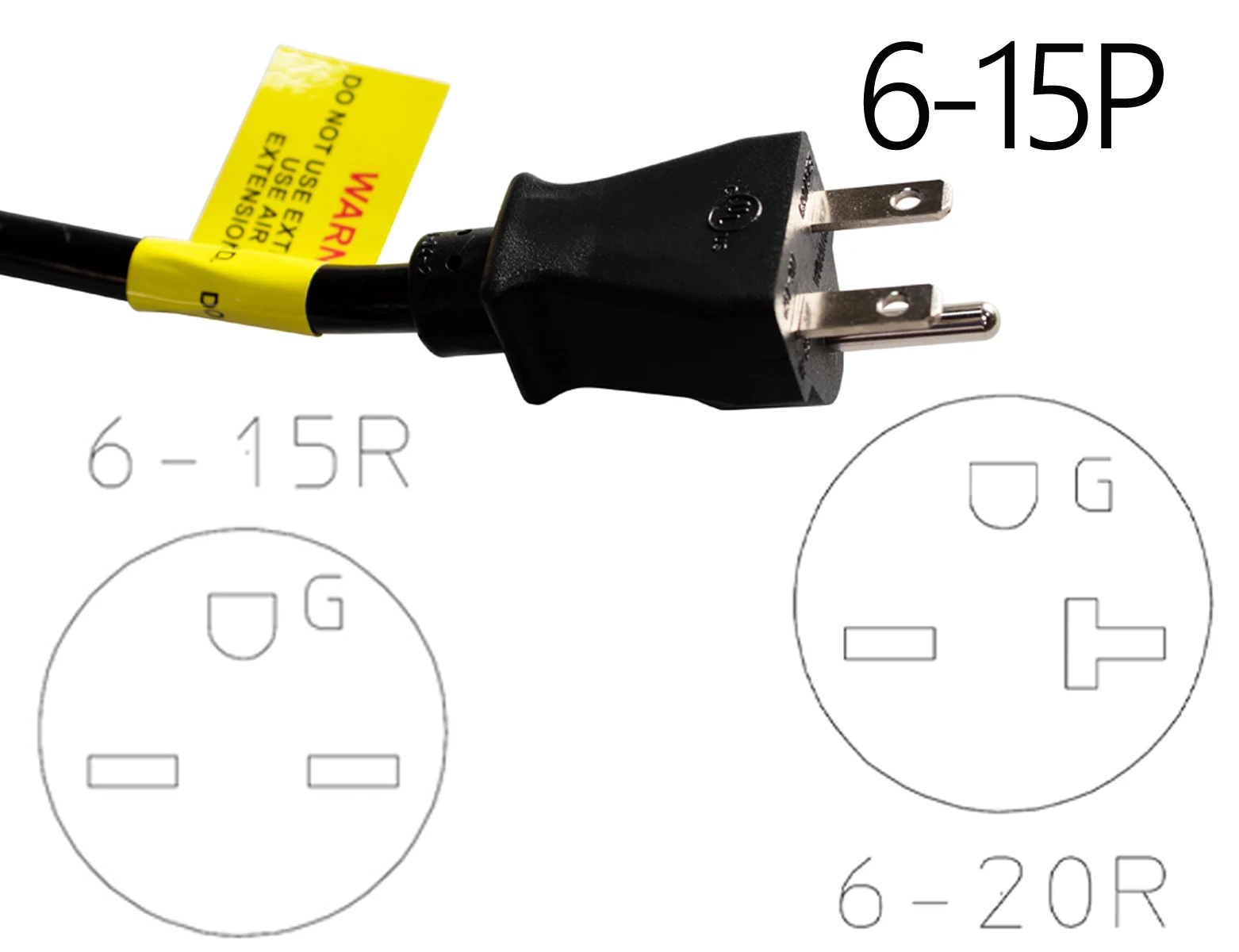

* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
* Time to fill tank from empty to full – 60 Seconds
* Recovery time from 95 PSI to 125 PSI – 20 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* Portable & Easy to move around.

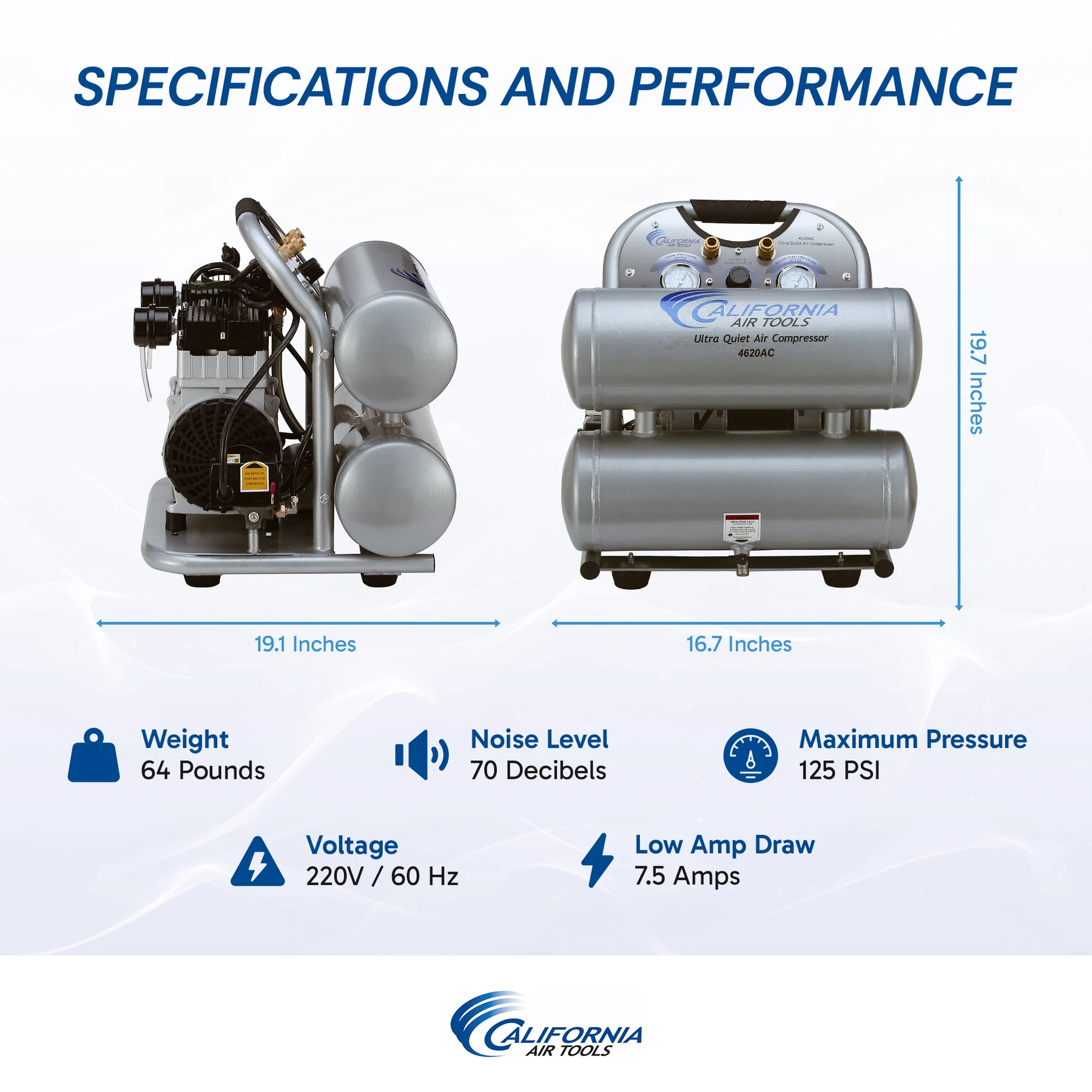

* L (18.75″) x W/D (17″) x H (19.7″)
* 64 lbs
* 1 Year Limited Warranty
* Comes complete Two Air Filters
* Assembled in USA
* Commercial Use: Refer to State & City Codes
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
EZ2321ADS Automatic Drain Valve Short Extension Kit (110v 60 hz)
California Air Tools 4620AC-22060 Air Compressor Owners Manual – 3-15
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
