4.0 HP (Rated/Running)
20 Gallon Steel Tank
12.80 CFM @ 40 PSI
10.60 CFM @ 90 PSI
75 Decibel Noise Level
220 Volts / 60 Hertz / Single Phase

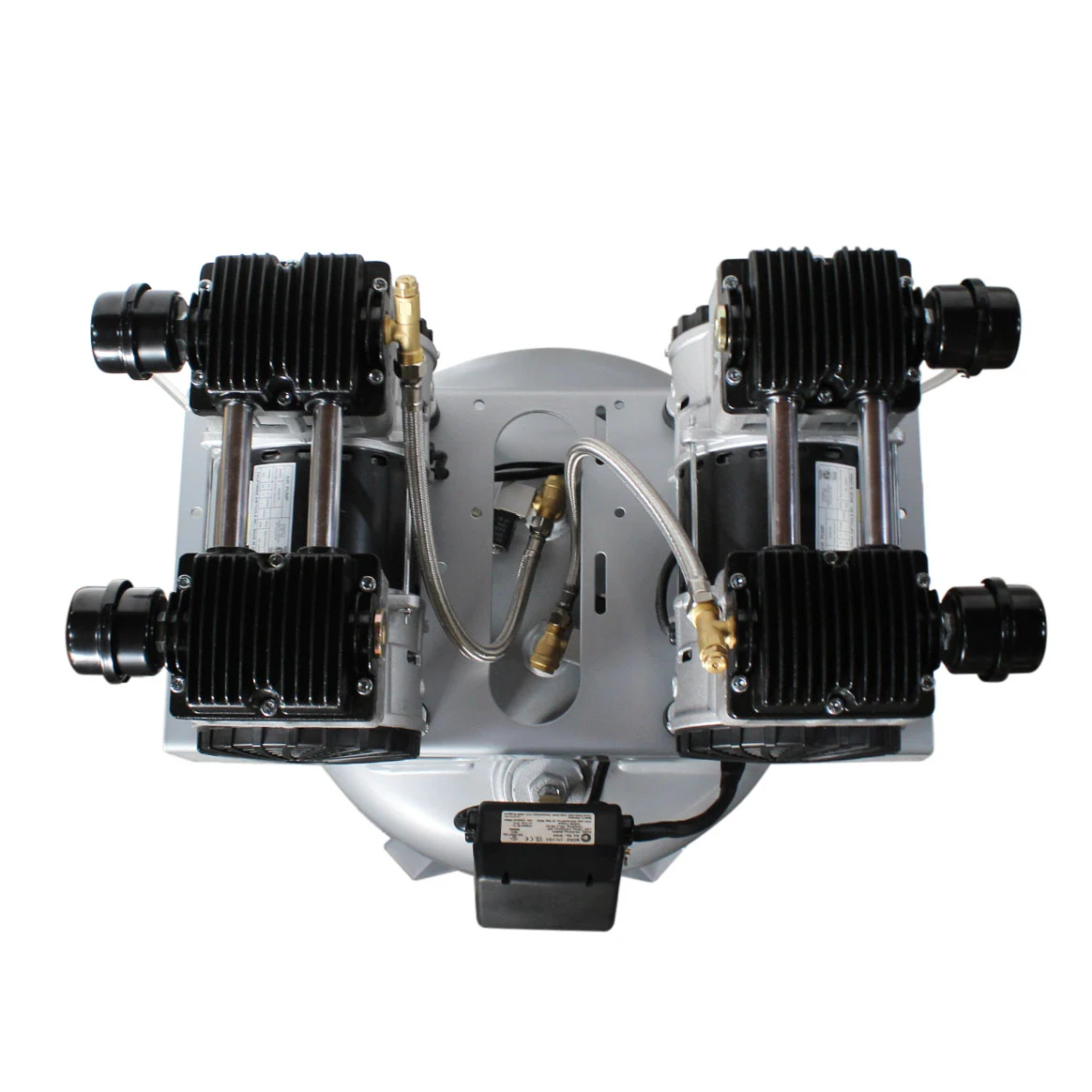

Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures. (cold starts) and uneven terrains (no oil in the pump).
EZ-1-2321 Auto Drain Valve (with manual drain valve).
The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air
compressor air tank. The manually set timer allows you to set the time for both
the frequency and duration of the draining process. (Factory Pre-Set)
The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.

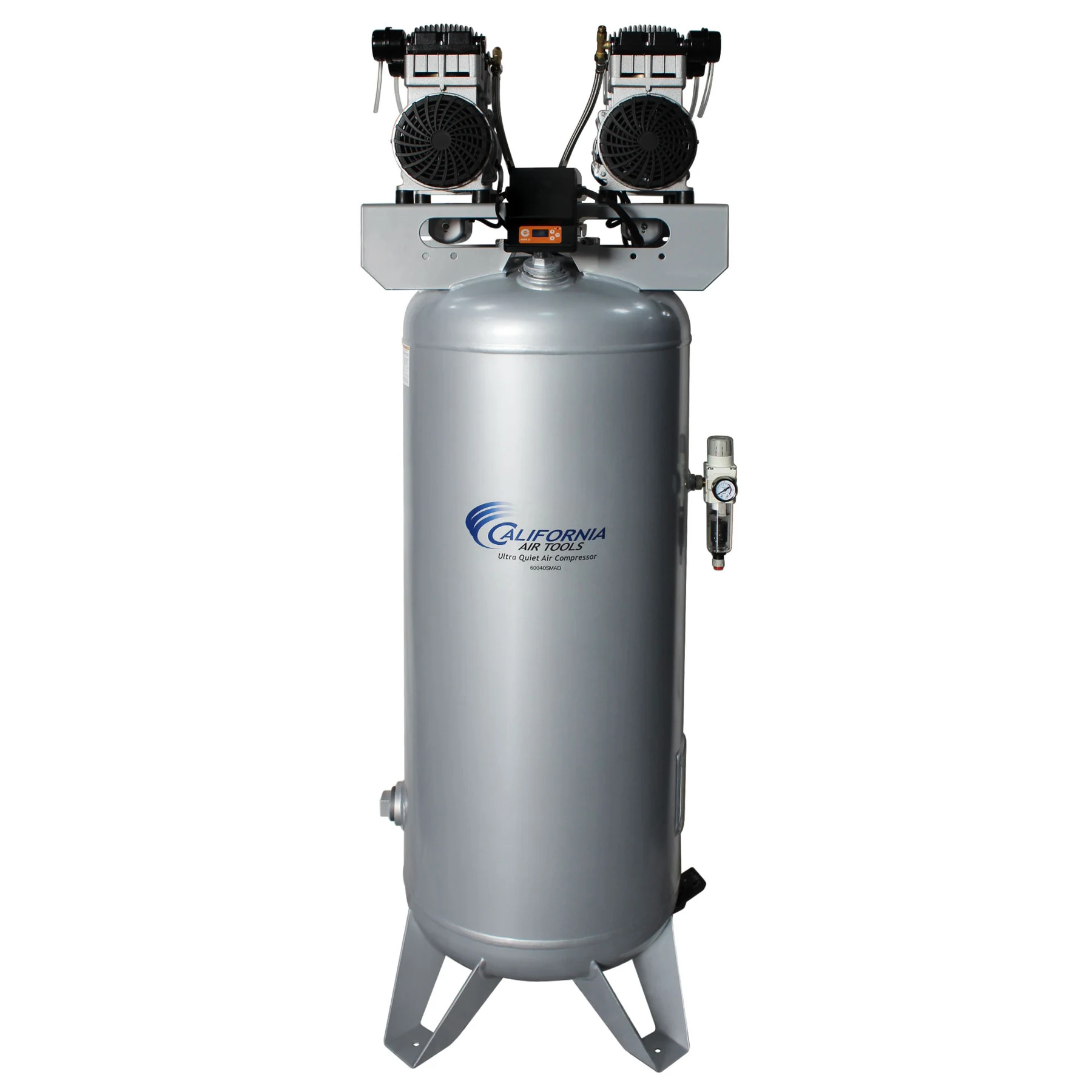

Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise! The large 60 Gallon Steel ASME Air Tank is just the right size for shop or garage.
Base Model 60040CAD Product Overview (without Smart Controller)
SUPPORT VIDEO – Auto Drain Feature and Function.

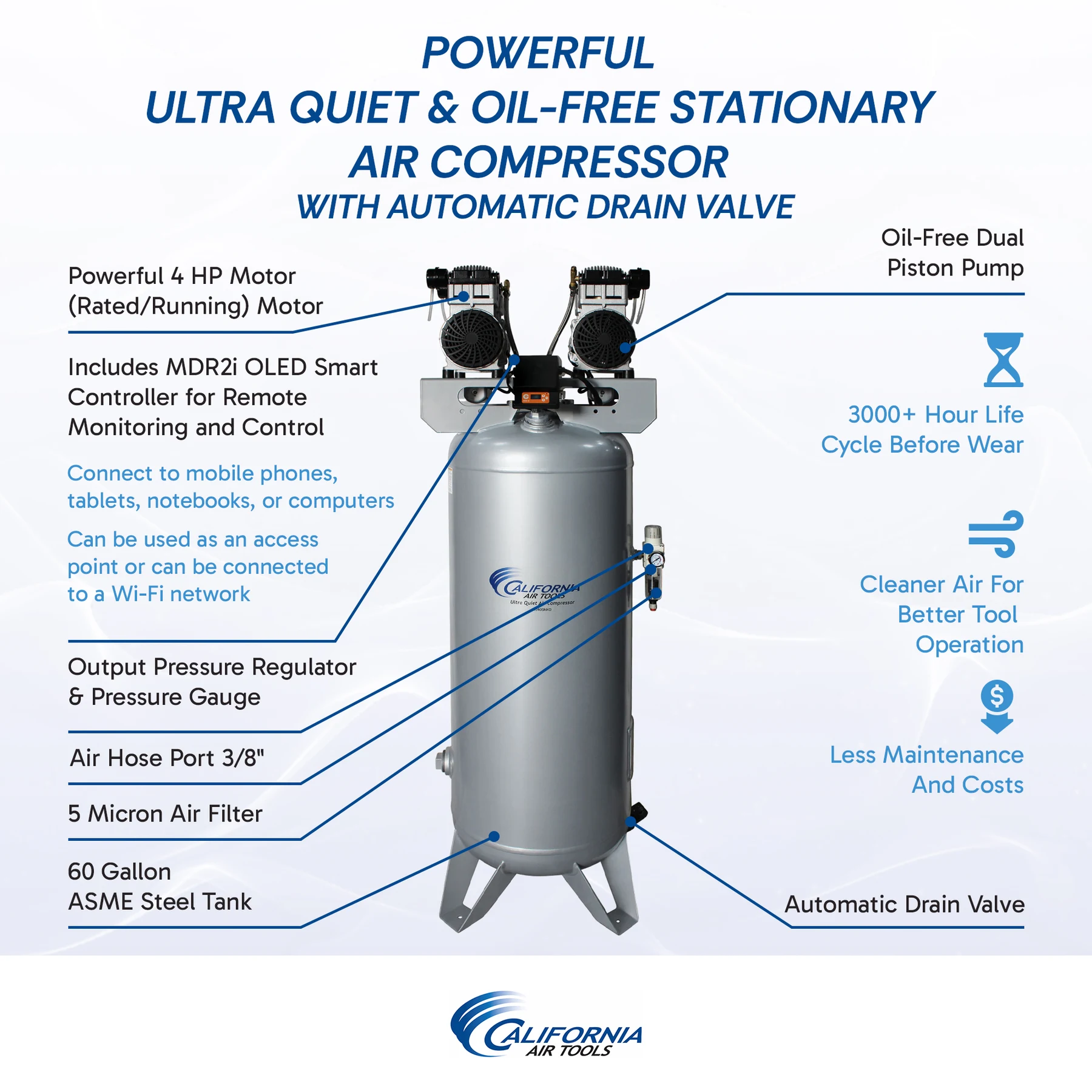

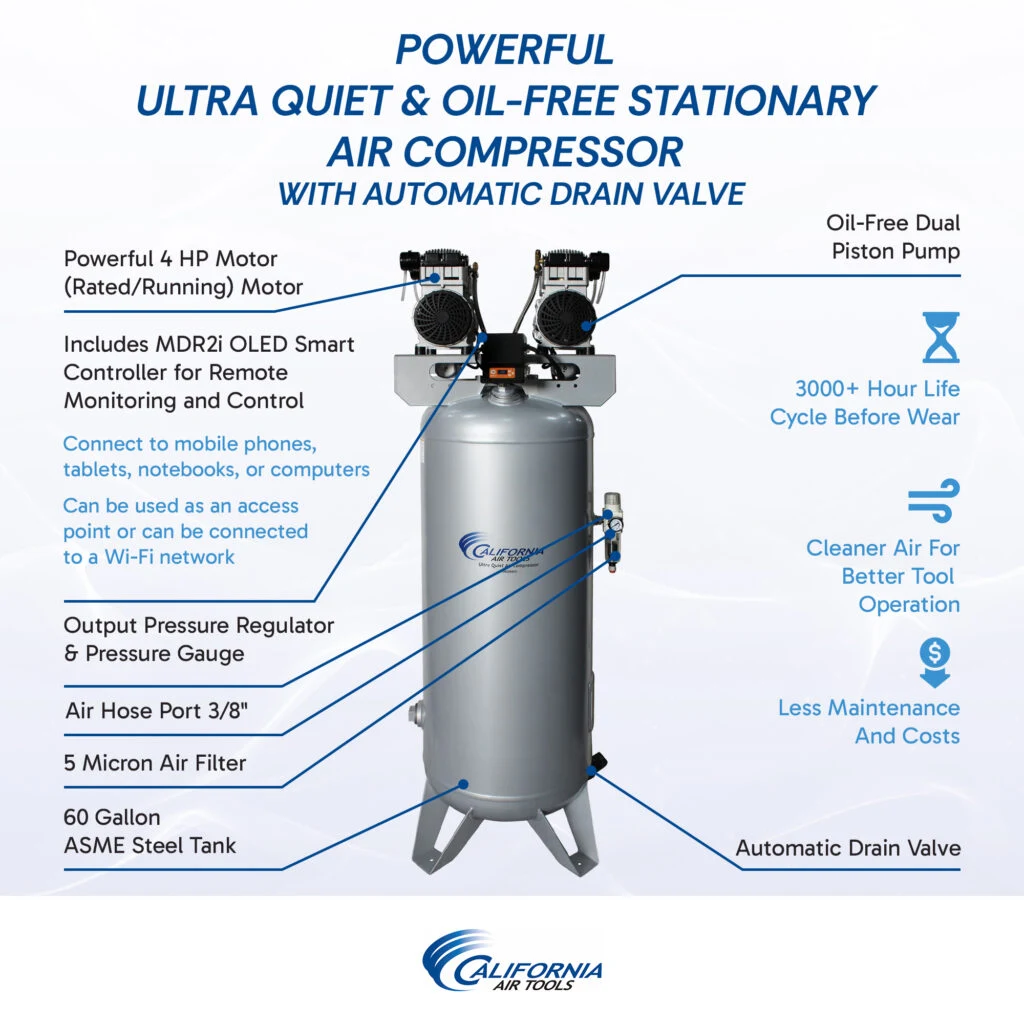

Features:
* Ultra Quiet – Only 75 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Regulated output pressure gauge
* 5 Micron Air Filter & Regulator with 3/8″ Female Air Port
* Air Hose Port, Female, 3/8″ NPT

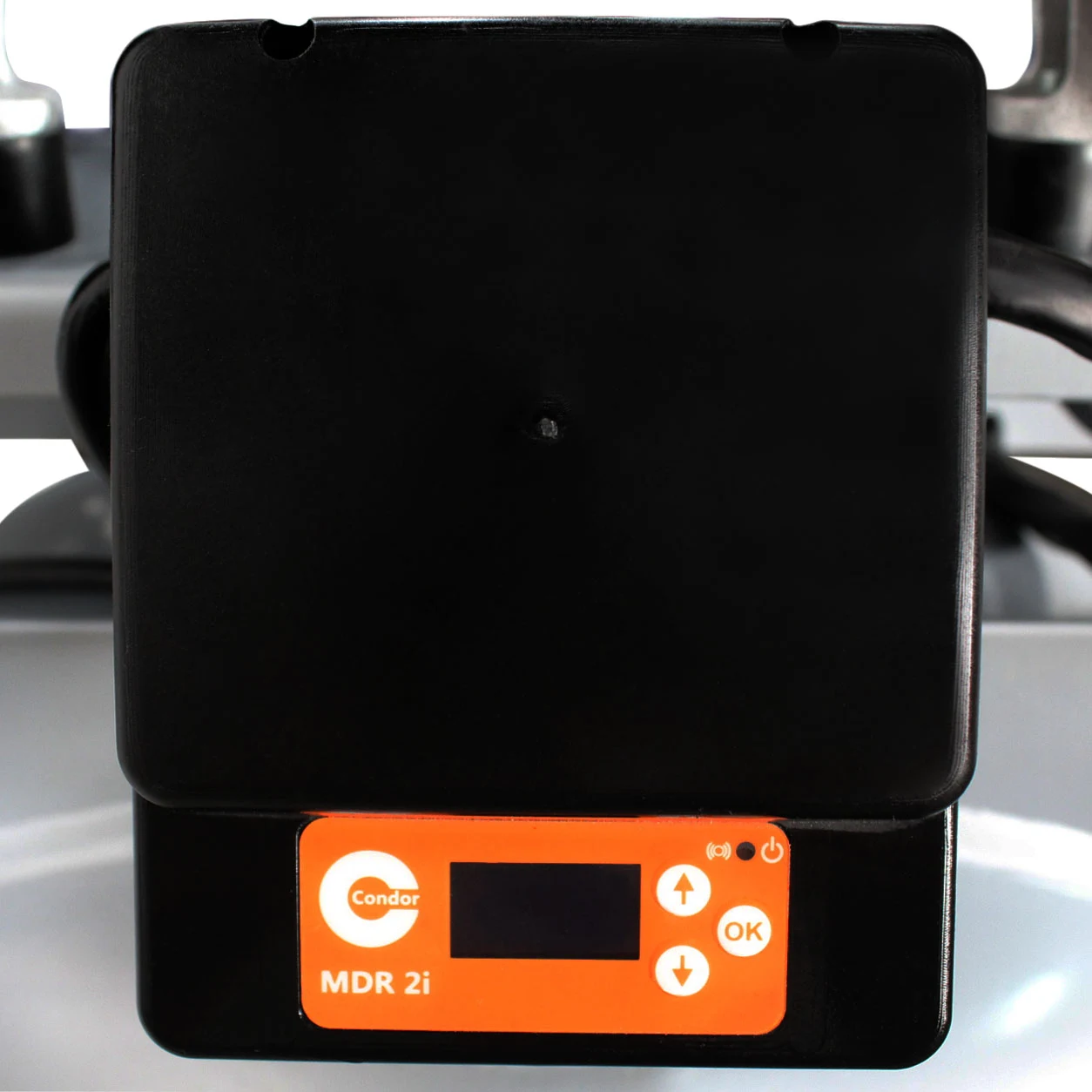

* MDR2i OLED Smart Controller for remote monitoring and control
* Thermal Overload Protector
* Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off
maximum.
* 220 Volt / 60 Hertz / Single Phase – (No 208 Volts – if necessary, obtain 208 to 230 voltage booster). Acceptable Range: 215VAC – 245VAC.
* Low Amp Draw – 14 Amps
* Easy Start Valves – For Less Starting Amperage
* Time to fill tank from empty to full – 6:30 Minutes
* Recovery time from 95 PSI to 125 PSI – 2:00 Minutes
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 60 Gallon Steel ASME Certified Air Tank

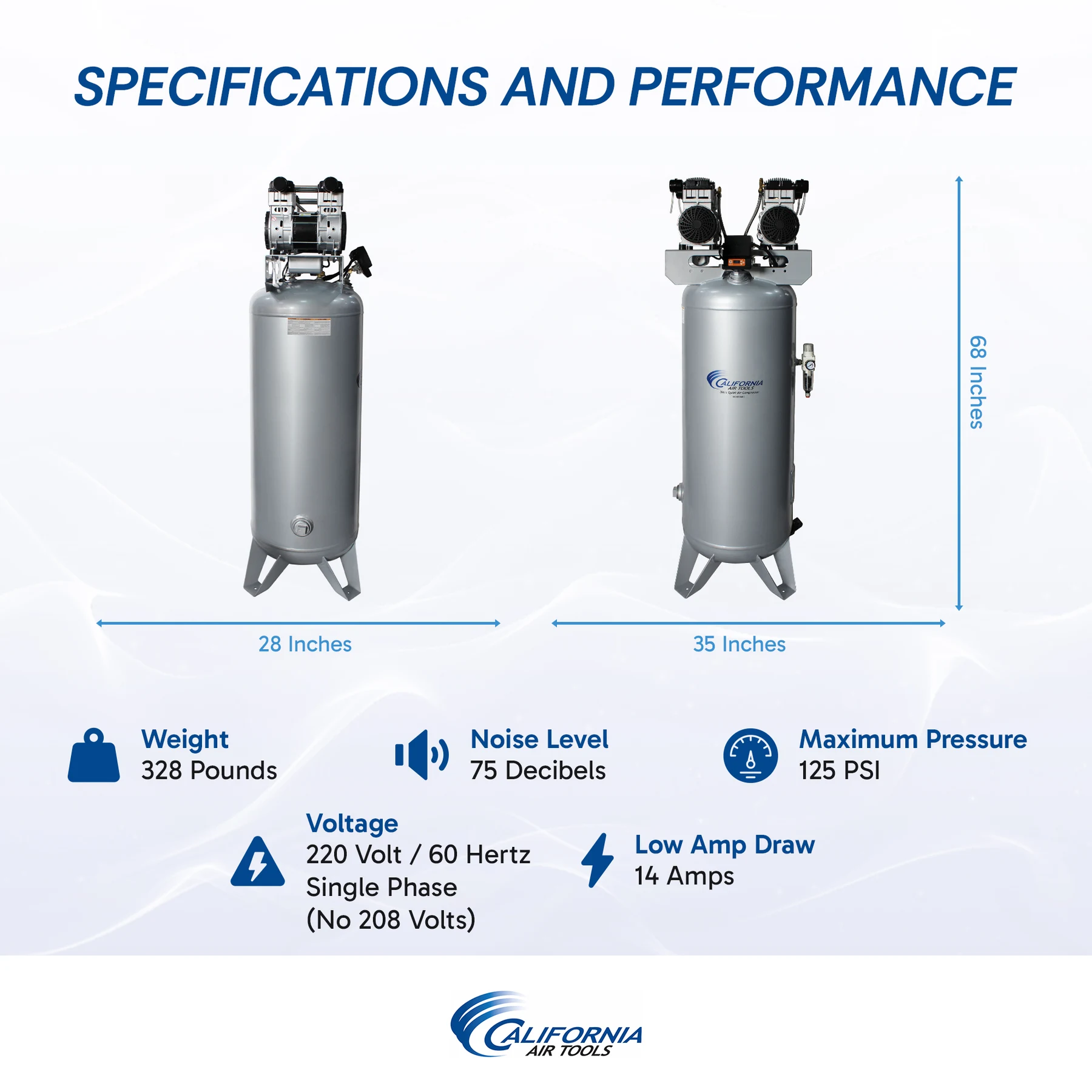

* L (35″) x W/D (28″) x H (68″)
* 328 lbs

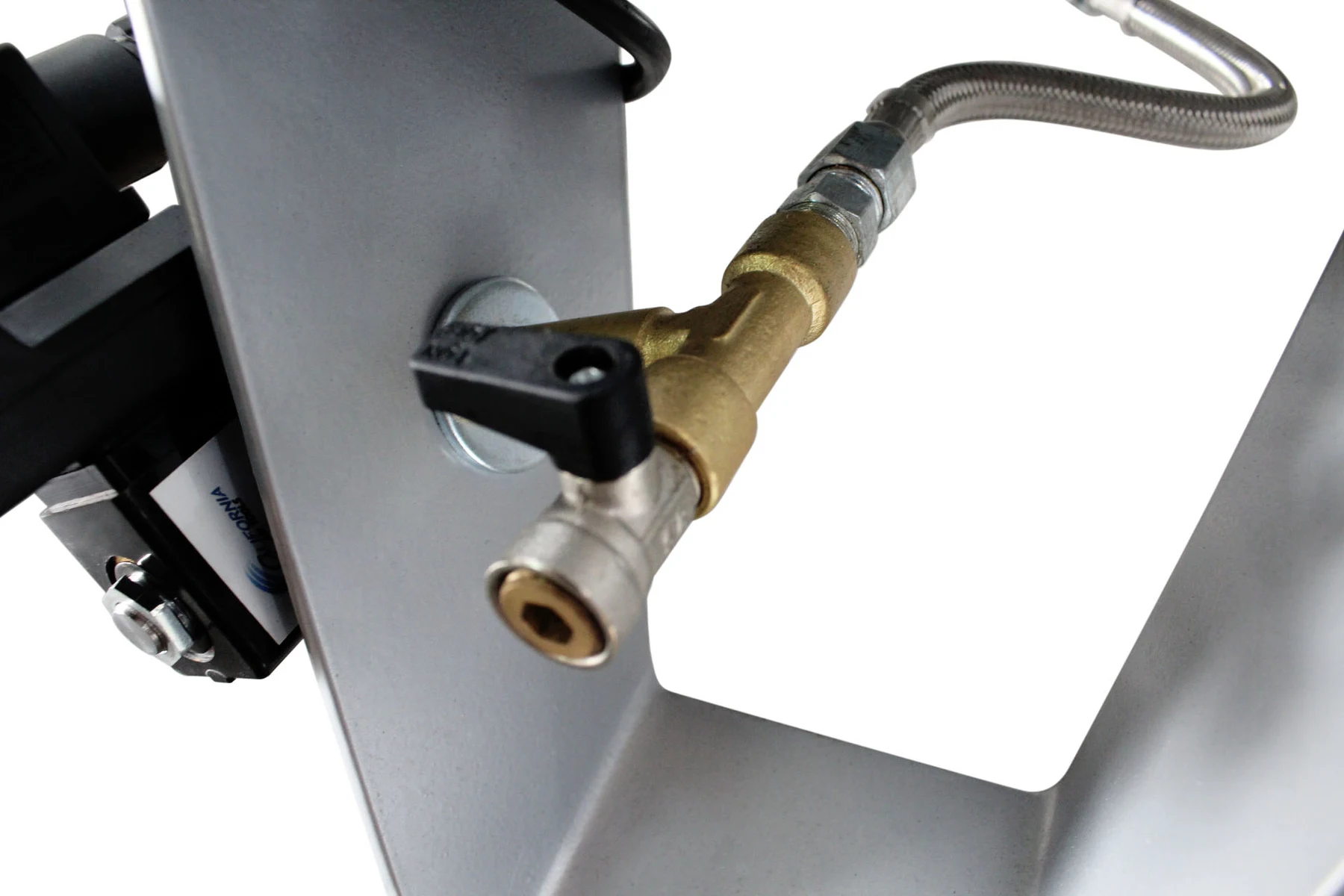

* EZ-1-2301 Automatic Drain Valve (with manual drain cleanout valve)
The California Air Tools EZ-1 Automatic Drain Valve has been designed to
eliminate manually draining your air compressor air tank.
* Comes complete (4) Air Filters
* Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
* 1 Year Limited Warranty
* Manufactured in Mexico-USA. Assembled in USA using global components.
* Commercial Use: Refer to State & City Codes
Getting Started Tips
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 98% Air Dryer Cannister/Cartridge every 4000 operating hours (~2 years on average).
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part Number 90260
Add-On Options:
8mm PTFE Black Hose Tubing (10 feet long) to connect to Automatic Drain Valve
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPTRefrigerated 98% Air Dryer, RD-91502, 110v 60hz
California Air Tools 60040SMAD Owners Manual
Smart Controller MDR2i Owners Manual_02172026
EZ-1 Automatic Drain Valve Owner’s Manual
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
Auto Drain Connectivity (Instructions)
*70/30 Duty Cycle – Click Here For More Information
