208/230V 3-Phase 60hz
85 Decibel Noise Level
6.5 HP (Rated/Running)
60 Gallon Steel Tank
20.0 CFM @ 40 PSI
17.0 CFM @ 90 PSI
208V/230V 3-Phase 60hz 15Amp

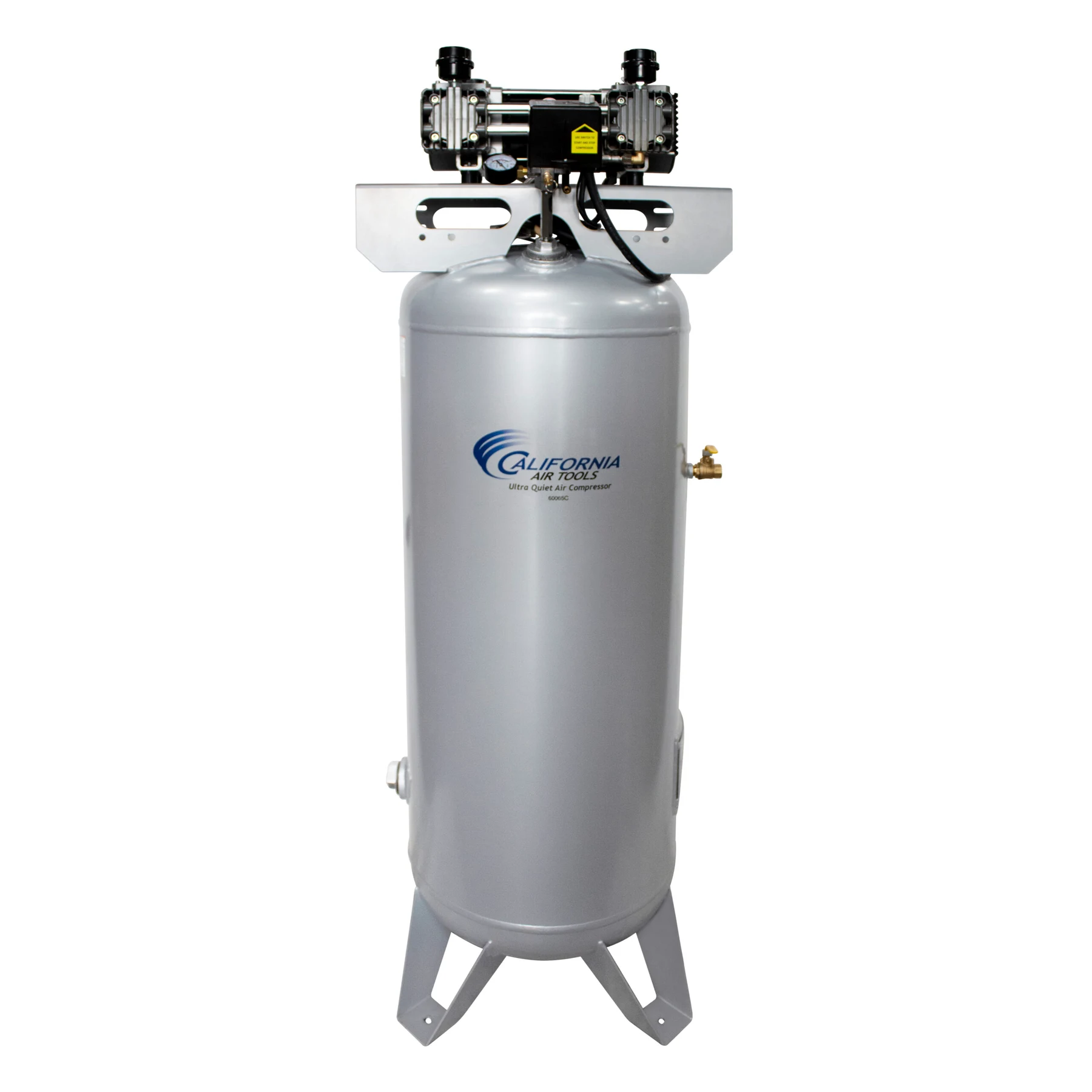

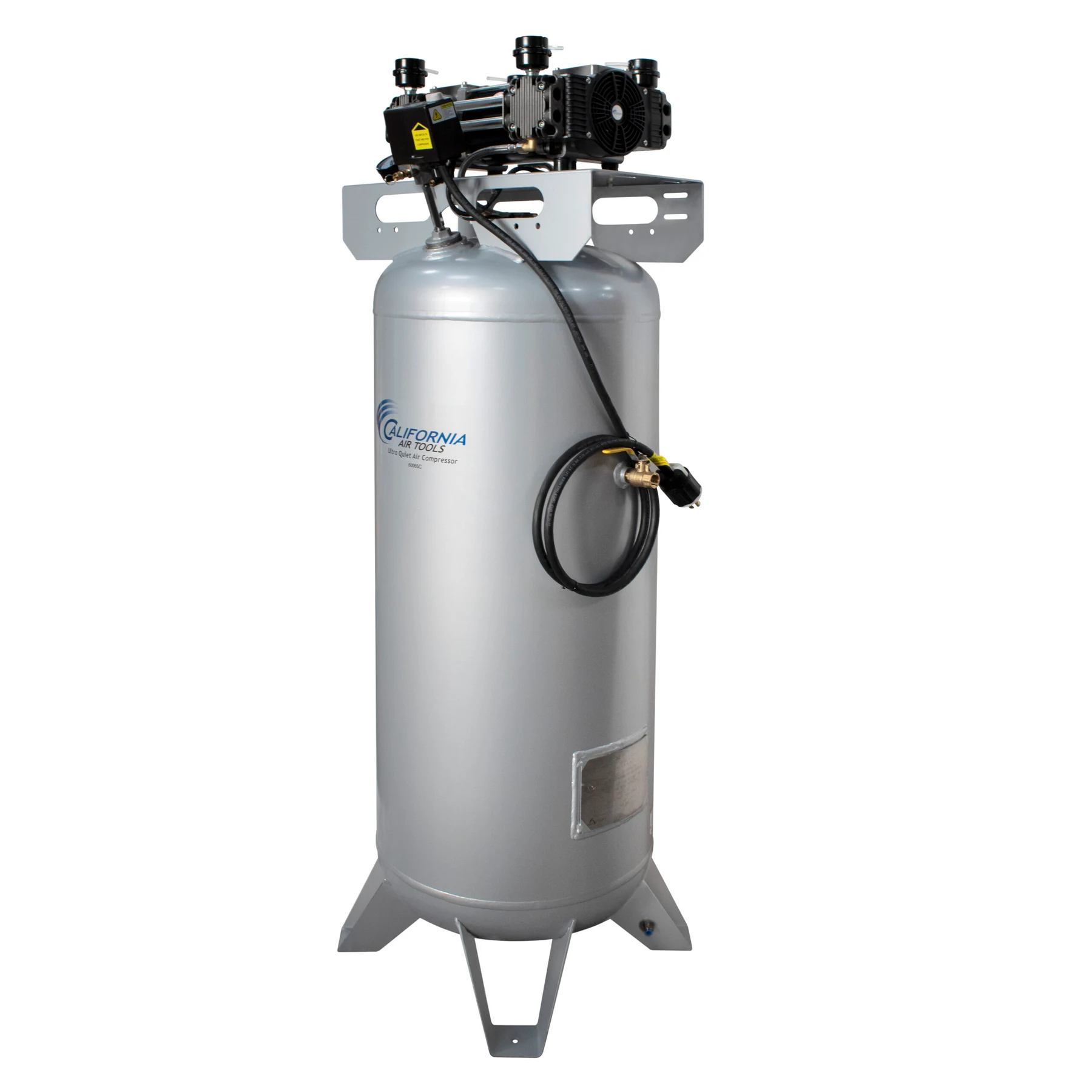

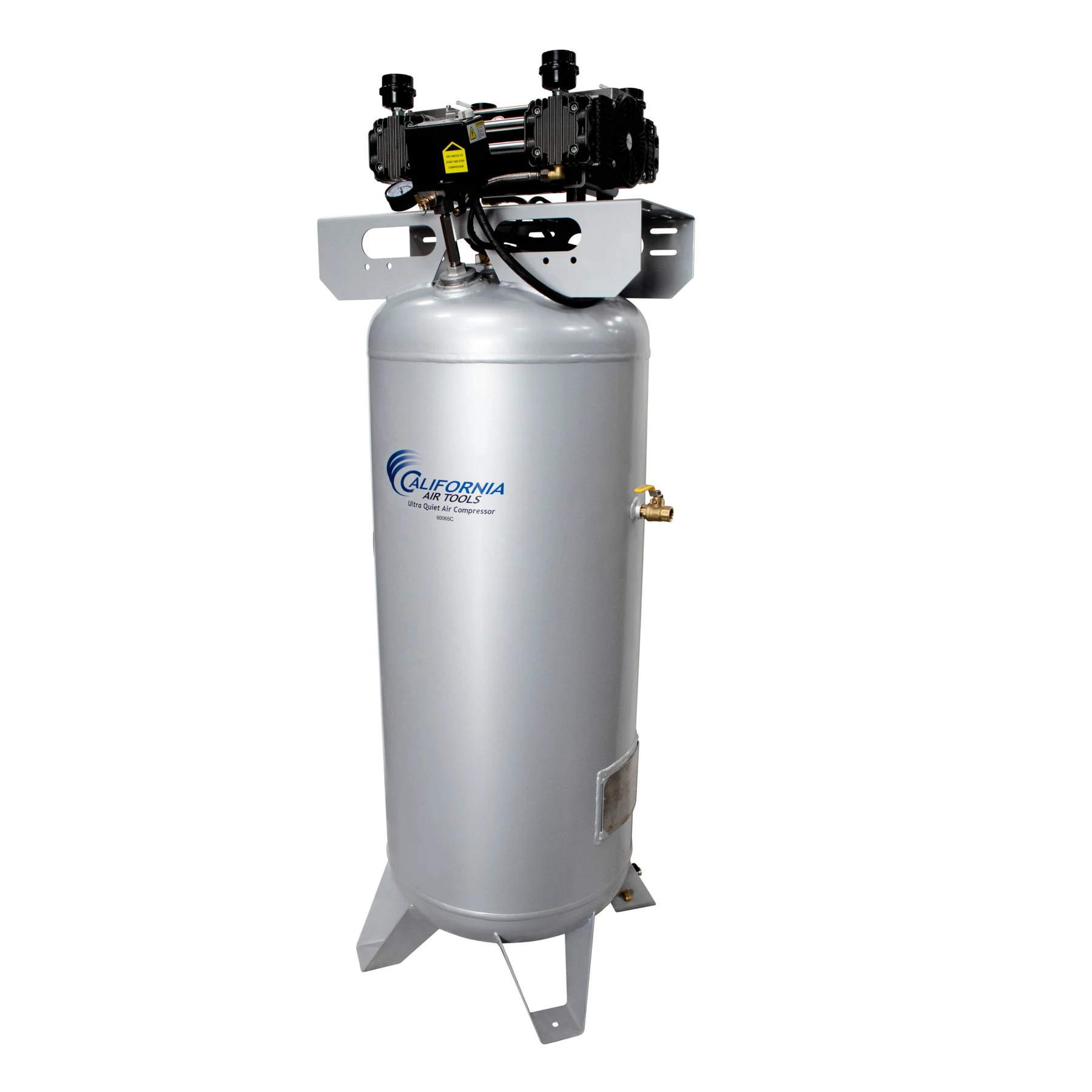

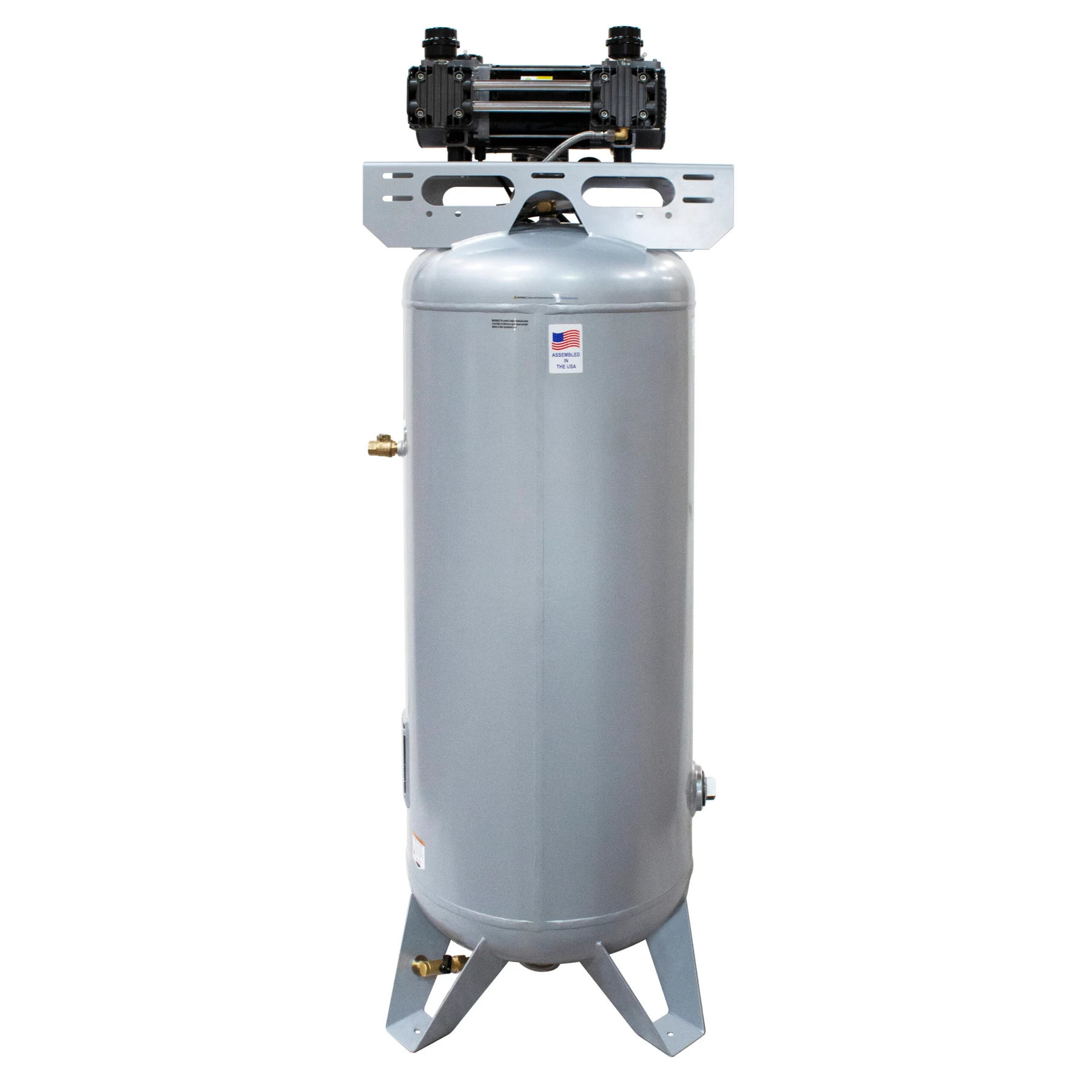

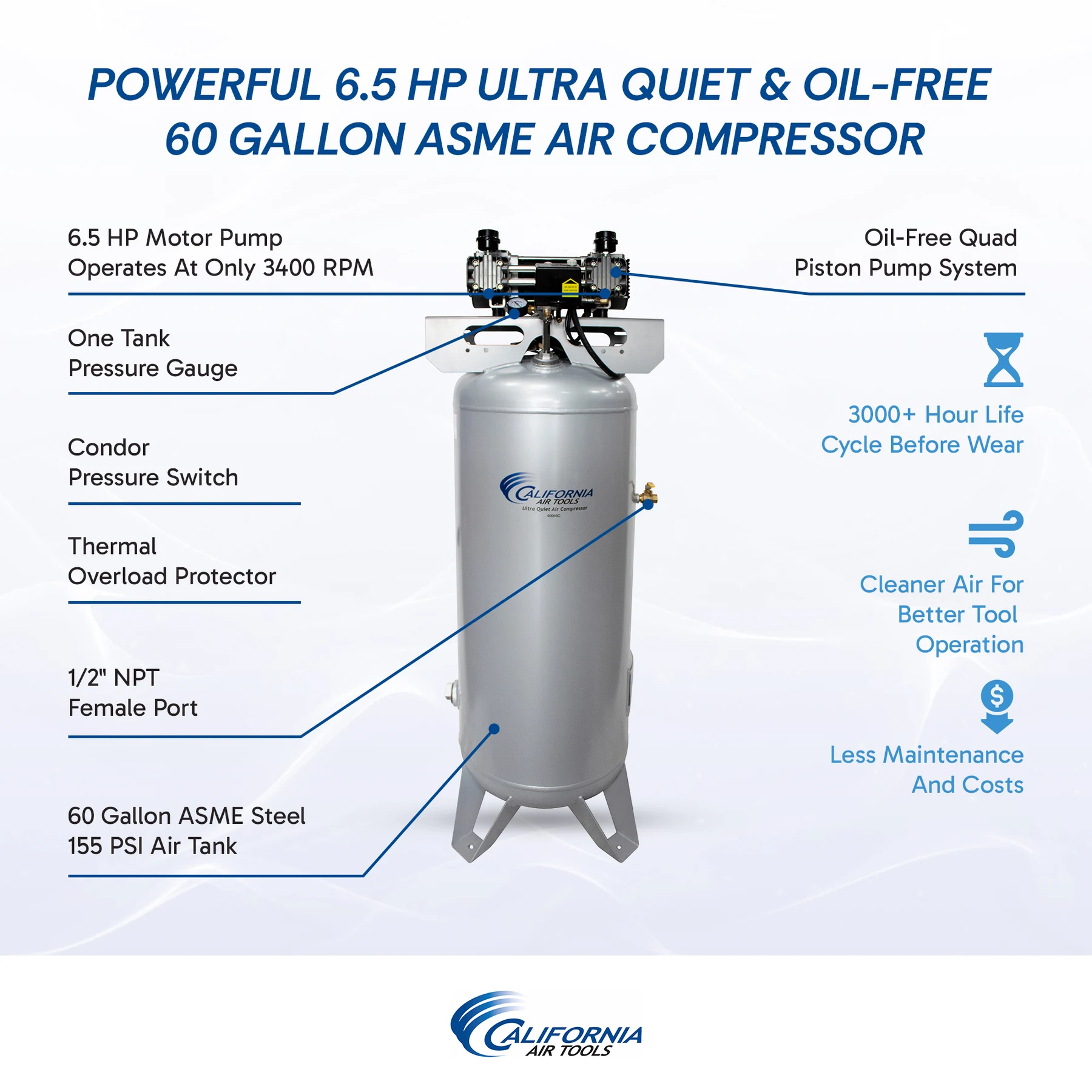

The CALIFORNIA AIR TOOLS 60065C Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 6.5 Hp air compressors in the industry having only 85 decibels of sound compared to competitive models.
The Powerful OLF-3500 6.5Hp motor/pump (208/220v 60hz 3-phase) operates at only 1700 RPM creating less noise and less wear.
The OLF motor has been designed to increase duty cycle and allow for longer continuous run times.*

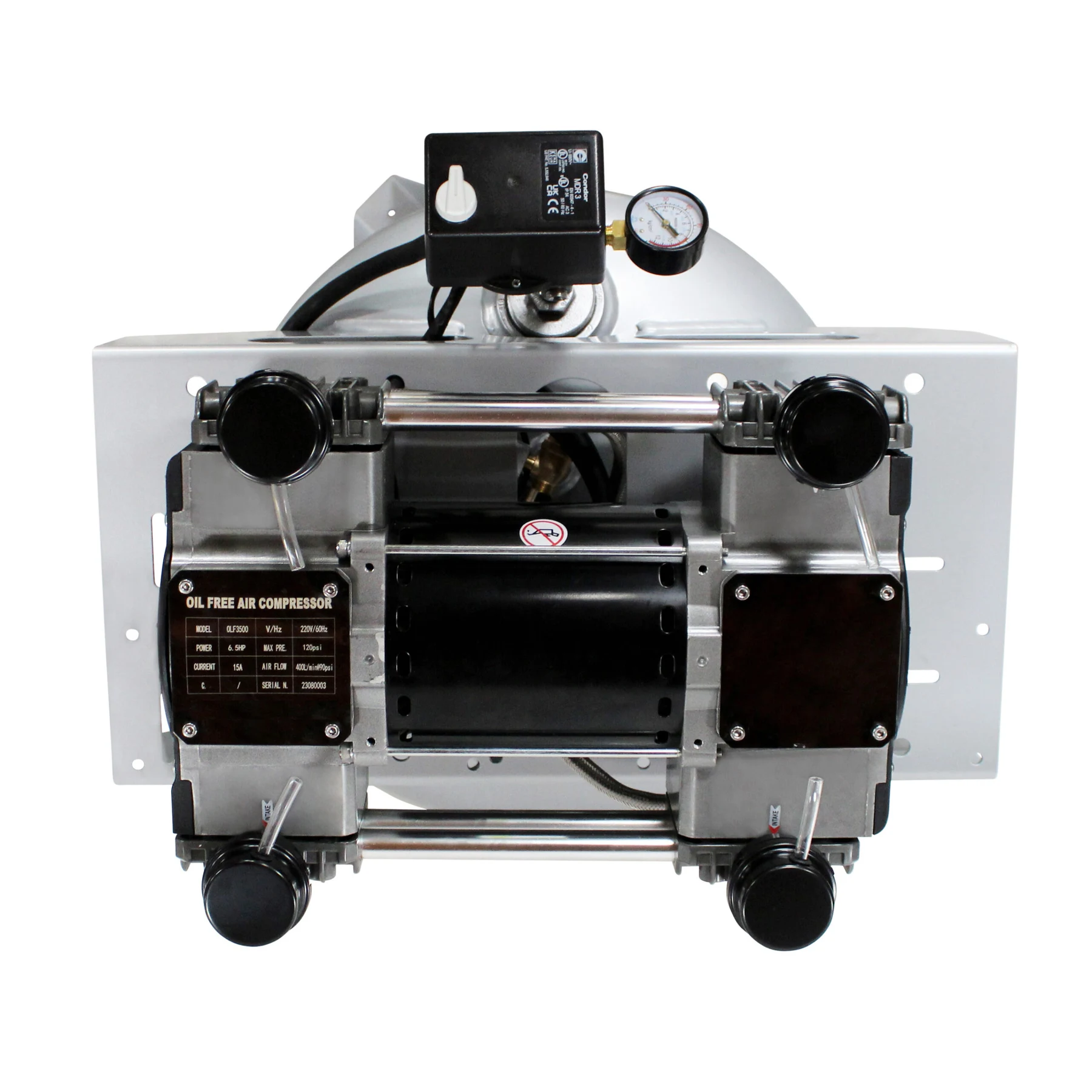

The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-60065C Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

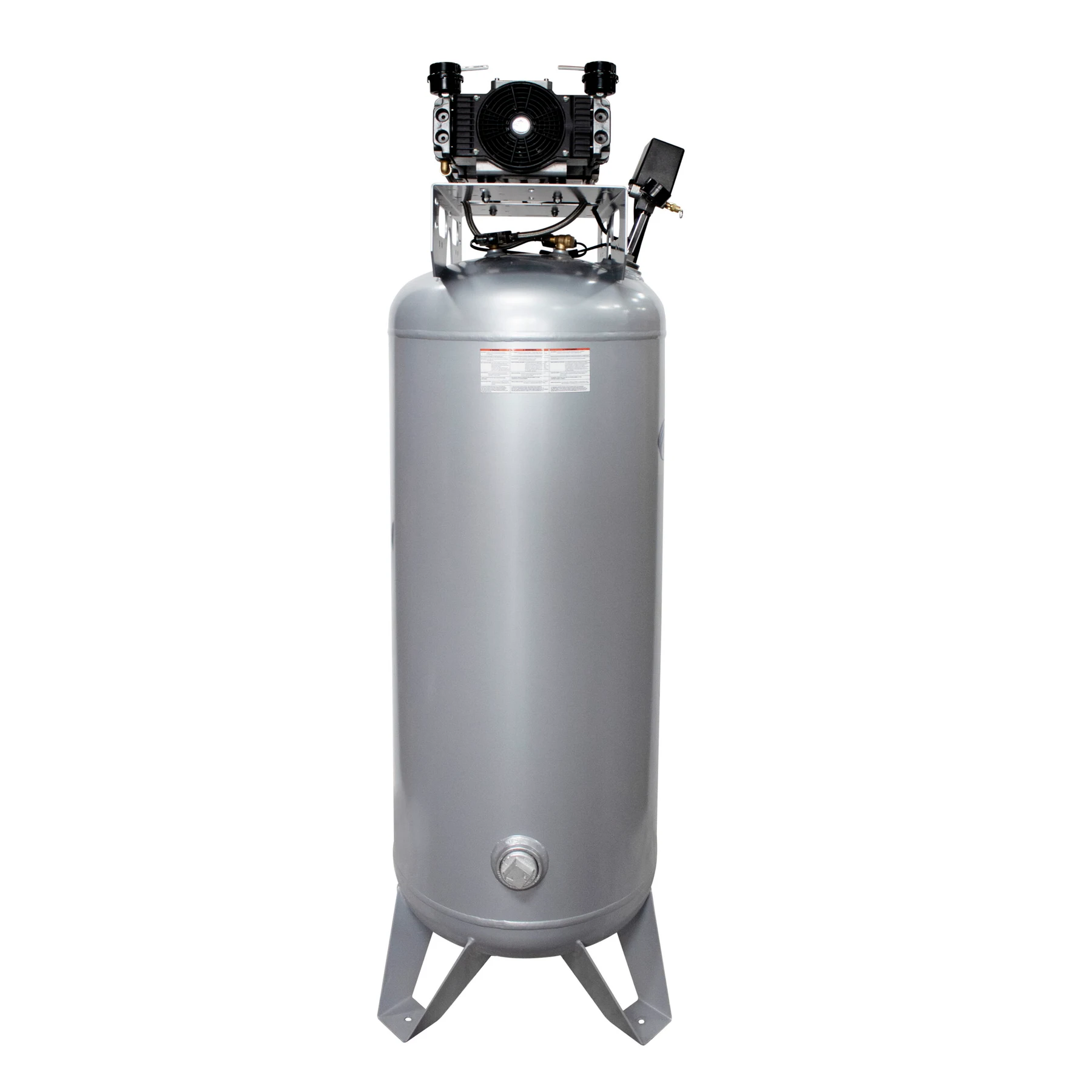

The large 60 Gallon ASME certified Steel Air Tank is just the right size for shop or garage.
Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!
Features:
* Ultra Quiet – 85 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* One tank pressure gauge

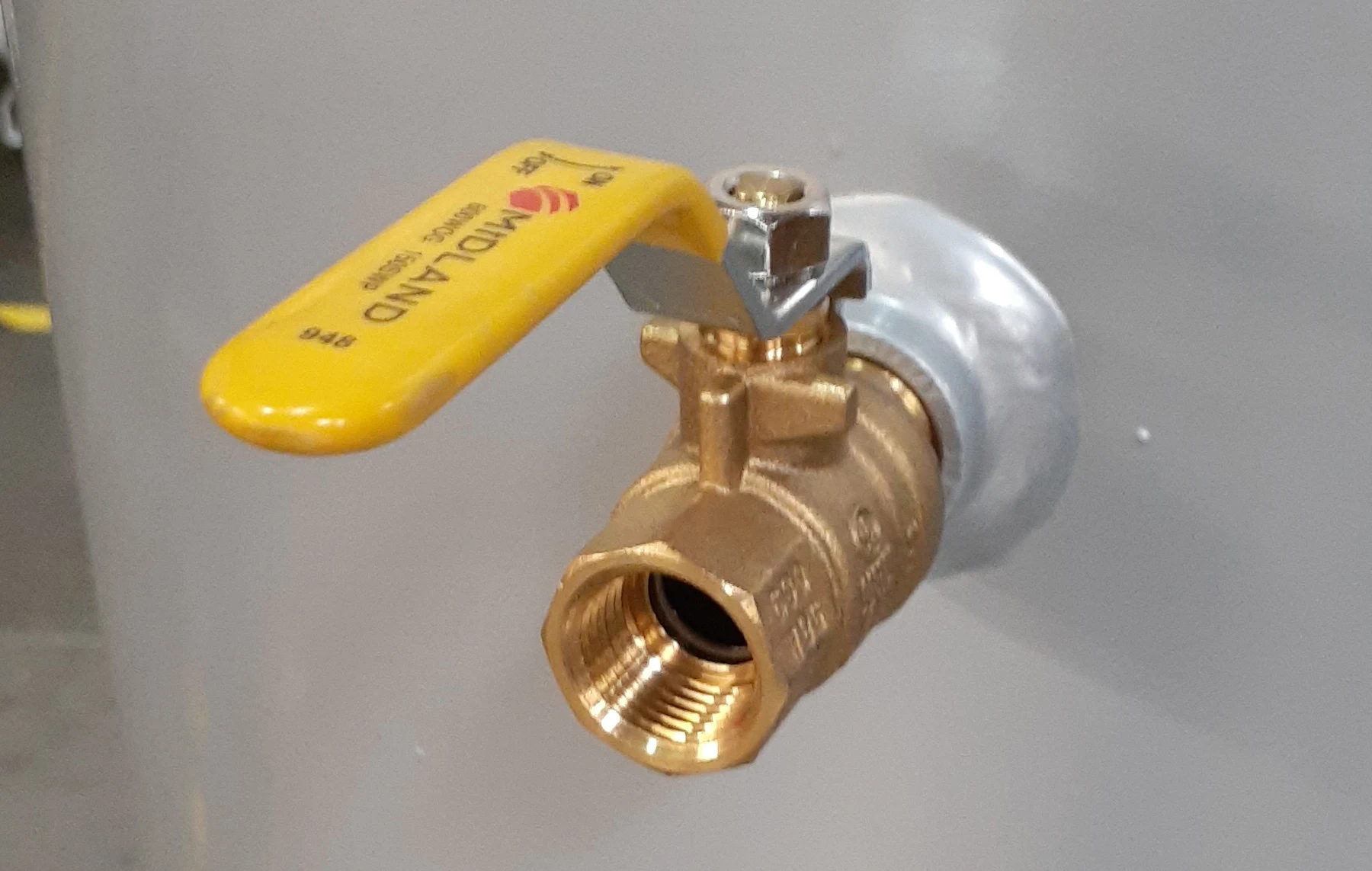

* 1/2″ NPT female port
No output pressure regulator, quick connector or air hose included**

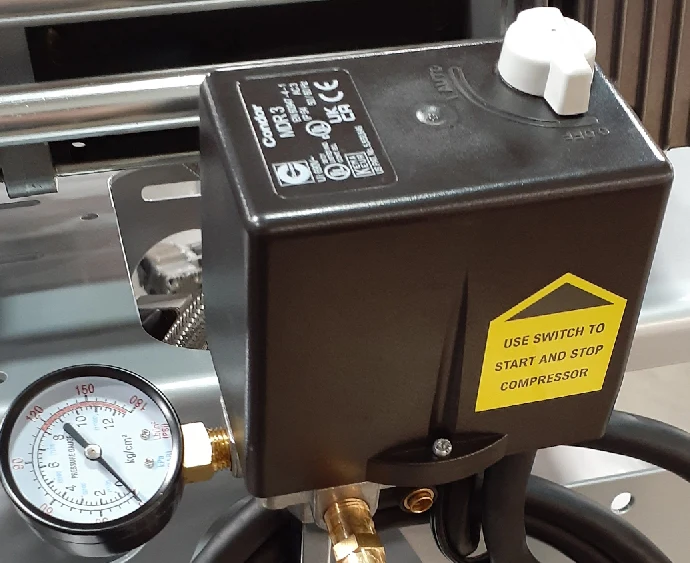

* Pressure Switch
* Thermal Overload Protector
* 120 PSI Maximum Pressure***
* 208-230 Volt / 60 Hertz / 3-Phase (acceptable voltage range 200VAC to 250VAC)
* Amp Draw – 15 Amps
* 20 Amp Breaker suggested
* Time to fill tank from empty to full – 191 Seconds
* Recovery time from 92 PSI to 120 PSI – 35 Seconds
* Less heat which dissipates more efficiently

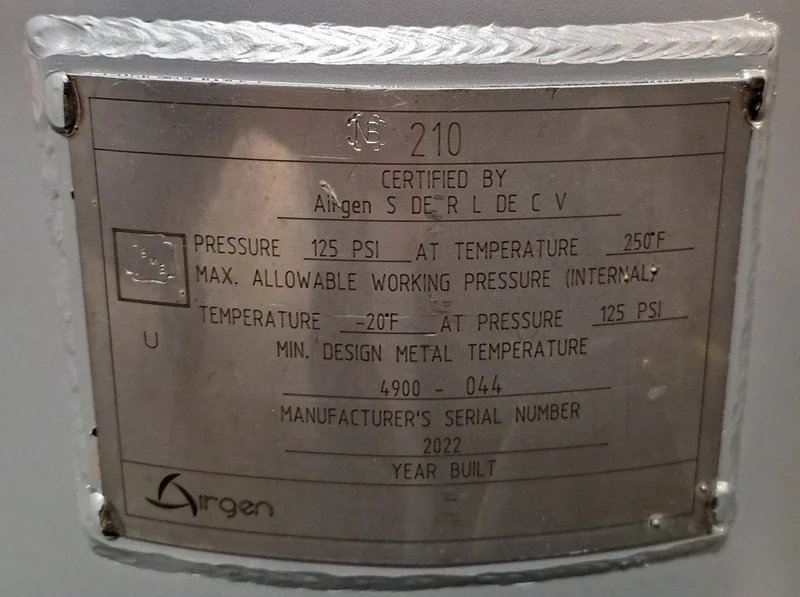

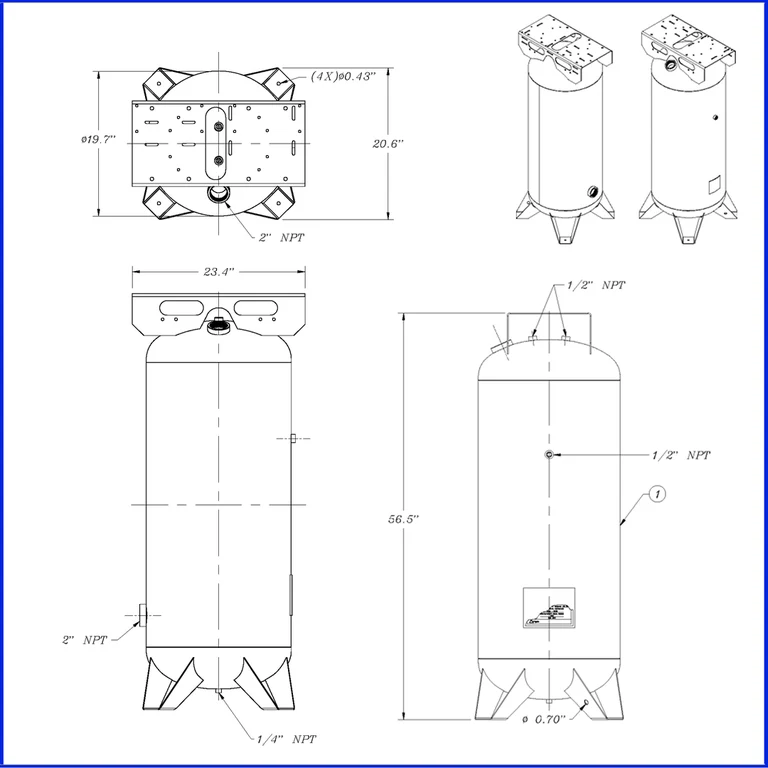

* 60 Gallon ASME Certified Steel 155 PSI Air Tank

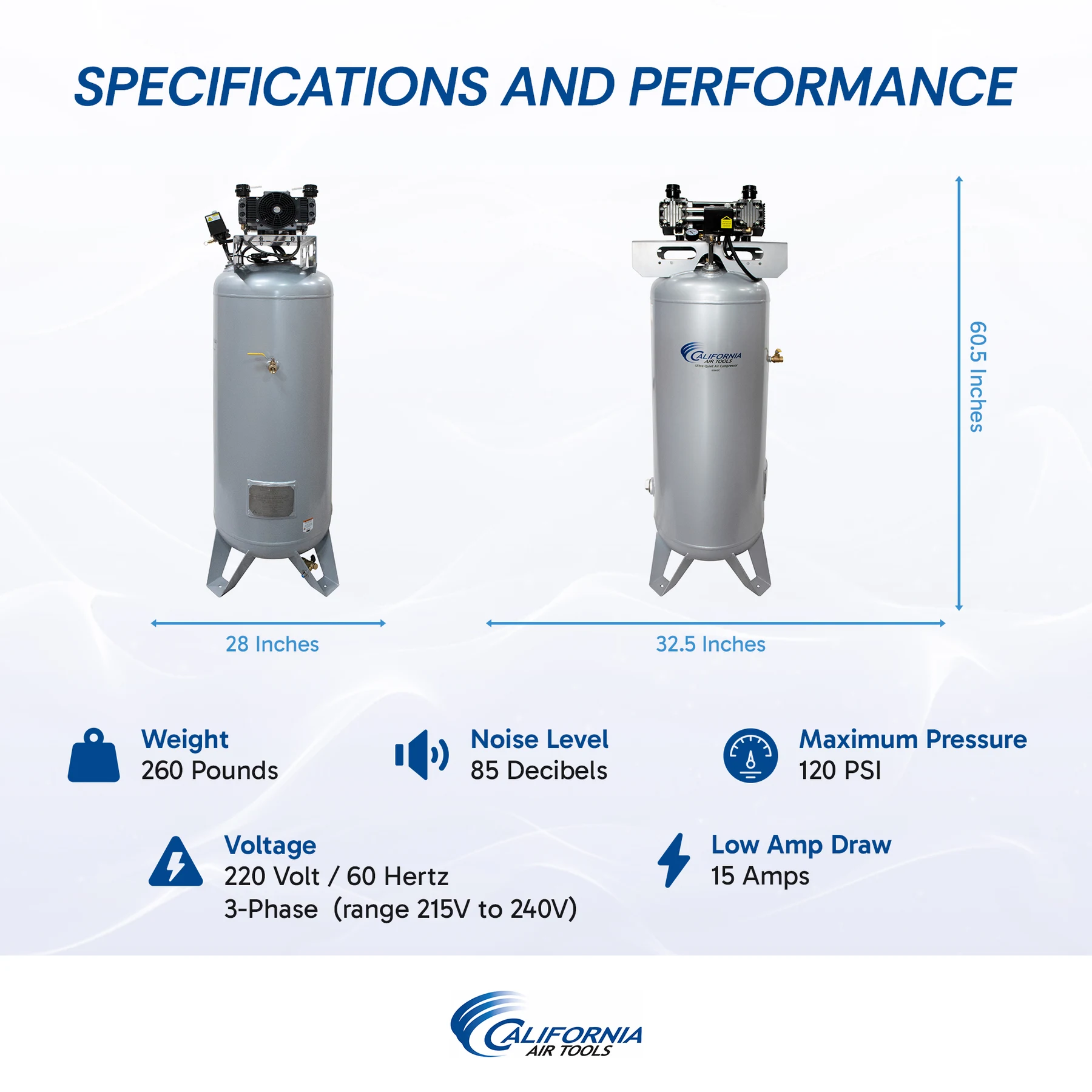

* L (32.5″) x W (28″) x H (60.5″)
* 260 lbs
* Manual Drain Valve with Strainer cleanout

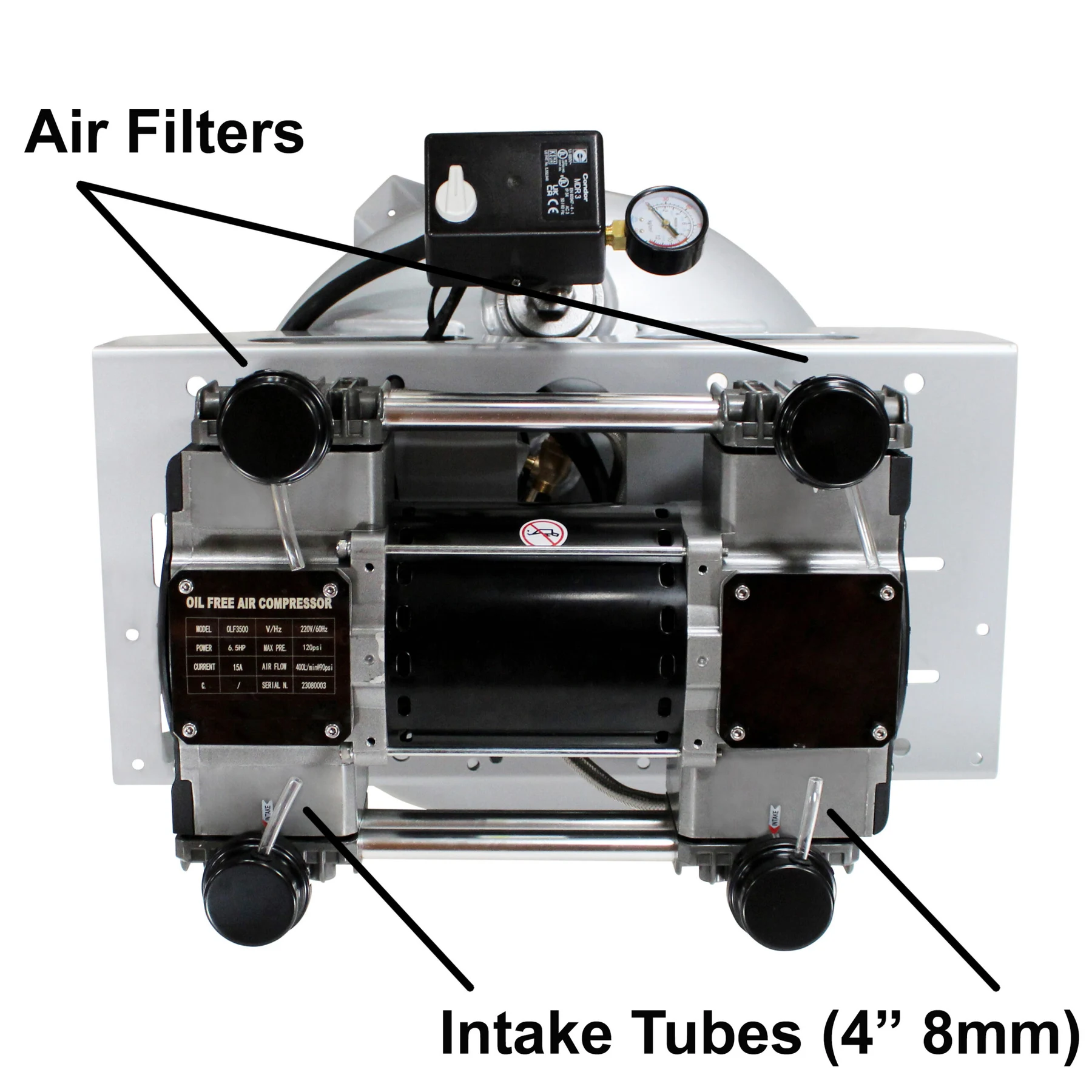

* Comes complete with (4) Air Filters

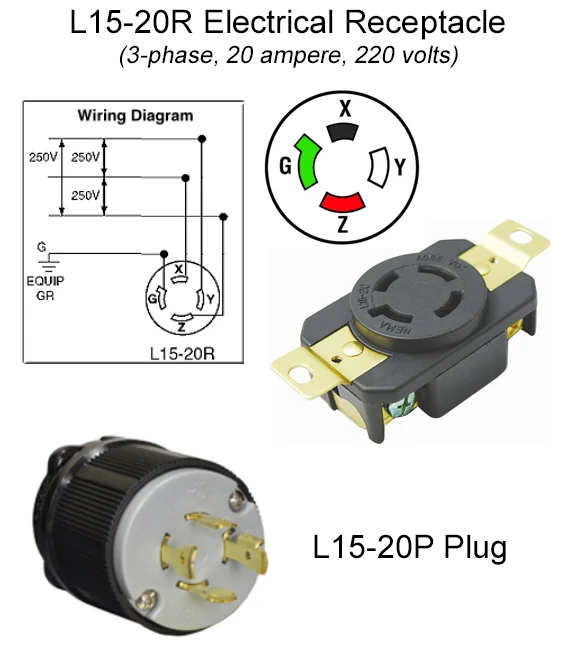

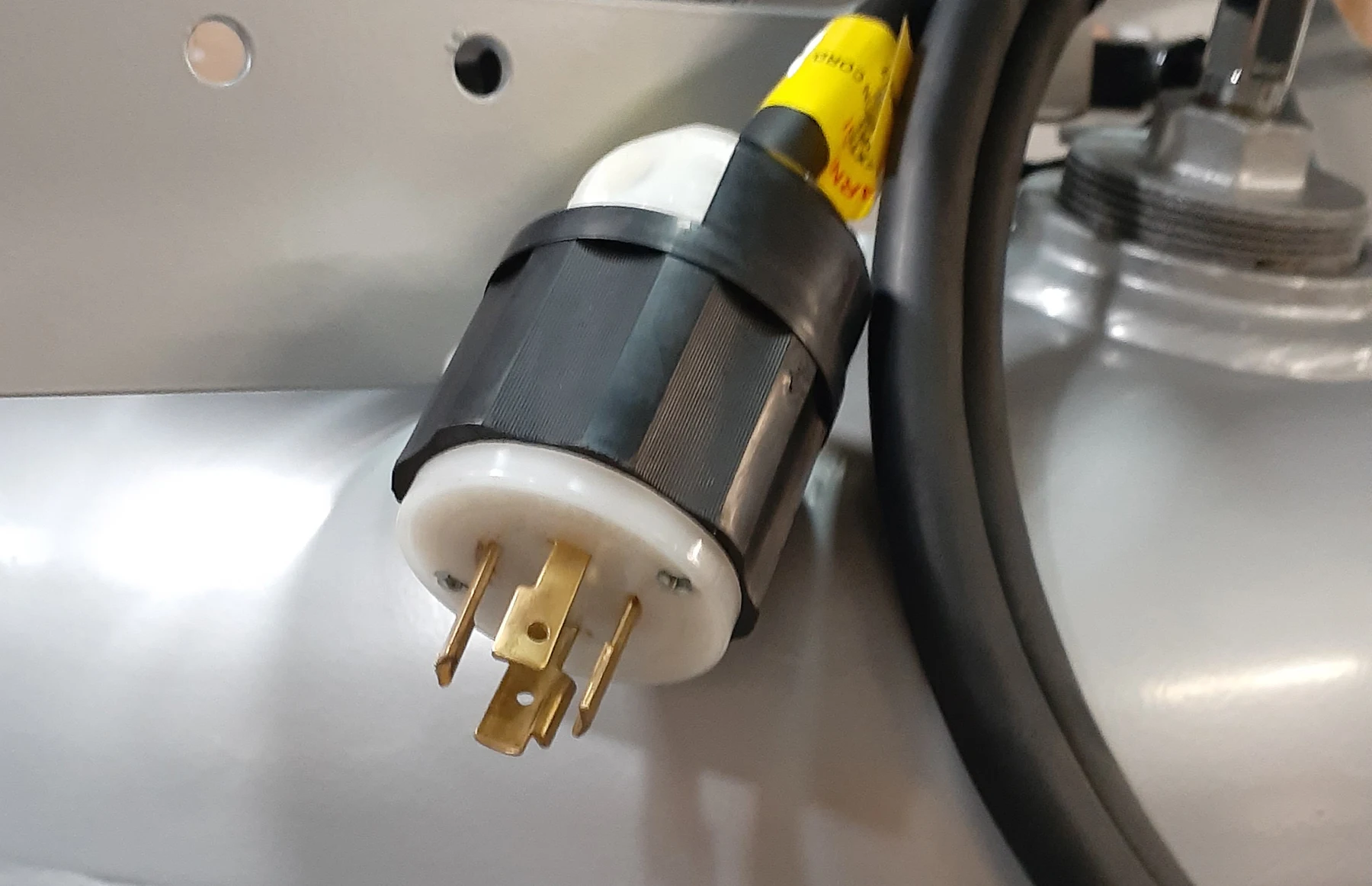

* Plug Type: Nema L15-20P (connect to L15-20R receptacle)
* Cord Length: 7ft
* 70/30 Duty Cycle Rating****
* Commercial Use: Refer to State & City Codes
* 1 Year Limited Warranty
* Assembled in Mexico & USA with Global Components
NOTE: Output Air Pressure Regulator is NOT included**
**OPTIONAL HARDWARE:
1. Pressure Regulator NOT included – two available options:
A. 120 PSI Pressure Regulator Assembly w/Gauge (1/4″ NPT Quick-Connect Output) available separately for purchase: (click here)
B. 125 PSI Pressure Regulator (1/2″ NPT Output) with Micro Mist separator available separately for purchase: (click here)
and Big Pressure Gauge 2.0″ Diameter, Center Back Mount 1/4″ NPT 0-180 PSI, P/N 96006 (click here)

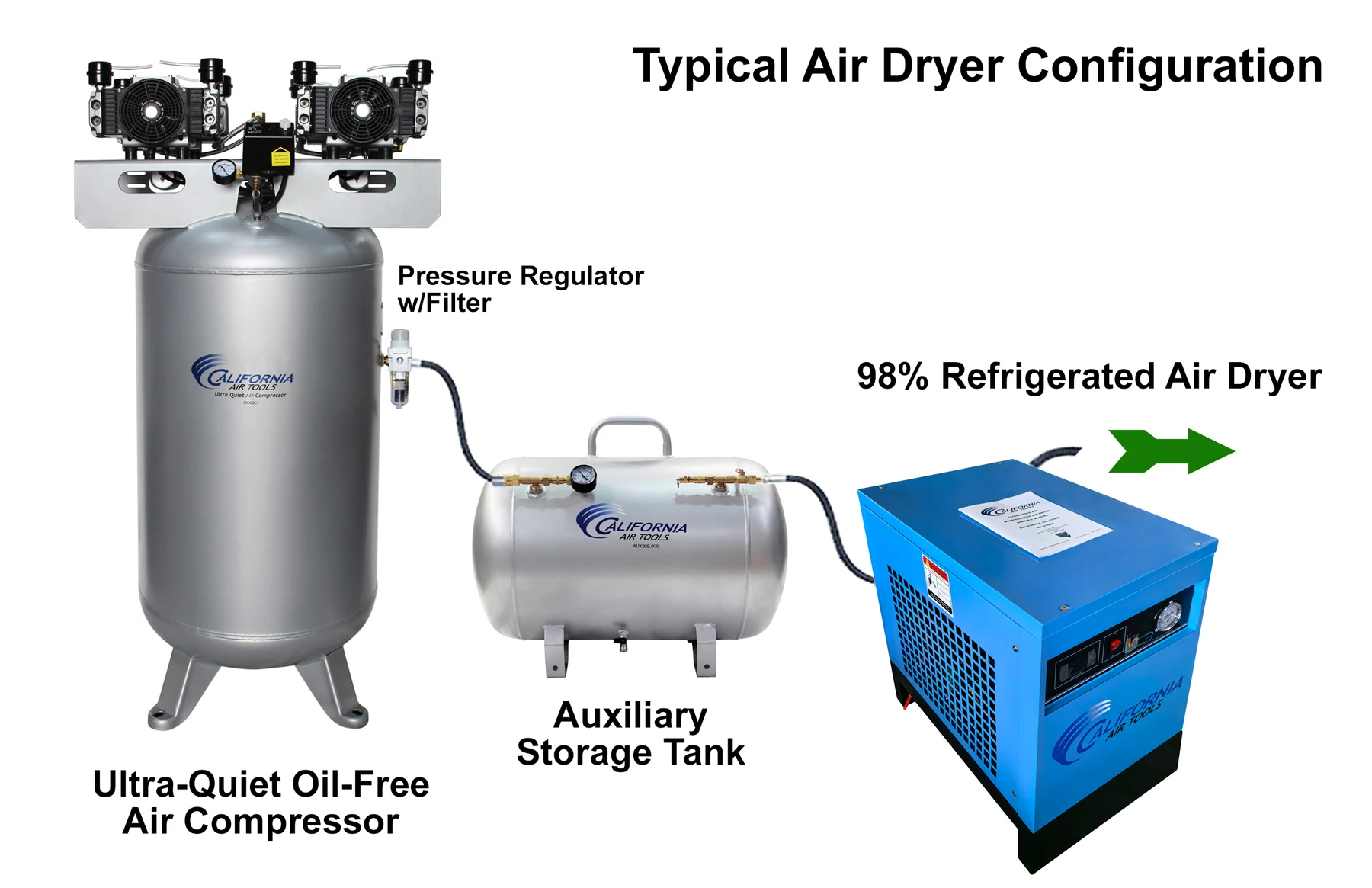

2. Optional Refrigerated 98% Air Dryer, RD-91503, 220v 60hz (CLICK HERE)
3. Automatic Drain Valve — EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz) (click here to purchase)
Auto Drain Connectivity (Instructions)
4. Replacement Piston Seal 4-Pack – replace every 2000 operating hours. (click here to purchase)
Add-On Options:
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4 NPT
***Regulated Output Pressure may not be adjusted any higher than the default (factory set) regulated output pressure level (i.e. 90 PSI)
NOTE: To efficiently operate (1) each Dental Milling Machine continuously a 2.0, 4.0 or 6.0 Hp model is typically required, depending on operating CFM (L/MIN) and average run time.
California Air Tools 60065C Owners Manual
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
*70/30 Duty Cycle – Click Here For More Information
