1.0 HP (Rated/Running) – 2.0 HP (Peak)
8.0 Gallon Steel Air Tank
3.10 CFM @ 40 PSI
2.20 CFM @ 90 PSI
60 dB Noise Level
110v 60hz

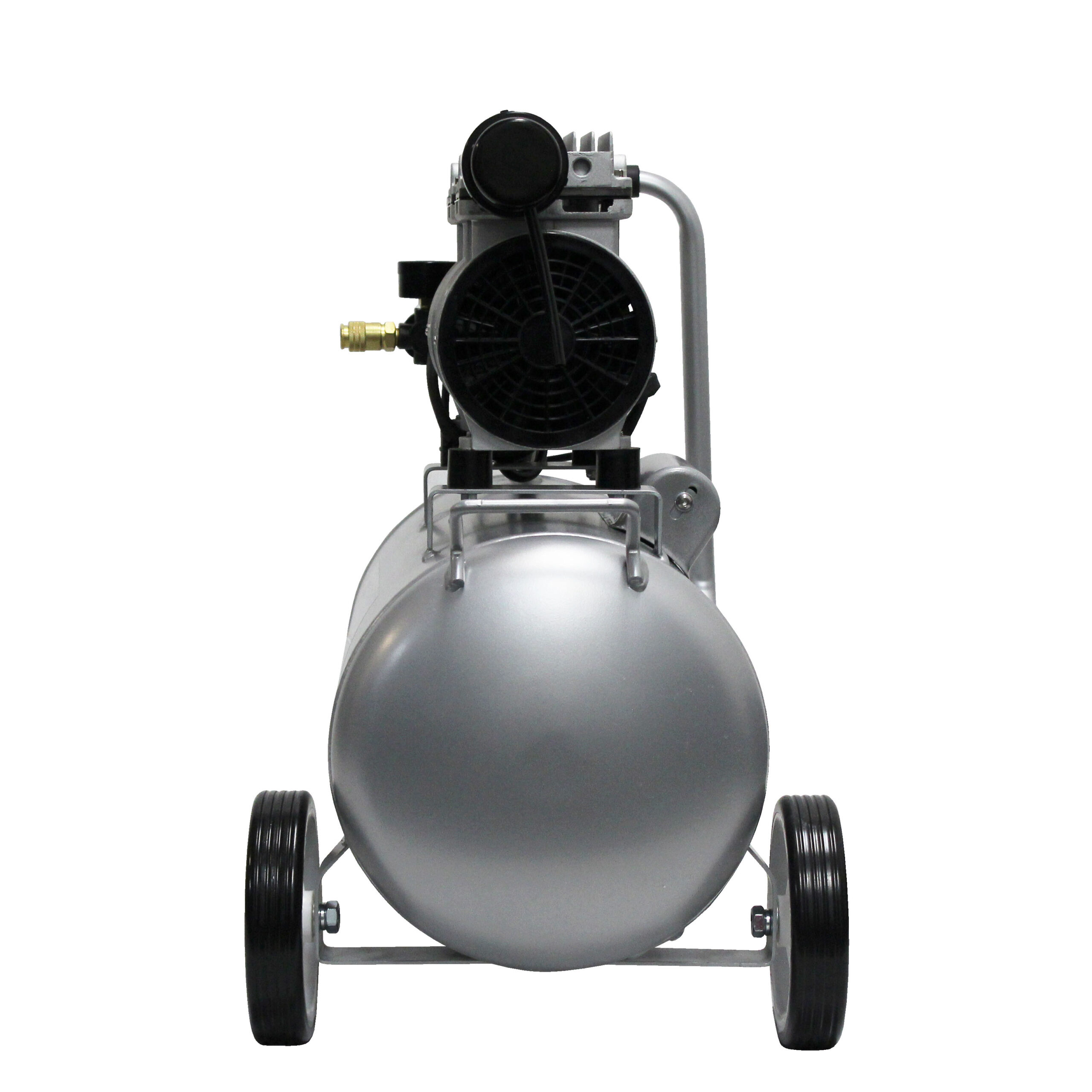

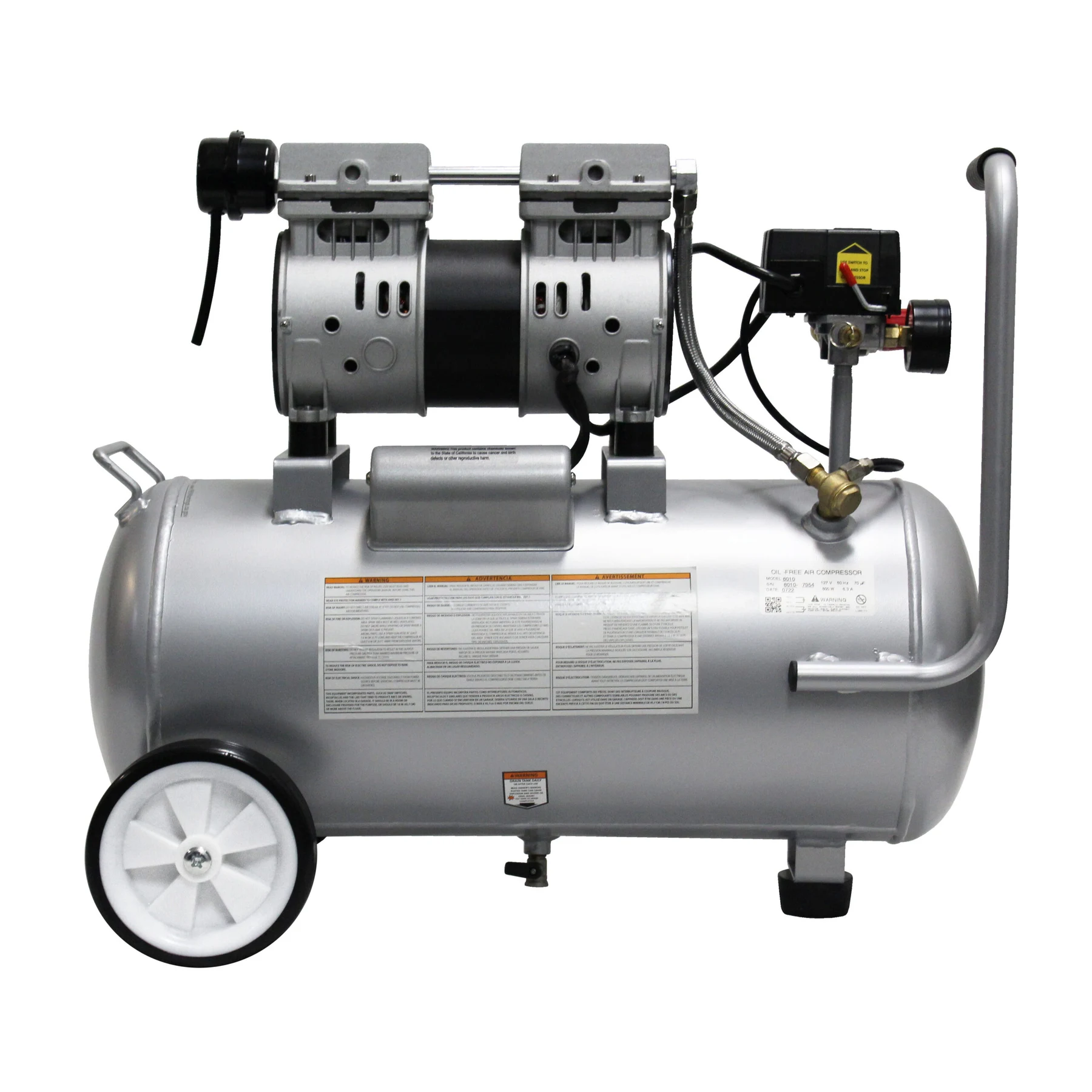

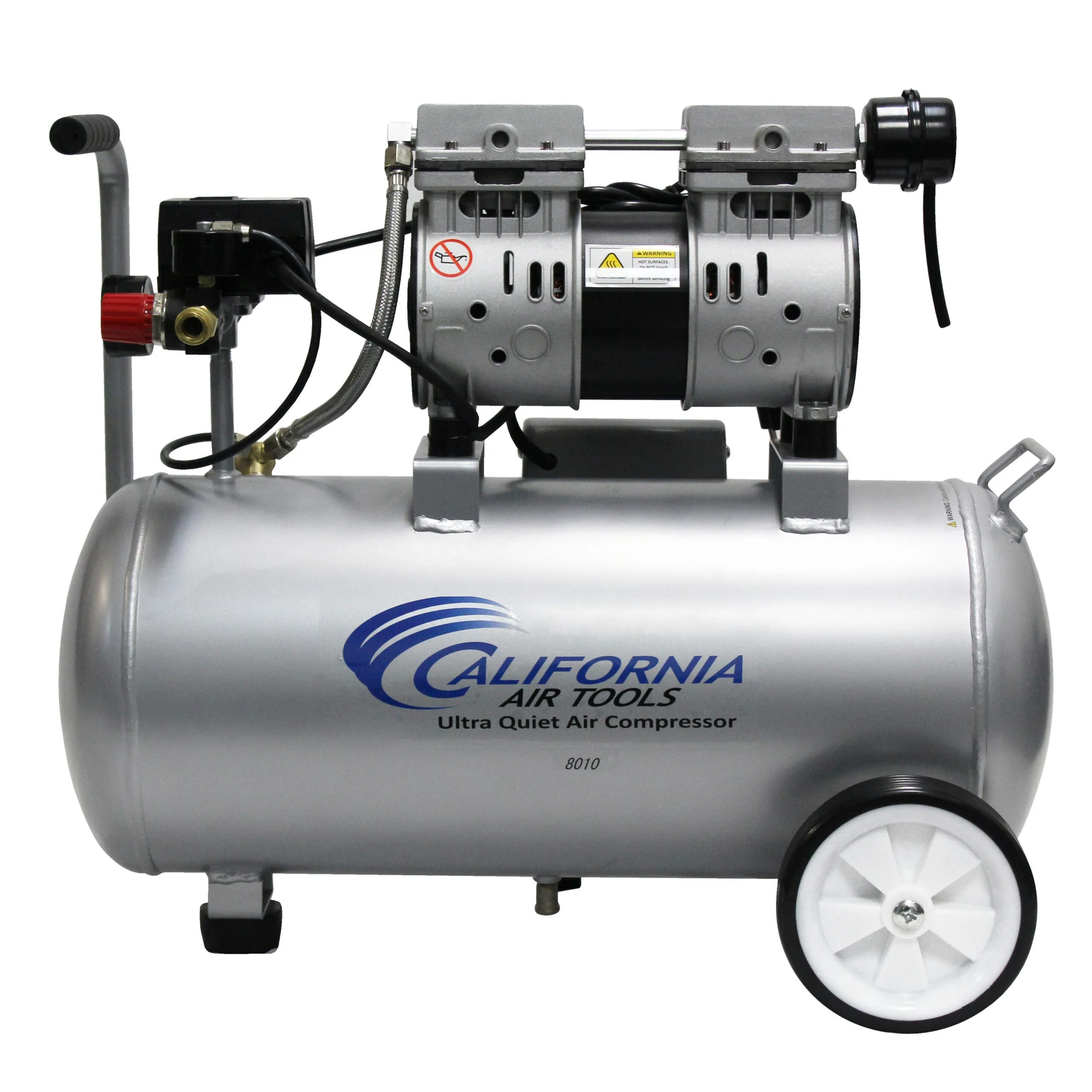

The CALIFORNIA AIR TOOLS 8010 Ultra Quiet & Oil-Free 8 Gallon Air Compressor is designed to be one of the quietest air compressors in the industry having only 60 decibels of sound.
The powerful 1.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-8010 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures and uneven terrains.
The large 8.0 Gallon Steel Air Tank is Lightweight (48 lbs) and the wheel kit makes it very easy to transport.
This air compressor is ideal for anyone working inside where noise is a major issue.

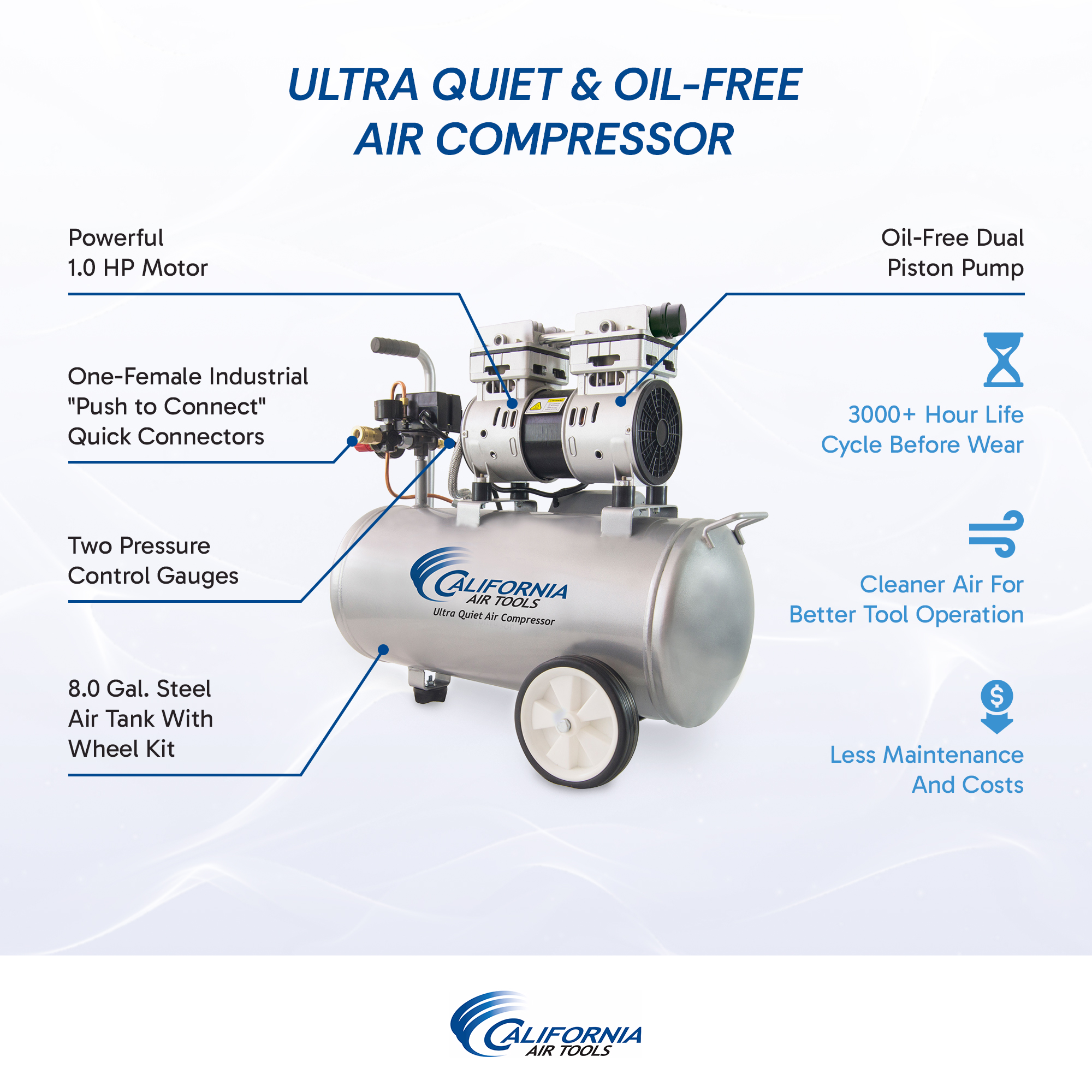

Features:

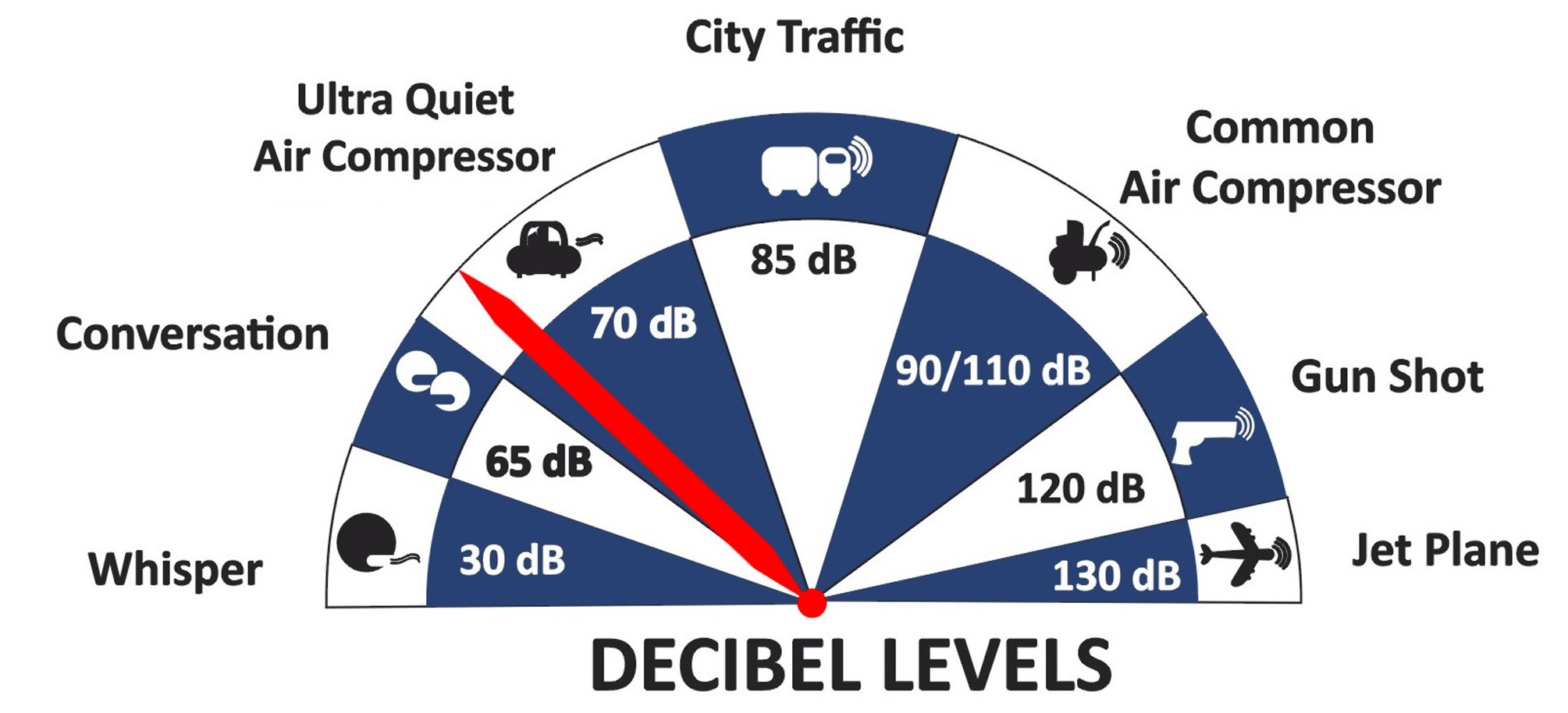

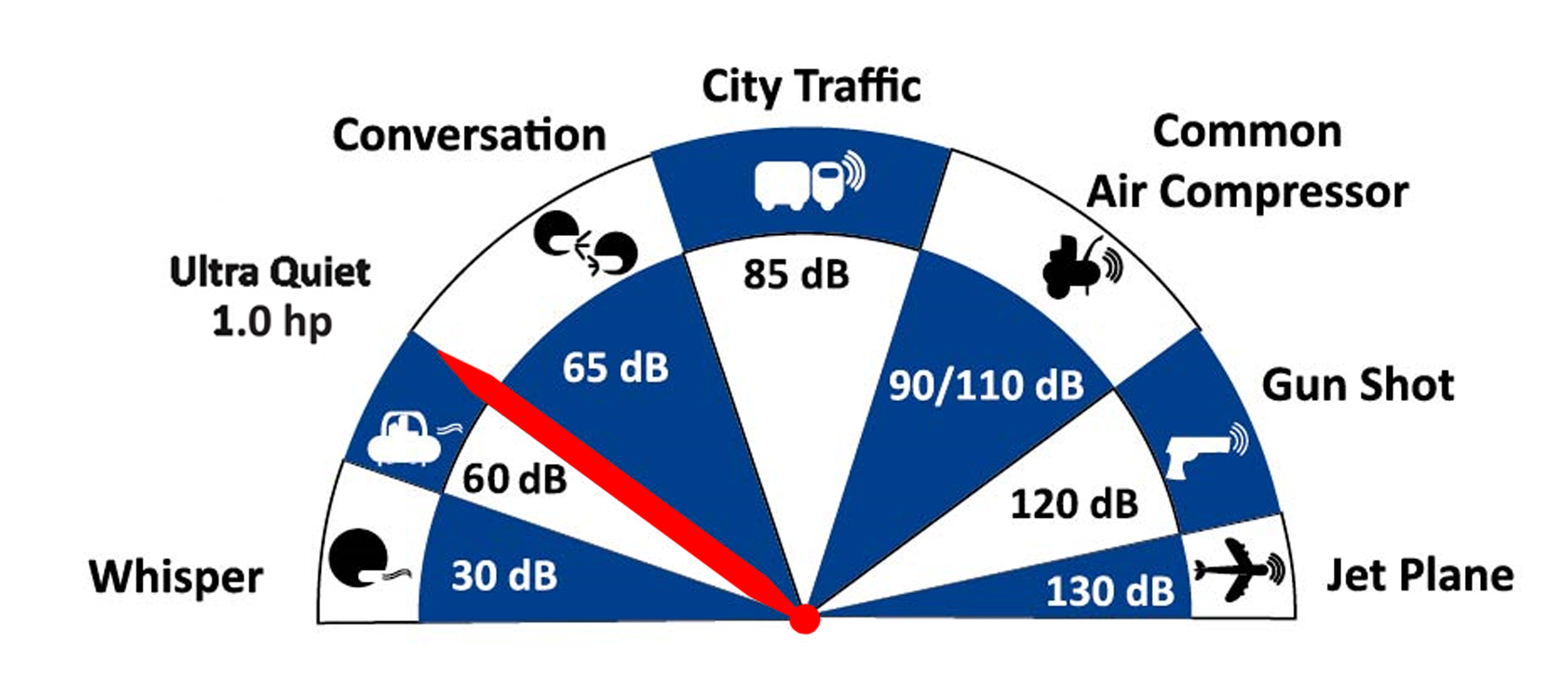

* Ultra Quiet – Only 60 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* One- Female industrial “Push to Connect” quick connectors
* Thermal Overload Protector
* 120 PSI Maximum Pressure
* 110v / 60 hz – Generator 2500 (running) Watts Min.
* Low Amp Draw – 8.5 Amps
* Time to fill tank from empty to full – 165 Seconds
* Recovery time from 90 PSI to 120 PSI – 60 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 8.0 Gal. Steel Air Tank With Wheel Kit

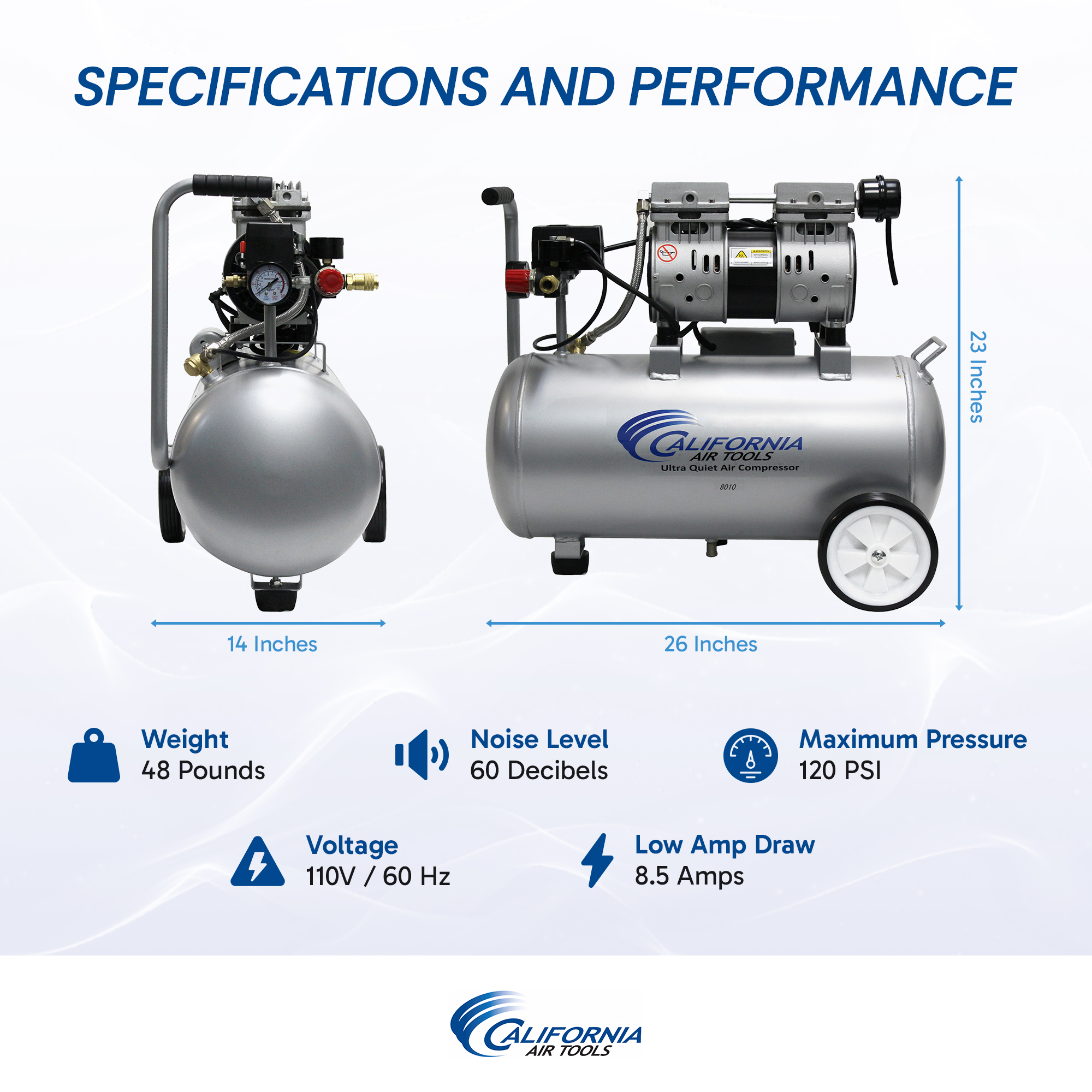

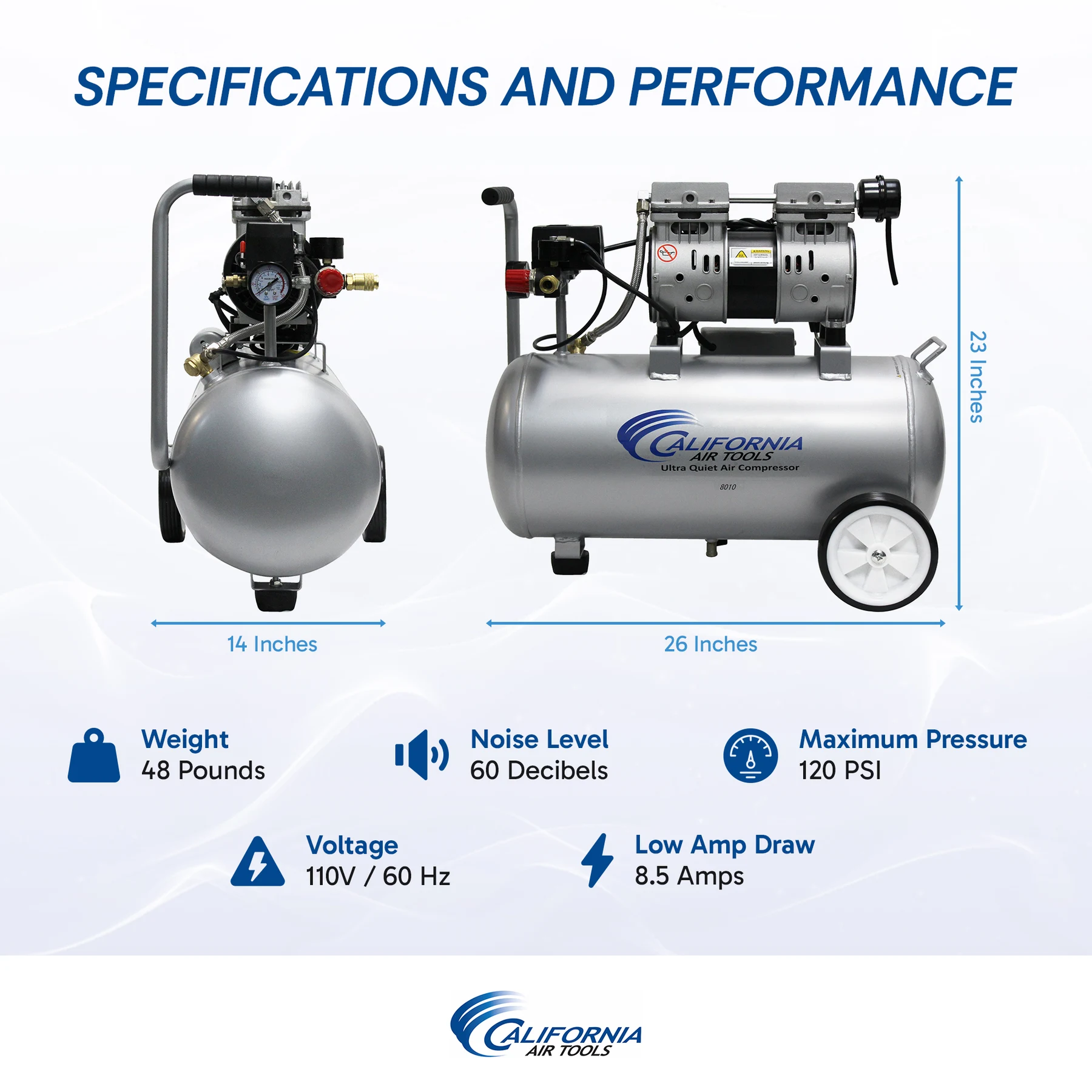

* L (26″) x W/D (14″) x H (23″)
* 48 lbs – easy to move around!
* UL/CSA Certified
* 1 Year Limited Warranty
* Comes complete with Wheel Kit & Air Filter
* Commercial Use: Refer to State & City Codes
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 1 Hp air filter (attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90227
Add-On Options:
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
EZ2321ADS Automatic Drain Valve Short Extension Kit (110v 60 hz)
Auto Drain Connectivity (Instructions)
California Air Tools 8010 Owner’s Manual 12-22
California Air Tools 8010 Product Data Sheet
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
*70/30 Duty Cycle – Click Here For More Information
