Oil-Free
High Pressure
165 – 195 PSI
Maximum Pressure 200 PSI
1.3 HP (Rated/Running)
20 Gallon Steel Tank
4.5 CFM @ 40 PSI
3.7 CFM @ 90 PSI
2.9 CFM @ 120 PSI

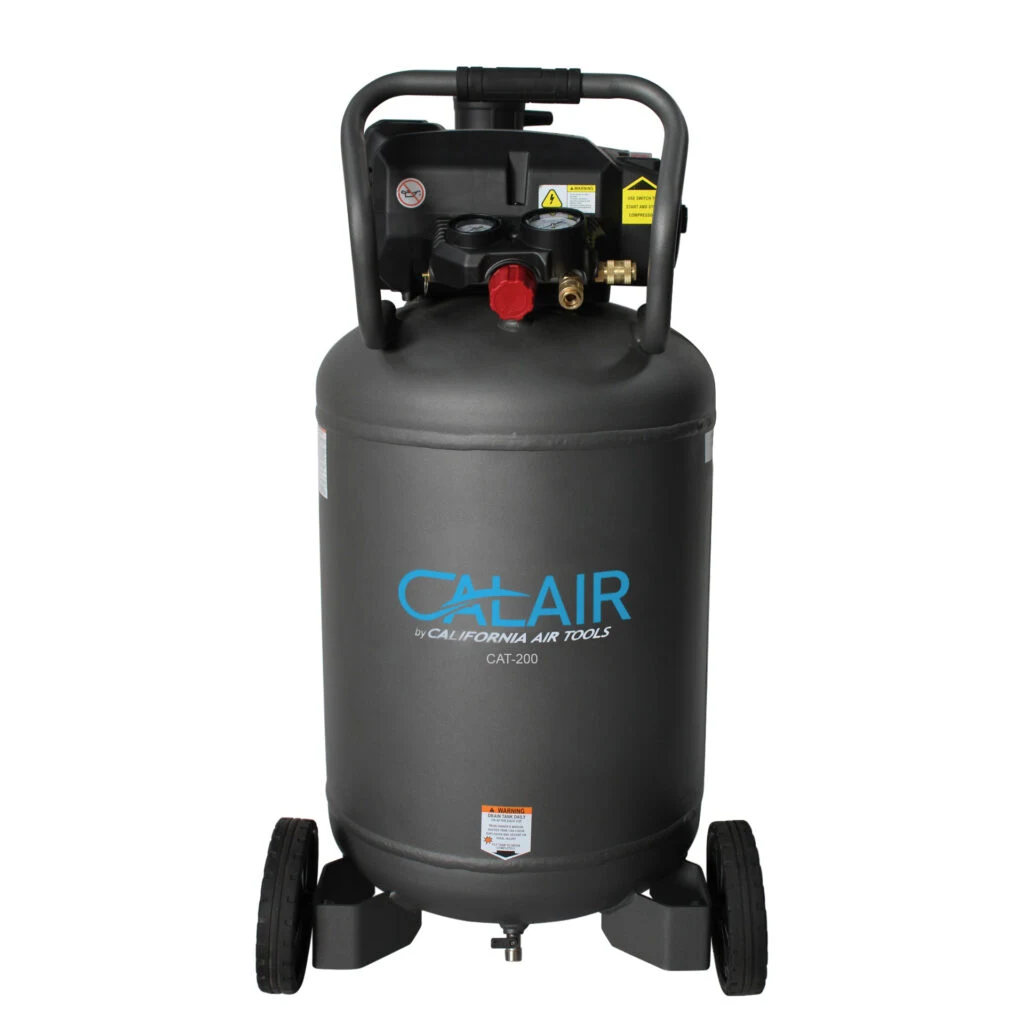

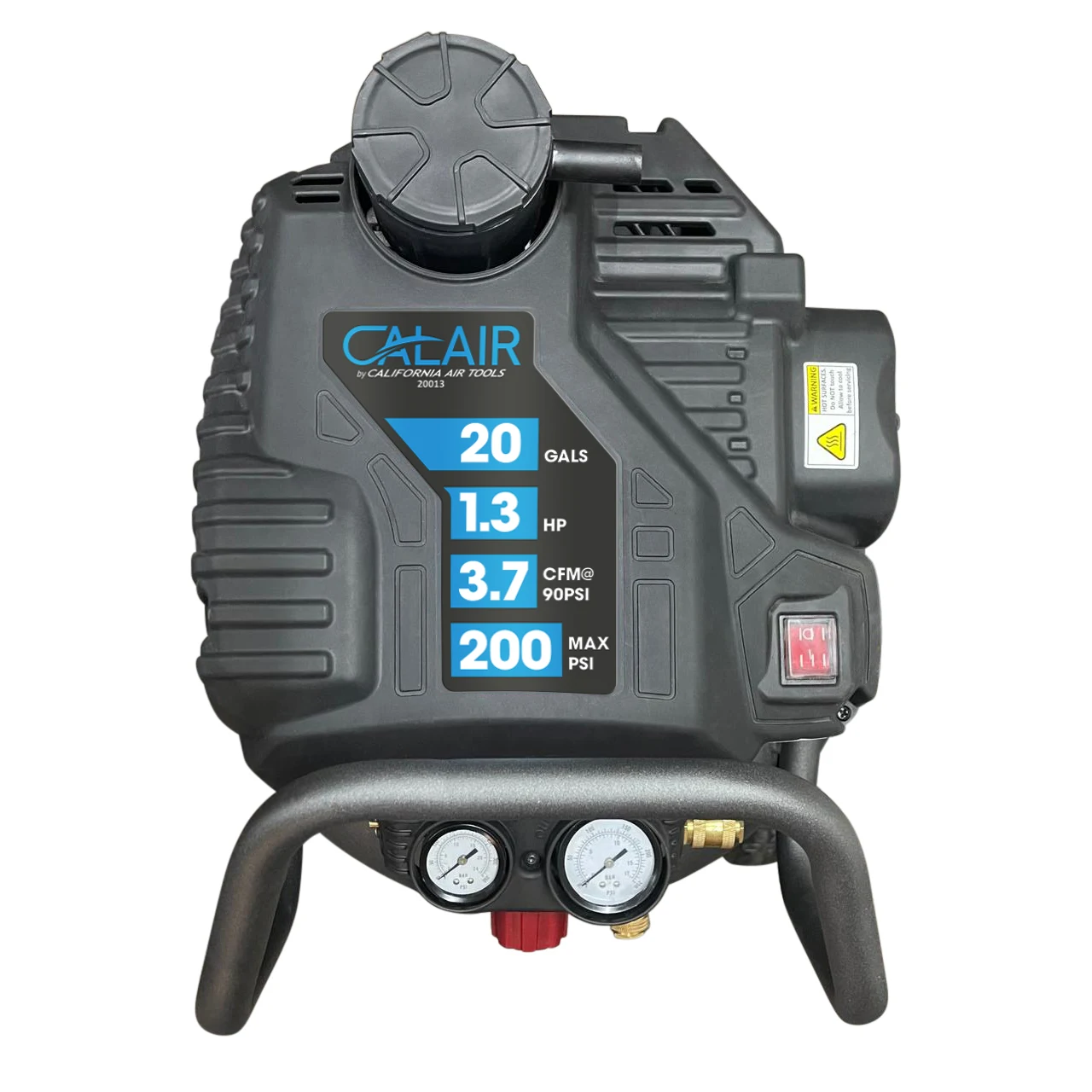

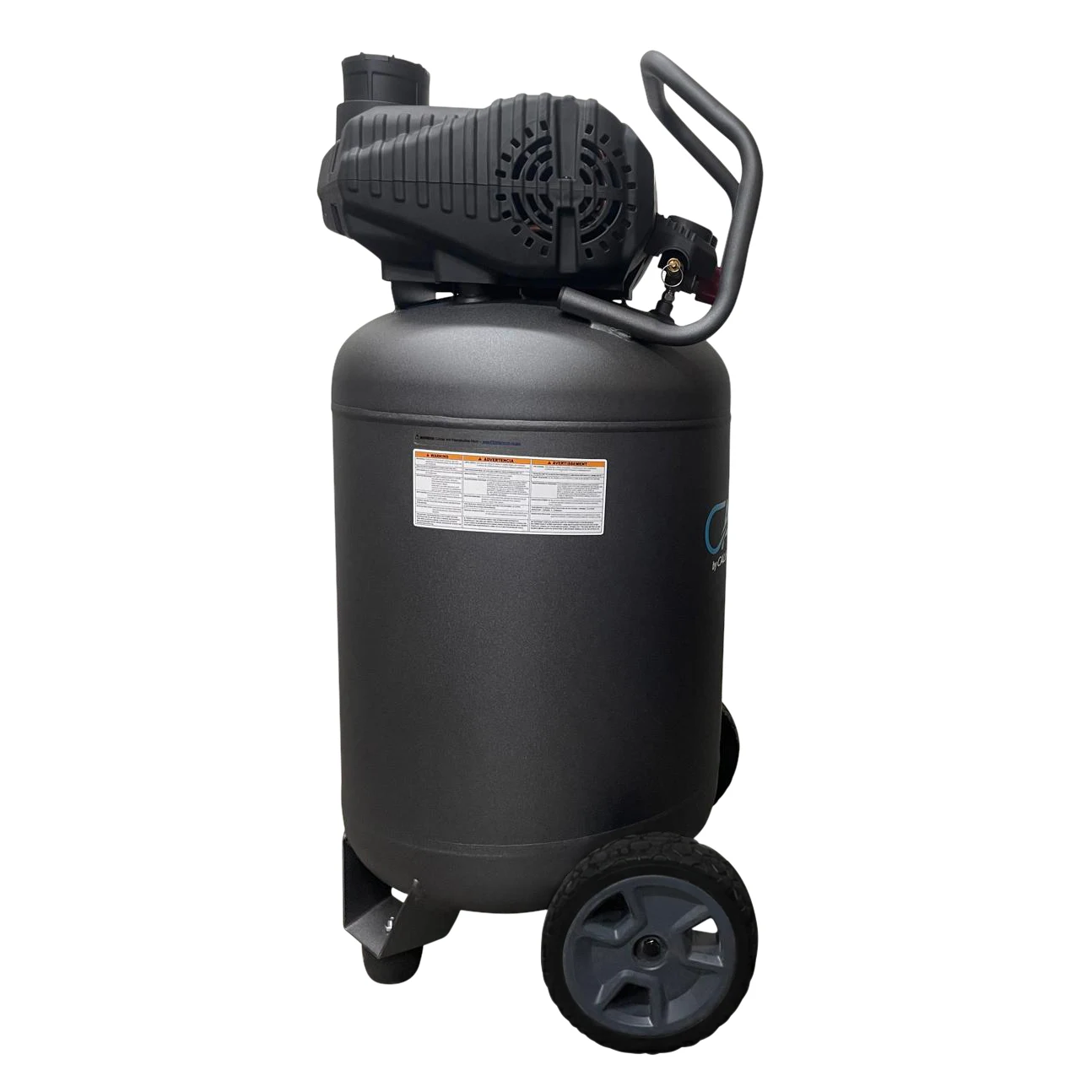

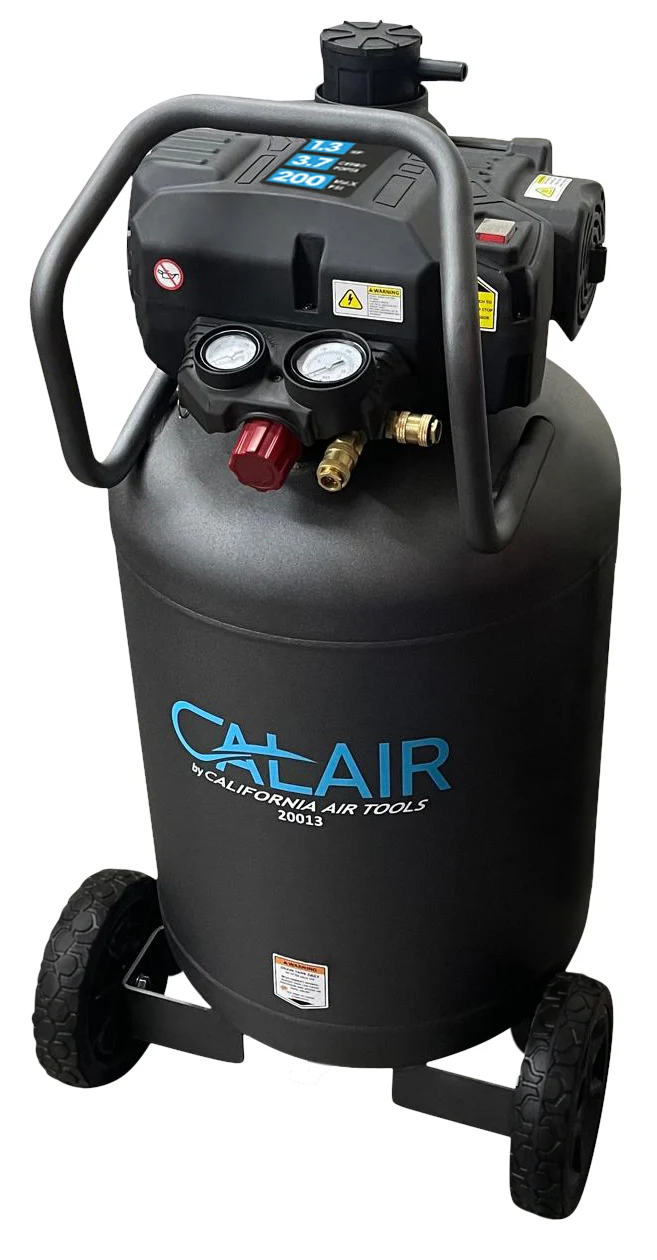

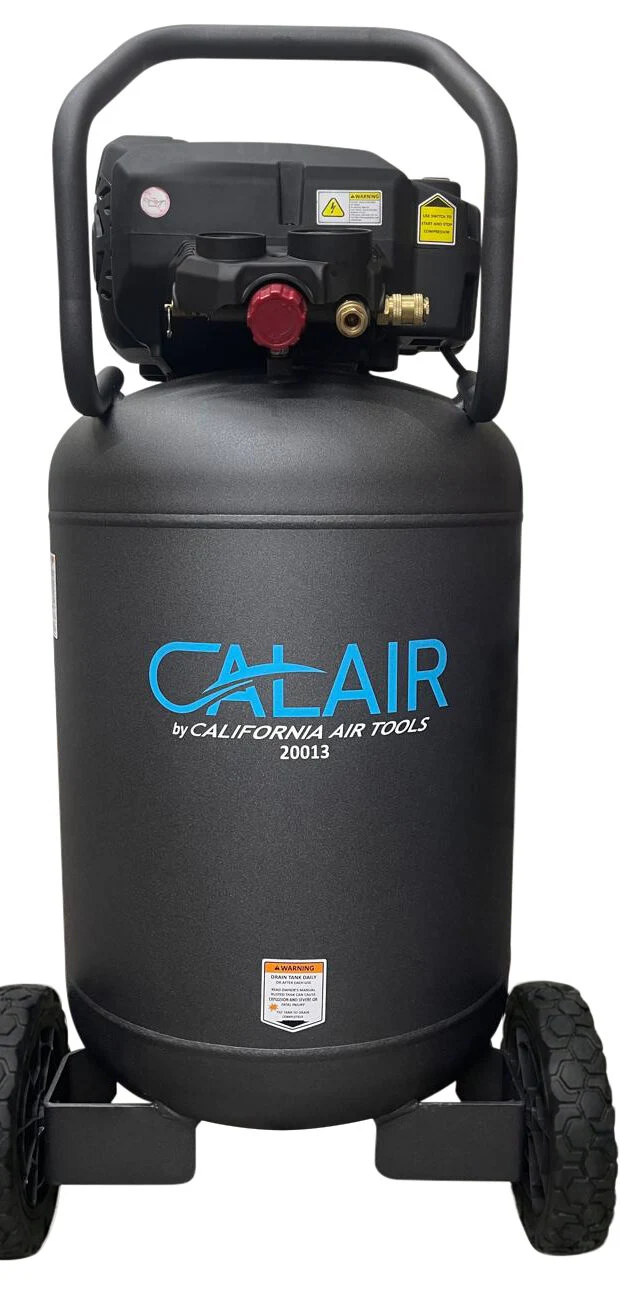

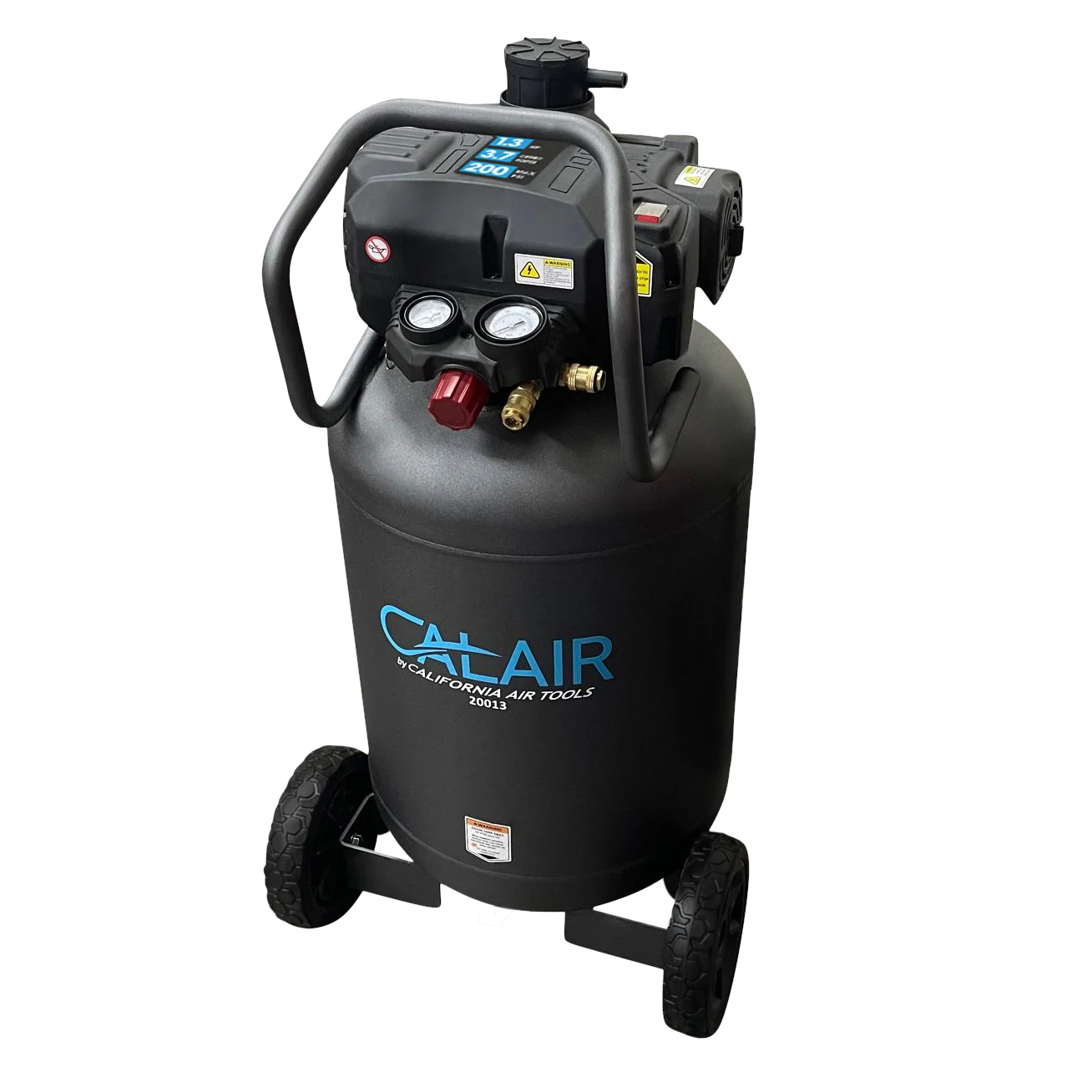

The CALIFORNIA AIR TOOLS CALAIR-20013 1.3 Hp, Oil-Free and High Pressure 20-Gallon Air Compressor is engineered for high performance and durability. Motor/pump is designed to have a life cycle before wear of 1000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

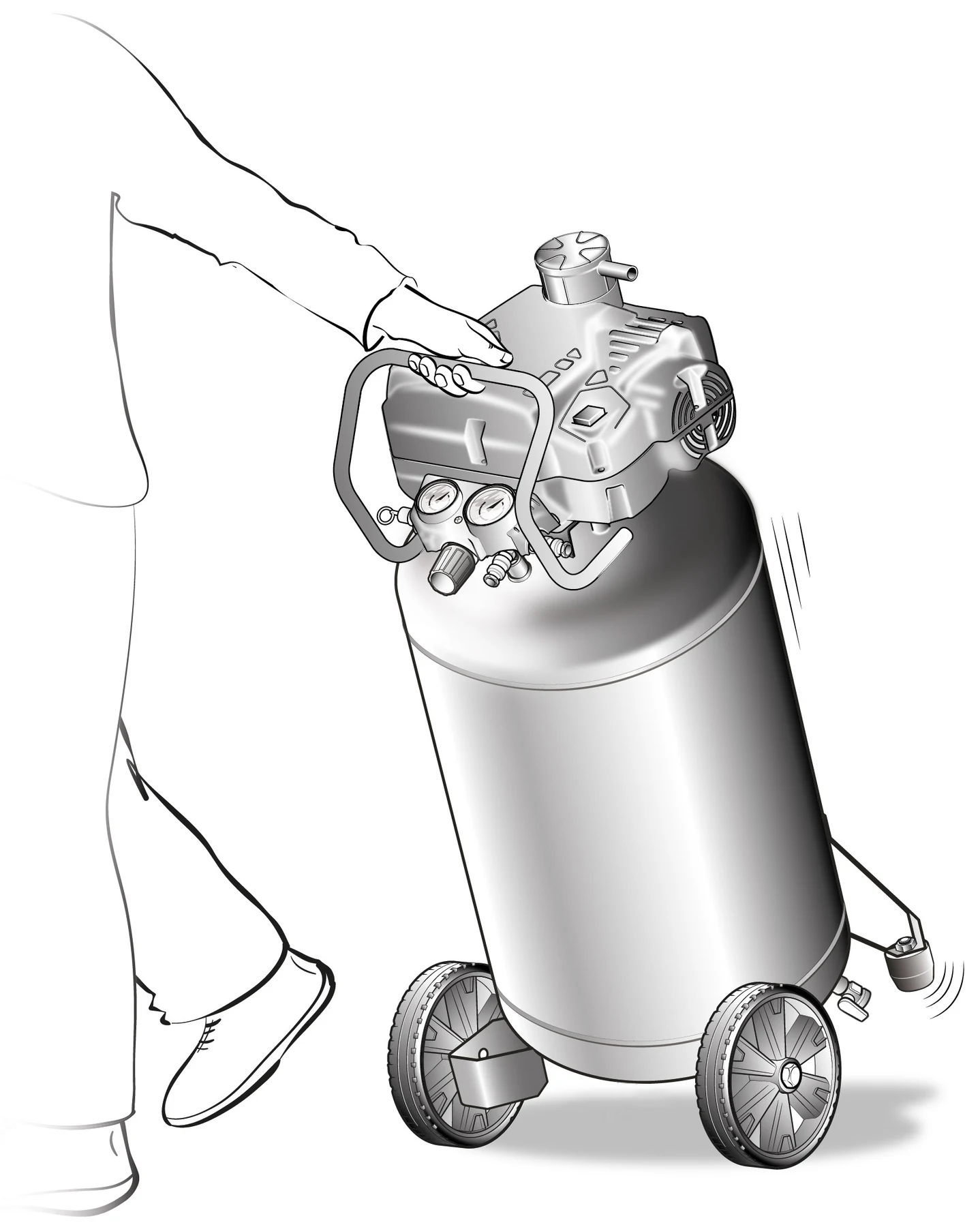

The large 20 Gallon Steel Air Tank with wheel kit makes it very easy to move around the jobsite, shop or garage.
Designed for the person needing a High Pressure air compressor to drive tooling (working pressure 165-195 PSI).

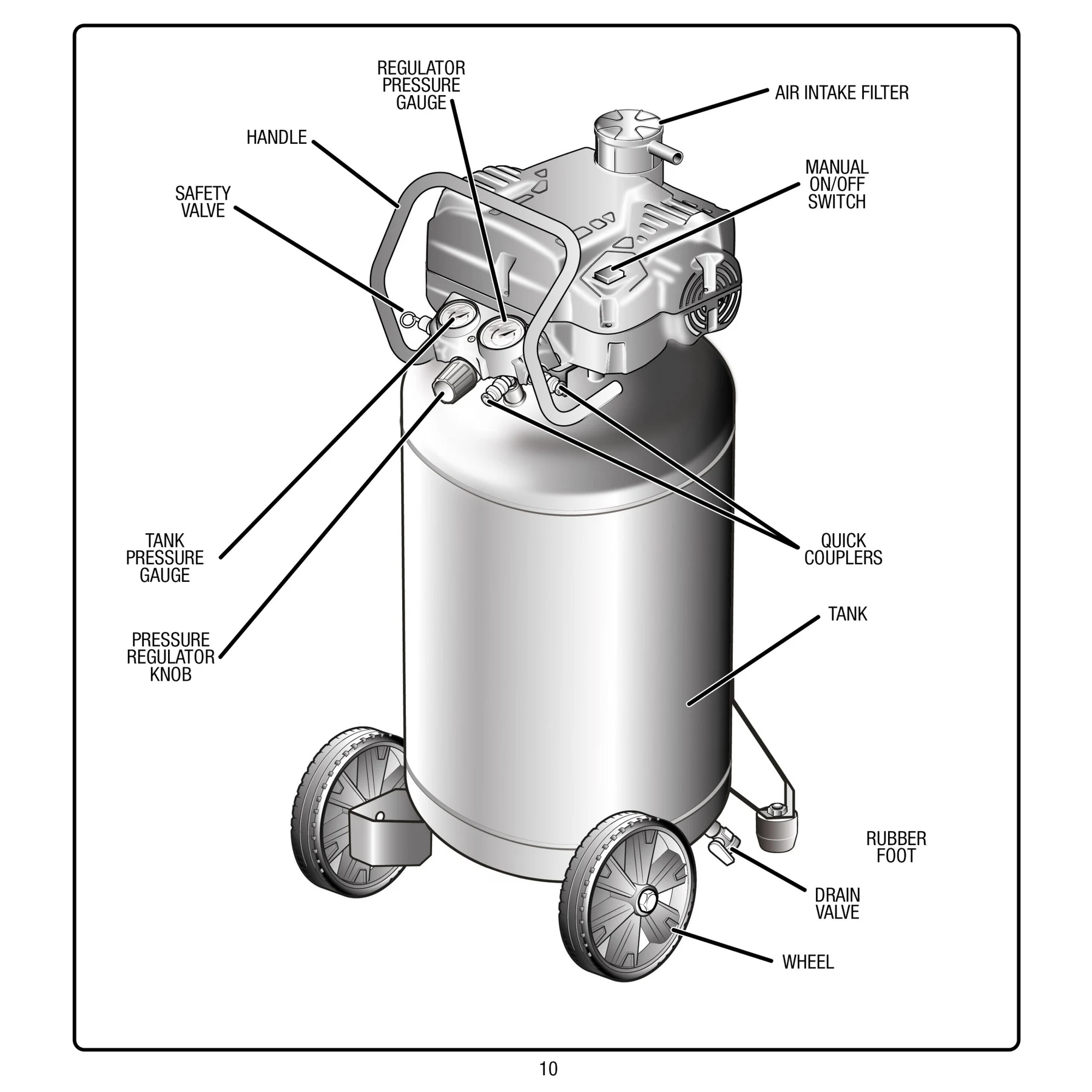

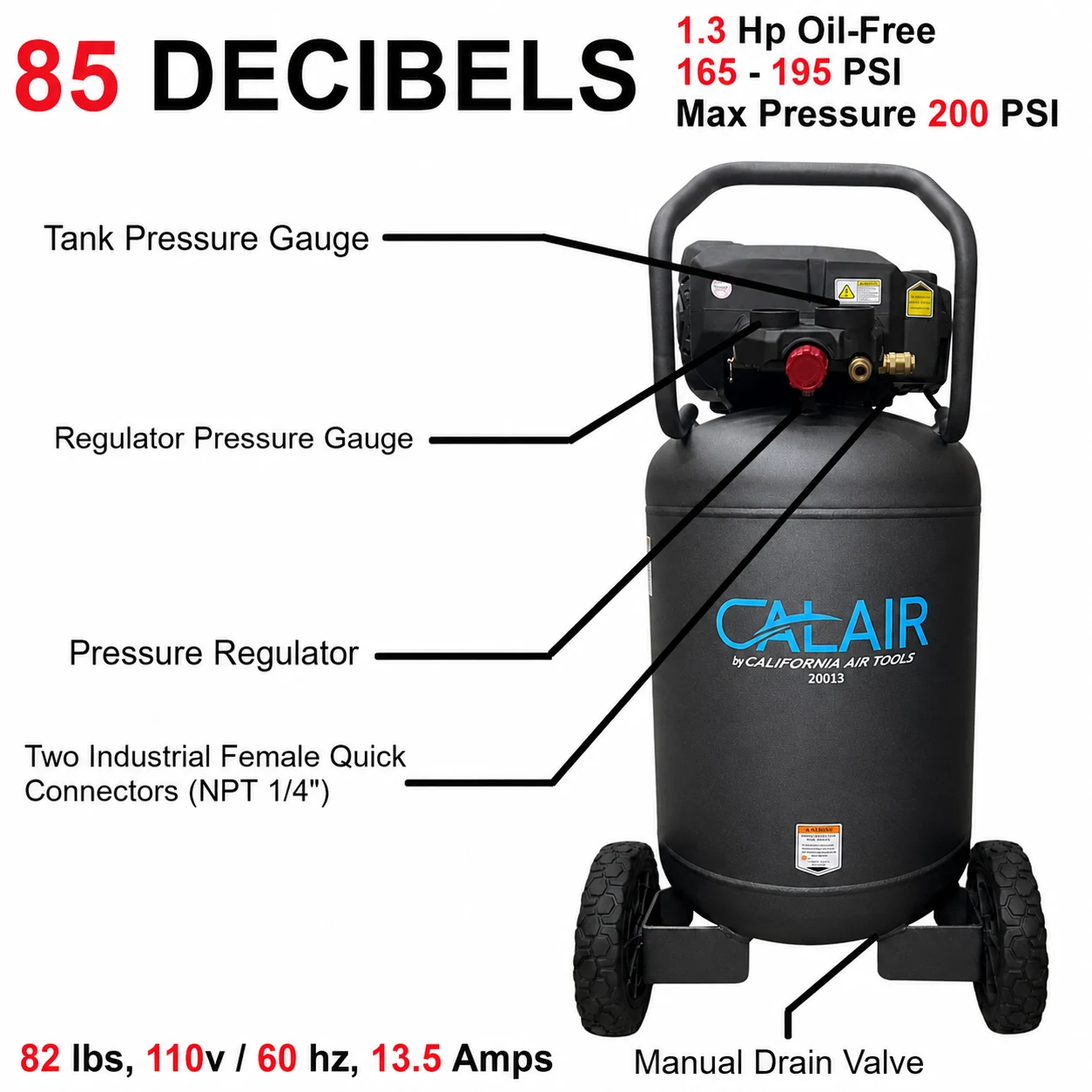

Features:
* Oil-Free Pump – Cleaner air for better tool operation.

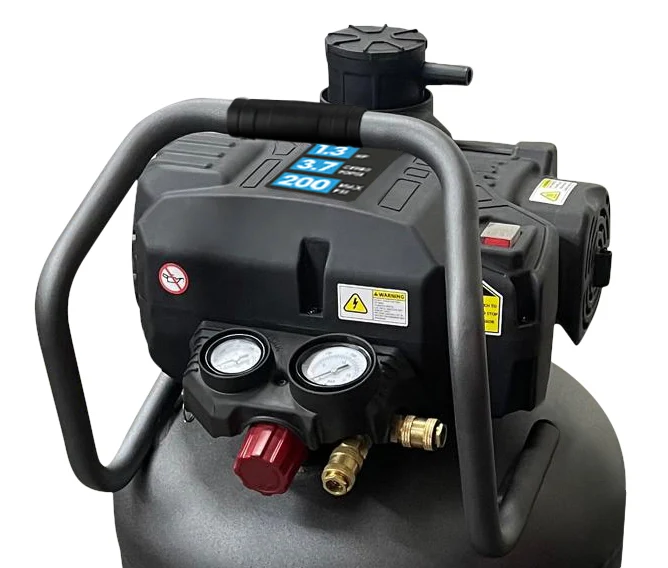

* Tank Pressure Gauge
* Output Pressure Regulator Knob
* Regulated Output Pressure Gauge
* Two (2) Female Industrial “Push to Connect” quick connectors
* 200 PSI Maximum Pressure
* Working Pressure 165-195 PSI (+/- 5 PSI)
* Pressure Safety Relief valve (opens at 225 PSI)
* Thermal Overload Protector
* 110v / 60 hz
* Low Amp Draw – 13.5 Amps
* Time to fill tank from empty to full – 11:10 min
* Recovery time from 165 PSI to 195 PSI – 2:15 min
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 20 Gal. Steel Air Tank With Wheel Kit
Easy to move around.
* L (19.0″) x W/D (19.0″) x H (36.25″)
* 82 lbs
* Non-ASME Air Tank
* Commercial Use: Refer to State & City Codes
* 1 Year Limited Warranty
* Comes complete with a Wheel Kit
* 85 dB Noise Level
* Made in Mexico
California Air Tools CALAIR 20013 Owners Manual
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
EZ2321ADS Automatic Drain Valve Short Extension Kit (110v 60 hz)

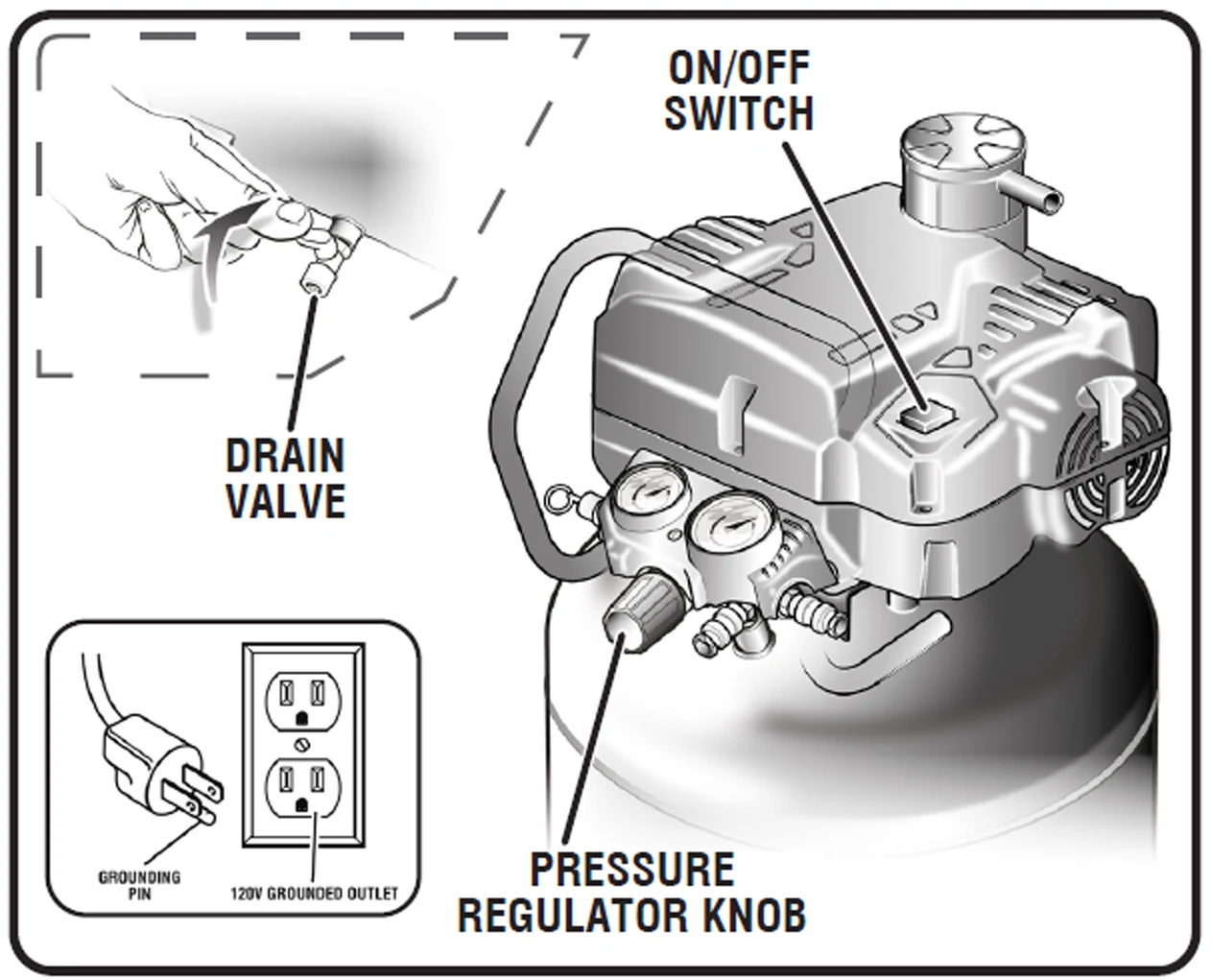

SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
