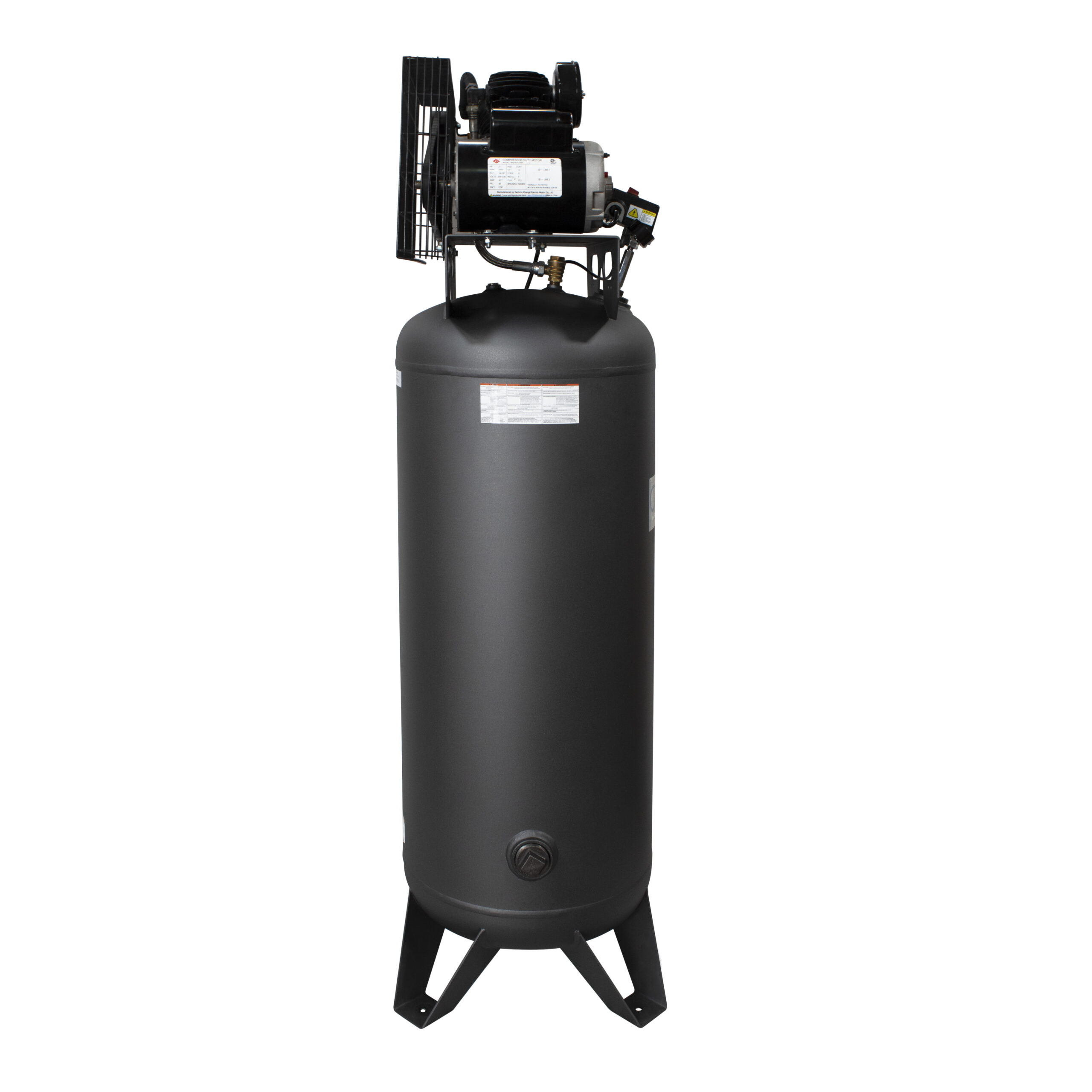

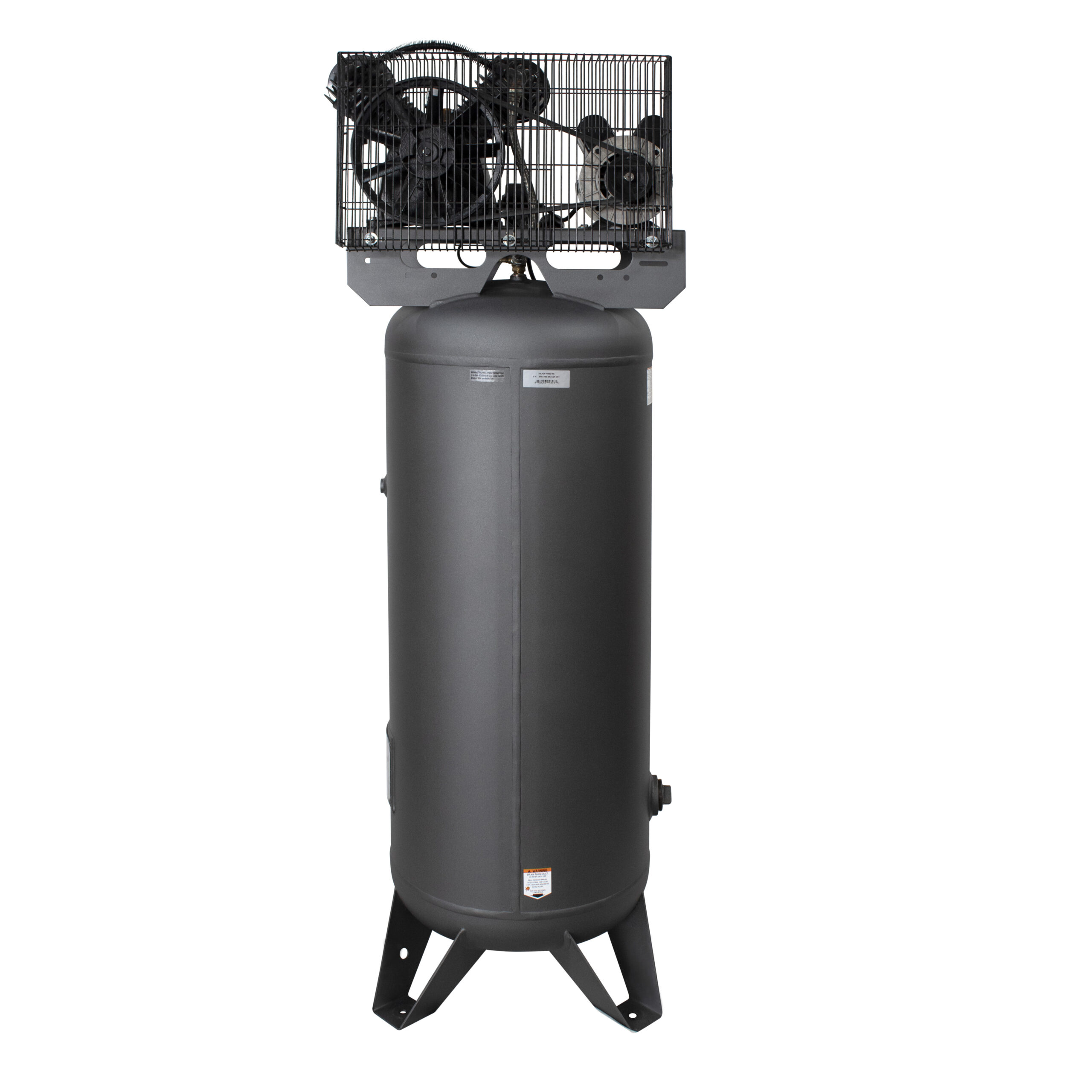

California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor

1 / 17

← swipe →

4-6 Hp AIR COMPRESSORS

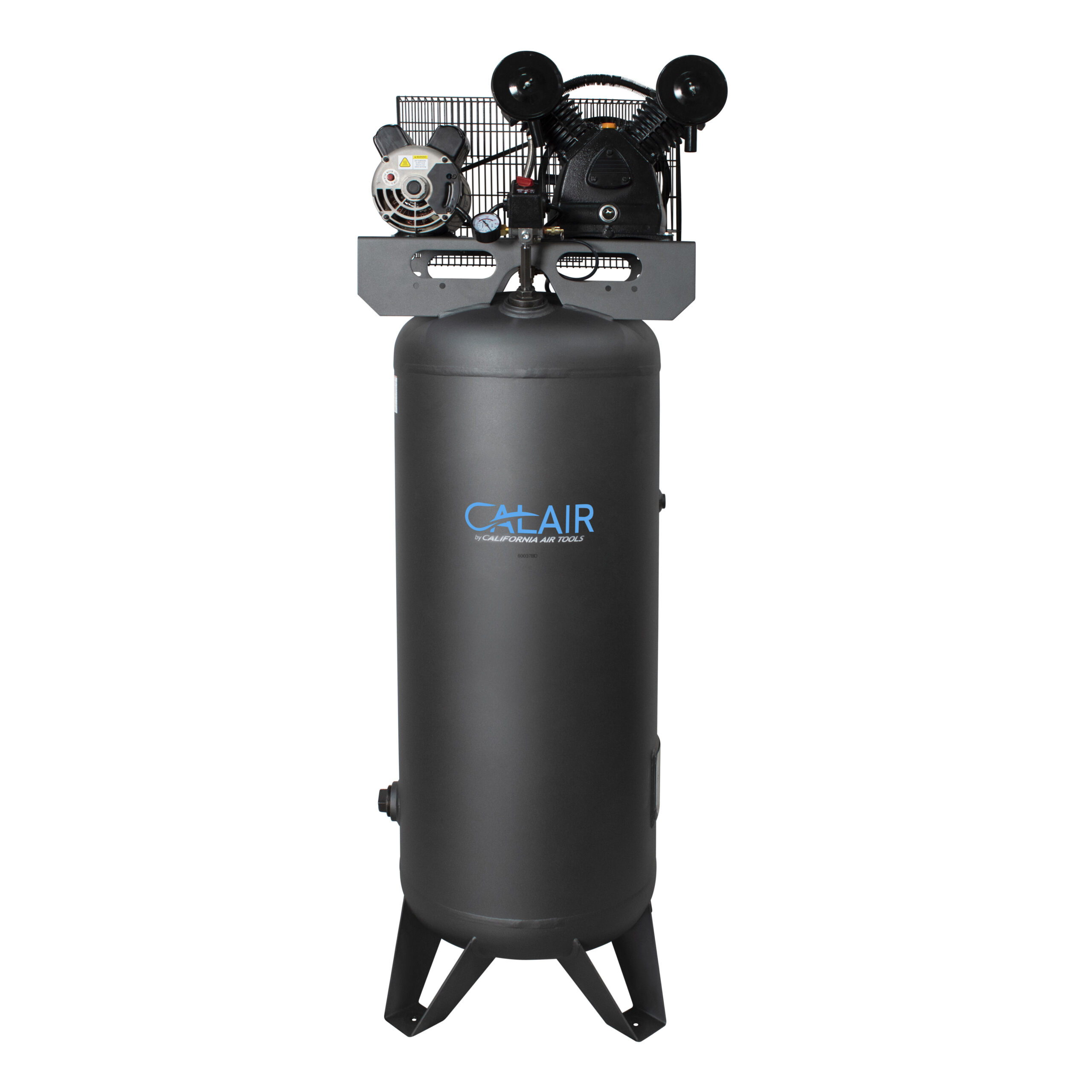

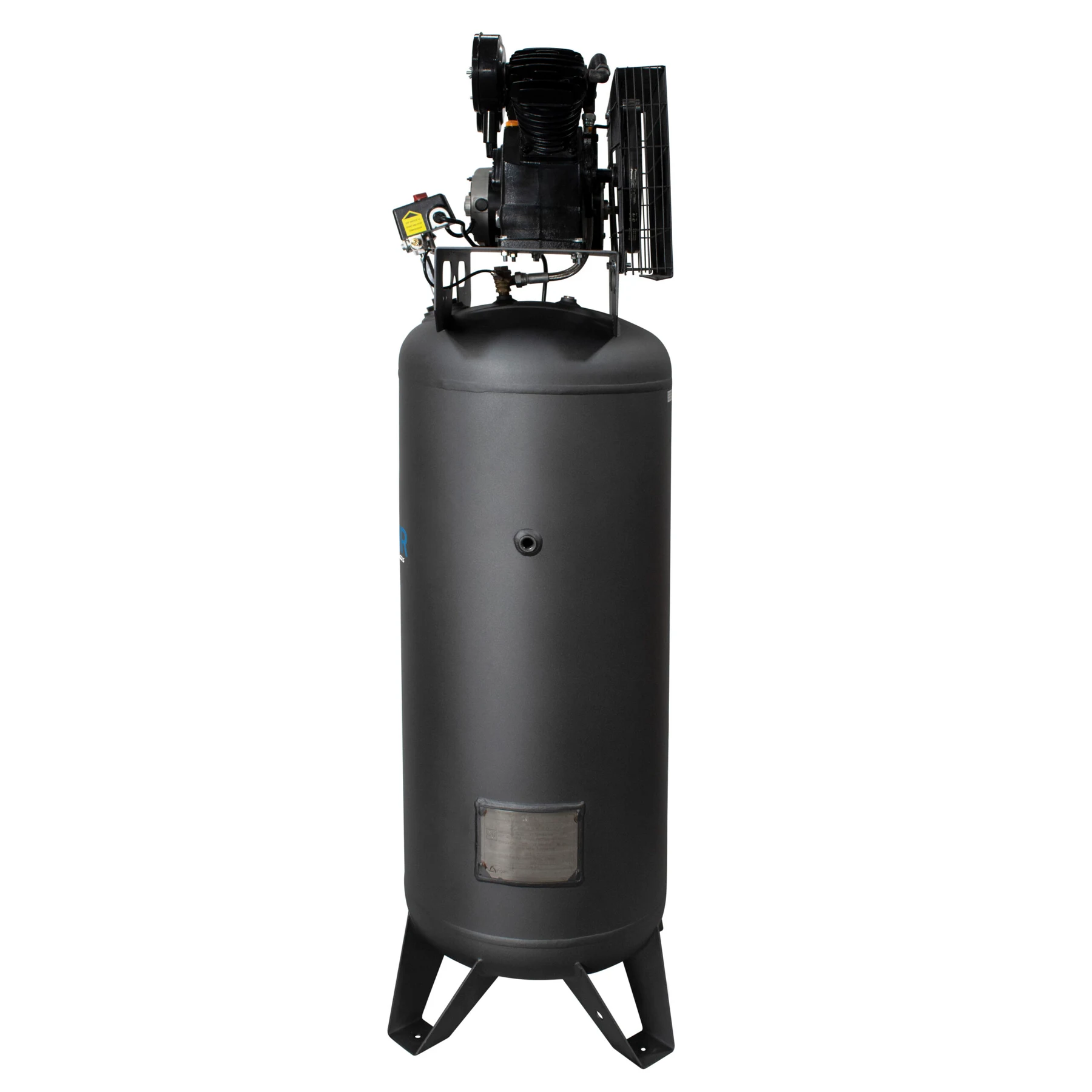

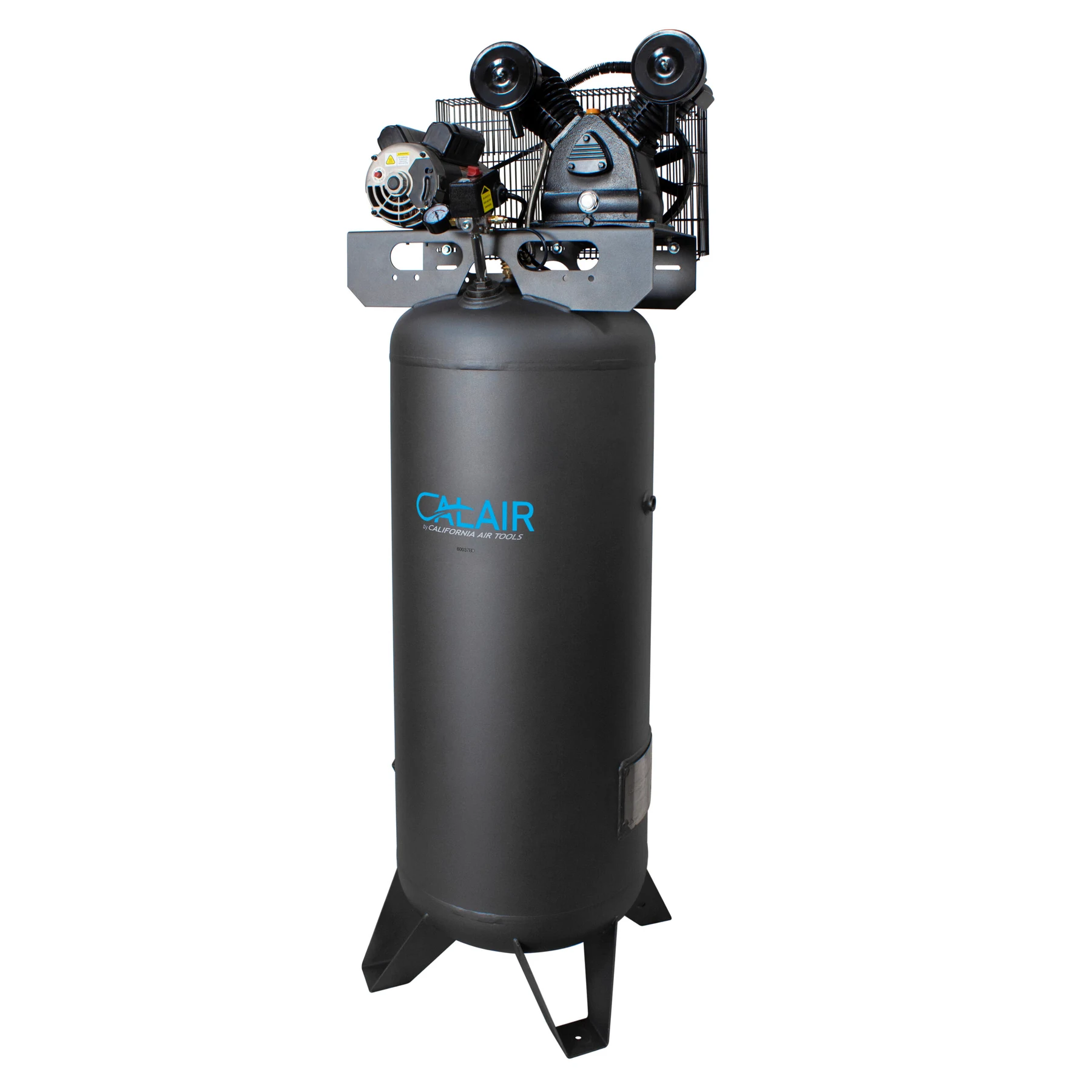

California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor

SKU: 60037BD-1

Be the first to review

$1,300

10 left in stock

<< Product shipped 1-3 Days (business days) after Order Date from San Diego, CA. Allow 3 to 10 days to receive item; depends on ship-to destination, item size and carrier type. >>

Fast Shipping

1-2 business days

Secure Payment

100% protected

Product Details

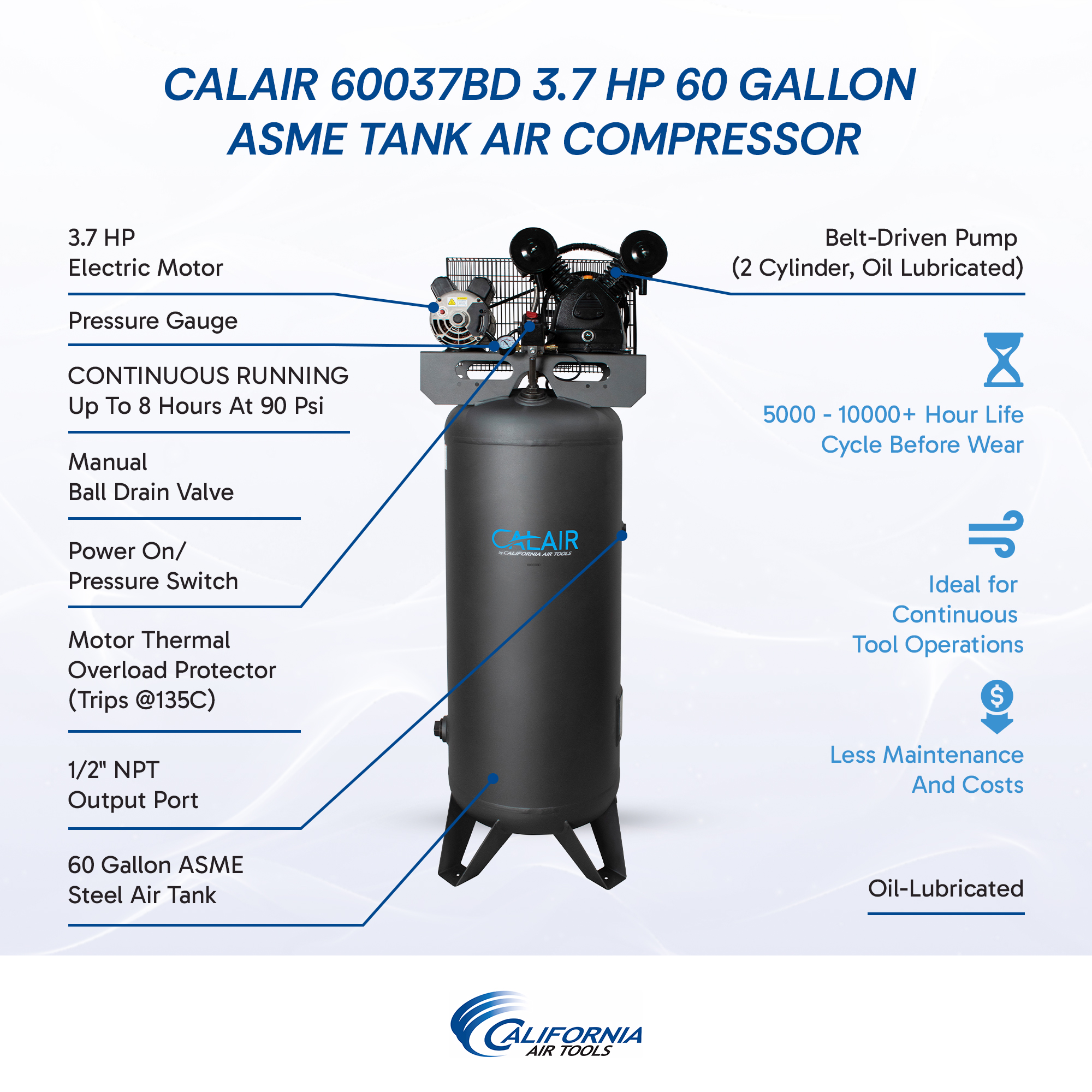

California Air Tools CALAIR 60037BD 60 Gal 3.7 hp One-Stage Oil-Lubricated Belt Driven Air Compressor

3.7 Hp Electric Motor

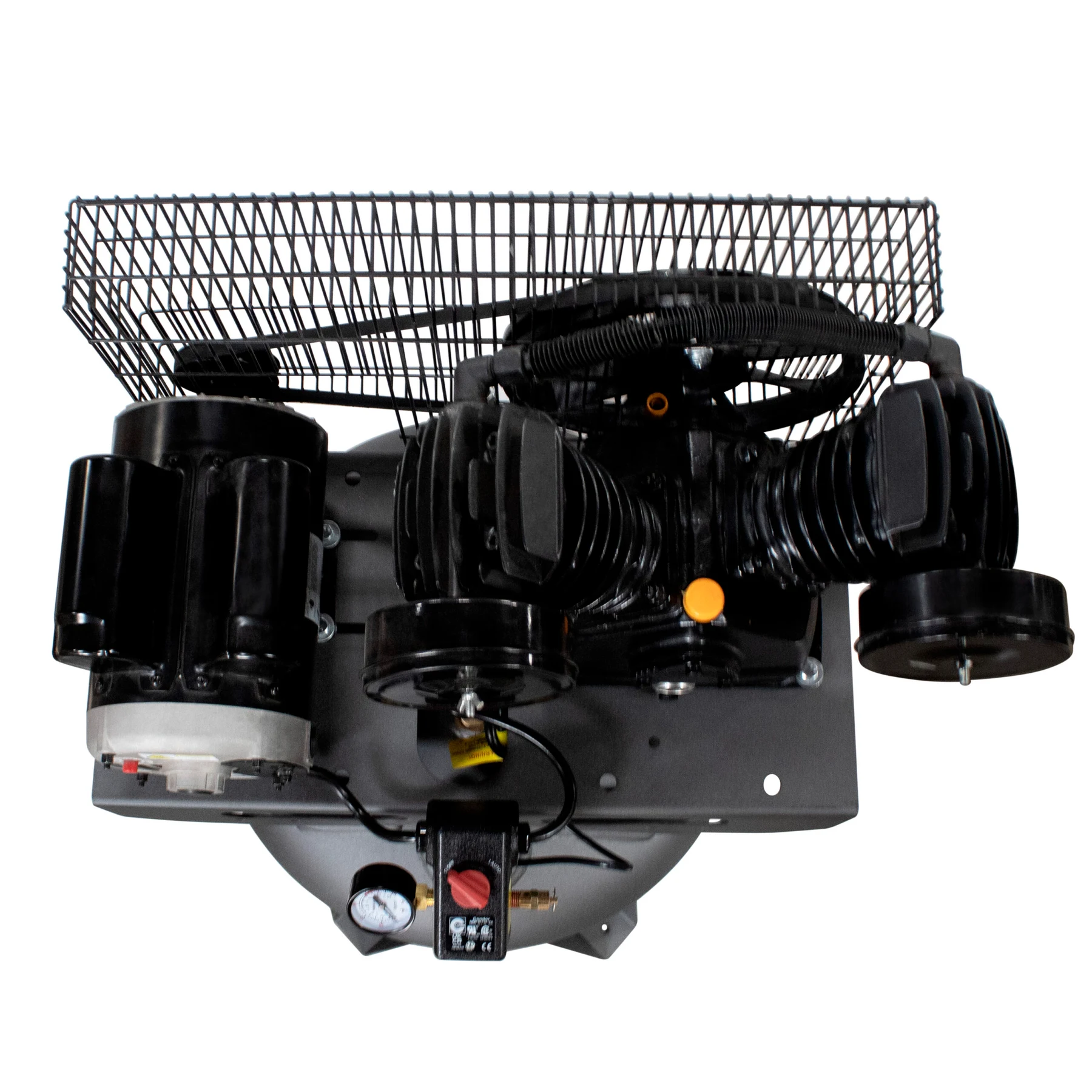

Belt-Driven Pump (2 Cylinder, Oil Lubricated

60 Gallon ASME Steel Air Tank

11.5 CFM @ 90 PSI

13.6 CFM @ 40 PSI

208v-230v / 60 Hertz / Single Phase

The CALAIR 60037BD Continuous Run 3.7 Hp Air Compressor is designed for CONTINUOUS RUNNING up to 8 hours at 90 PSI.

The CALAIR 60037BD Air Compressor has a Pump System that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage.

The large 60 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory.

Ideal for Air Brushing, Bolting, Brad Nailing, Cutting, Drilling, Grinding, Finish Nailing, Framing Nailing, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Trim & Impacting/Wrenching.

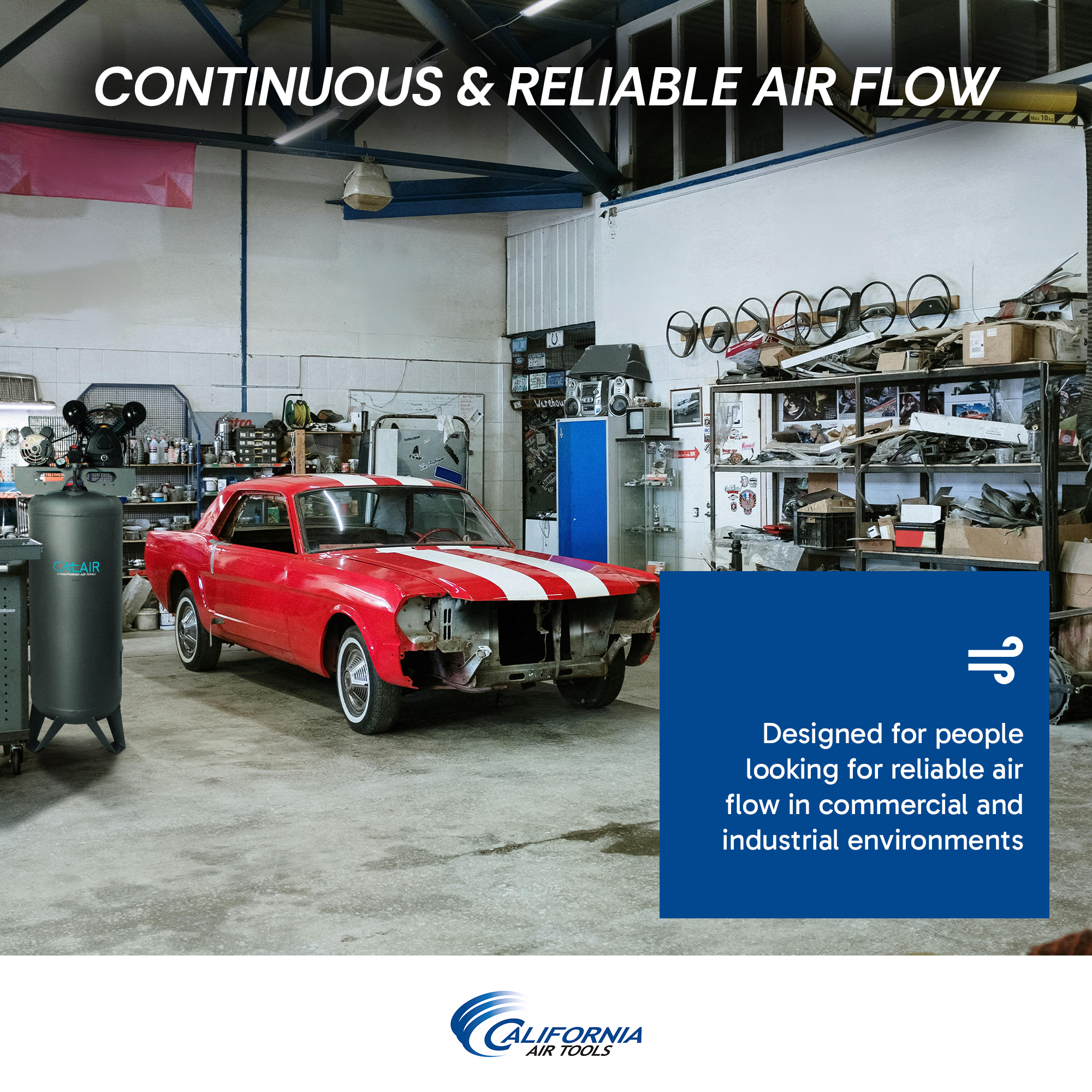

Designed for people looking for reliable air flow in commerical and semi-rugged environments.

Features:

* 3.7 Hp Motor w/Reset Switch

* Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life.

Single Stage Pump (2 cylinders)

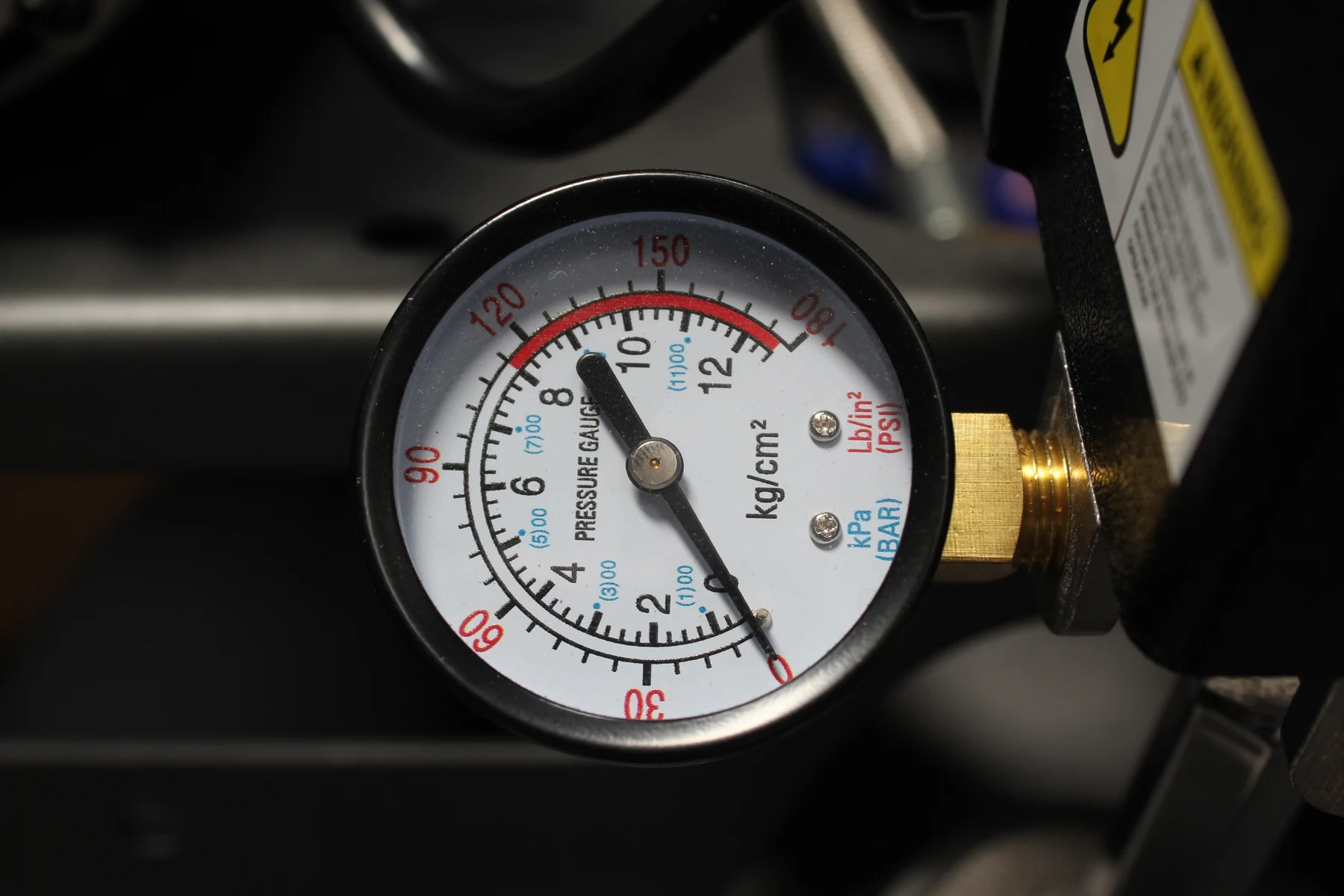

* Pressure Gauge

* 1/2″ NPT Output Port

NOTE: 1/2″ Output Ball Valve & Pressure Regulator NOT included**

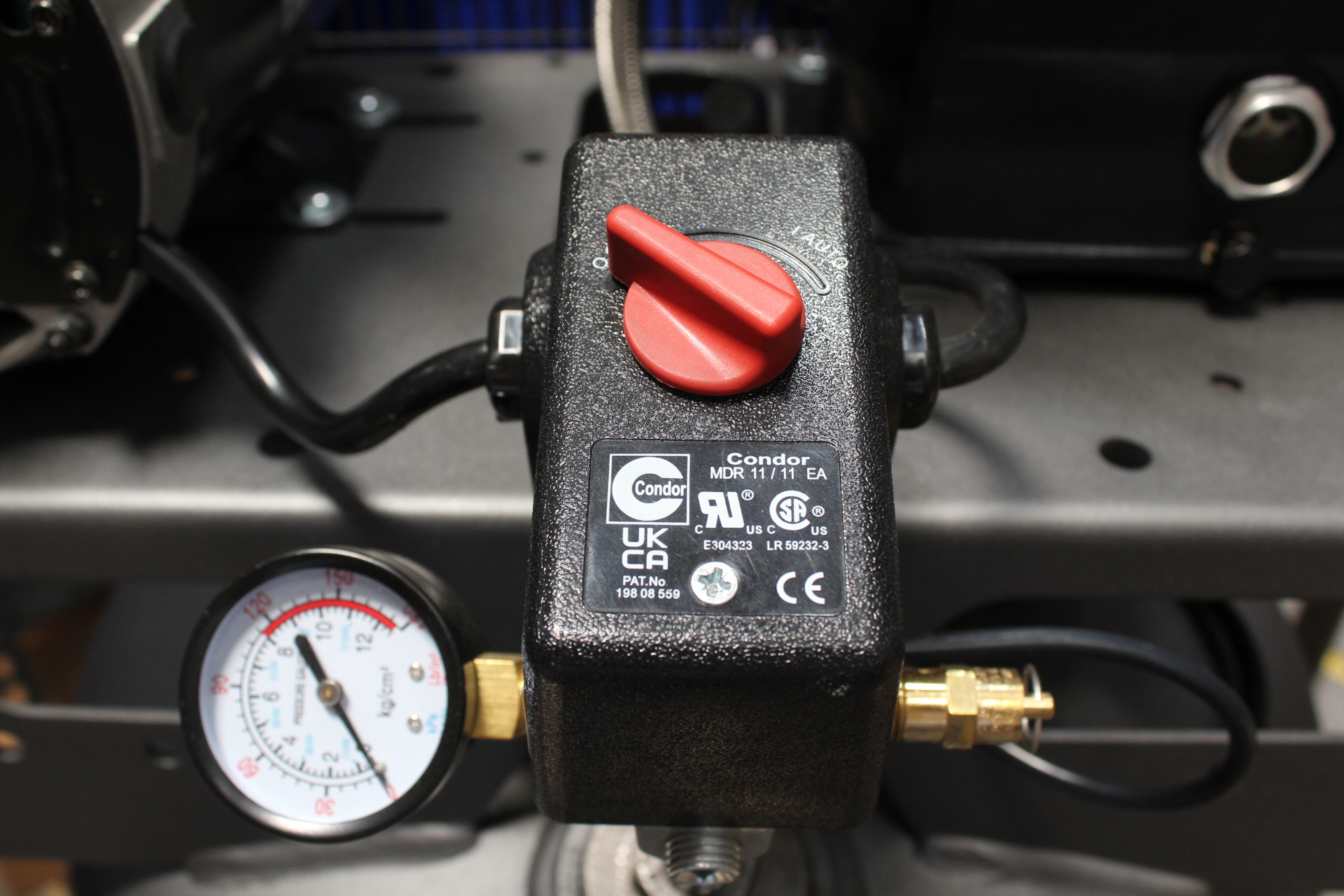

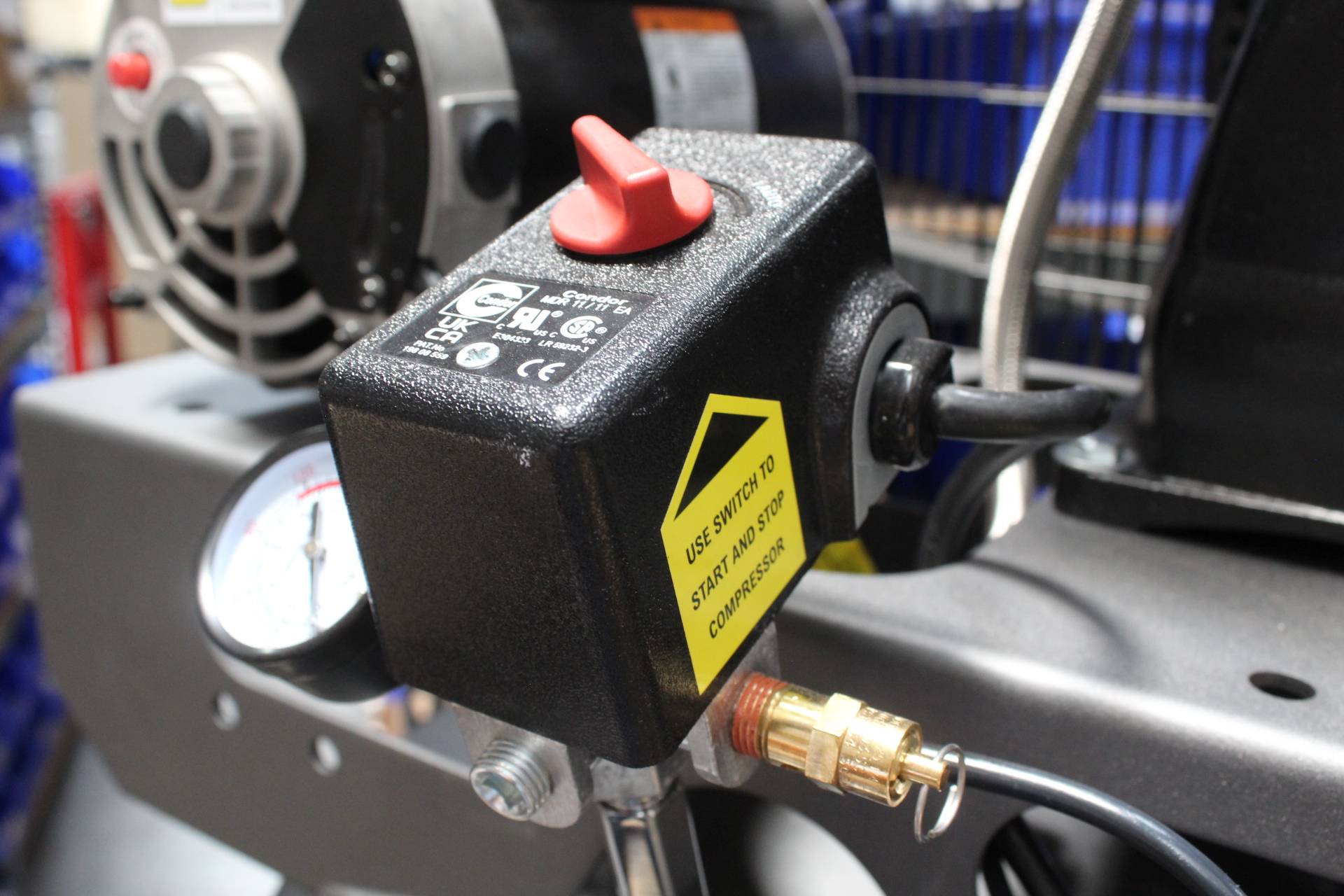

* Power On/Pressure Switch

* Motor Thermal Overload Protector (Trips @135C)

* Working Pressure – 125 – 155 PSI

* 208 Volt (200v-216v) to 230 Volt (215v-250v) / 60 Hertz / Single Phase

* 11.5 CFM @90 PSI, 13.6 CFM @40 PSI

* Continuous Run up to 8 hours (10 hours maximum)

* 16.7 Amp Draw

* Power Requirements: Dedicated 20 amp outlet

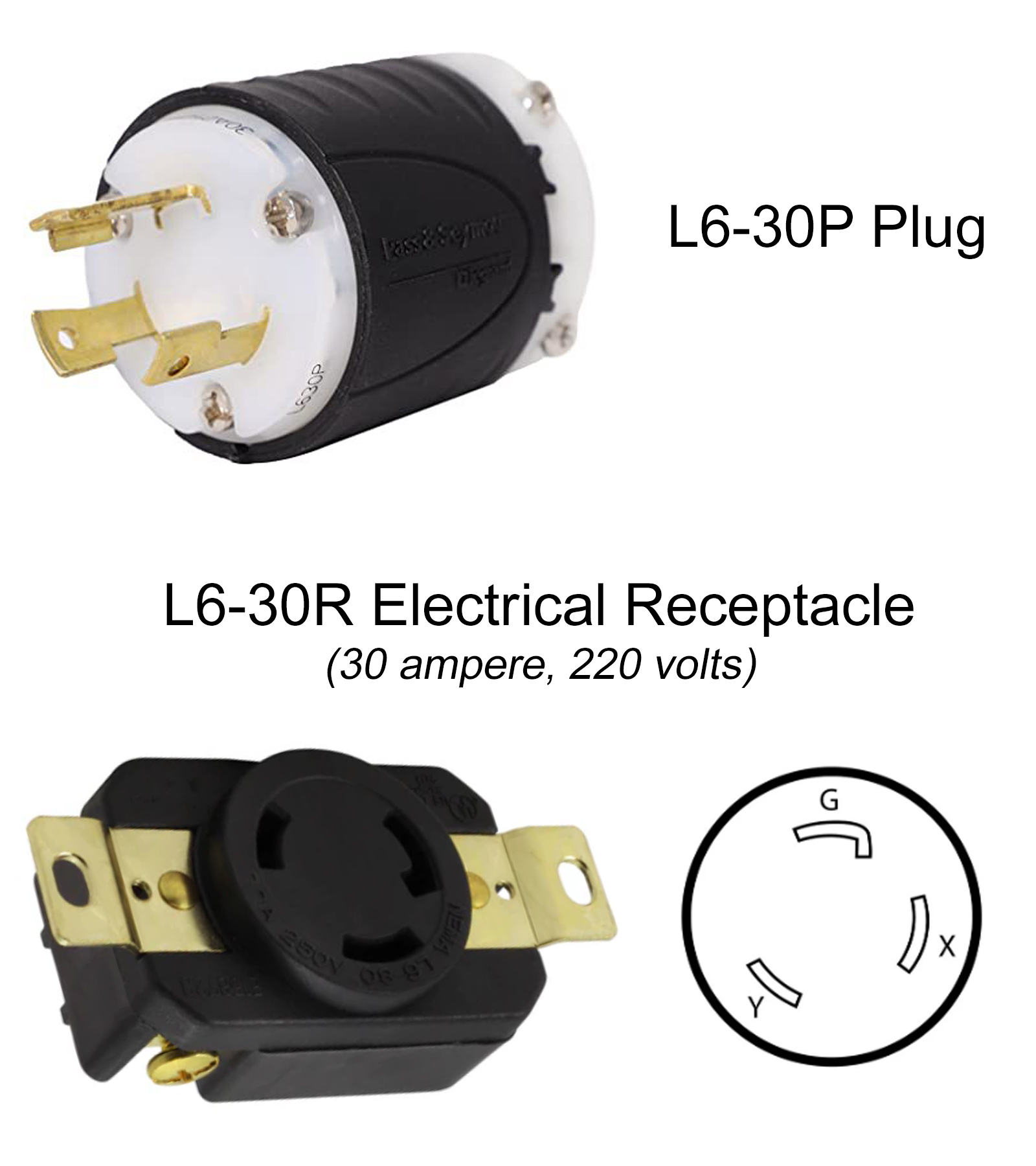

* Plug Type: Nema L6-30P (fits Nema L6-30R outlet/receptacle)

* Maximum Operating (ambient) Temperatures: 36 to 108°F

* Time to fill tank from empty to full (155 PSI) – 6 min 52 seconds

* Recovery time from 125 PSI to 155 PSI – 1 min 37 seconds

* 60 Gallon ASME Certified Steel Air Tank

* Maximum Tank Pressure 180 PSI

* Manual Ball Drain Valve

* 200 PSI Safety Relief Valve

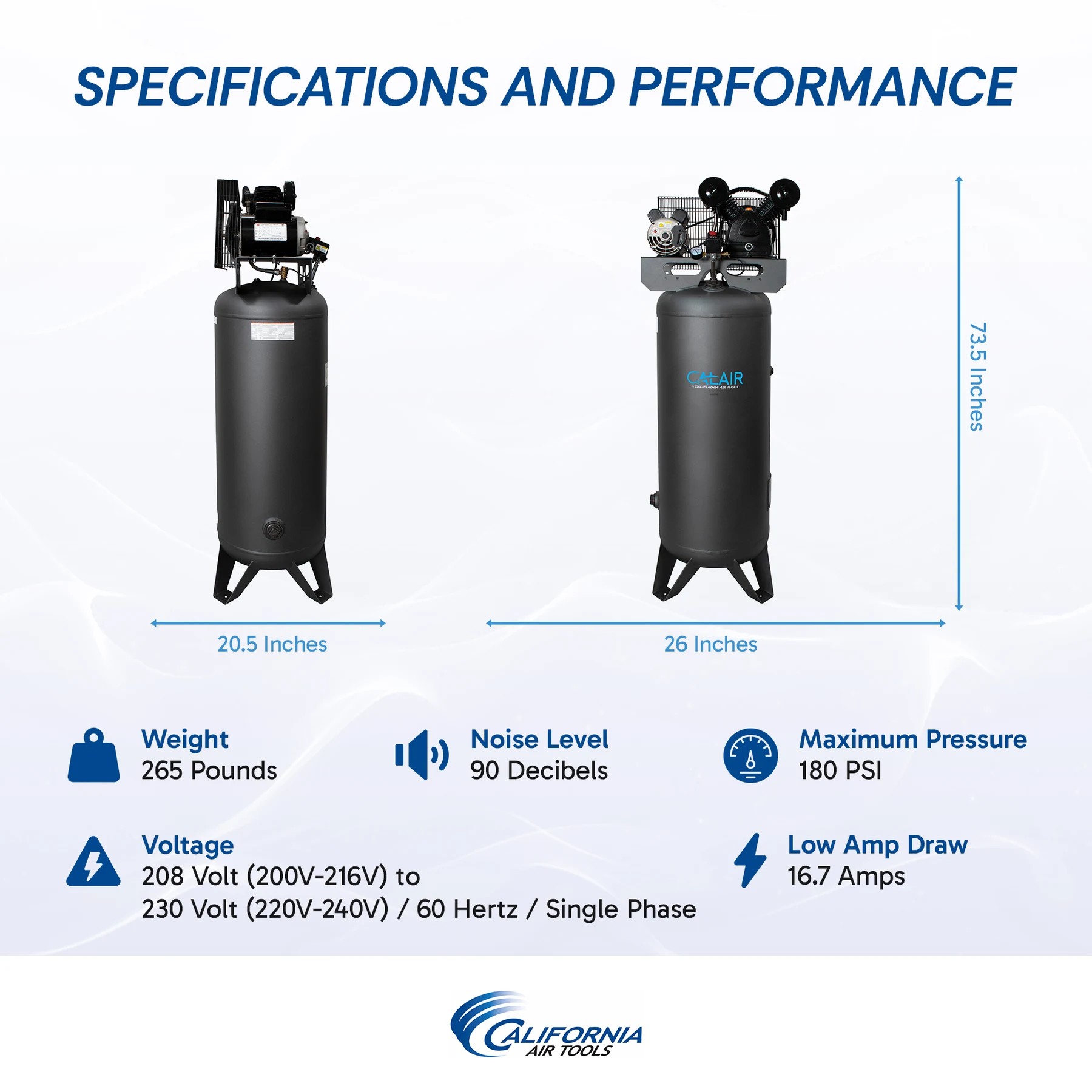

* L (26″) x W/D (20.5″) x H (73.5″)

* 265 lbs (315 lbs on shipping pallet)

* 90 Decibel Noise Level

* Commercial Use: Refer to State & City Codes

* 2 Year Limited Warranty on Pump; 1 Year Limited Warranty on all other components

* Assembled in Mexico with global components

**NOTE: Pressure Regulator NOT included – two available options:

OPTION 1:

Complete 120 PSI Pressure Regulator Assembly w/Gauge (1/4″ NPT Quick- Connect Output) available separately for purchase: (click here)

OPTION 2:

1/2″ NPT BALL VALVE (AIR OUTPUT) available separately for purchase: (click here)

125 PSI Pressure Regulator (1/2″ NPT Output) with Micro Mist separator available separately for purchase: (click here)

– Additional adapters may be required depending on setup/configuration.

Dial Gauge available separately (click here)

— Additional adapters may be required depending on setup/configuration.

Add-On Options:

Big Pressure Gauge 2.0″ Diameter, Center Back Mount 1/4″ NPT 0-180 PSI, P/N 96006

16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)

California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose

317 Water (moisture) & Oil Separator Air Filter 1/4 NPT

EZ2321ADL Automatic Drain Valve Long Extension Kit (110v 60 hz)

California Air Tools CAIR-60037BD Owners Manual 01-17-25

SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor

SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
