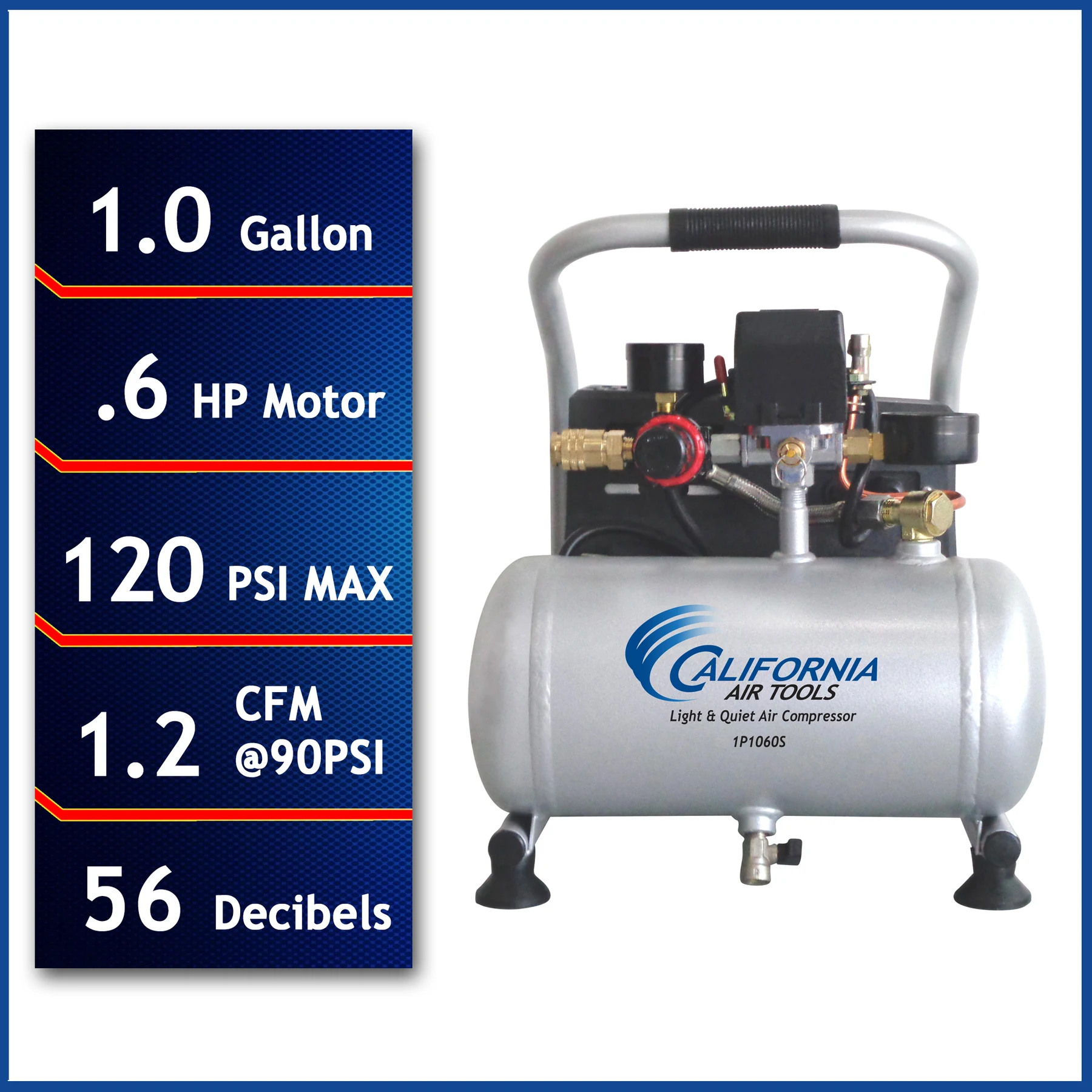

56 Decibel Noise Level
0.6 HP (Rated/Running) – 1.2 HP Peak
1.0 Gallon Steel Tank
1.60 CFM @ 40 PSI
1.20 CFM @ 90 PSI
110v 60hz
The California Air Tools 0.6 Hp Light & Ultra-Quiet 1P1060S Portable 1-Gallon Air Compressor is designed to be one of the quietest air compressors in the industry having only 56 decibels of sound.
The .6 HP motor operates at only 1680 RPM creating less noise and less wear.
The Ultra Quiet & Oil-Free IP 90945 Motor is a Large Single Piston Pump design is engineered for high performance and durability.
The 1.0 Gallon Steel Air Tank is Lightweight (29 lbs) making it very easy to transport.
The 1P1060S Air Compressor has a Oil-Free Single Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 250 hours or less.
The Oil-Free Pump allows for use in a variety of different temperatures (cold) and uneven terrains
The 1P1060S produces 1.2 CFM @ 90 PSI allowing you to use staple guns, brad nail guns, finish nail guns, nail guns, airbrushes and blow guns. This air compressor is great for the garage and perfect for cleaning and inflating tires, beds, toys and sport balls.
This air compressor is ideal for anyone working inside where noise is a major issue.

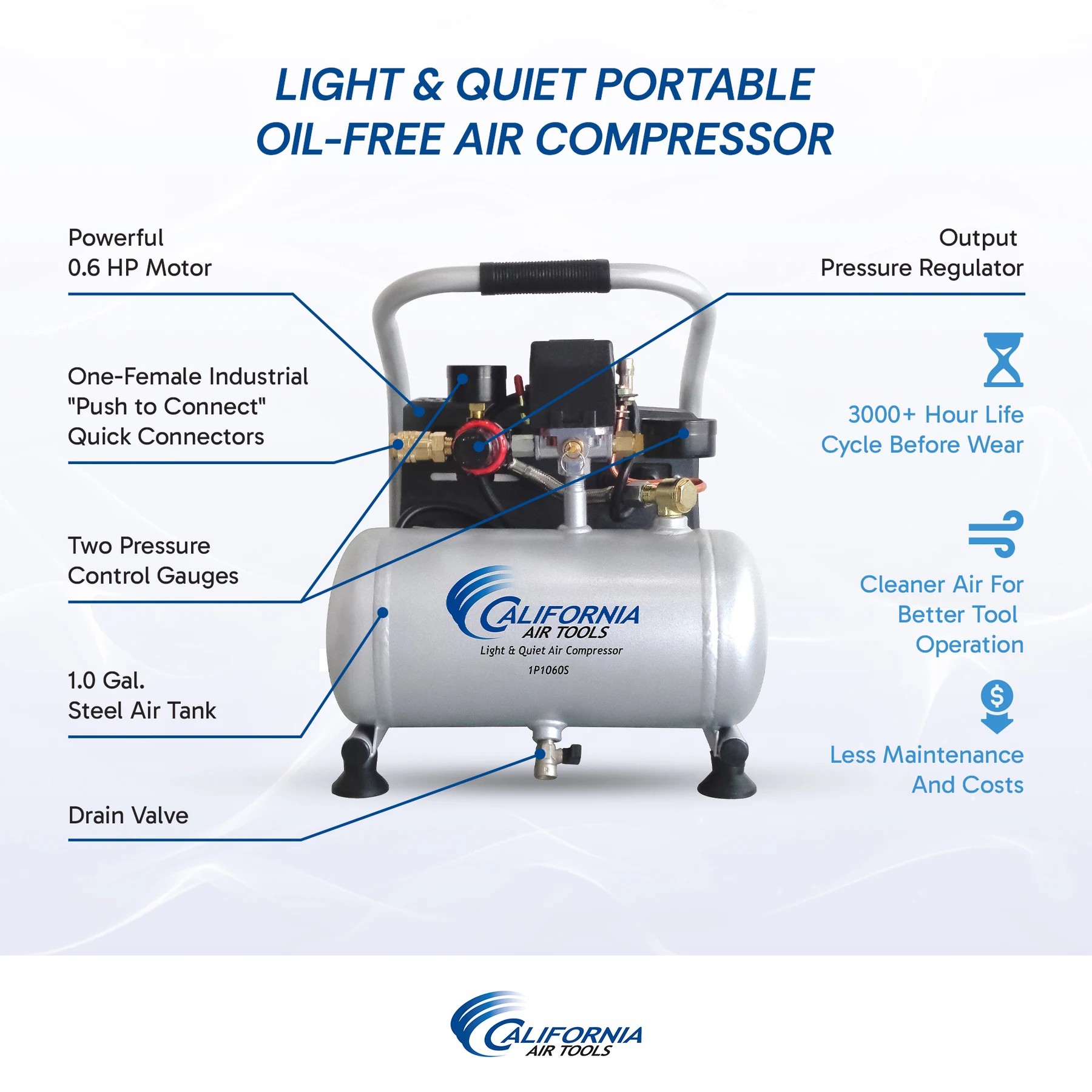

Features:
* Ultra Quiet – Only 56 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* One – Female industrial “Push to Connect” quick connector
* Produces less heat which dissipates efficiently
* Thermal Overload Protector
* External Current Protector
* 120 PSI Maximum Pressure
* 110v / 60 hz – Generator 2000 (running) Watts Min.
* Low Amp Draw – 4.5 Amps
* Tank fill rate from empty to full – 50 Seconds
* Recovery time from 90 PSI to 120 PSI – 15 Seconds
* Duty Cycle – 70/30
* Maximum continuous running 30-60 min. (Depending PSI & CFM)
* Steel Air Tank – Lightweight Only 29 pounds

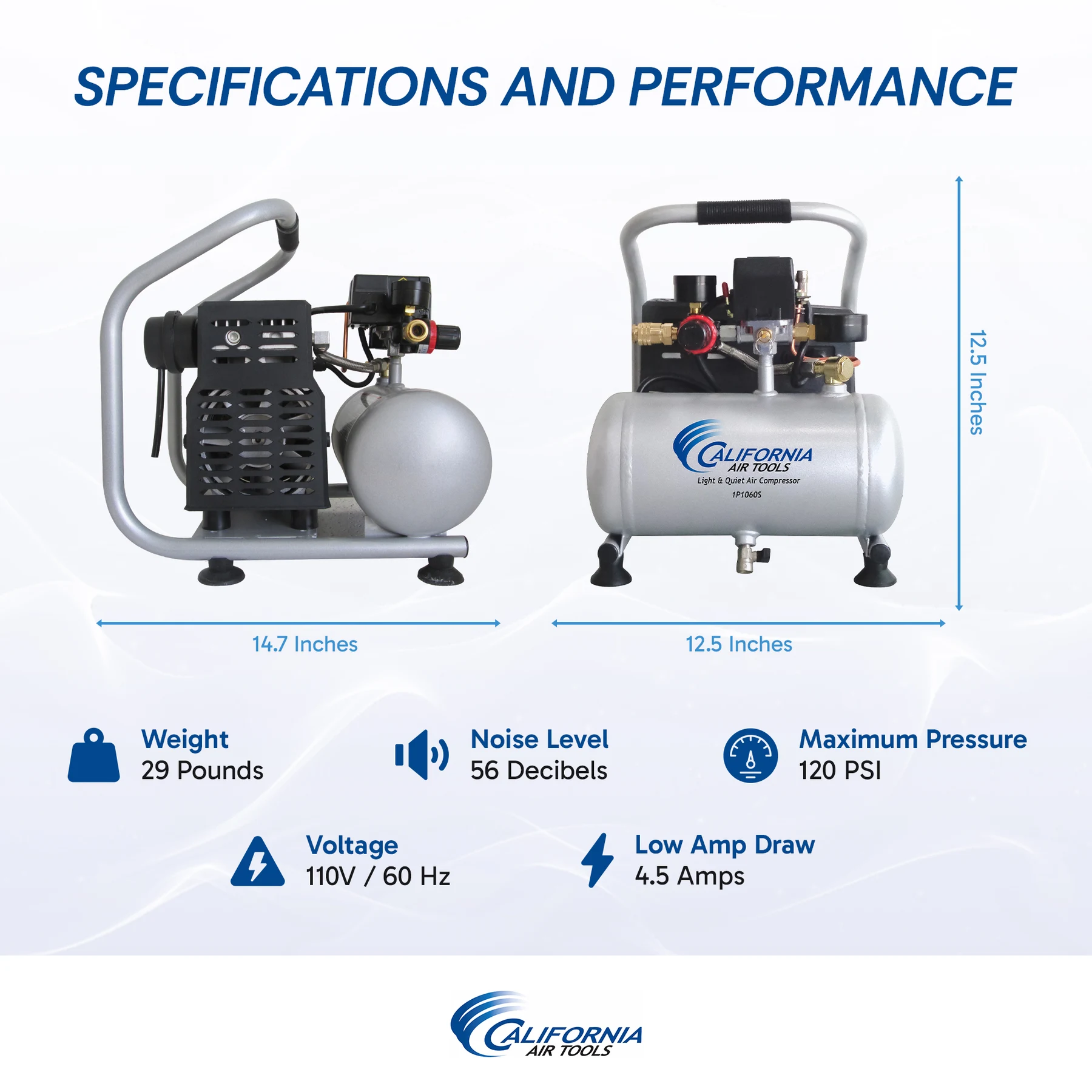

* L (12.5″) x W/D (14.7″) x H (14.75″)
* Comes complete with Air Filter
* ETL Certified
* 1 Year Limited Warranty
* Commercial Use: Refer to State & City Codes
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 1 Hp air filter (attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90227
Add-On Options:
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose
317 Water (moisture) & Oil Separator Air Filter 1/4″ NPT
California Air Tools 1P1060S Owners Manual
California Air Tools 1P1060S Product Data Sheet
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
*70/30 Duty Cycle – Click Here For More Information
