10.0 CFM @ 40 PSI
8.40 CFM @ 90 PSI
208/220 volts, 60hz, 1-PHASE (200-250vac operating voltage range)

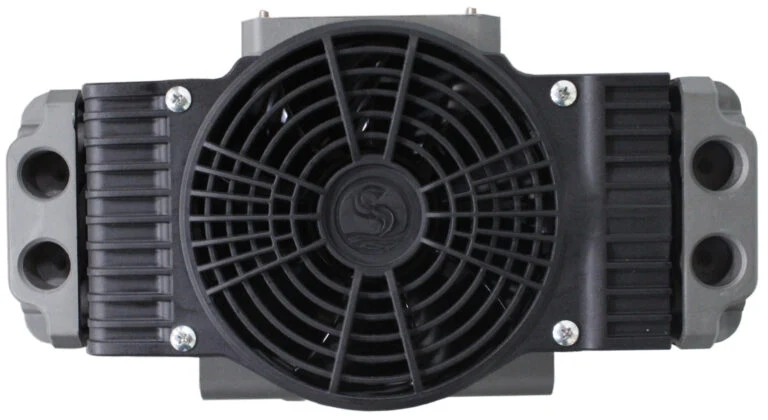

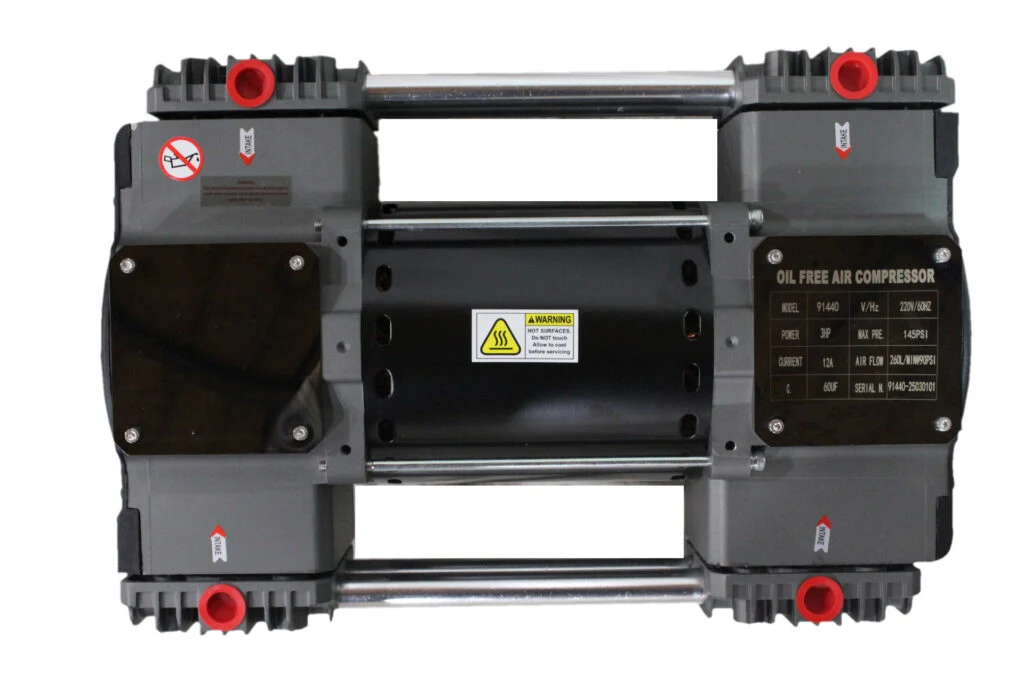

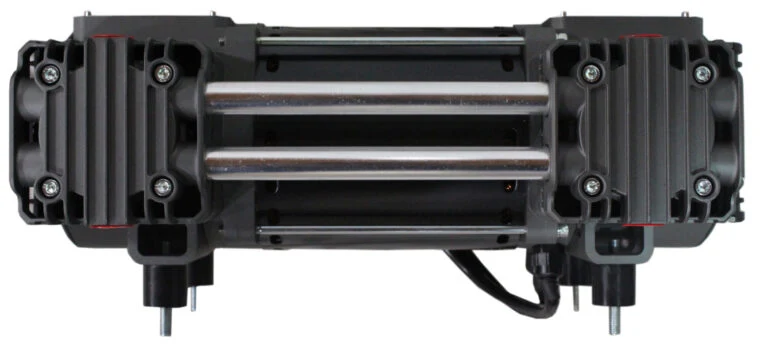

The Powerful OLF2800 3.0 Hp motor/pump operates at only 1680 RPM creating less noise and less wear. The Oil-Free OLF motor/pump is engineered for high performance and durability. The Oil-Free pump allows for use in a variety of temperatures (cold starts; no oil in the pump).

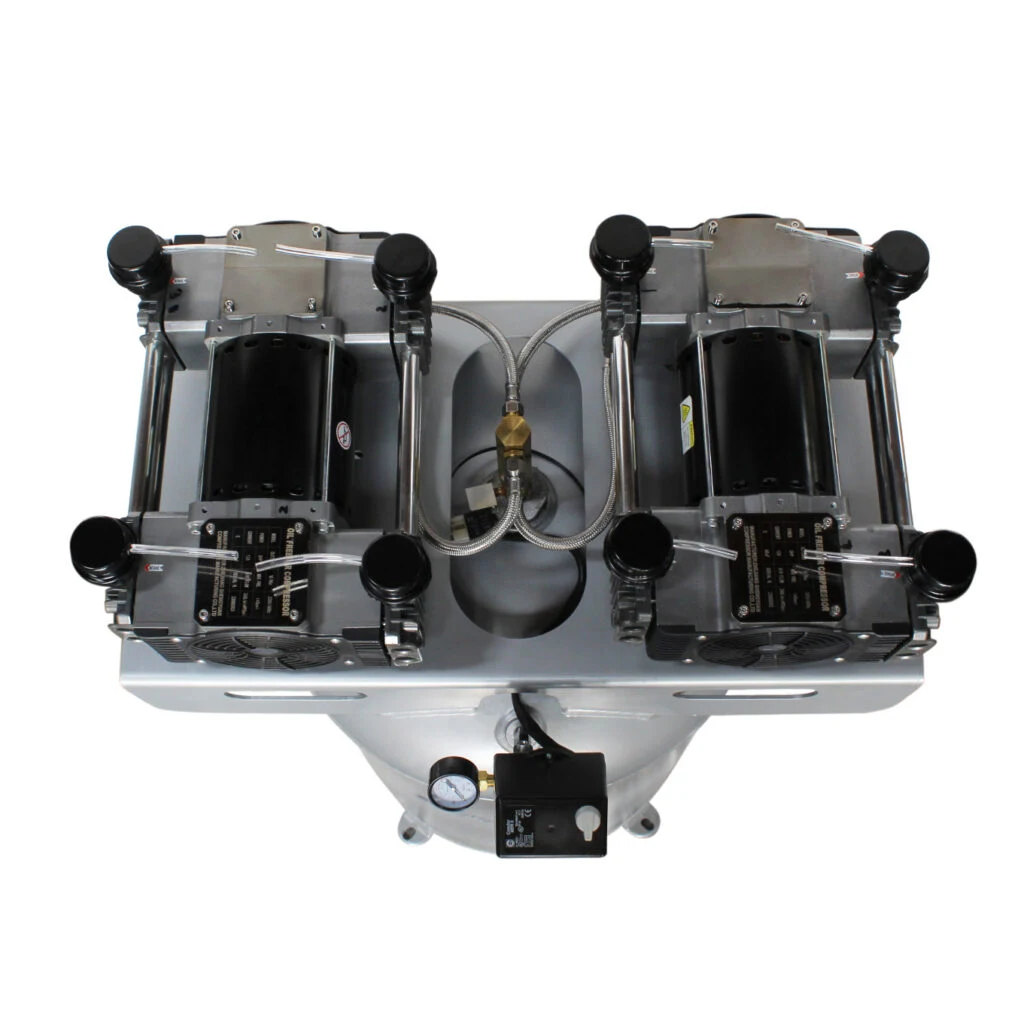

Directly supports California Air Tools Air compressor model: CAT-80060C (80-Gallon, 6hp)

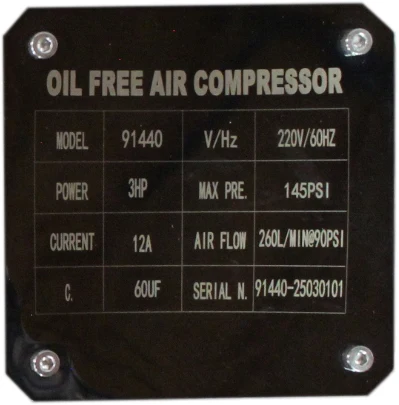

FEATURES:
· Ultra Quiet only 75 Decibels
· Oil-Free Pump
· 10.00 CFM @ 40 PSI
· 8.40 CFM @ 90 PSI
· Maximum Pressure – 145 PSI
· Maximum Output Air Pressure – 260 lmin / 90 PSI*
· 208/220 Volts / 60 Hertz / Single Phase (200-250vac operating volt range)
· Amp draw – 12.0 Amps
· Capacitance – 60 uF
· Thermal Overload Protector
· Low Vibration – Motor Speed of 1680 RPMS
· Less Heat – Dissipates heat more efficiently
* 58 pounds (62 lbs in packaging)

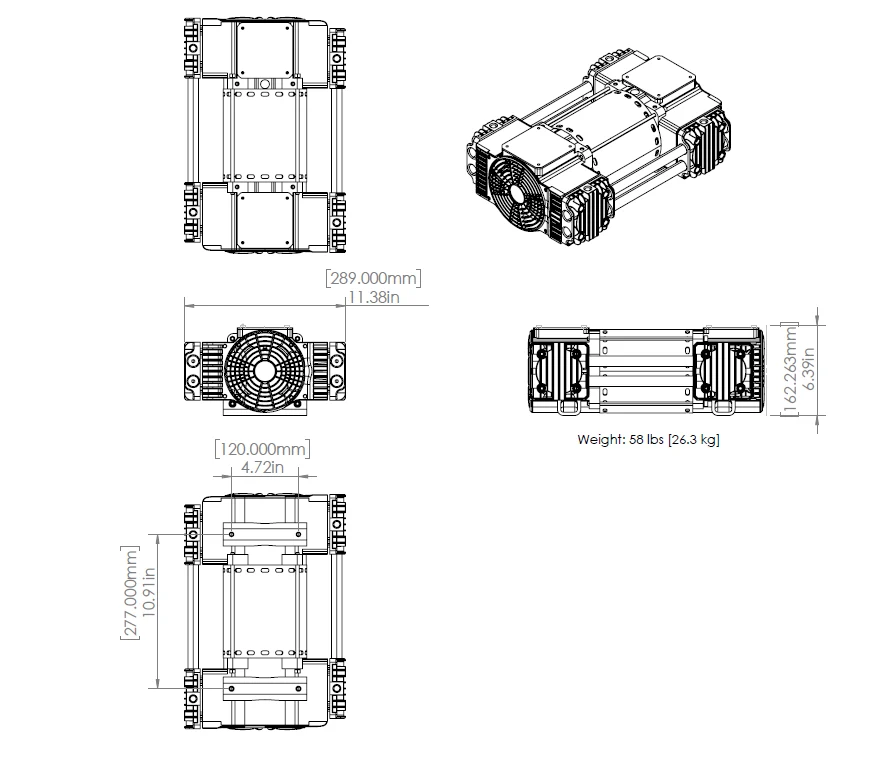

* L (11.5″) x W (6.5″) x H (6.4″)

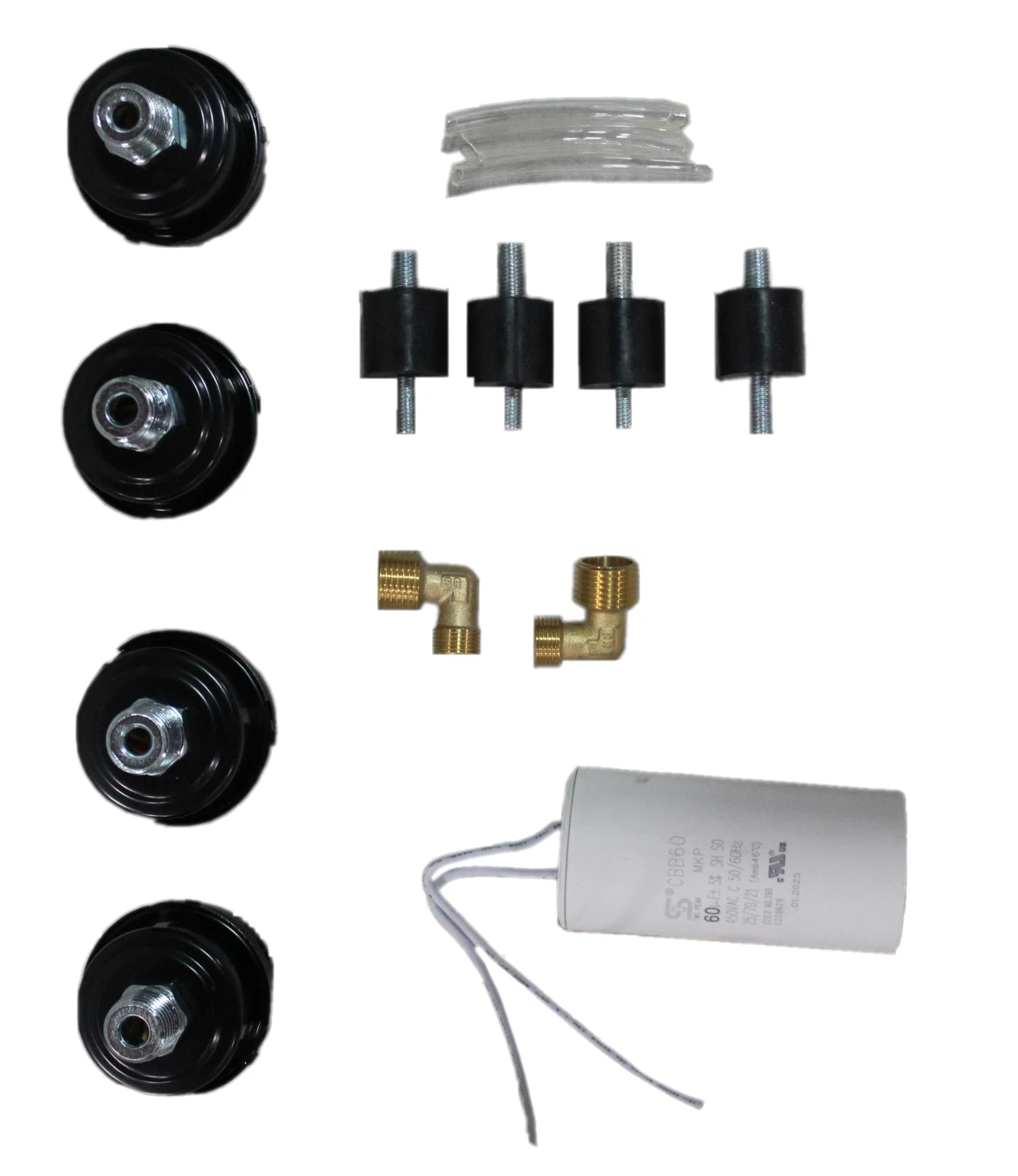

* Comes complete with:
(1) 60 uF Start Capacitor, (4) 2.0 Hp Air Filters, (4) 4″ Air Intake Tubes and (4) Shock Struts
* Installation Requirement: Unloader and/or Bleeder Valve Required
* 1 Year Limited Warranty
* ETL Certified
· 1-Year Limited Warranty
· Part Number 91440
*Regulated Output Pressure cannot be adjusted any higher than the default output pressure level of 90 PSI.
Direct supports California Air Tools Air compressor models: CAT-80060C.
May be installed onto the following compressor models as a replacement motor/pump (location holes may need to be adjusted on select models).: CAT-4620AC-22060, CAT-10020C-22060, CAT-10020CAD-22060, CAT-10020CHAD-22060, CAT-15020C-22060 (first generation), CAT-20020-22060, CAT-20020AD-22060, CAT-20020CTR-22060, CAT-10020DC-22060, CAT-10020DCAD-22060, 10020HDCADC-22060, CAT-20040C, CAT-20040CAD, CAT-20040SM, CAT-20040SMAD, CAT-20040DSMAD, CAT-20040DSMADC, CAT-20040DCAD, CAT-20040DCADC, CAT-20060CAD, CAT-20060DCC, CAT-60040CAD, CAT-60040SMAD, CAT-60040DCAD, CAT-60040DCADC, CAT-60040DSMADC
OLF-2800 PERIODIC MAINTENANCE:

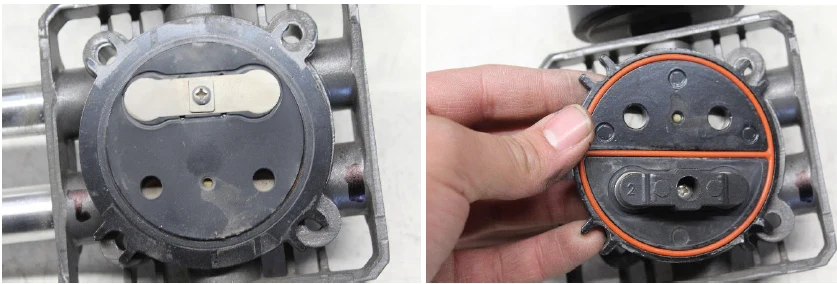

A. Service/replace piston seals every 2000 operating hours (see photo below). Replacement Piston Seal 4-Pack – Part Number 91457-4p (click here to purchase)
B. Replace air filters every 2 years or every year if compressor is exposed to a dirty or dusty environment. 4 air filters are attached to motor-pump. Part Number 90260.
NOTE: This is NOT an air compressor. This is a replacement motor-pump which can be installed into existing California Air Tools equipment or installed onto 4hp or 6hp legacy compressor models (location holes may need to be adjusted on select models).
CAUTION: If installing onto a Non-California Air Tools air compressor or unique application you will need to have the electrical and mechanical knowledge for properly installing this motor-pump. It is important to properly configure an UNLOADER valve and CHECK VALVE with the motor pump (to correctly bleed pressure off of the pistons) otherwise damage to motor may occur.
