6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
220 volts, 60hz

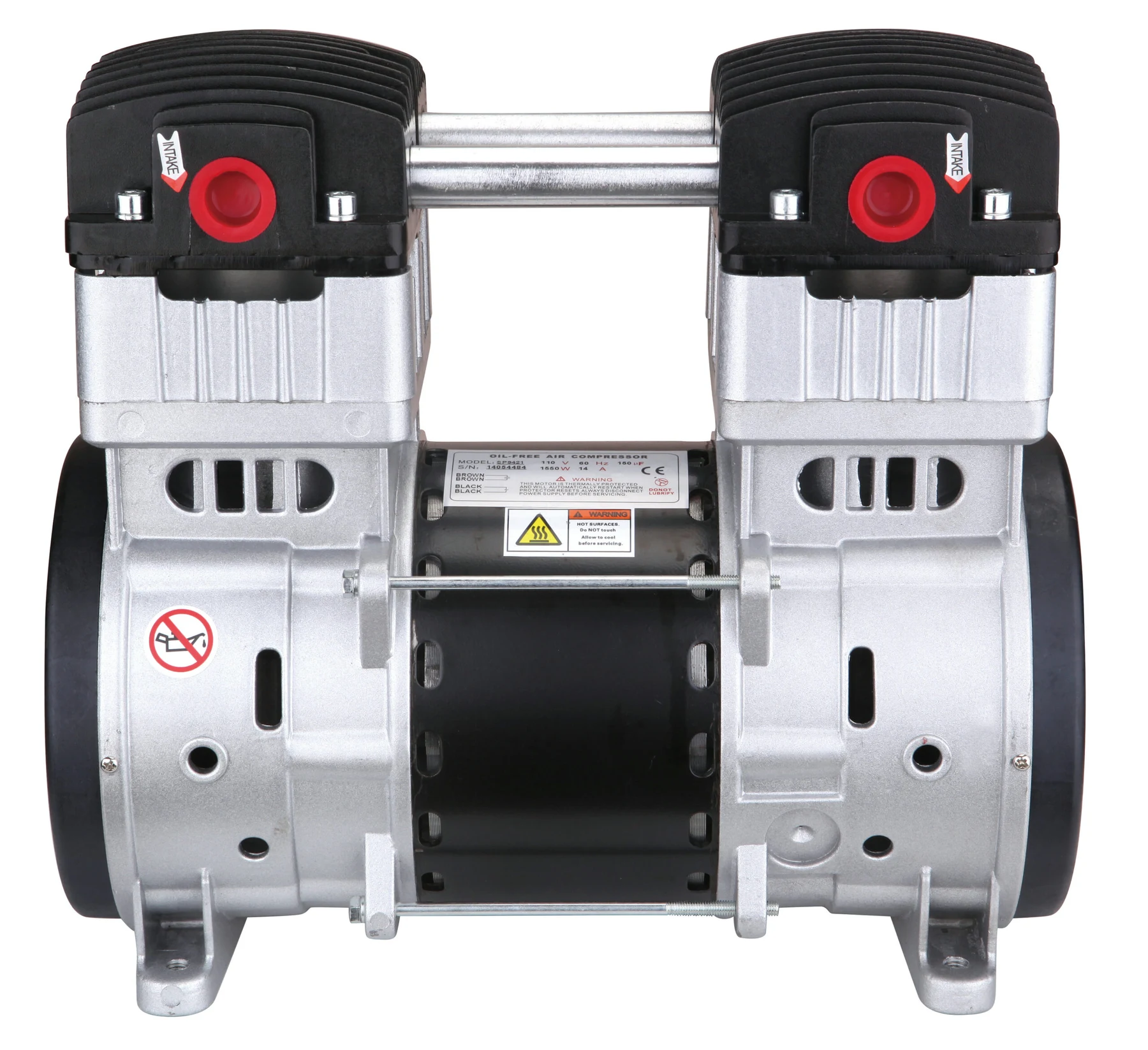

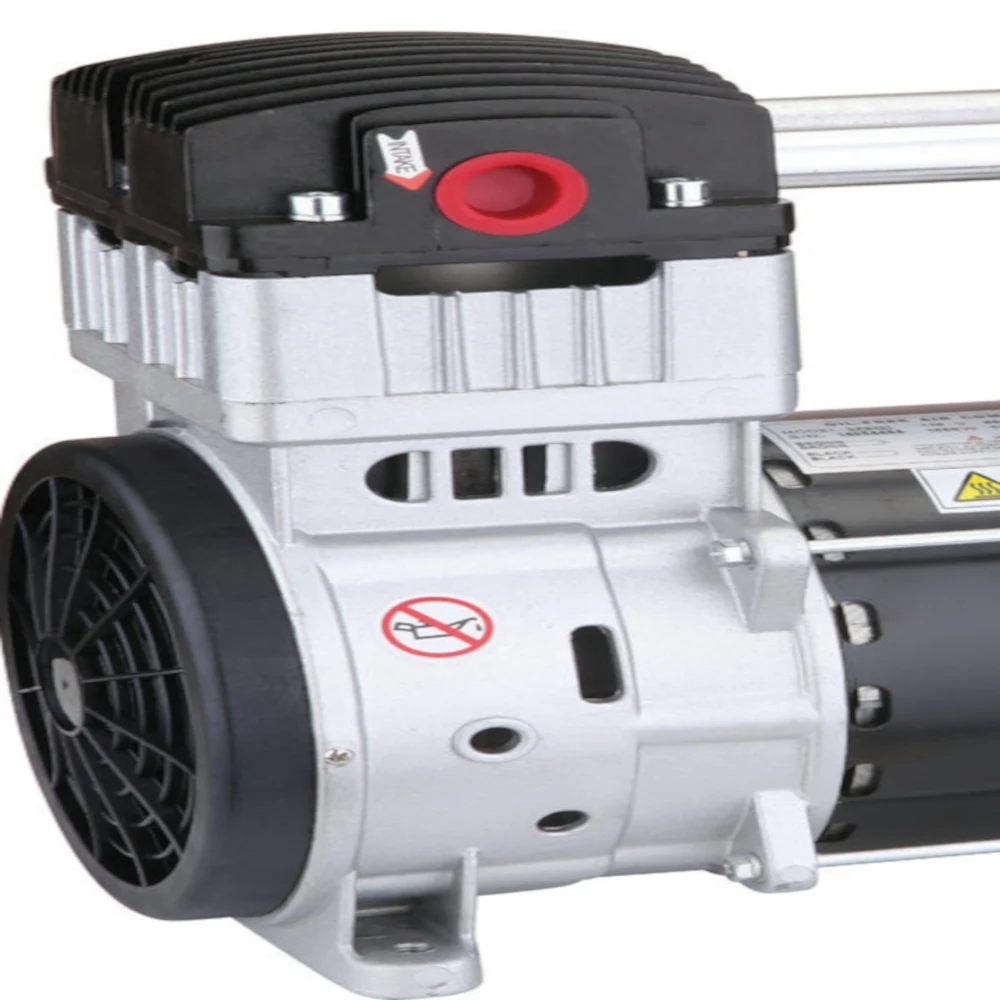

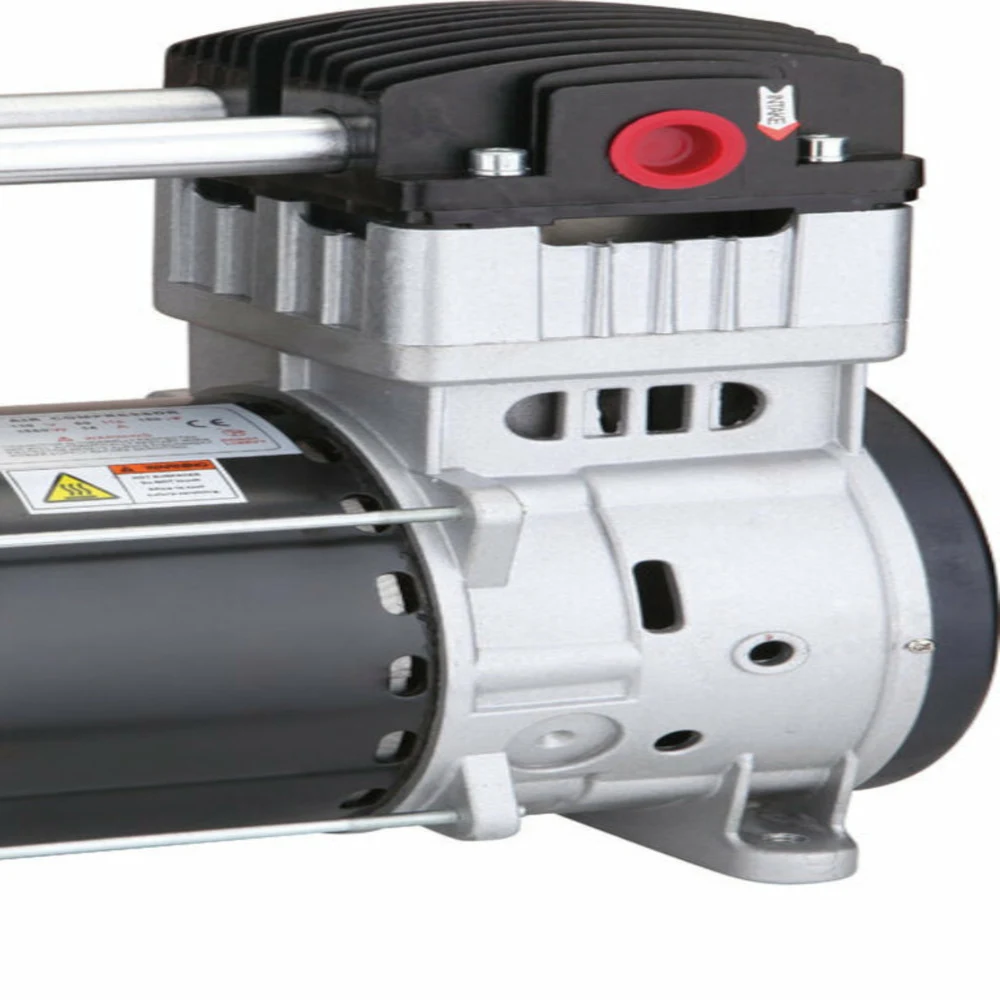

The CALIFORNIA AIR TOOLS SP-9421-22060 Ultra Quiet & Oil-Free Air Compressor Pump/Motor is designed to be one of the quietest in the industry having only 70 decibels of sound.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
These motors are engineered to dissipate the heat better which allows for a cooler operation reducing wear and increasing life before service.
The SP-9421-22060 (220 Volt 60 Hertz) motor has a valve plate design made with Swedish reed valves which improves air flow, reduces wear and decrease the sound level.
The powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The SP-9421-22060 pump/motor has a Oil-Free Dual Piston Pump designed to have a life cycle before wear of 3000 Plus hours.
FEATURES:
* Ultra Quiet – Only 70 decibels

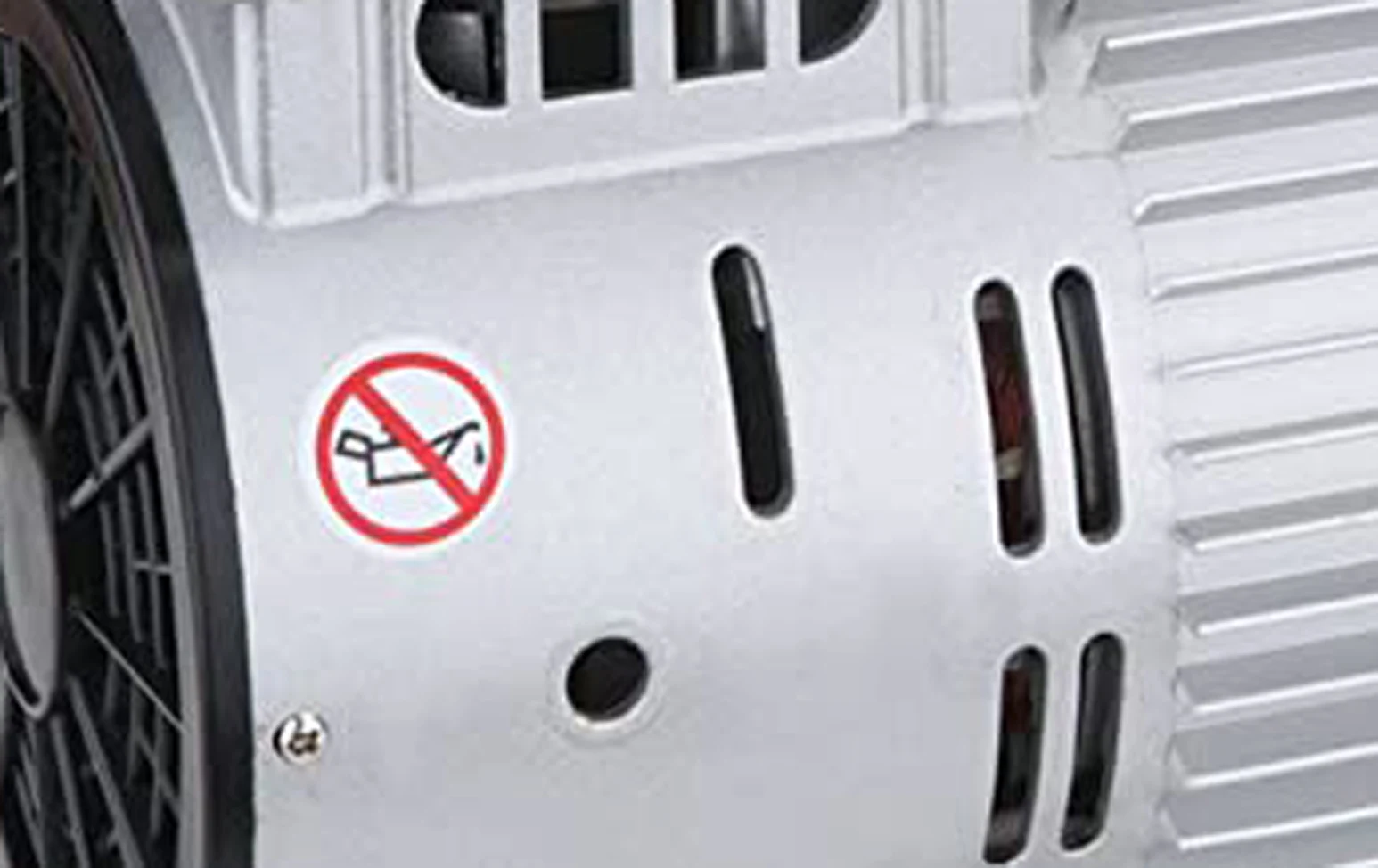

* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Thermal Overload Protector
* 90 PSI Rated/Running PSI
* 125 PSI Maximum Pressure
* Duty Cycle – 70/30
* Maximum continuous running 30-60 min. (Depending PSI & CFM)
* Air Output Port: 3/8″ NPT
* Air Input Ports: 1/2″ NPT (with 2.0 Hp Air Filters attached)
* 220v / 60 hz / 1-PH
* Low Amp Draw – 7.5 Amps
* 40 pounds

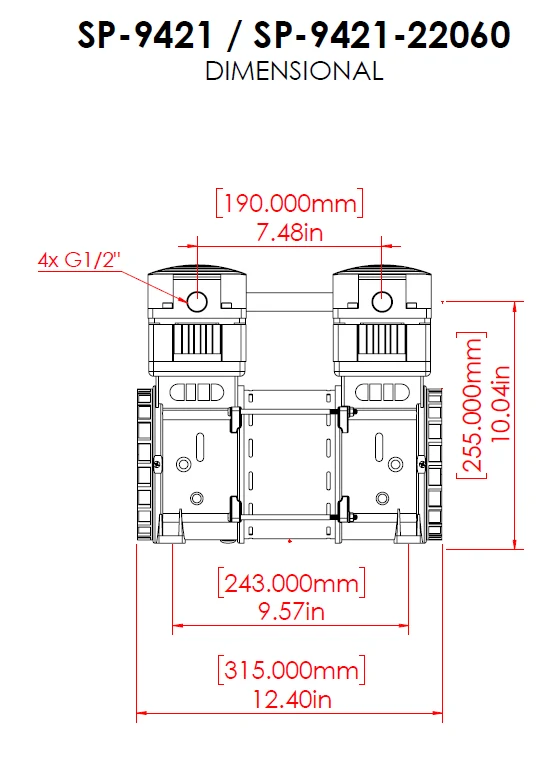

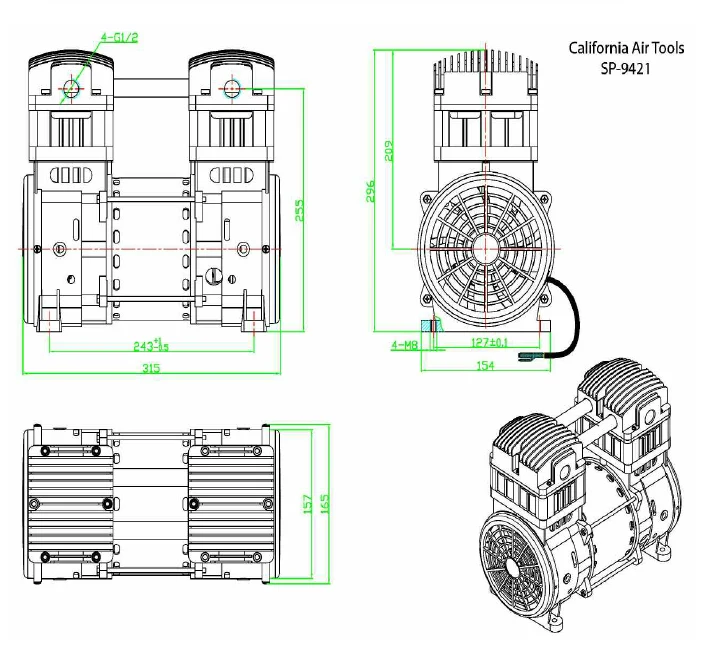

* L (12.4″) x W (6.1″) x H (11.7″)

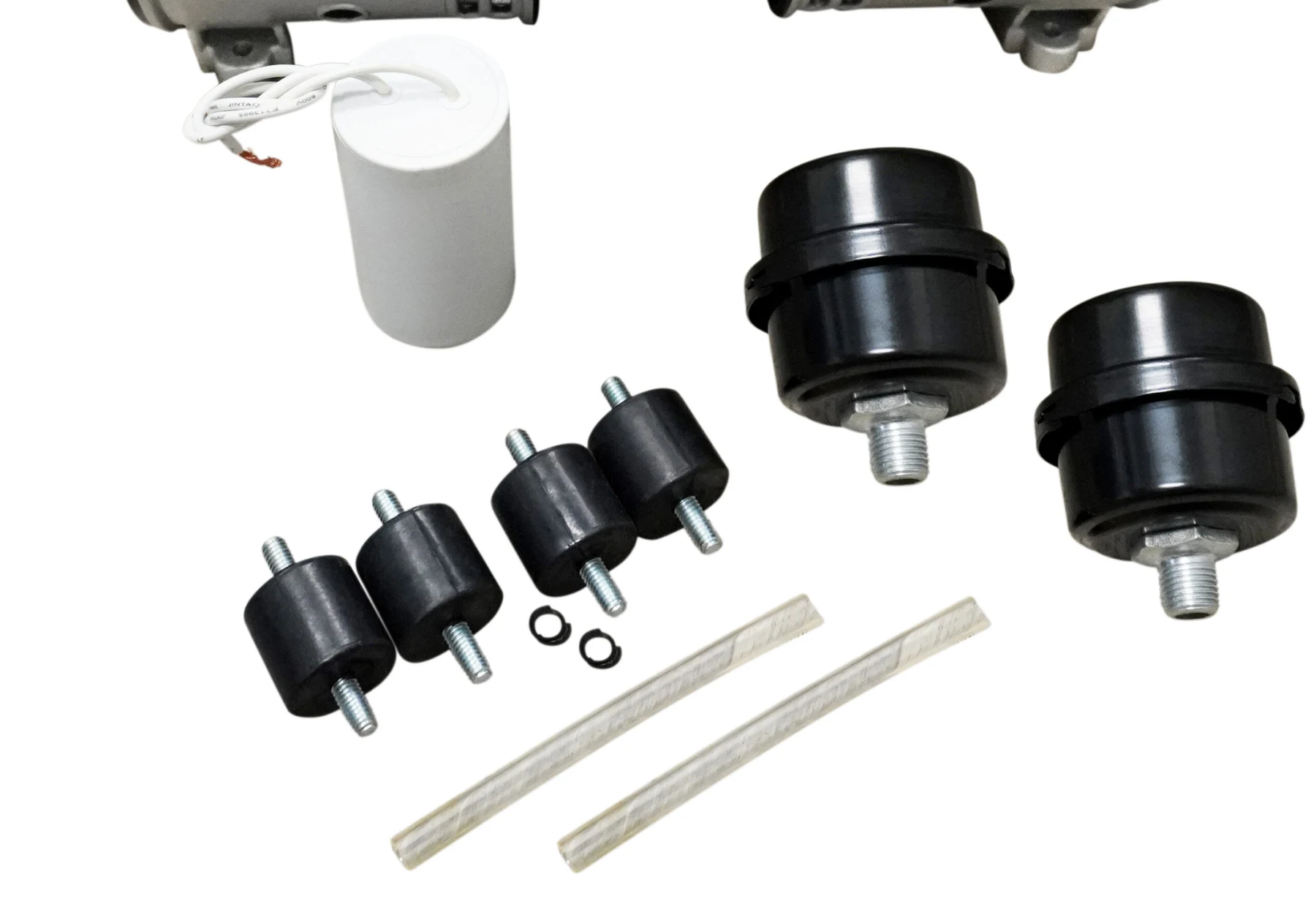

* Comes complete with
(1) Capacitor, (2) 2.0 Hp Air Filters and (4) Shock Struts
NOTE: 35uF start capacitor
* Installation Requirement: Unloader and/or Bleeder Valve Required
* 1 Year Limited Warranty
* ETL Certified
Supports California Air Tools Air compressor models: CAT-4620AC-22060, CAT-10020C-22060, CAT-10020CAD-22060, CAT-10020CHAD-22060, CAT-15020C-22060 (first generation), CAT-20020-22060, CAT-20020AD-22060, CAT-20020CTR-22060, CAT-10020DC-22060, CAT-10020DCAD-22060, 10020HDCADC-22060, CAT-20040C, CAT-20040CAD, CAT-20040SM, CAT-20040SMAD, CAT-20040DSMAD, CAT-20040DSMADC, CAT-20040DCAD, CAT-20040DCADC, CAT-20060CAD, CAT-20060DCC, CAT-60040CAD, CAT-60040SMAD, CAT-60040DCAD, CAT-60040DCADC, CAT-60040DSMADC
NOTE: This is NOT an air compressor. This is a replacement motor-pump which can be easily installed into existing California Air Tools equipment.
CAUTION: If installing onto a Non-California Air Tools air compressor or unique application you will need to have the electrical and mechanical knowledge for properly installing this motor-pump. It is important to properly configure an UNLOADER valve and CHECK VALVE with the motor pump (to correctly bleed pressure off of the pistons) otherwise damage to motor may occur.
California Air Tools Air Compressor SP-9421-22060 Motor Owner’s Manual 9-16
