1.0 HP (Rated/Running) – 2.0 HP (Peak)
8.0 Gallon Steel Air Tank
3.10 CFM @ 40 PSI
2.20 CFM @ 90 PSI

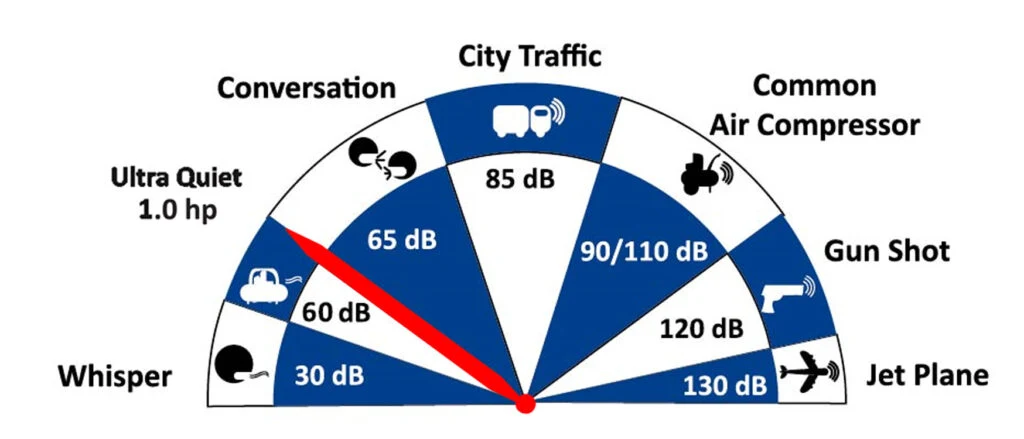

60 dB Noise Level
Easy-To-Use Home or Business Painting Solution

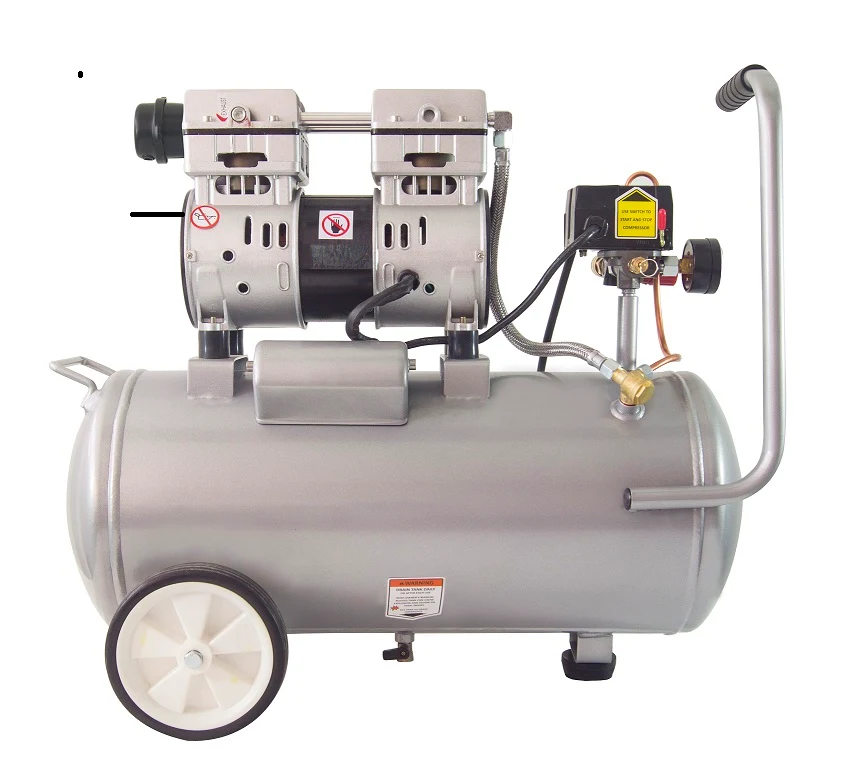

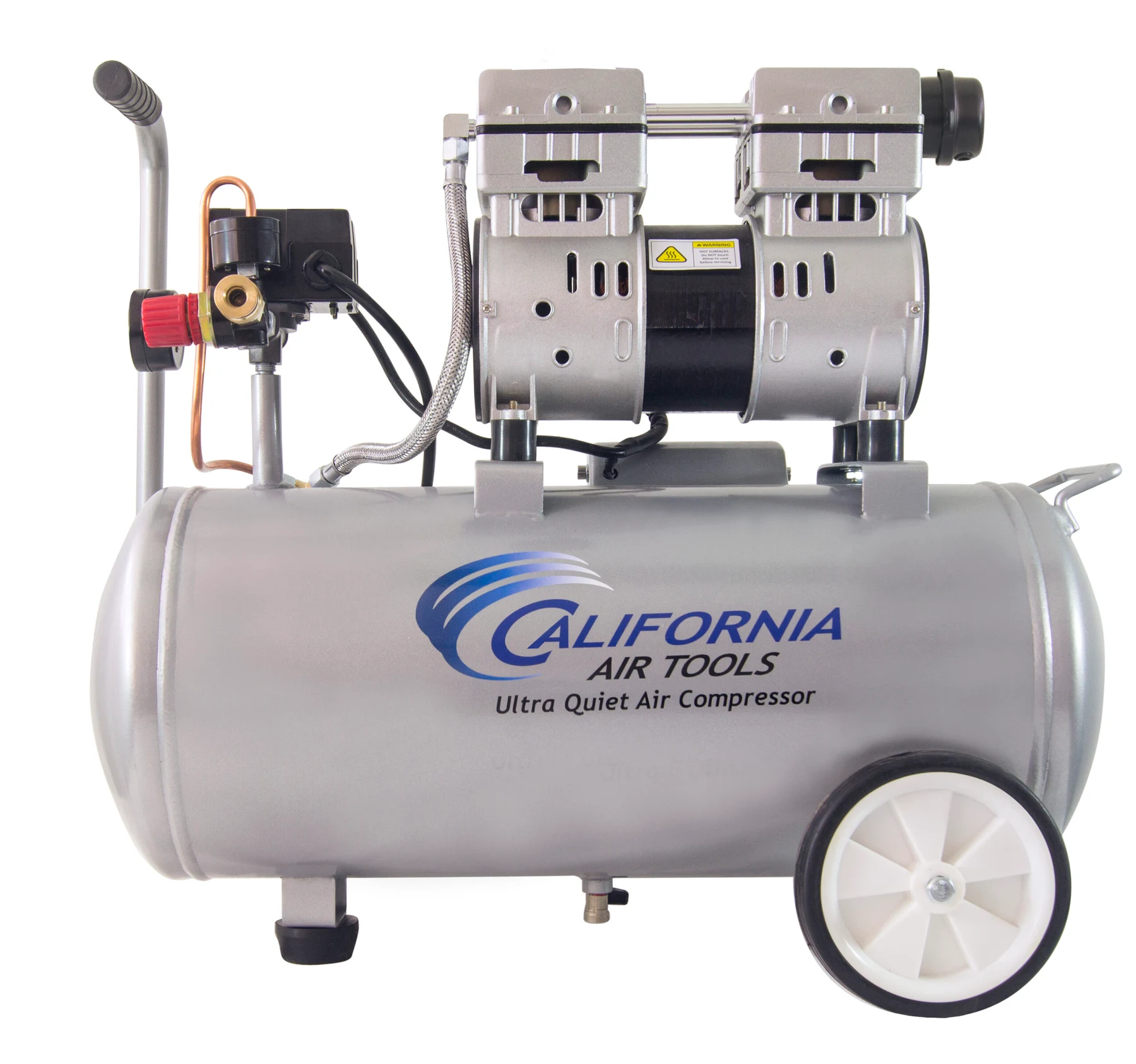

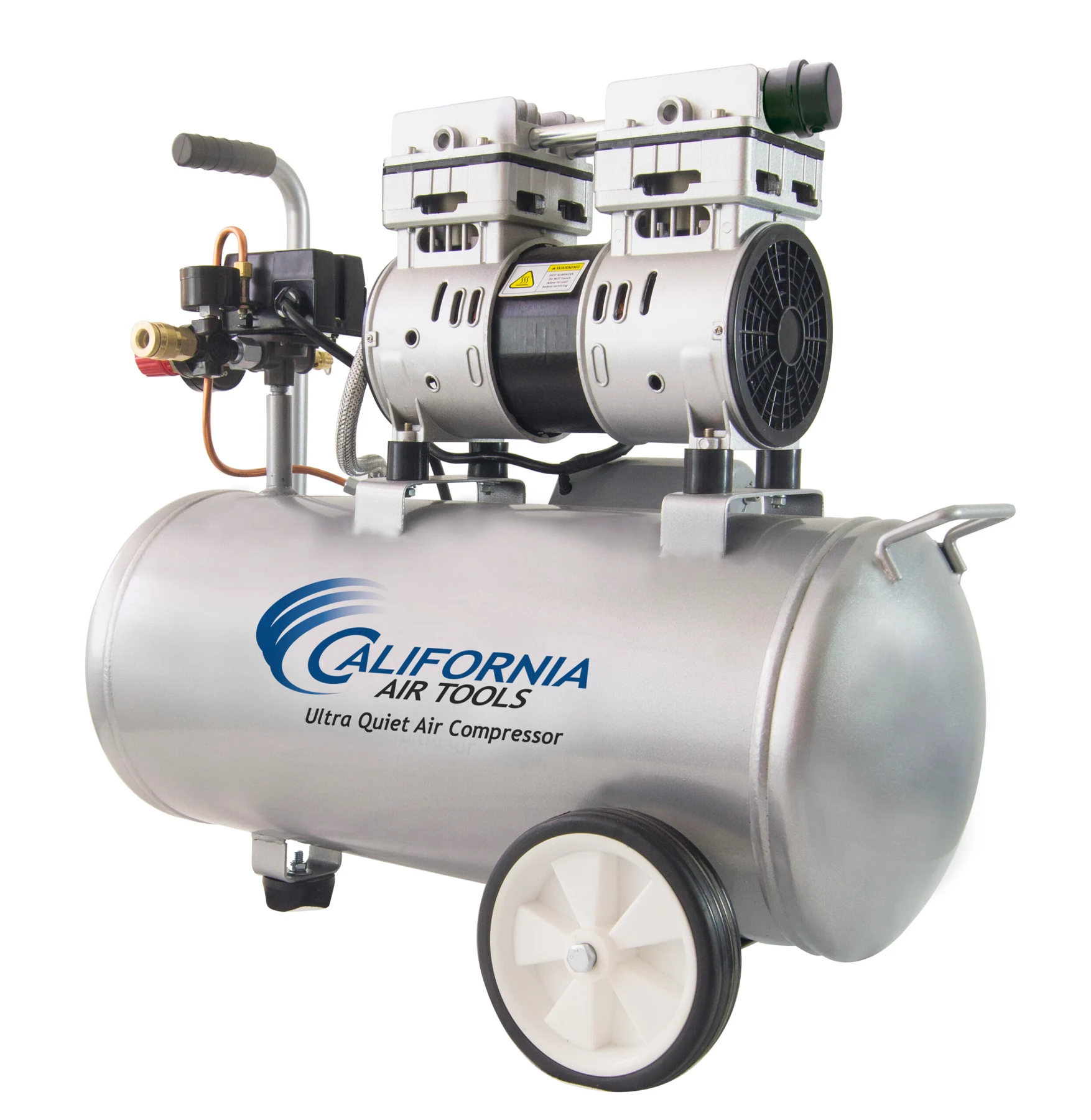

The CALIFORNIA AIR TOOLS 8010 Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest air compressors in the industry having only 60 decibels of sound.
The California Air Tools 8010PK with LVLP Gravity Feed Spray Gun can be used for variety of different applications such as Automotive, Industrial, Marine and Wood Working. The LVLP spray gun requires less air allowing you to use a smaller air compressor.
CAT-8010PK Bundle/Kit Includes (50 lbs):

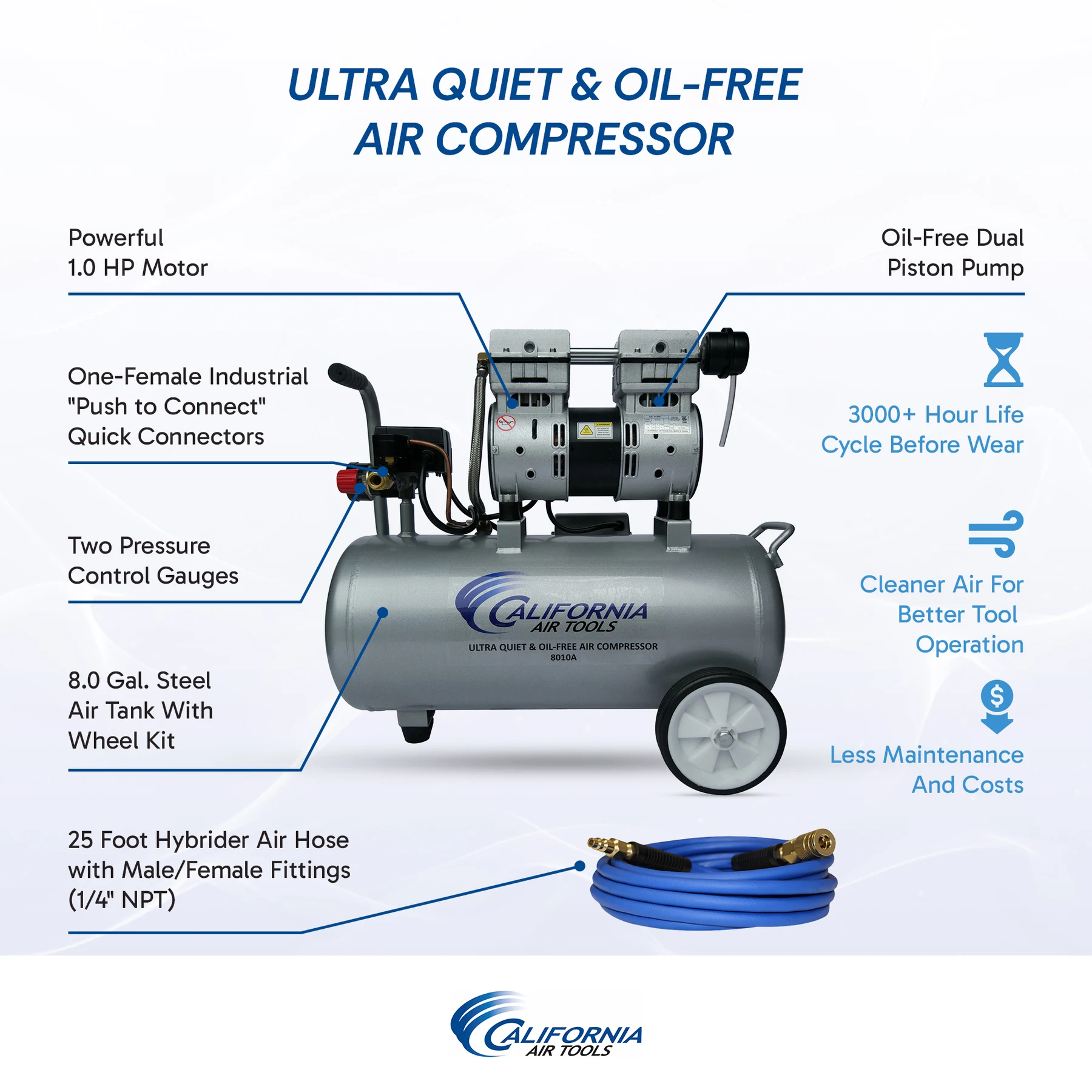

- 8010 Ultra Quiet Air Compressor (8 gal, 1 hp, 60 dB)

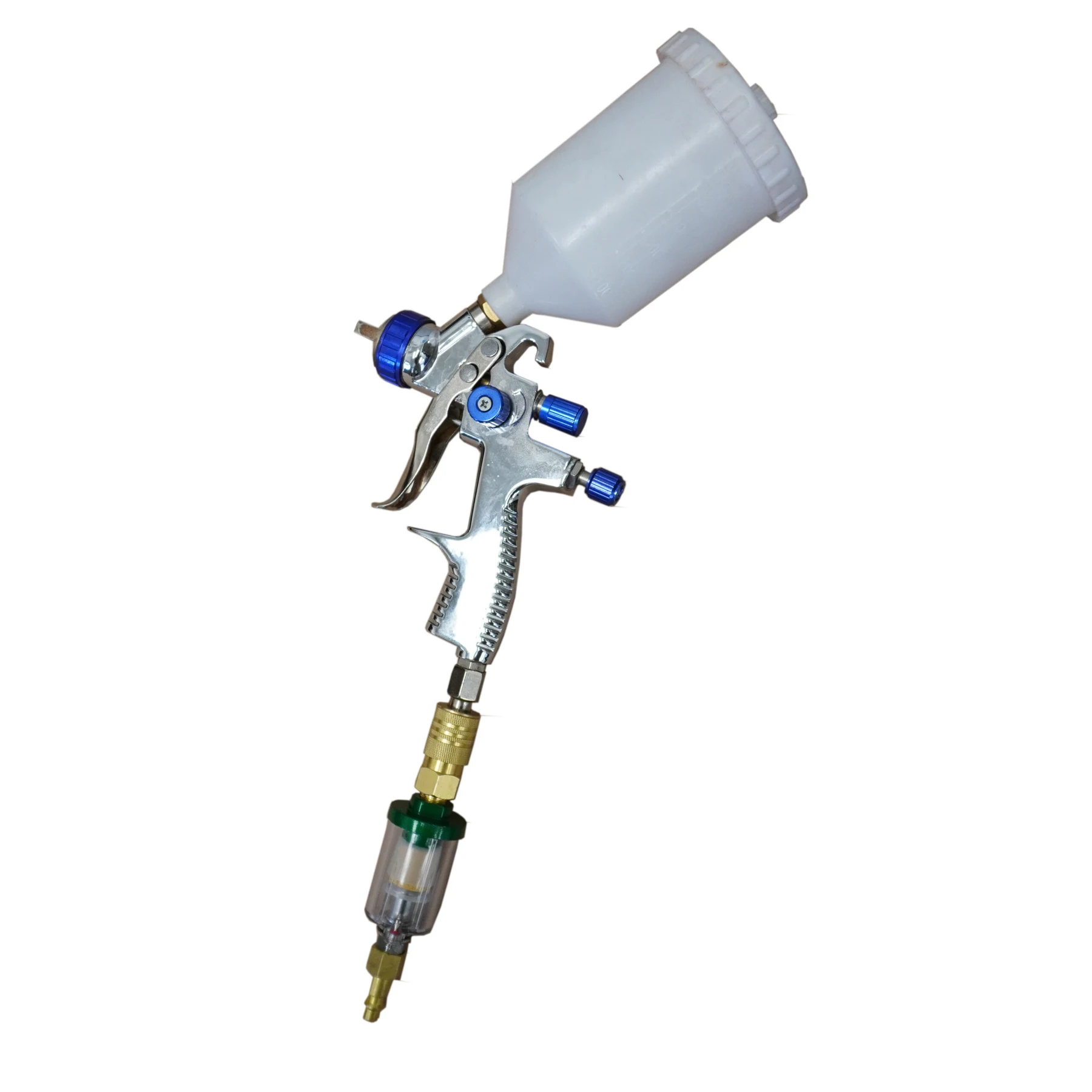

- CAT-33000 LVLP Spray Gun (1.3mm) with 20 oz Gravity Cup

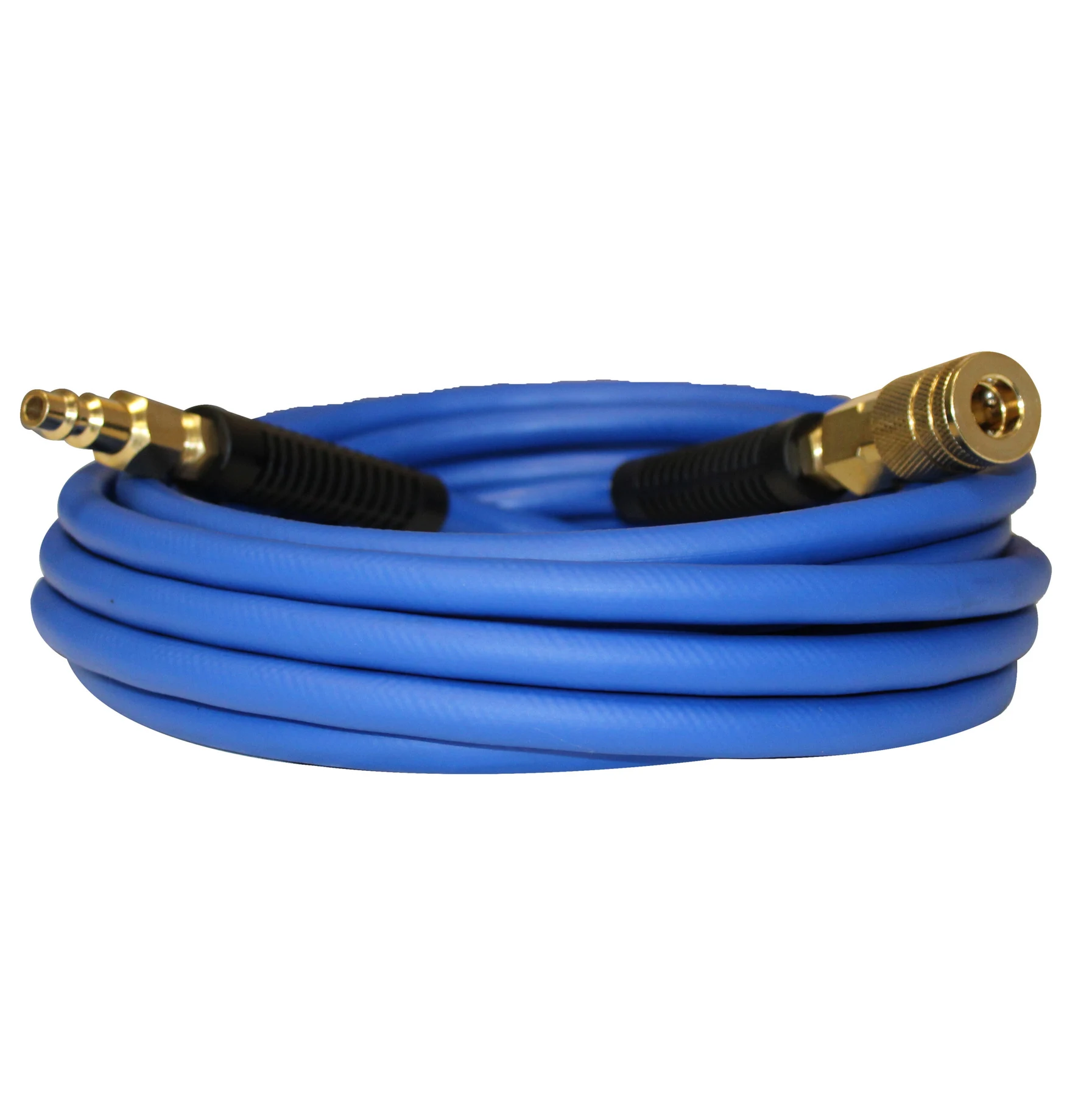

- 25 Foot Hybrider Air Hose with Male/Female Fittings (1/4″ NPT)

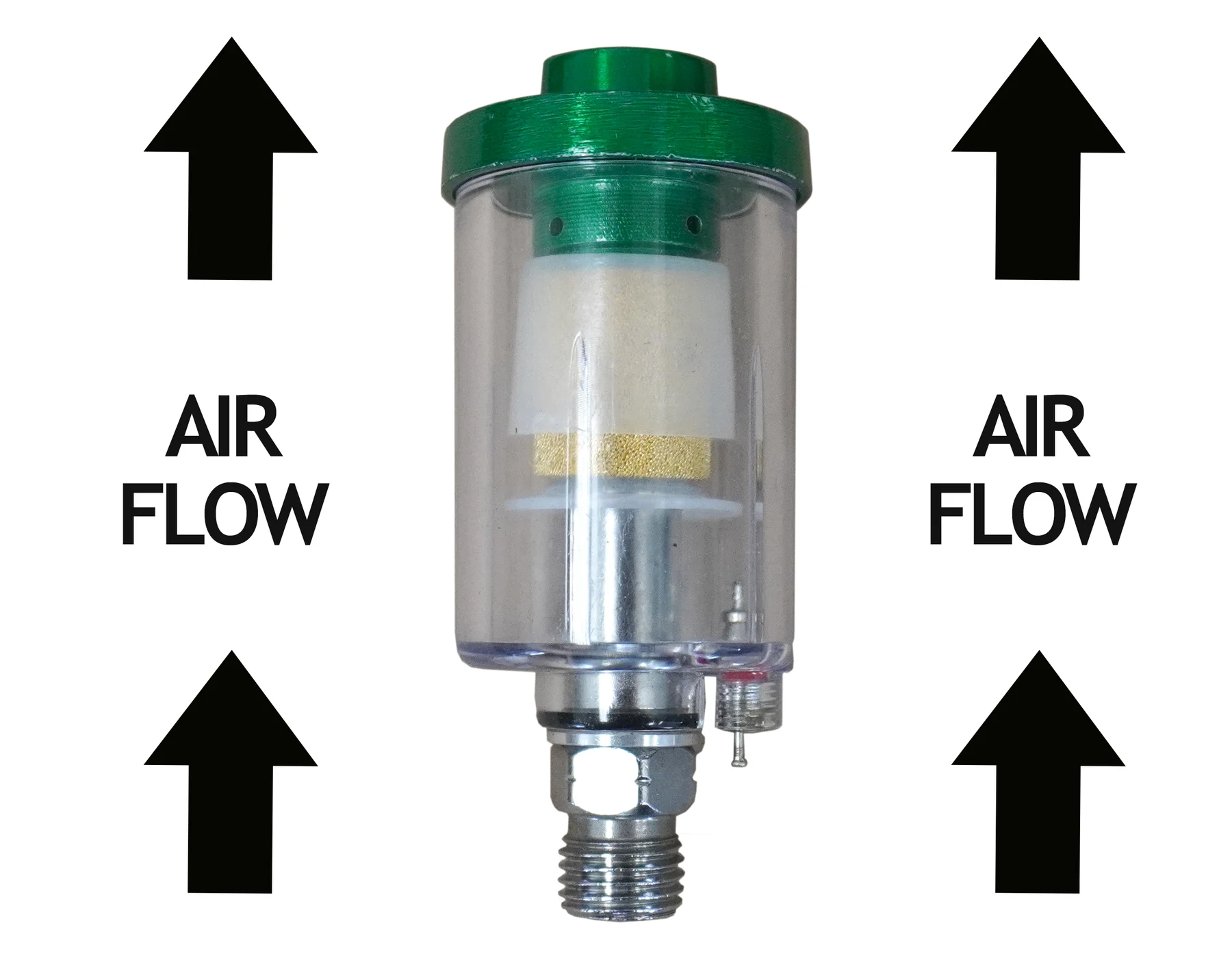

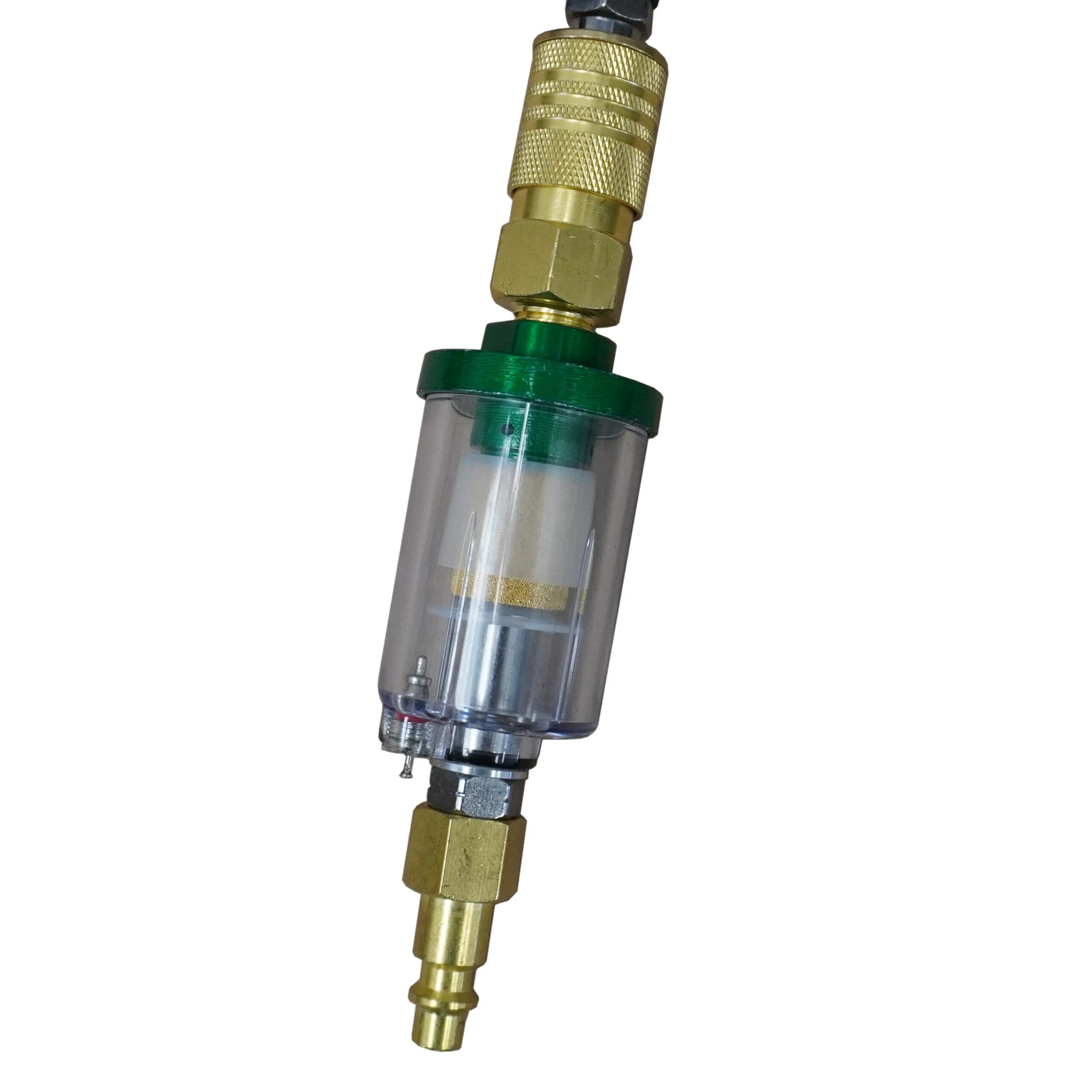

- Water Separator (317)
- Industrial Female Adapter (1/4″ NPT)
- Industrial Male Adapter (1/4″ NPT)

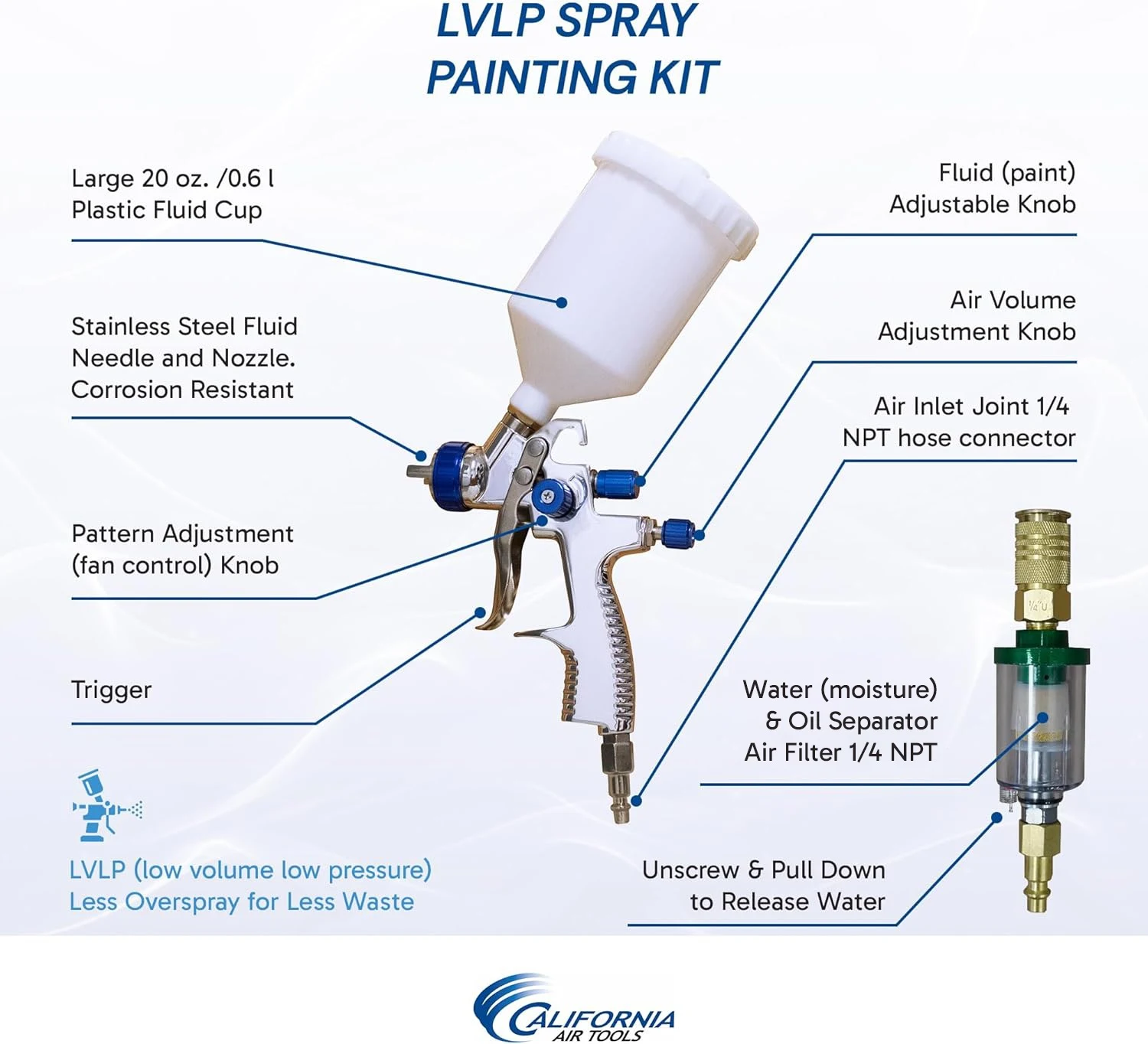

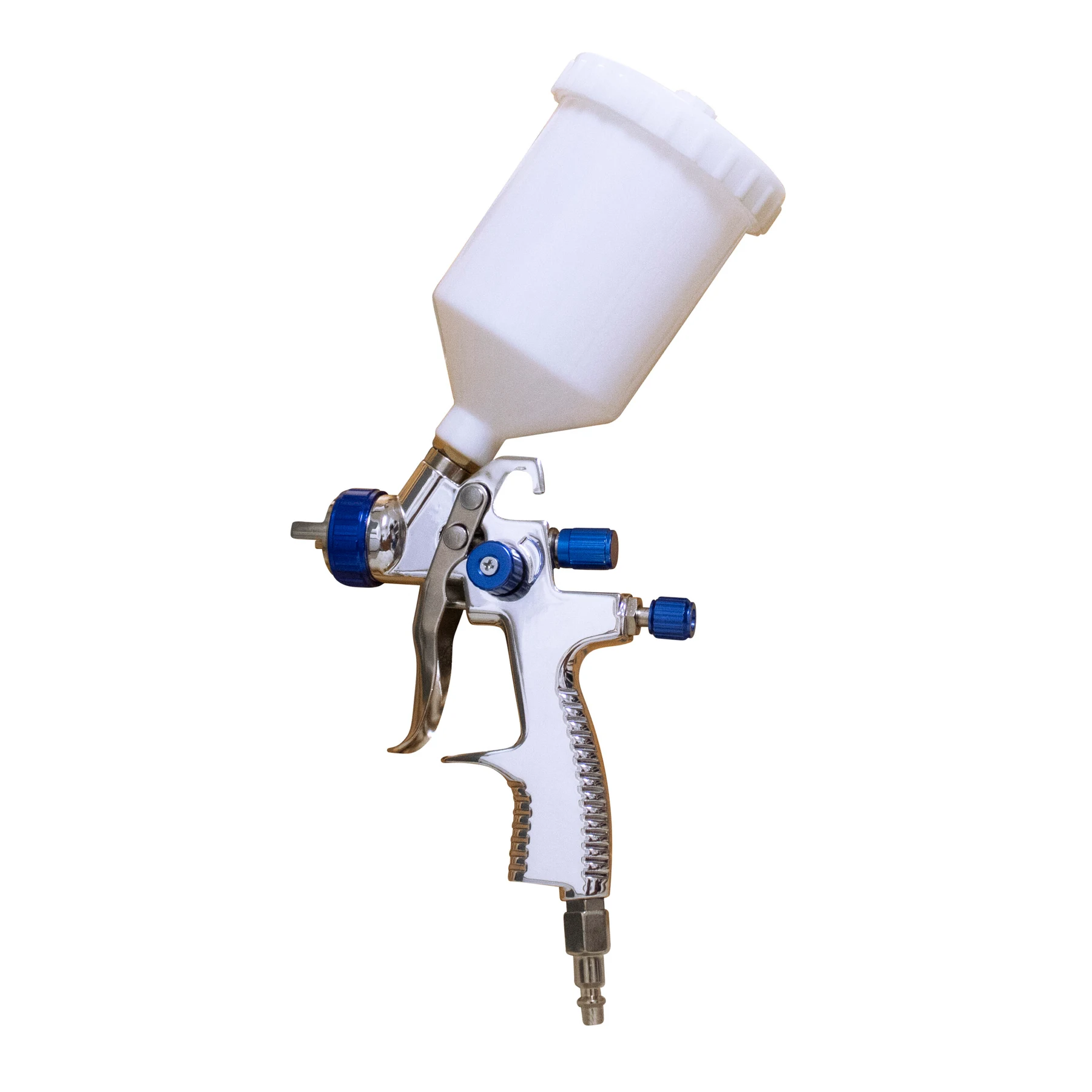

Using the LVLP Spray Gun reduces overspray and allows you to spray larger surfaces without having to stop. The one-piece Lightweight Aluminum Gun Body makes working with this spray gun very easy. The Stainless Steel Fluid 1.3 mm Needle and Nozzle are corrosion resistant. Ideal for low-viscosity quick dry coatings including stains, lacquers, enamels, urethanes, automotive, polyesters, acrylic, solvent, etc.**
The separate and adjustable fluid fan pattern and air controls make for more precise fan patterns and less waste. Good for use with lacquers, enamels, stains, urethanes and fast dry low viscosity coatings.
The powerful 1.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-8010 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures and uneven terrains.
The large 8.0 Gallon Steel Air Tank is Lightweight (48 lbs) and the wheel kit makes it very easy to transport.
This air compressor is ideal for anyone working inside where noise is a major issue.

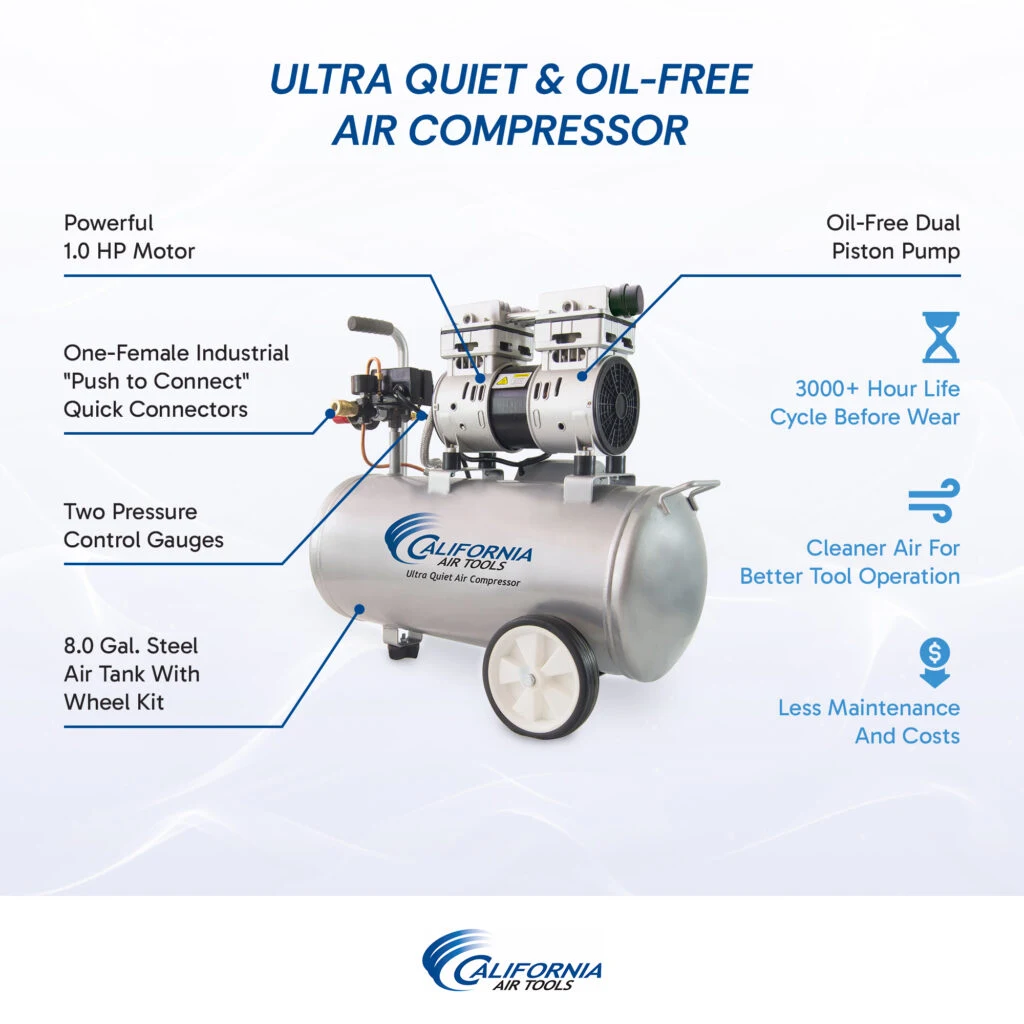

Features:
* Ultra Quiet – Only 60 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.

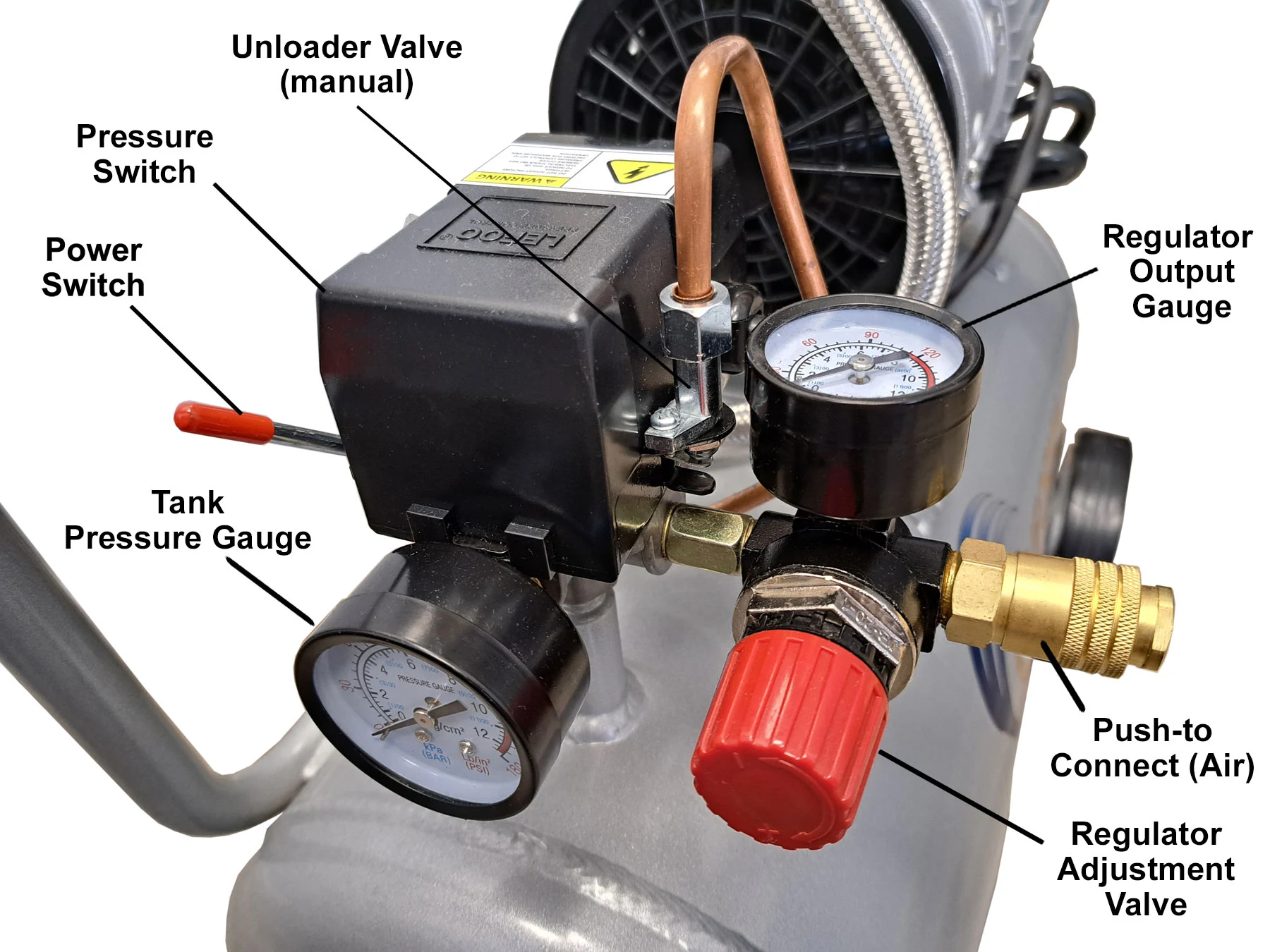

* Two pressure control gauges
* One- Female industrial “Push to Connect” quick connectors
* Thermal Overload Protector
* 120 PSI Maximum Pressure
* 110v / 60 hz – Generator 2500 (running) Watts Min.
* Low Amp Draw – 8.5 Amps
* Time to fill tank from empty to full – 165 Seconds
* Recovery time from 90 PSI to 120 PSI – 60 Seconds
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 8.0 Gal. Steel Air Tank With Wheel Kit
Only 48 pounds and easy to move around.

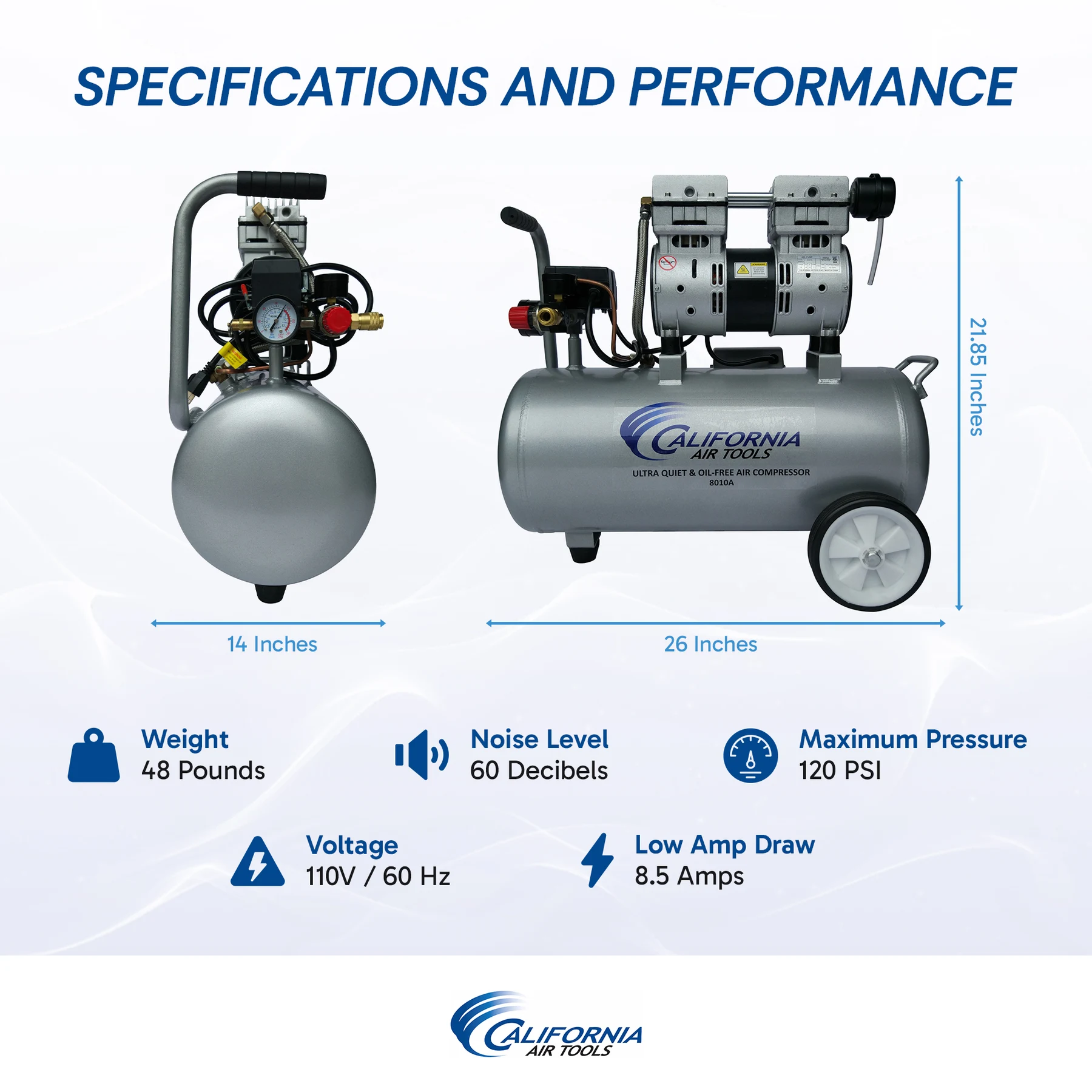

* L (26″) x W/D (14″) x H (23″)
* 50 lbs
* UL/CSA Certified
* 1 Year Limited Warranty
* Comes complete with Wheel Kit & Air Filter
* Commercial Use: Refer to State & City Codes
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 1 Hp air filter (attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90227
