2.0 HP (Rated/Running)
20 Gallon Steel Air Tank
6.40 CFM @ 40 PSI
5.30 CFM @ 90 PSI
110 Volts 60 Hertz

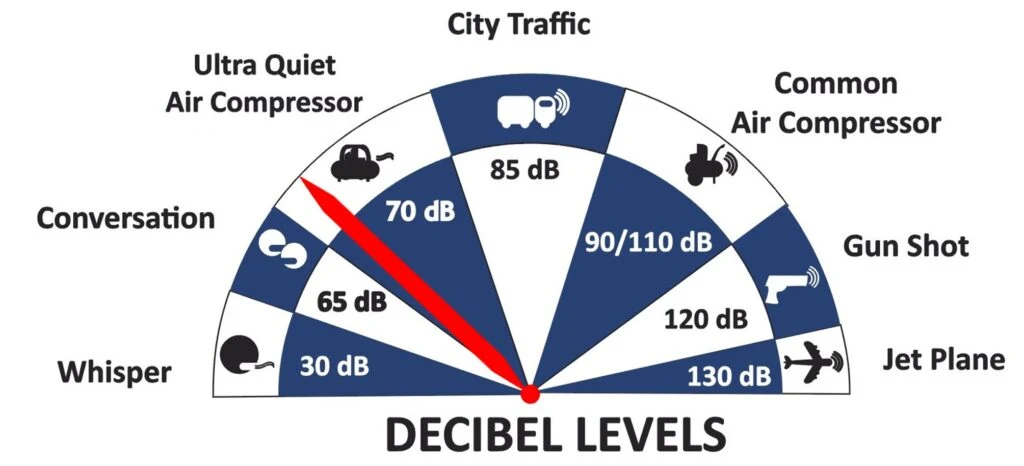

70 Decibel Noise Level
Ideal solution for Mobile Tire Service and Repair Vans and Trucks!

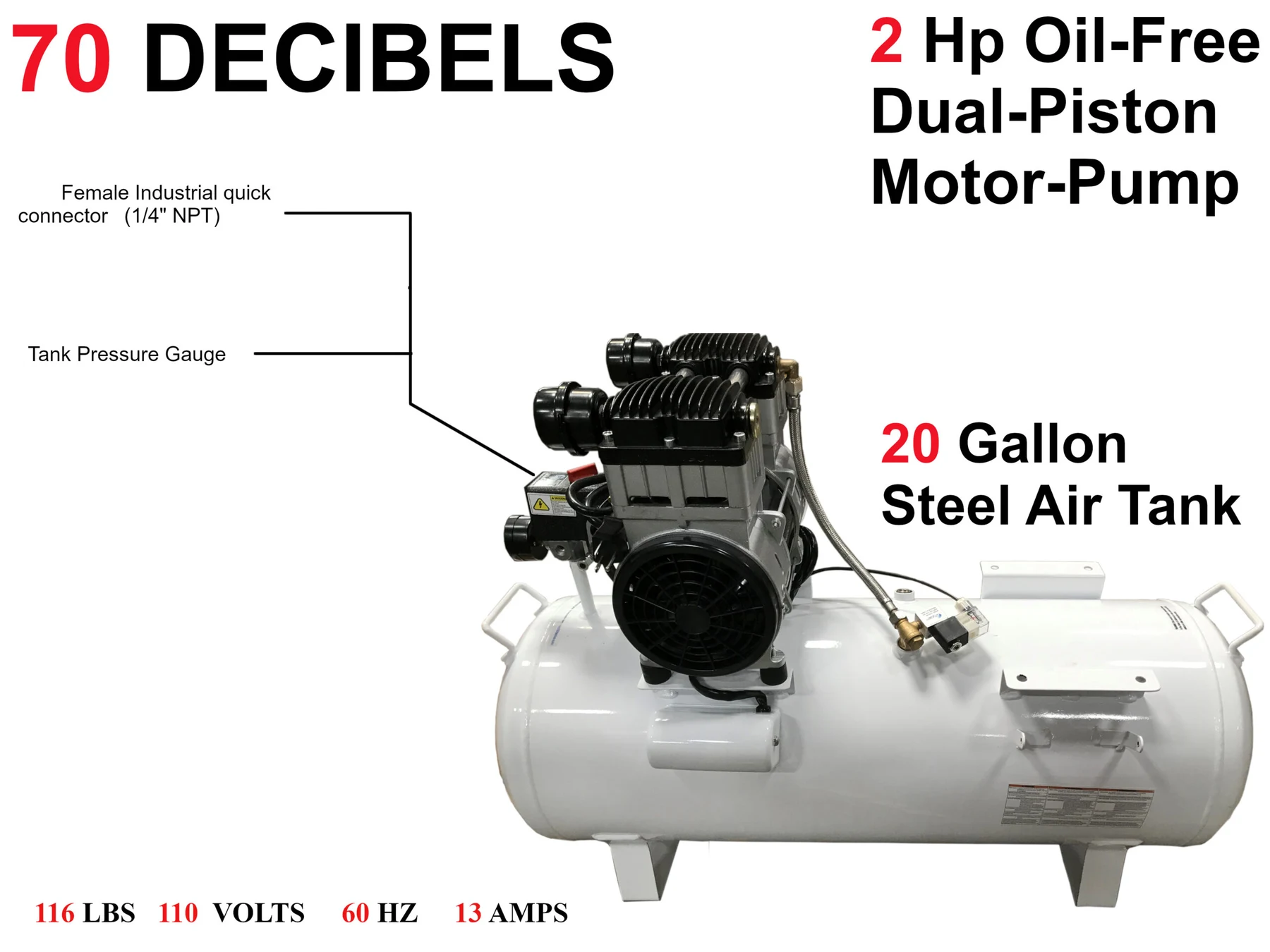

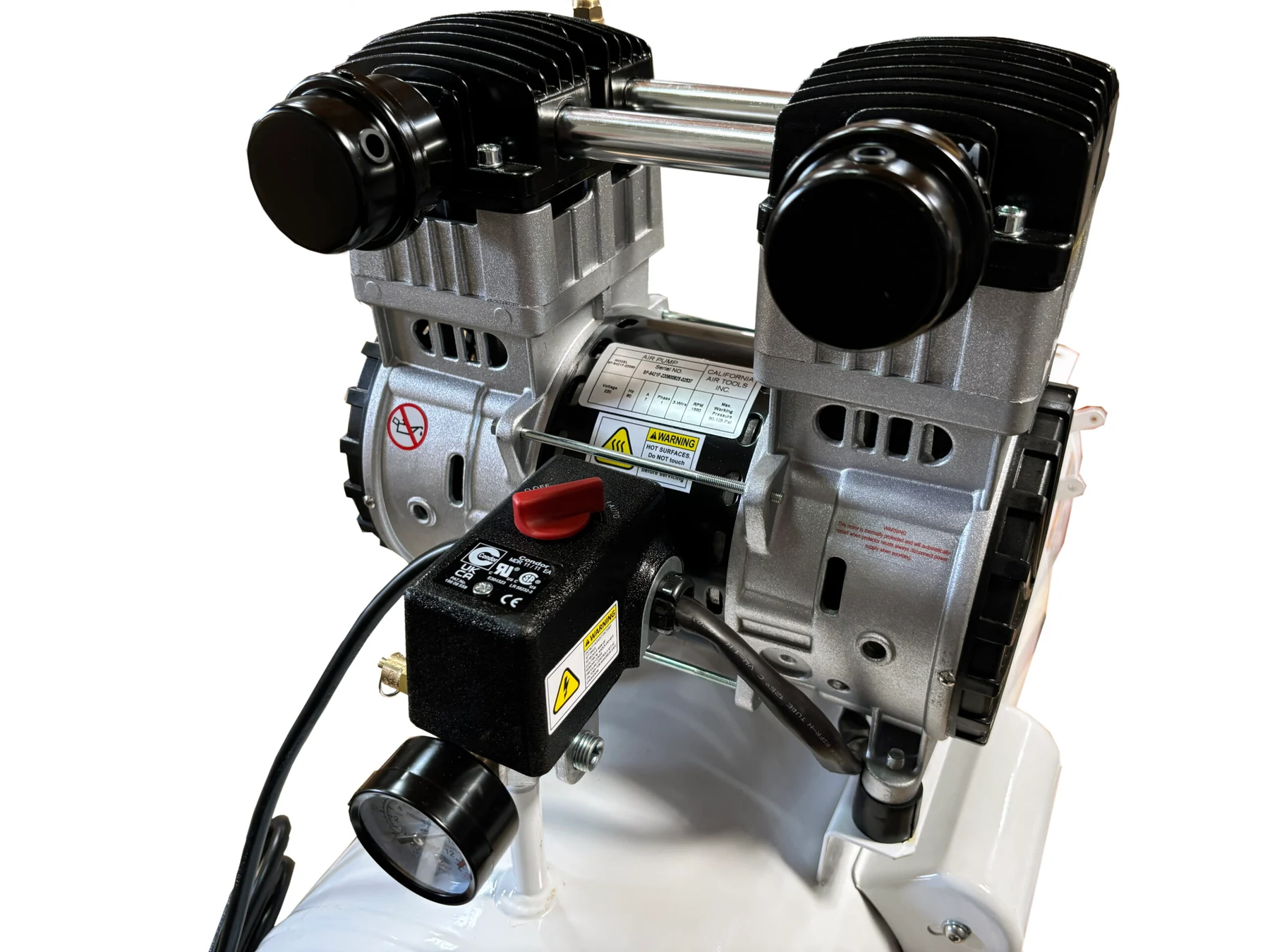

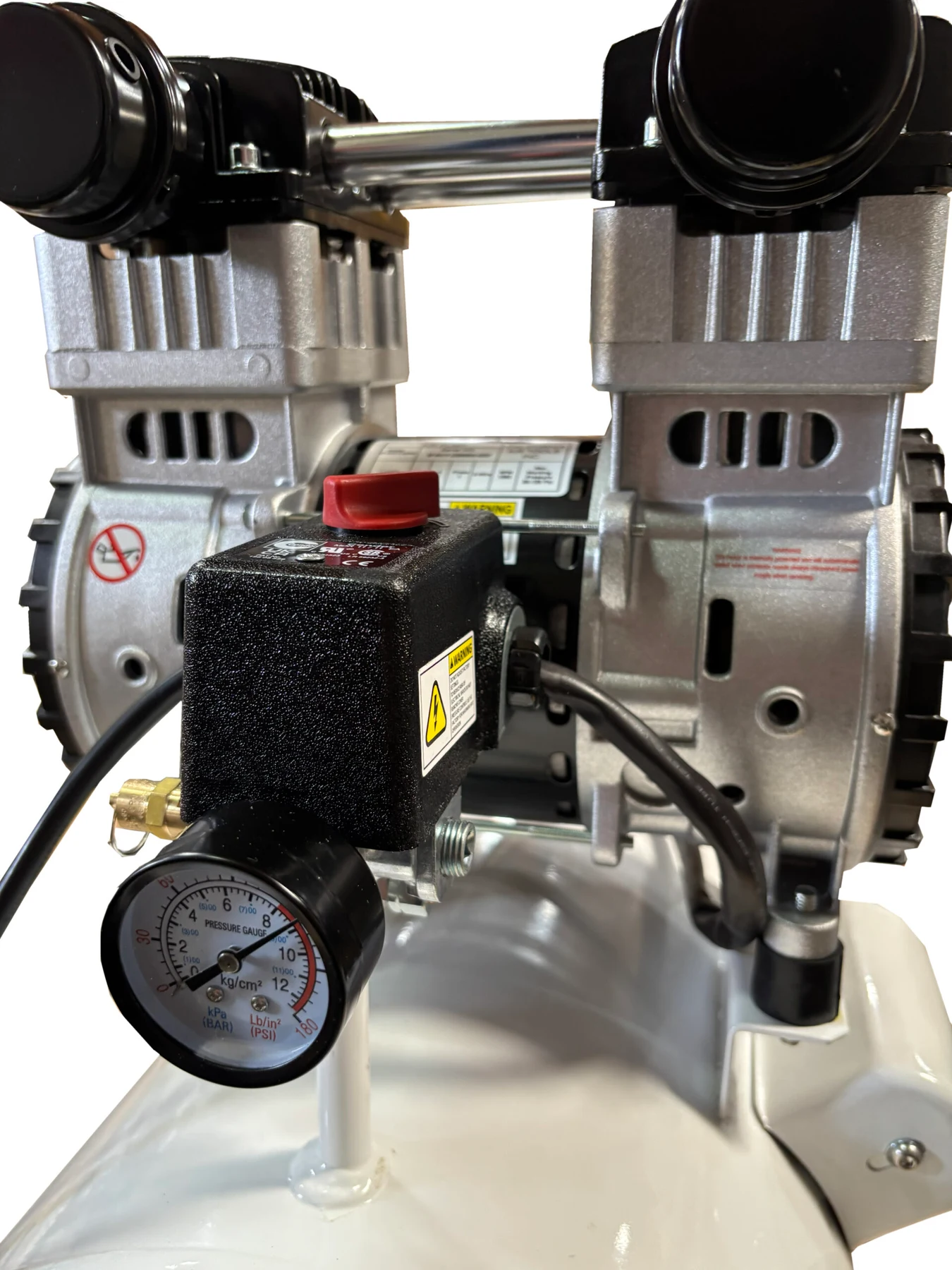

The CALIFORNIA AIR TOOLS 20020CTR (110 Volts 60 Hertz) Ultra Quiet & Oil-Free Air Compressor, which uniquely features a single 110 volt motor/pump on a 20 gallon horizontal steel tank, is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear. The SP-9421 Ultra Quiet Air Compressor Motor (110v 60hz) is designed to increase duty cycle and allow for longer continuous run times.

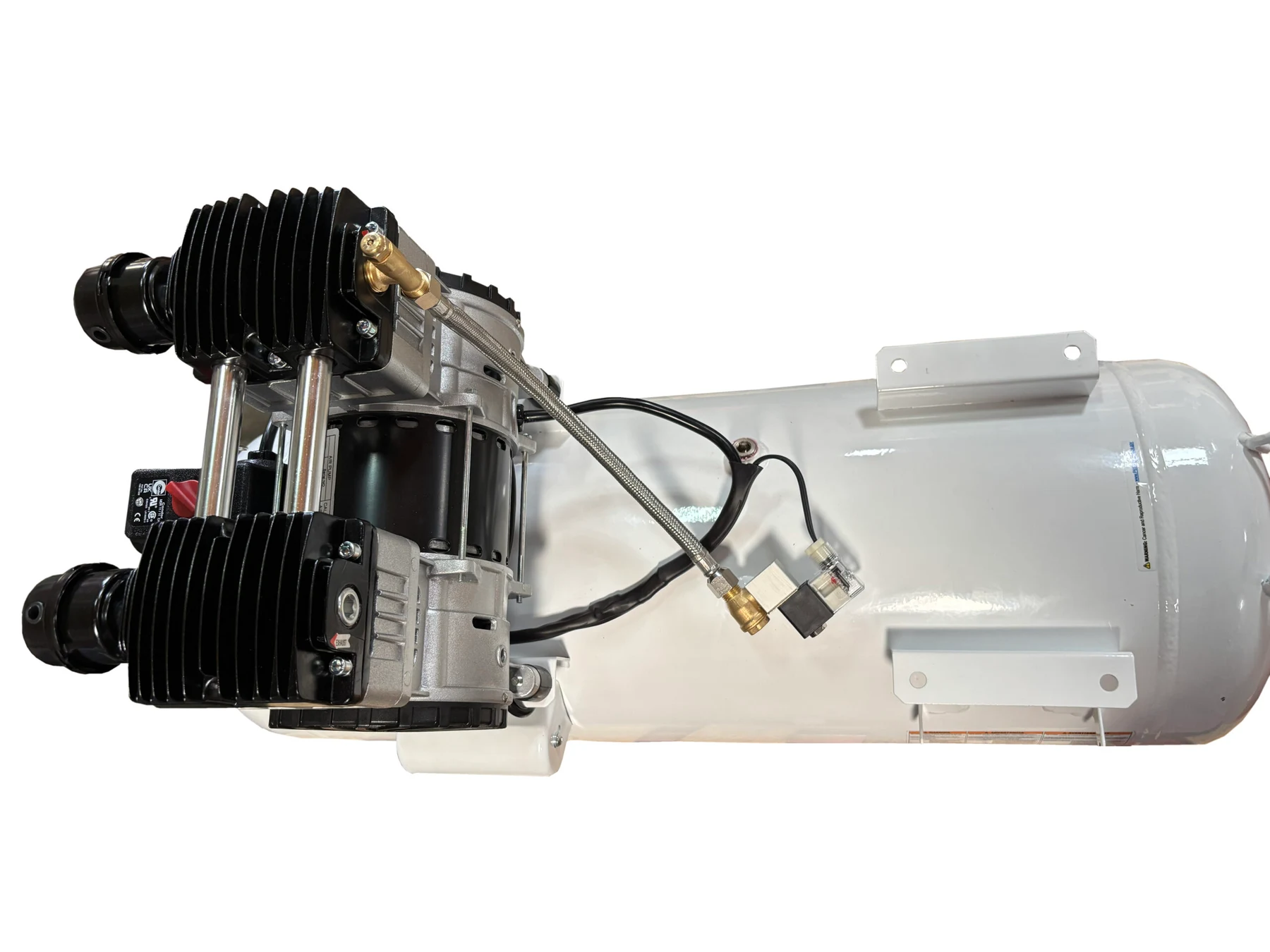

The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20020CTR Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

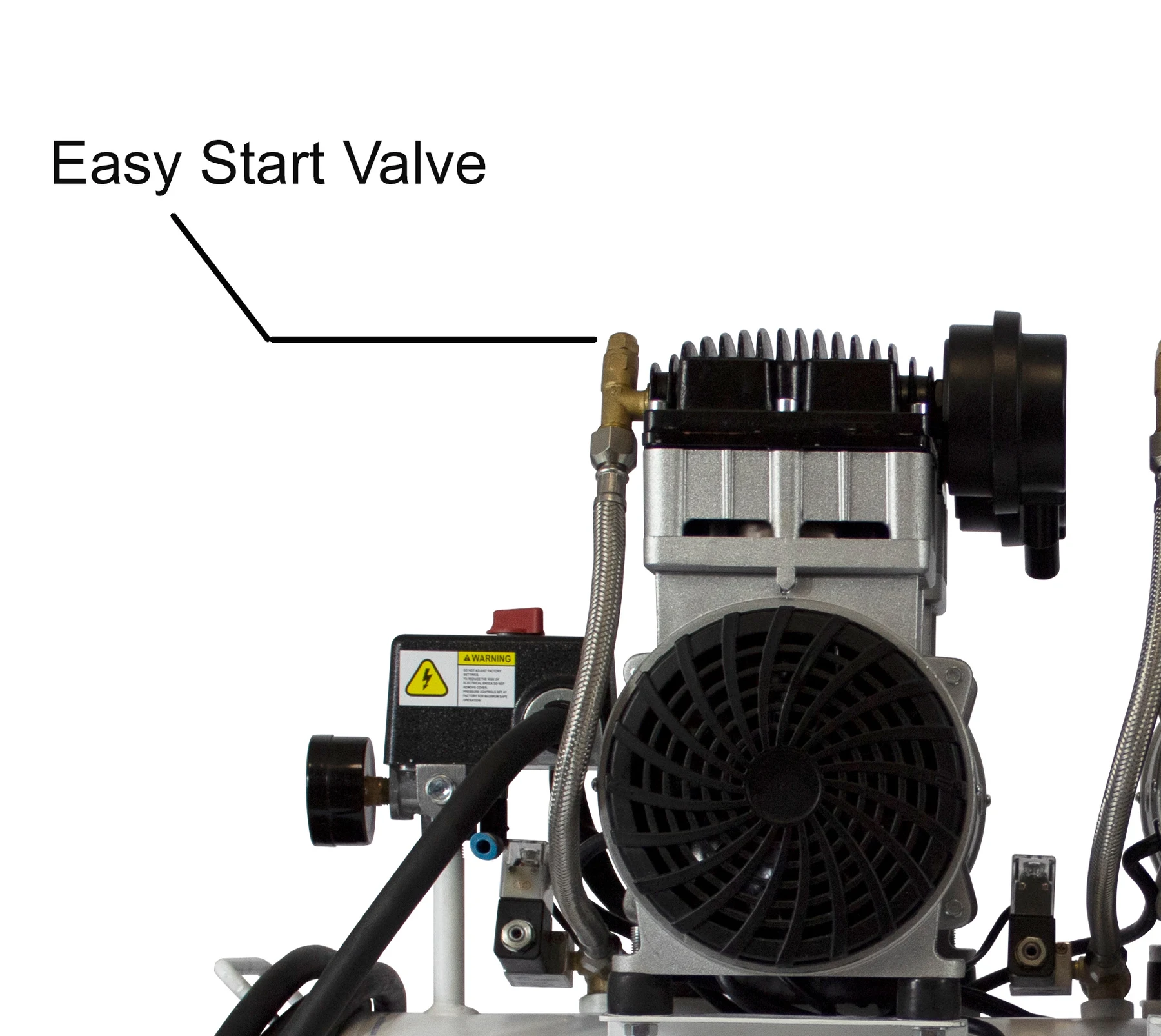

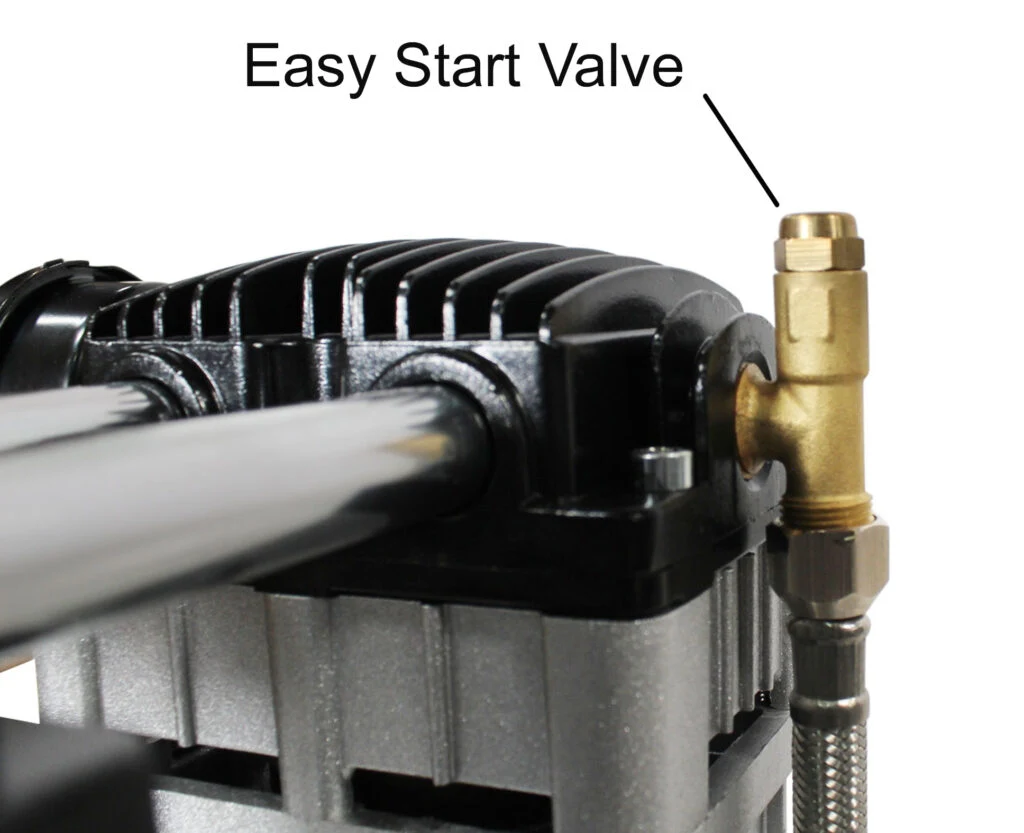

The Easy Start Valvefeature allows for a easier start up using less starting amps.The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.

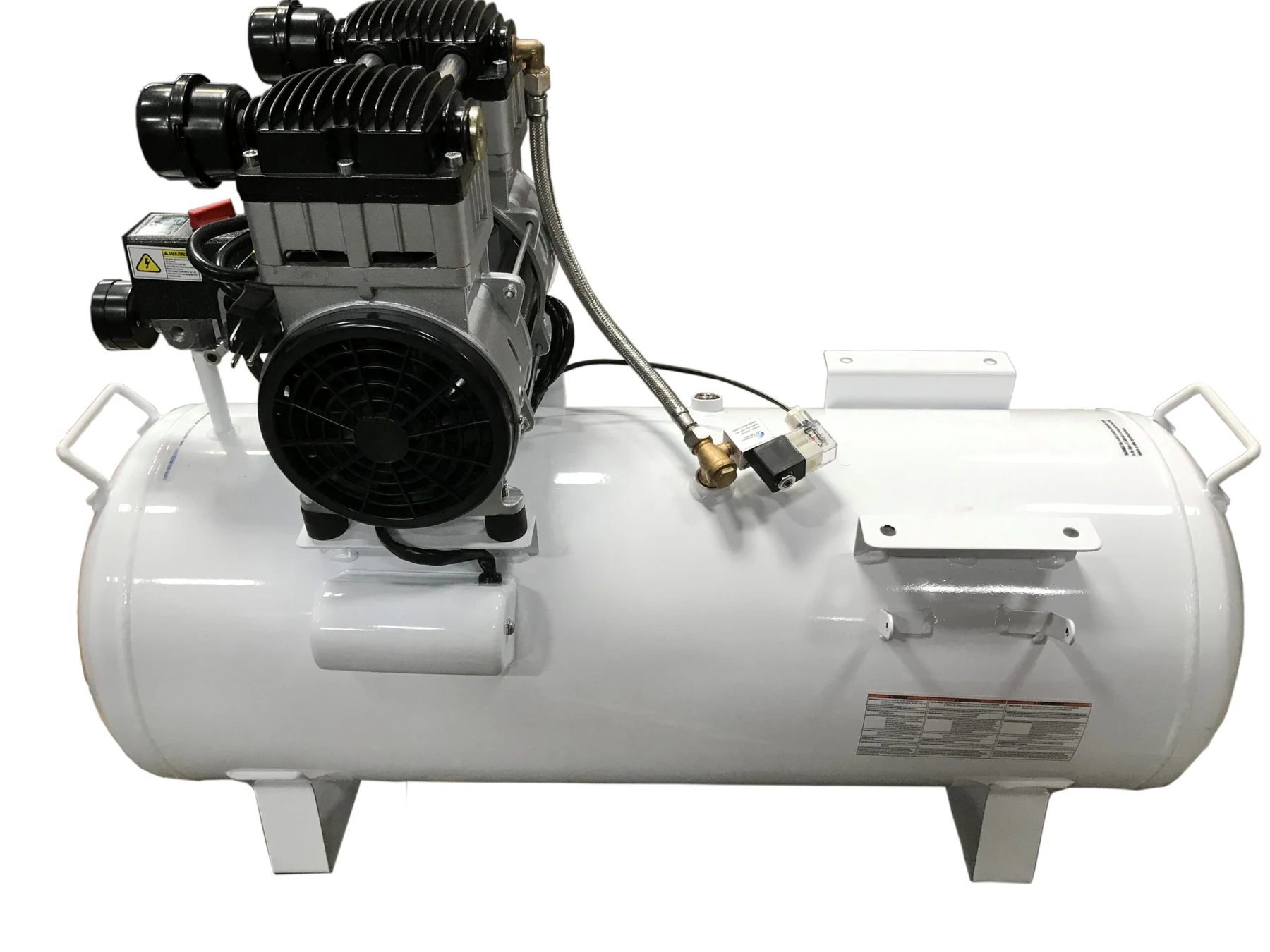

The large 20 Gallon Steel Air Tank is designed for mobile service vans or trucks which perform tire service and repair. Stores more air for higher demand air tools such as spray guns and sanders and perfect for the shop or garage.
Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Video – Air Compressor Noise Comparison Testing
Features:
* Ultra Quiet – Only 70 decibels
* Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
* Two pressure control gauges
* Female Industrial “Push to Connect” quick connector (1/4″ NPT)
* Easy Start Valve – For Less Starting Amperage
* Pressure Switch
* Thermal Overload Protector
* Working Pressure 90-125 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
* 110v / 60 hz
* Generator 5500 (running) Watts Min. (~4000 watts/avg. during motor start)
* Low Amp Draw – 13 Amps
* Time to fill tank from empty to full – 4.00 Minutes
* Recovery time from 95 PSI to 125 PSI -1.00 Minute
* Duty Cycle – 70/30*
* Less heat which dissipates more efficiently
* 20 Gal. Steel Air Tank
* L (39″) x W (15″) x H (28″)
* 120 lbs
* Non-ASME Air Tank
* Plug Type: NEMA 5-15P (fits NEMA 5-15R standard 110v receptacle)
* 1 Year Limited Warranty
* Commercial Use: Refer to State & City Codes
* Assembled in USA with global components
PERIODIC MAINTENANCE REQUIREMENTS:
Replace 2 Hp air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90260
Add-On Options:
16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
California Air Tools Hybrider Flex 1/4in 25 Foot Hybrid Air Hose

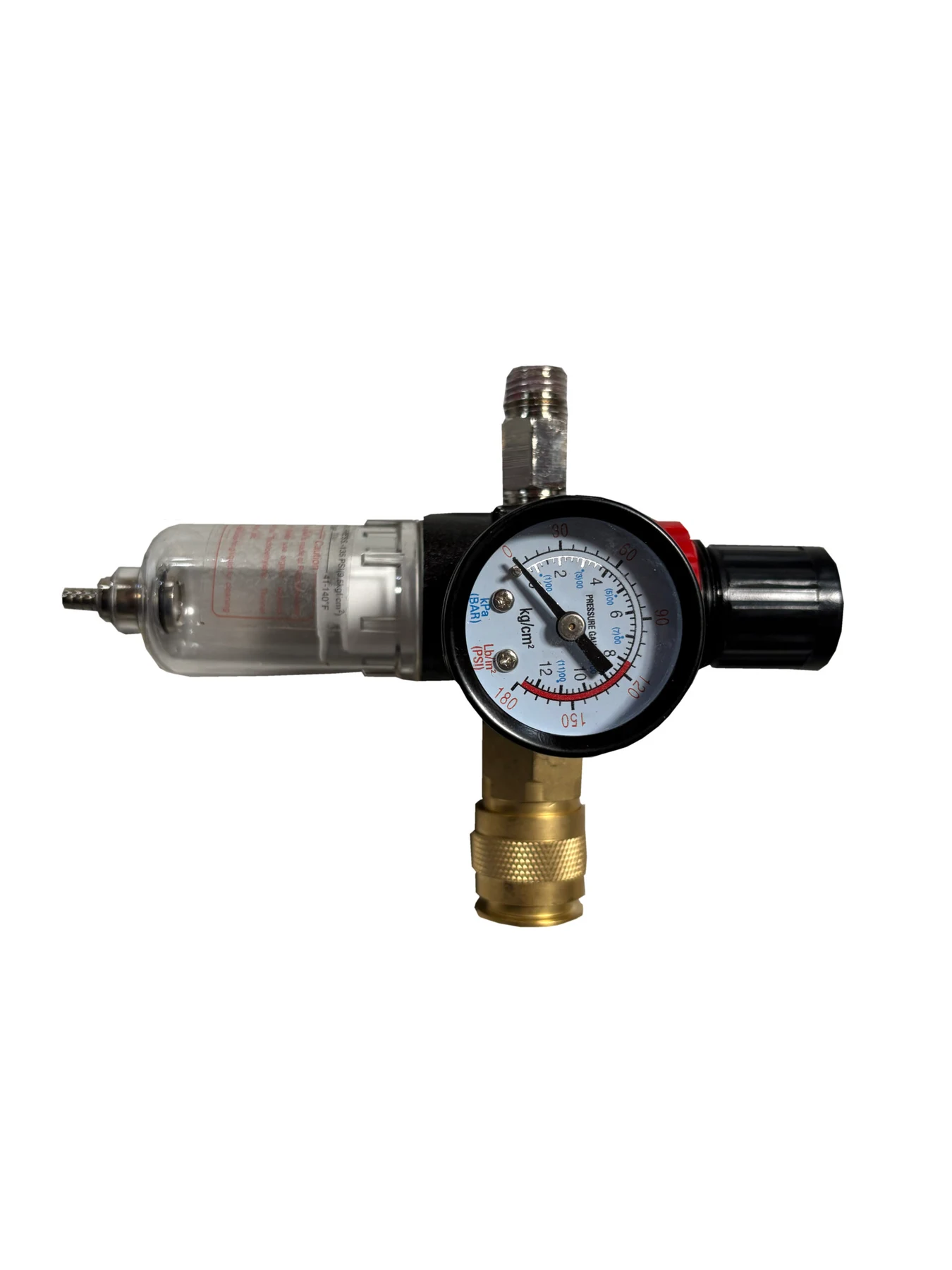

317 Water (moisture) & Oil Separator Air Filter 1/4 NPT
Refrigerated 98% Air Dryer, RD-91502, 110v 60hz (CLICK HERE)
SUPPORT VIDEO – How To Regulate Output Pressure on Your Air Compressor
SUPPORT VIDEO – How to Connect Air Hose to Air Compressor
*70/30 Duty Cycle – Click Here For More Information
