20.0 CFM @ 40 PSI
17.0 CFM @ 90 PSI
15 Amp
208/220 volts, 60hz, 3-PHASE
85 Decibel Noise Level
6.5 HP (Rated/Running)
The Powerful OLF-3500 6.5 Hp motor/pump operates at only 1700 RPM creating less noise and less wear. The Oil-Free OLF motor/pump is engineered for high performance and durability. The 3-Phase 208/220v Oil-Free pump allows for use in a variety of temperatures (cold starts; no oil in the pump).

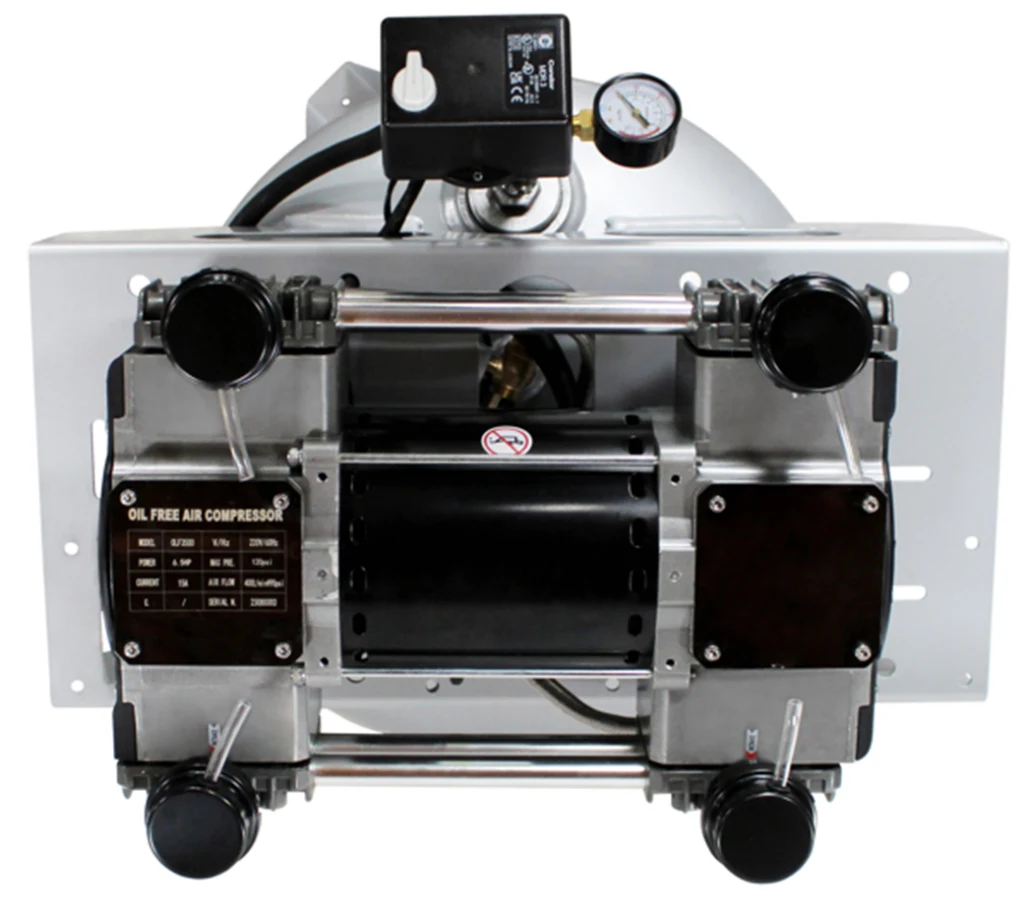

Directly supports California Air Tools Air compressor model: CAT-60065C (60-Gallon, 6.5hp, 220v 3-Phase)
FEATURES:
· Ultra Quiet only 85 Decibels
· Oil-Free Pump
· 20.00 CFM @ 40 PSI
· 17.00 CFM @ 90 PSI
· Maximum Pressure – 145 PSI
· Maximum Output Air Pressure – 480 lmin / 90 PSI*
· 208/220 Volts / 60 Hertz / 3-Phase (200-250vac operating volt range)
· Amp draw – 15.0 Amps (no capacitor)
· Thermal Overload Protector
· Low Vibration
· Less Heat – Dissipates heat more efficiently
* 58 pounds (62 lbs in packaging)

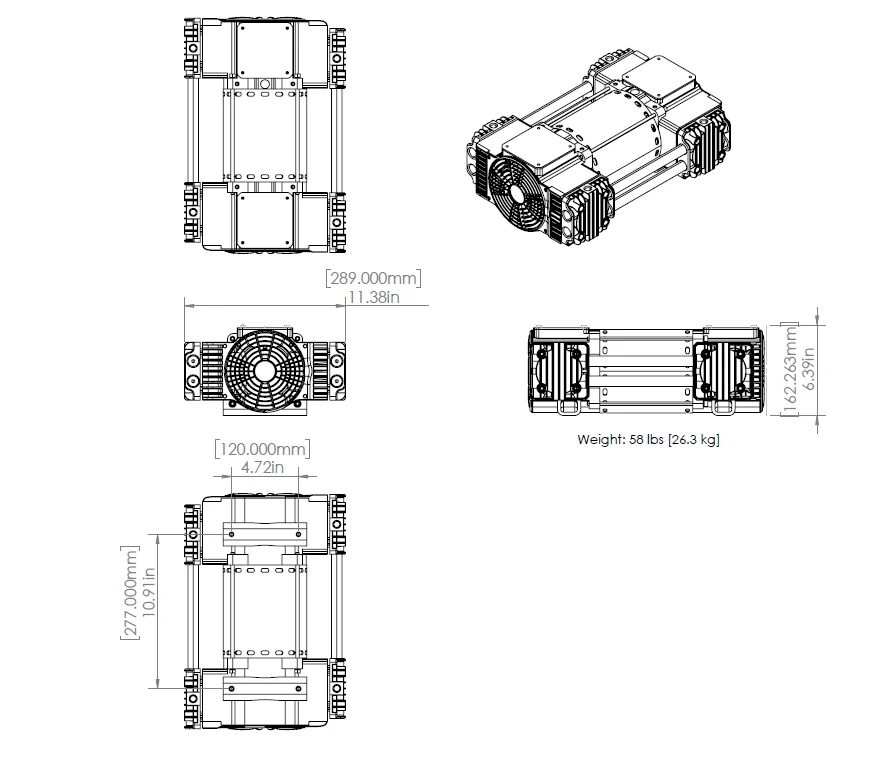

* L (11.5″) x W (6.5″) x H (6.4″)

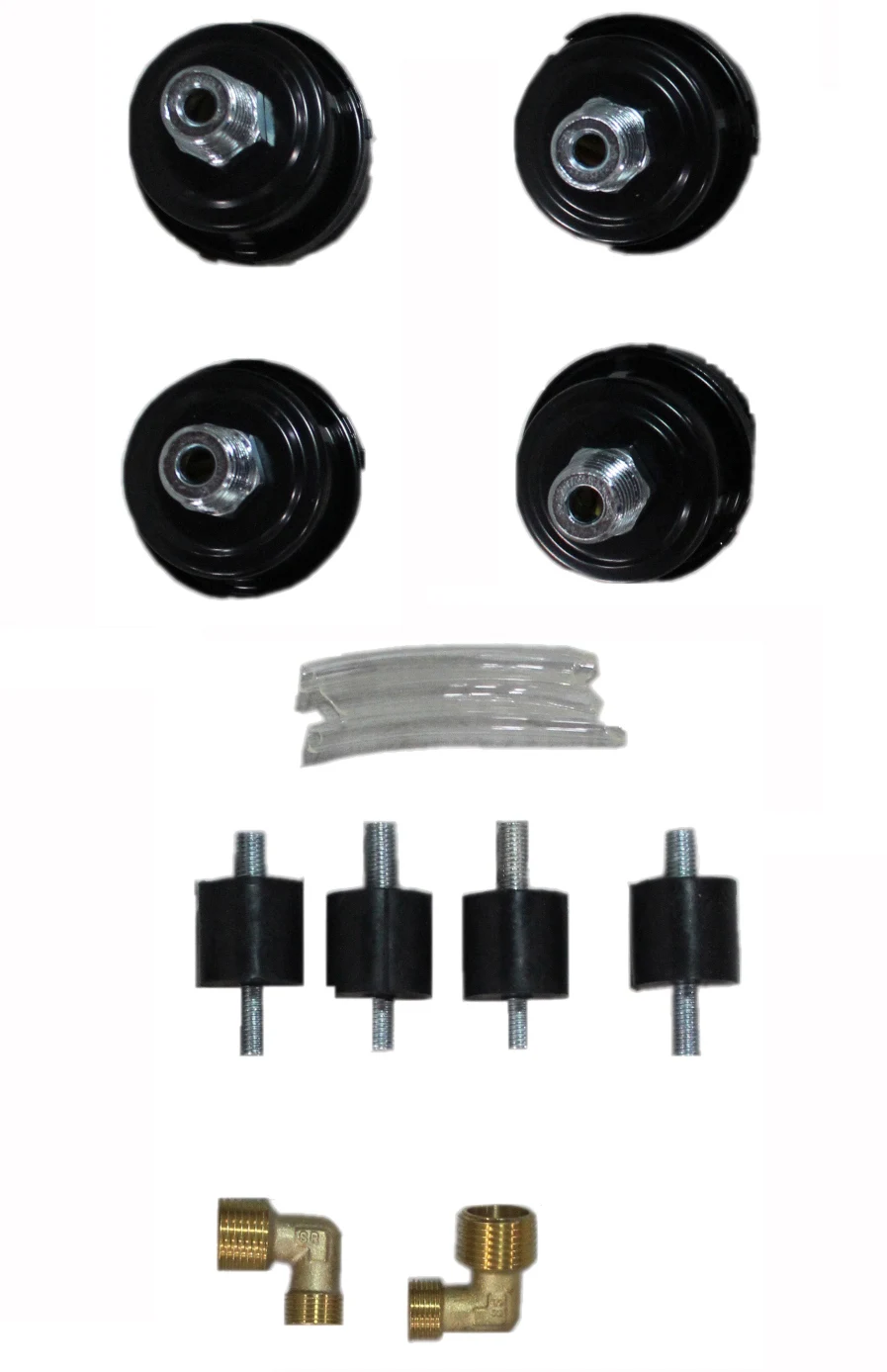

* Comes complete with:
(4) 2.0 Hp Air Filters
(4) 4″ Air Intake Tubes
(4) Shock Struts
* Installation Requirement: Unloader and/or Bleeder Valve Required
* 1 Year Limited Warranty
* ETL Certified
· 1-Year Limited Warranty

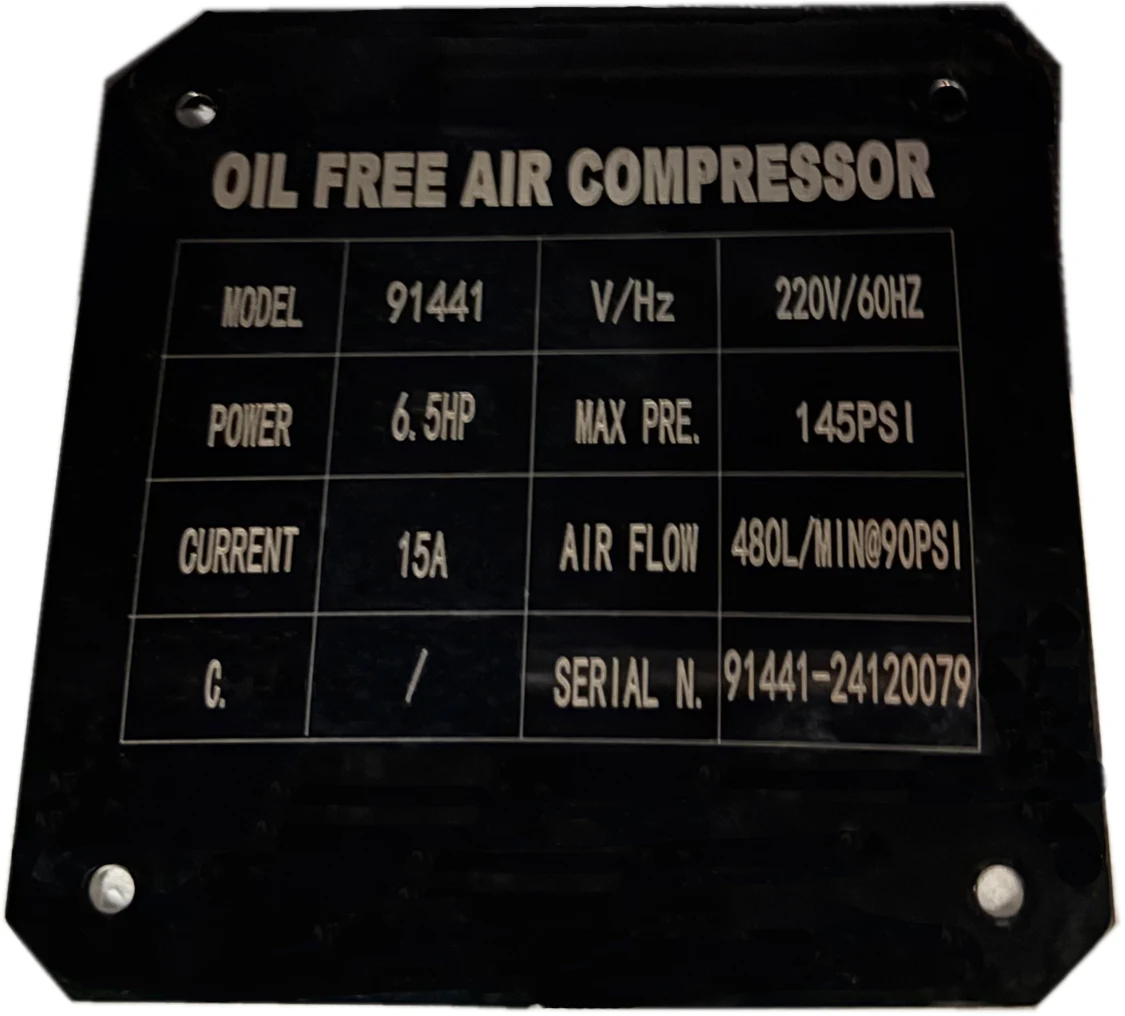

· Part Number 91441
*Regulated Output Pressure cannot be adjusted any higher than the default output pressure level of 90 PSI.
Direct supports California Air Tools Air compressor models: CAT-60065C.
OLF-3500 PERIODIC MAINTENANCE:

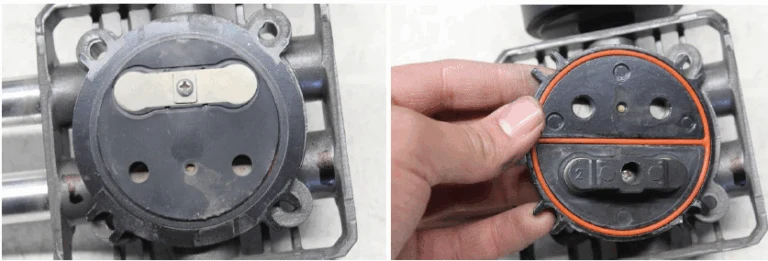

A. Service/replace piston seals every 2000 operating hours (see photo below). Replacement Piston Seal 4-Pack – Part Number 91457-4p (click here to purchase)
B. Replace air filters every 2 years or every year if compressor is exposed to a dirty or dusty environment. 4 air filters are attached to motor-pump. Part Number 90260.
NOTE: This is NOT an air compressor. This is a replacement motor-pump which can be installed into existing California Air Tools equipment or 3rd party compressor models (location holes may need to be adjusted on select models).
CAUTION: If installing onto a Non-California Air Tools air compressor or unique application you will need to have the electrical and mechanical knowledge for properly installing this motor-pump. It is important to properly configure an UNLOADER valve and CHECK VALVE with the motor pump (to correctly bleed pressure off of the pistons) otherwise damage to motor may occur.
